Характеристики
Recycling Background
At present, the number of waste automobile tires accumulated in the world has reached 3 billion, and this number is still increasing at a rate of 1 billion per year increase. Through the separation and crushing of tire opening equipment, various waste rubber products are pulverized into particles to realize the recycling and reuse of waste rubber, which not only can obtain objective benefits, but also reduce environmental pollution. The tire recycling line is a complete production line for a series of waste tire recycling operations such as cutting, crushing, magnetic separation, fine crushing, grinding, and rubber powder bagging.The output is therefore recycled for good use in new applications which are able to substitute virgin materials. The rubber is used in numerous applications.
Application of End Products of Tire Recycling Machine
1. 8-20 mesh: it can be used for runway, road cushion, pad, lawn, elastic layer of pavement, and other sports venues.
2. 30-40 mesh: it can be used for producing reclaimed rubber and slab, and modified rubber powder, etc.
3. 40-60 mesh: it is known as fine powder, mainly used for filling rubber products, and plastic modification, etc.
4. 60-80 mesh: it is known as superfine powder, mainly used for automobile tire, rubber products, and building materials, etc.
1. 8-20 mesh: it can be used for runway, road cushion, pad, lawn, elastic layer of pavement, and other sports venues.
2. 30-40 mesh: it can be used for producing reclaimed rubber and slab, and modified rubber powder, etc.
3. 40-60 mesh: it is known as fine powder, mainly used for filling rubber products, and plastic modification, etc.
4. 60-80 mesh: it is known as superfine powder, mainly used for automobile tire, rubber products, and building materials, etc.
Products Description
Continuous waste tyre recycling plant is equipped with auto feeding system & auto discharge system which in turn facilitates uninterrupted working of plant. Hence greater products yield can be obtained with minimum labor cost. This plant not only process 10-100 tons of waste tyre per day but can be also operated without any stop.
Technical Process

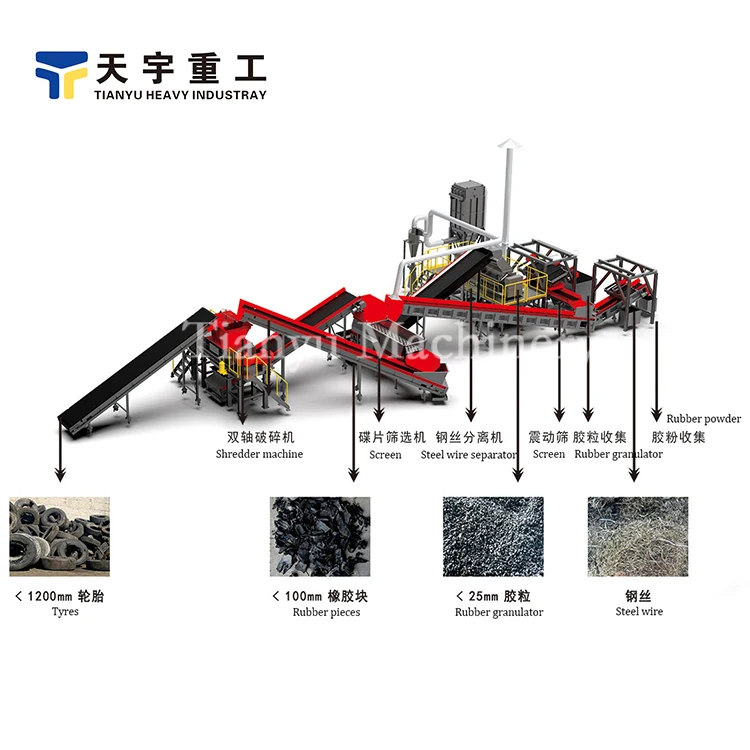

Full-auto tire recycling line is a complete production line for a series of waste tire recycling operations such as cutting, crushing, magnetic separation, fine crushing, grinding, and rubber powder bagging.
Technical Detail
ADVANTAGES
1. Complete automation of the ground rubber feeding.
2. Ability to grind to small sizes with high efficiency.
3. Self-cleaning buffer storage to load compounding line.
4. Ability to process sticky and soft rubbers.
5. Possibility to automatically align grinding capacity to extruder request.
1. Complete automation of the ground rubber feeding.
2. Ability to grind to small sizes with high efficiency.
3. Self-cleaning buffer storage to load compounding line.
4. Ability to process sticky and soft rubbers.
5. Possibility to automatically align grinding capacity to extruder request.
Technical Parameters
Case Requirements
Material: | Waste tires |
Input size: | Diameter of tires ≤Φ1200mm |
Output: | 40-60mesh |
Processing capacity: | Input: 1ton/hour; |
Operation: | Full Automatic |
Total Rated Power: | 366kw; Power consumption: 366*0.7=256kwh |
Workers needed | 2-3 workers |
Manufacturing time: | 40 Working days after receiving the deposit |
Installation Dimension
Name | Length | Width | Height |
Unit(m) | 45-50 | 8 | 6 |
Configuration
No. | Type | Name | Quantity (set) | Total Power((KW) |
1 | LSJ1200 | Steel wire drawing machine | 1 | 11 |
2 | CSJ500 | Belt conveyor | 4 | 1.5 |
3 | CSJ1300 | Belt conveyor | 1 | 3 |
4 | SSJ1200 | Double shaft shredder (rotary sieve) | 1 | 75*2 |
5 | CSJ1000 | Belt conveyor | 1 | 3 |
6 | LC1000 | Storage hopper | 1 | ------ |
7 | GS800 | Steel wire separator (DC53 blades) | 1 | 55 |
8 | FSJ800 | Rubber Granulator (DC53 blades) | 1 | 45 |
9 | CXJ300 | Magnetic separator | 2 | 0.75 |
10 | ZDS2500 | Vibrating screen | 2 | 0.75 |
11 | XWF1000 | Fiber separator | 1 | 9 |
12 | XFJ260 | Fine grinder | 3 | 22 |
13 | RDC1000 | Dust collector | 3 | 5.5 |
14 | Water cooling system | 1 | ||
15 | Electric control cabinet | 3 |
Customer Case
Technical Performance
Suitable for shredding materials, such as
Waste Tyre：Bicycle tyres, car tyres, train tyres.
Final product size can be customized.
FAQ
In order to better give you professional answers, when sending the inquiry, please describe your parameters or technical requirements (such as: processing materials, output size, capacity, etc.) and attach your contact information (such as phone number, e-mail, whatsapp, etc.)
1. How long is the product warranty period ?
A: the product warranty period is 24 months since shipping date.
2. I am a foreign customers, if the machine works wrong, how your company solved ?
A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.
3.Where can we buy the machine's parts?
A: Our company can provide machine`s parts for your any time.
4. Voltage in your country(price here based on 380v,50hz,3phase )?
A:220v/240v/380v/440v/480v or other customized available.
5.: Are you trading company or manufacturer?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
1. How long is the product warranty period ?
A: the product warranty period is 24 months since shipping date.
2. I am a foreign customers, if the machine works wrong, how your company solved ?
A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.
3.Where can we buy the machine's parts?
A: Our company can provide machine`s parts for your any time.
4. Voltage in your country(price here based on 380v,50hz,3phase )?
A:220v/240v/380v/440v/480v or other customized available.
5.: Are you trading company or manufacturer?
A: We are manufactory, and we can give you lower price than those trade companies. Besides, customers from Alibaba can get a discount.
