P-DLS-MT uters обмена Petrogas природного газа фильтрующего

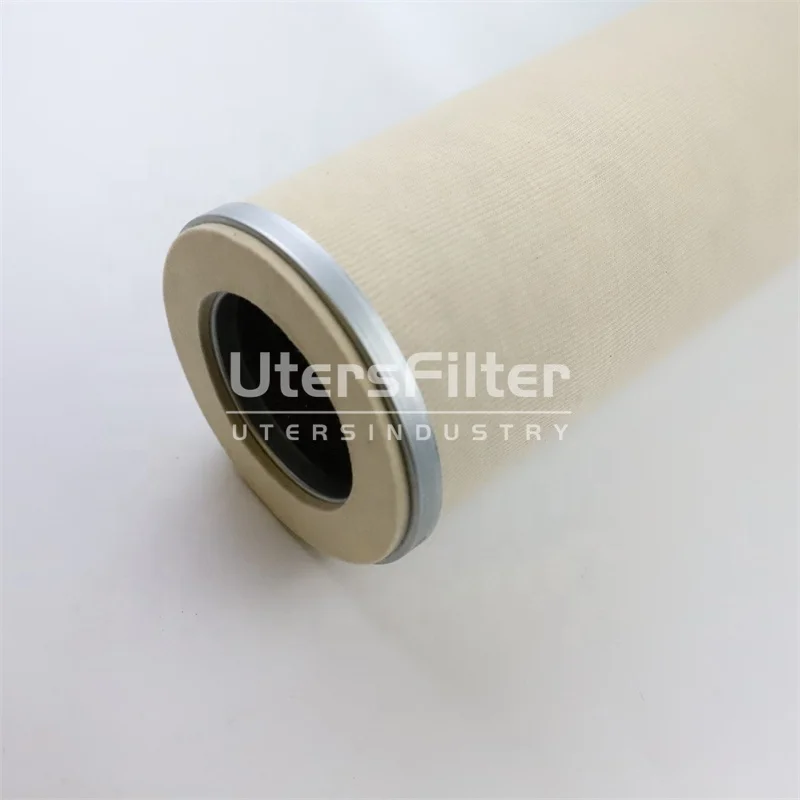

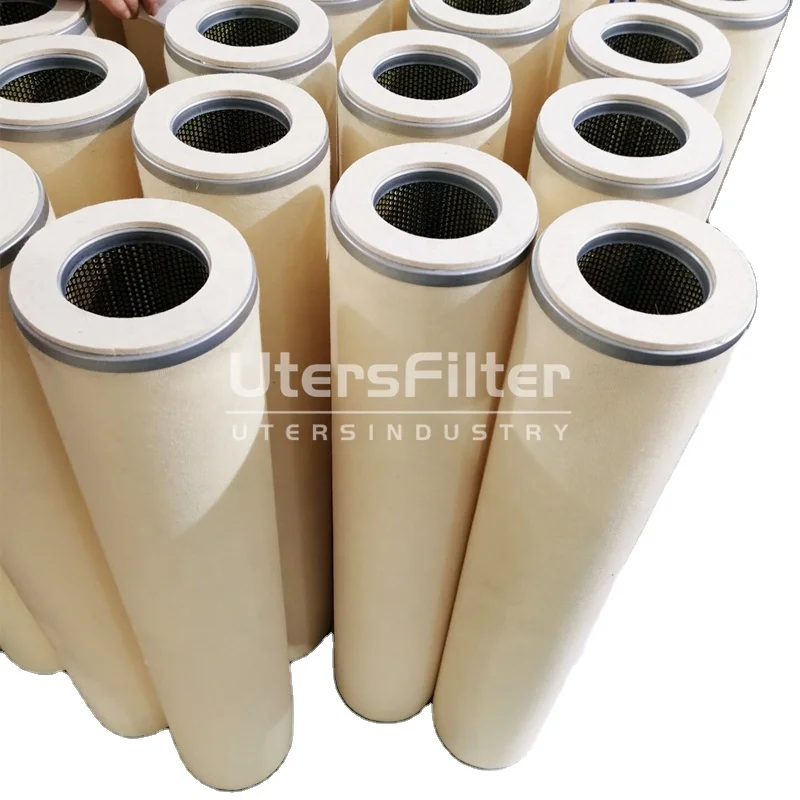

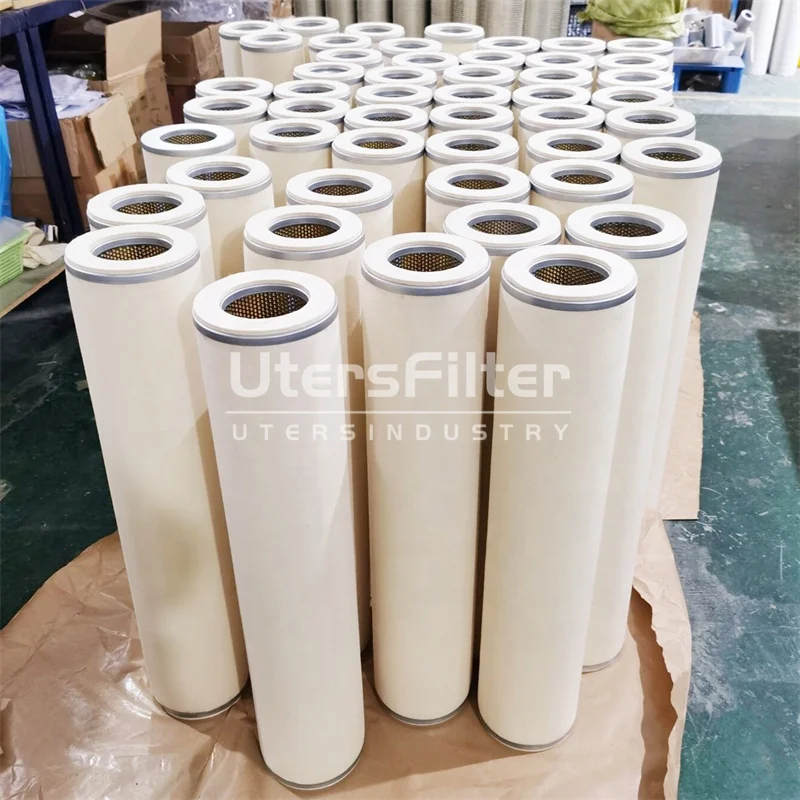

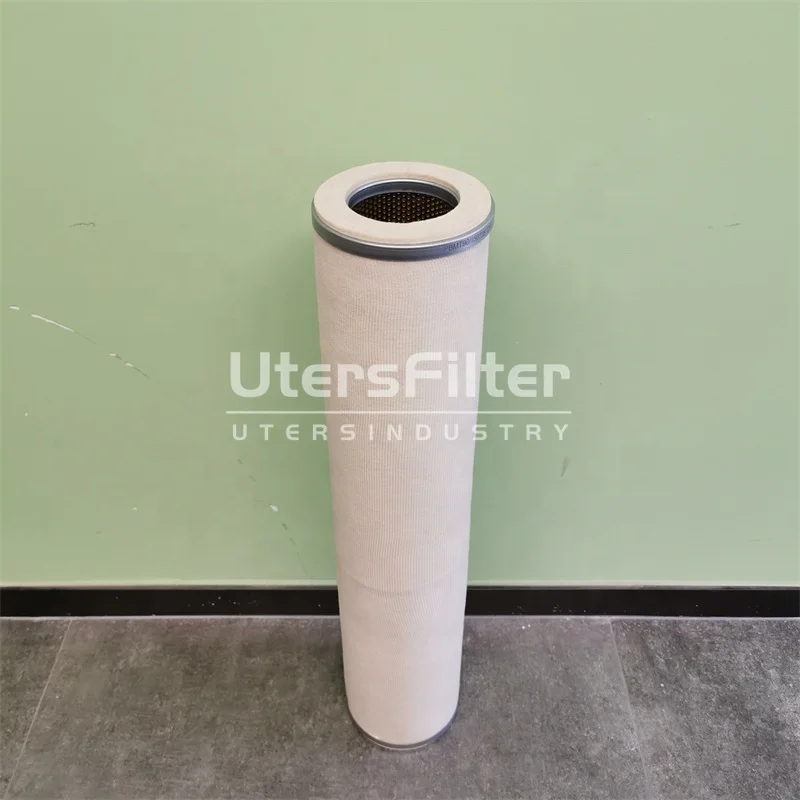

P-DLS-MT Uters interchange Petrogas natural gas coalescence filter element

The coalescence filter element is processed by a variety of composite materials through a special process. It has hydrophilic characteristics. It can not only filter out the mechanical impurities in the medium, but also remove the emulsified water from the medium through demulsification and coalescence. The filter element is separated and coalesced into larger water droplets to facilitate further purification of the medium.

Principle of filtration

The droplets of oil, water and other liquids are captured by the ultrafine fibers inside the coalescer. These micron-sized fibers form a tortuous channel for the airflow, forcing solid particles and liquid droplets to collide, diffuse and intercept directly, and intercept directly. Under the action of this filtering mechanism, it is captured by the ultrafine fibers, and the surface tension of the liquid causes the small droplets to coalesce into larger droplets. Due to gravity, the large droplets settle to the bottom of the container.

The glass fiber coalescing filter element is made of high-density gradient glass fiber. In order to reduce damage and loss, it is designed as an integral monolithic tube structure. The surface of the filter element is treated with hydrophobic and oleophobic treatment, which can meet the requirements of various precision levels.

Polyester fiber coalescence filter element The filter element is usually made of polyester fiber synthetic material, which has good compatibility with various fluids. The filter element is spirally rolled with a multi-layer structure, and each layer uses fibers with different properties. The expected filtration accuracy can be achieved by controlling the shape, size, thickness and density of each layer of fibers.

The coalescing filter element mainly uses surface-treated glass fiber or polyester fiber as the coalescing medium. The structure of the filter material is specially designed to make the filter medium have good coalescence performance. The filtration accuracy can reach 0.1μm.

Product advantages

The glass fiber coalescing filter element is a high-density gradient glass fiber, which efficiently coalesces liquid mist and droplets in the airflow, and has high filtration accuracy. The structure is stable, there is no media fiber shedding, and it will not cause pollution to the environment and downstream products. It has good compatibility with various fluids; good environmental protection, 100% synthetic material, completely burned without residue.

Product specifications

The outer diameter is 3.5 inches, 4.5 inches, 6 inches;

Length 16, 18, 20, 32, 36, 40, 72 inches

Filter frame material-stainless steel and carbon steel

Product performance

The accuracy range is less than 0.3 micron, 0.3 micron, 0.5 micron, 1 micron, 5 micron, 10 micron

Initial pressure difference ≤0.15psig

Replacement pressure difference <0.6psig

Operating temperature 0~150℃

Scope of application

1. Aviation fuel, gasoline, kerosene, diesel;

2. Liquefied petroleum gas, stone tar, benzene, toluene, xylene, cumene, polypropylene, etc.;

3. Turbine oil and other low viscosity hydraulic oil and lubricating oil;

4. Cycloethane, isopropanol, cycloethanol, cycloethyl ketone, etc.;

5. Other hydrocarbon compounds

Package & Shipment

Package: Plastic bag inside,Paper box outside.Usually we pack filter element by paper boxes.and use export standard wooden boxes or pallets for heavy goods.

Shipment: Express For Small Package,and also could offer Express lines service for Southeast Asian countries, Central Asian countries,Middle East countries; Air Shipment could ship goods above 45 kgs with faster time; Sea Shipment could ship goods with big volume or heavy total weight,with longer time; China-Europe freight train could ship goods to the countries and regions along the route, the destination is in Europe.and could offer door to door service!

(1) What 's the UTERS Serive?

Awesome & timely pre-sale service

Stable & reliable product quality

No delay production period and delivery time

Efficient & Economic transport plan

Guaranteed after-sale quality assurance system

12 months quality warranty after shipment

OEM and Customized design and production

(2) What's the OEM including?

Part no. OEM.

Brands OEM.

Package & labels OEM.

Size & Structure OEM.

(3) What's the Shipment Type?

DHL,UPS,FedEx,TNT and so on express door to door;by sea or by air shipment.

Some countries have special line double clearing to door service,such as some middle Eastern countries, Russia, Ukraine, Uzbekistan, Australia ,and Some Southeast Asian countries have tax package double clearing to door service.

(4) What's your replacements performance?

HuaQing filtration insisting on using good quality material and Mature production process,100% ensure installation and using.could replace to originals 99.99%.

(5) What's the filter material you using?

National fiber glass from CSG Design Institute; imported USA HV fiber glass.

National oil paper; imported South oil paper

Supurb stainless steel mesh; Special mesh

Imported air paper ;Polyester fiber;Polypropylene and etc.

(6) What's the MOQ?

Usually MOQ is 1pc only.

Some special model or OEM model MOQ is 5pcs or 20pcs.

(7) What's the payment method?

T/T,Western Union,Money Gram, Cash.Also you could pay on our Alibaba shop.

(8) What's the production time?

7-10 days after getting the payment

If quantity of order is big,will need more time.

(9) What's the package type?

Filter Element Unit Package Type: Plastic Bags Inside,Paper Boxes Outside.

Outside Package: Usually Paper Boxes,Or Export Wooden Boxes For Special Cargo.

About Customization: Accept Requirements Customization.

(10) Could I get some samples?

We are honored to offer you samples.we support OEM sample and test samples.

Invoice Certification & Certificate Of Origin requirements.

(11) We could assist you to prepare Invoice certification or CO:

General certificate of origin (CERTIFICATE OF ORIGIN) issued by the commodity inspection      agency.

CCPIT CEERTIFICATE OF ORIGIN issued by the Chamber of Commerce;

Certificate of Origin issued by us manufacturer or exporter..

RFG-536-CE-1

P-DLS-MT 90*150*735

P-DLS-MT 90*150*1100

P-DS-MT 170/230/800

P-DS-MT 220/280/500

PG-DF-8-300-457

P-DLS-MT 85/115/2743

P-DLS-MT 115x85x3382mm
