Керамическая UHF RFID антенна 0-5 5 дБи с индивидуальными разъемами низкомощный качественный пассивный считыватель модуль для бесплатного SDK &
- Категория: Other Access Control Products >>>
- Поставщик: Shenzhen,Invelion,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.54 $* | 0.94 $* |
| Aug-17-2025 | 0.91 $* | 0.8 $* |
| Jul-17-2025 | 0.73 $* | 0.55 $* |
| Jun-17-2025 | 0.22 $* | 0.2 $* |
| May-17-2025 | 0.94 $* | 0.32 $* |
| Apr-17-2025 | 0.16 $* | 0.14 $* |
| Mar-17-2025 | 0.18 $* | 0.40 $* |
| Feb-17-2025 | 0.8 $* | 0.92 $* |
| Jan-17-2025 | 0.12 $* | 0.81 $* |
Характеристики
0-5.5dbi ceramic UHF RFID antenna with Custom-Made Connectors low power quality passive reader module for free SDK&test taga
1,quality 0-5.5dbi circular Polarization small uhf rfid ceramic antenna
2,With 865-868mhz europe,902-928mhz american frequency3,Provide free tag test sample
|

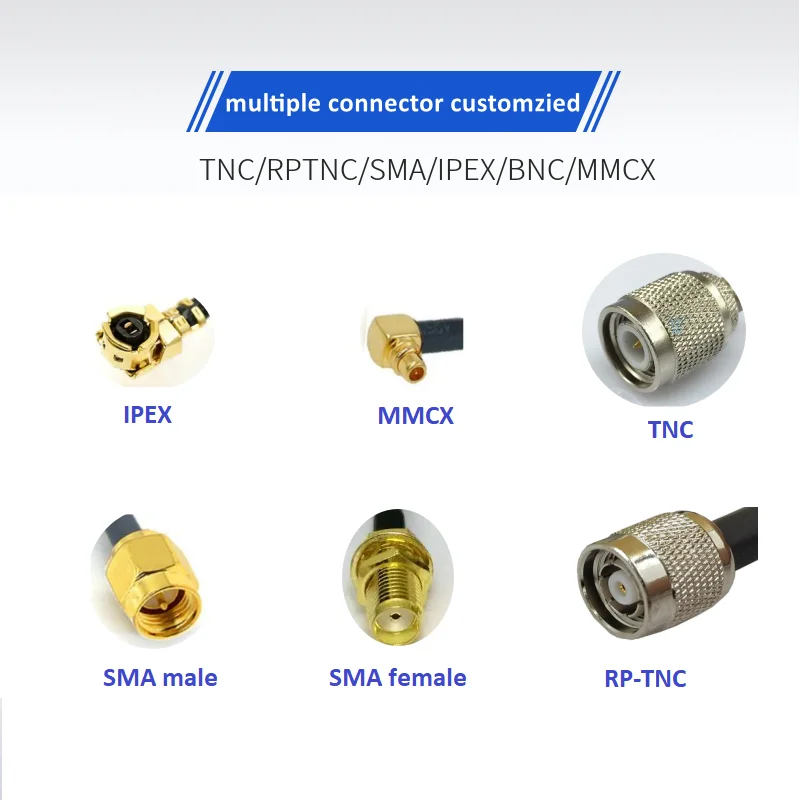

Note: The antenna can with sma or Ipex connector cable,so please remark which connector you need in your order, thanks your cooperation !
Product Description

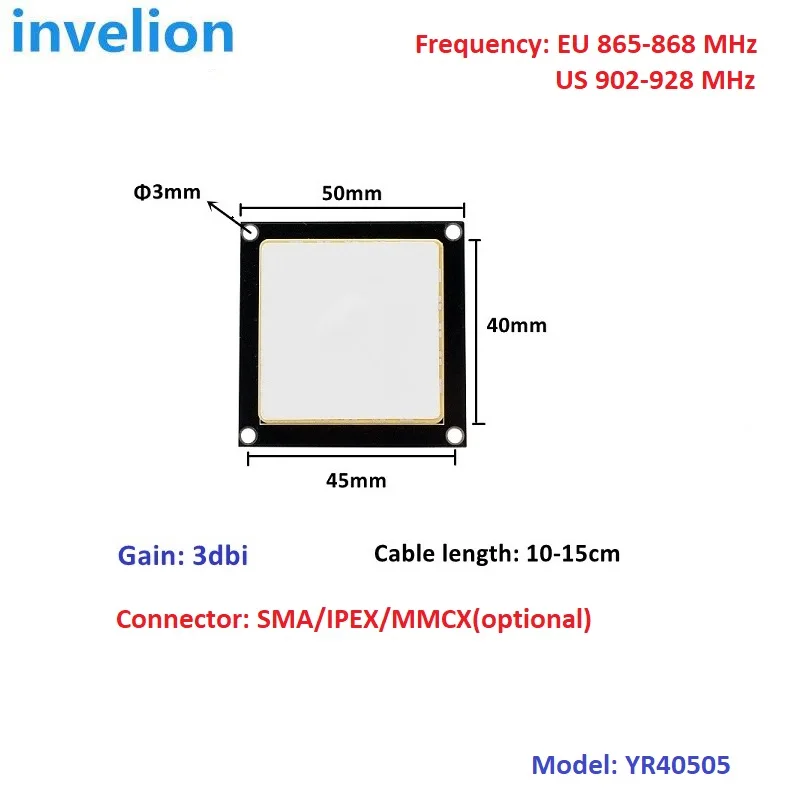

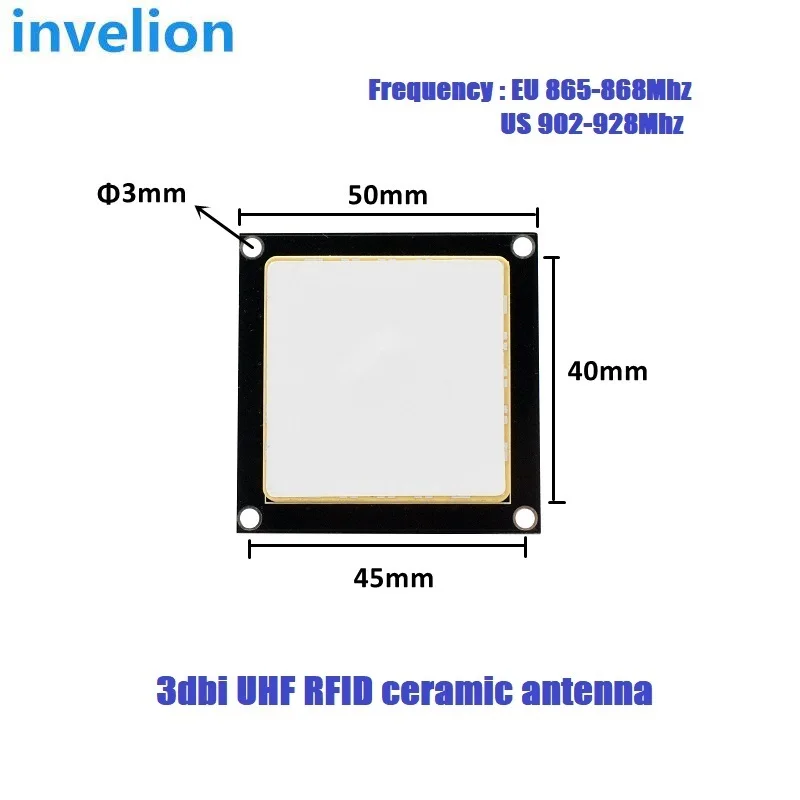

3dbi RIFD ceramic antenna parameter
Antenna model | YR40505 |
Gain | 3dbi |
Frequency | 865-868mhz(EU),902-928mhz(US) |
Band With@10dB | 15MHz MIN |
Impendence | 50Ω |
Lobe width | >16 |
V.S.W.R | <1.5 |
Axis ratio | <2 |
Feeder | Double point feeder |

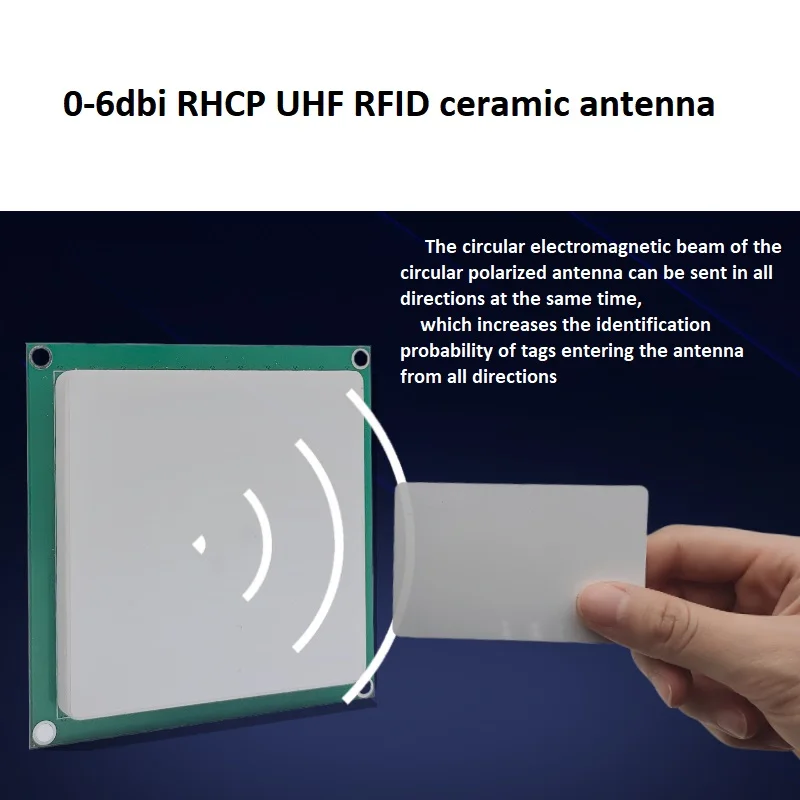

Polarization | Circular |
Antenna material | PCB + Ceramic |
RF Connector | SMA male(Default), |
Antenna size | 40*40*3mm |
PCB size | 50*50*0.8mm |
Working Temp | -40℃~+85℃, 10%~95% RH |
Storage Temp | -55℃~+100℃, 10%~95% RH |
Frequency Temperature Coefficient max | 20(ppm/deg.℃) |
Vibration | Sine sweep @1.5mmAM |

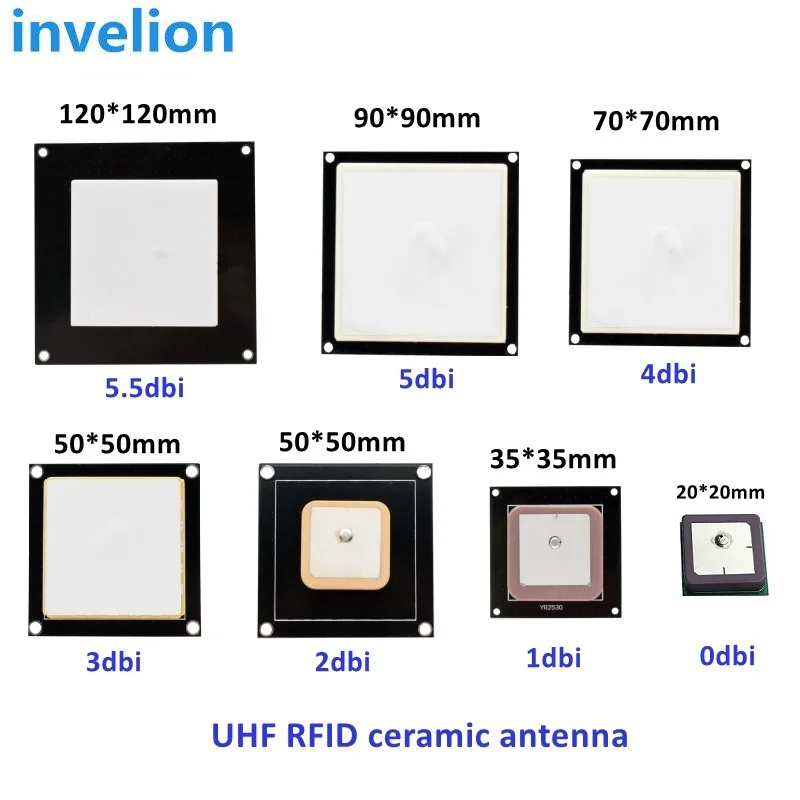

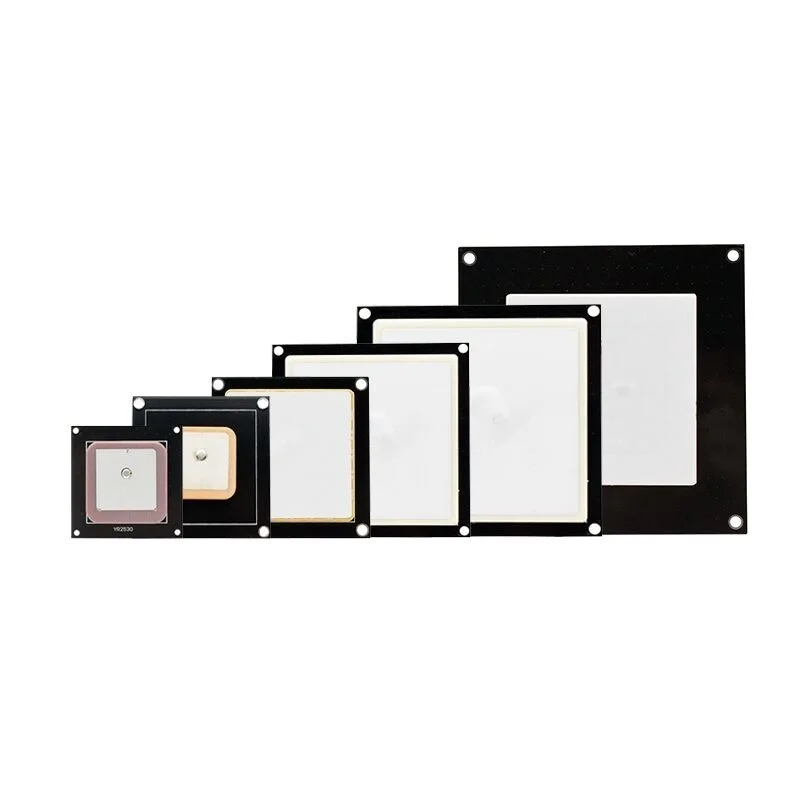

Other dimension RFID ceramic Antenna
