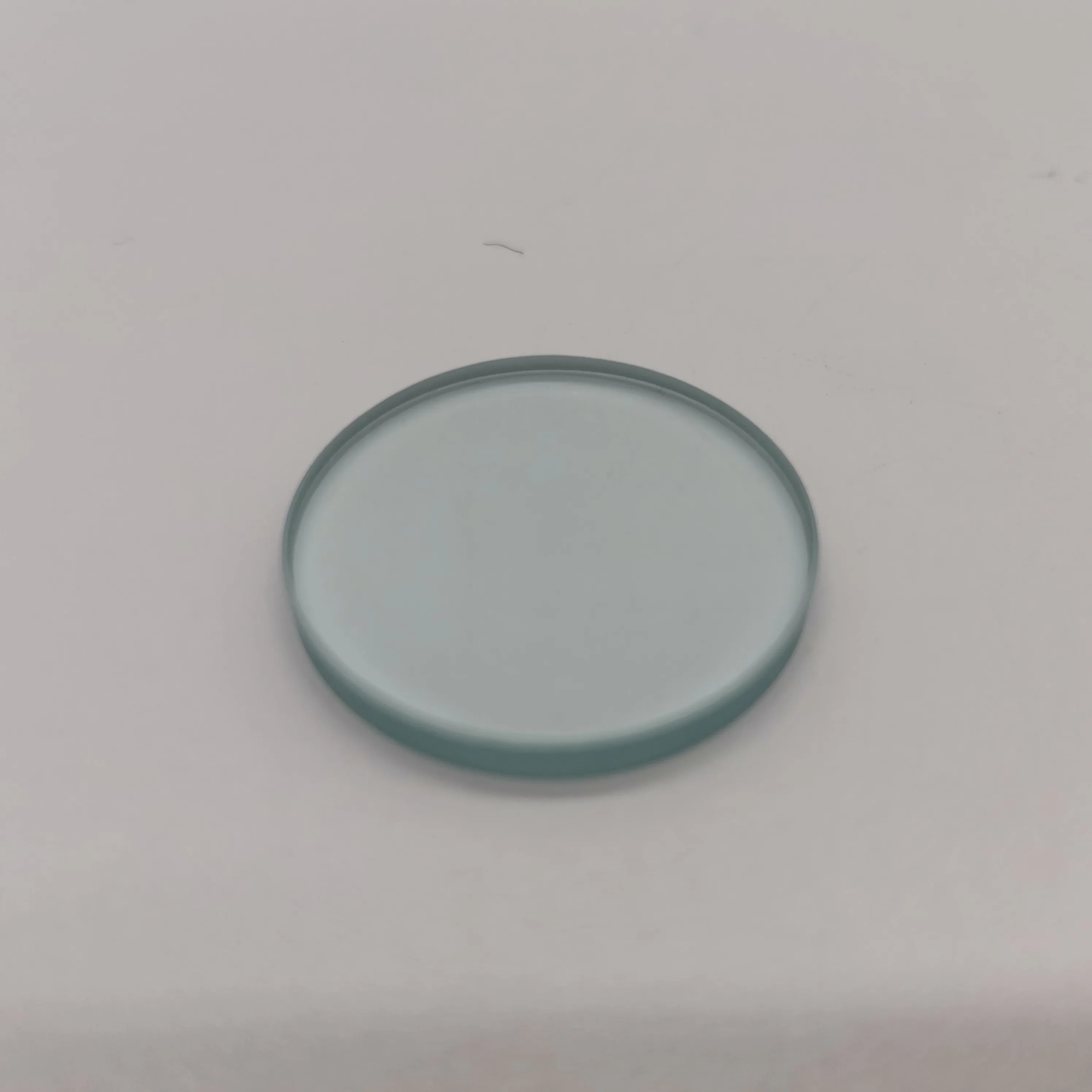

borosilicate glass disc

Borosilicate glass disc , borosilicate float glass, borosilicate sight glass

Borosilicate disc glass is one of transparent colorless glass, through wavelength is between 300 nm to 2500 nm, transmissivity is more than 90%. Coefficient of thermal expansion is 3.3. It can acid proof and alkali , the high temperature resistant is about 450°C. If course handling , the high temperature resistant can reach 550°C or so. Apply to lighting fixture , chemical industry , electron, high temperature equipment and so on.



Baode optical glass can produce 3.3 high borosilicate glass disc, with a good appearance, high temperature, resistance strong pressure, resistance acid and alkali, high transparency, After cutting, grinding, polishing, milling, Tempered and so on process to complete. We can produce  borosilicate glass sight glasses.. 1.7,2.0,3.0,3.3,4.0,5.0,6.0,8.0,10.0,12.0,15.0,20.0,25.0 mm thickness, etc.,
The dimension and thickness can according to the requirement.(Customization)



Application of borosilicate glass disc

Borosilicate glass 3.3 serves as a material of truly functional and wide applications:

1).  Household electrical appliance (panel for oven and fireplace, microwave tray etc.);

2).  Environmental engineering and chemical engineering (Lining layer of repellence, autoclave  of chemical reaction and safety spectacles);

3). Lighting (spotlight and protective glass for jumbo power of floodlight);

4). Power regeneration by solar energy (solar cell base plate);

5). Fine instruments (optical filter);

6). Semi-conductor technology (LCD disc, display glass);

7). Boiler, burner

8). Safety protection (bullet proof glass)



Borosilicate glass disc performance

 1).  Mechanical Performance    Density  ρ 2.23±0.02g/cm3

2).  Thermodynamic Performance

      Thermal expansion coefficient     (0-300) 3.3±0.1×10-6K-1

 Softening point    820±10°C

      Strain point  516±10        Caloricity (20-100)    0.82KJ × (kg×K)-1

      Thermal coefficient  1.2W×m×K-1

 3). Chemical Performance

      Water resistance          ISO719/DIN12111 HGB1/ISO720 HGA1

      Acid resistance   ISO1776/DIN12116 1

Alkali resistance          ISO695/DIN52322 A2

4). Optical Property

      Refractive index       Nd: 1.47384      Transmittance  spectrum curve

 5). Electrical Property

   Specific resistance lgρ              8.0Ω×cm at 250

   Dielectric dissipation fraction tan σ (1 megacycle at 20): 38×10-4

   Dielectric constant                    ε=4.7















Baode Optical  Mirror Co.,Ltd

www.bdgx.com
