Портативный мини ручной сварочный лазер 1000 Вт 1500 2000 3000 лазерный аппарат для нержавеющей стали
- Категория: >>>
- Поставщик: Beijing,Boao,Laser,Tech,Co.,Ltd.Beijing,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 477761.0 $* | 501649.15 $* |
| Aug-19-2025 | 473746.95 $* | 497433.69 $* |
| Jul-19-2025 | 397465.71 $* | 417338.55 $* |
| Jun-19-2025 | 465717.39 $* | 489003.95 $* |
| May-19-2025 | 405495.61 $* | 425770.49 $* |
| Apr-19-2025 | 457687.18 $* | 480571.29 $* |
| Mar-19-2025 | 453672.49 $* | 476356.81 $* |
| Feb-19-2025 | 449658.94 $* | 472141.30 $* |
| Jan-19-2025 | 445643.73 $* | 467925.60 $* |
Характеристики
Machines Introduction
Laser Application
Laser Welding
It can adopted 0.8-2.0mm Welding Rod during the welding application .
Laser Cutting
it can Cutting max 6-8mm Steel
Laser Cleaning
The Cleaning Size at 50*50mm Scope
Welding Capacity List | ||||
Laser Power | Laser Source / Laser Welding Head | Laser Melting PenetraionThickness Reference | ||
1000W Welding wire: 0.6-0.8mm | 1:CW FIBER LASER with Wobble Laser Welding Head . 2.Laser Spot Diameter Adjustable Scope: 0-4 mm 3.Welding Wires Feeding System With it . | Steel -3 mm , Welding Speed : 15-20mm/s Titanium Alloy-3mm ,Welding Speed :30-40mm/s Brass -2mm , Welding Speed:25-35mm/s AL-1.5mm , Welding Speed: 10-20mm/s | ||
1500W Welding wire: 1-1.2 mm | Steel -4mm , Welding Speed : 15-20mm/s Titanium Alloy-3mm, Welding Speed: 45-55mm/s Brass -2mm, 45-50mm/s AL -2mm , 25-35mm/s | |||
2000W Welding wire: 1.4-1.6 mm | Steel –5mm ,Welding Speed:25-30mm/s Titanium Alloy-4mm, Welding Speed :15-20mm/s Brass -2mm , Welding Speed:40-45mm/s AL -2mm , Welding Speed: 35-40mms | |||
3000W Welding wire: 1.4-2.0 mm | Steel –8mm ,Welding Speed: 30mm/s Titanium Alloy-6mm, Welding Speed :20mm/s Brass -4mm , Welding Speed:45mm/s AL -4mm , Welding Speed: 40mms | |||
INTRODUCTION –
This type BFW Series laser Welding Machine is special for the handheld laser welding application .It adopted CW TYPE fiber source
with laser energy feedback system and easy to operation .
All of our laser welding machines have more advantages as below :
1: Mechanical designing is more stable and flexible.
2. CE,ISO and FDA Certificates for it .
3. Equip self protection system and EMI technology make the machine working more stable during the working .Our each laser welding machine also equip laser energy feedback system to keep the laser power stable during the welding action .
4.Completed technical Team with 16 years Service experience
Suitable materials and application
Suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode , aluminum
alloy, laptop shell, mobile phone battery, door handle, Molds, electric apparatus fittings, filter, nozzle, stainless steel
products, golf head, zinc alloy artworks.
It can do Weld point, straight line, circle, square ,weld vertical track.
This type BFW Series laser Welding Machine is special for the handheld laser welding application .It adopted CW TYPE fiber source
with laser energy feedback system and easy to operation .
All of our laser welding machines have more advantages as below :
1: Mechanical designing is more stable and flexible.
2. CE,ISO and FDA Certificates for it .
3. Equip self protection system and EMI technology make the machine working more stable during the working .Our each laser welding machine also equip laser energy feedback system to keep the laser power stable during the welding action .
4.Completed technical Team with 16 years Service experience
Suitable materials and application
Suitable for welding of kettle, vacuum cup, stainless steel bowl, sensor, tungsten wire, high power diode , aluminum
alloy, laptop shell, mobile phone battery, door handle, Molds, electric apparatus fittings, filter, nozzle, stainless steel
products, golf head, zinc alloy artworks.
It can do Weld point, straight line, circle, square ,weld vertical track.
Technical Parameters
Model | BFW1000丨BFW 1500 丨BFW 2000 丨BFW 3000 |
Laser Wavelength | 1060nm |
Max laser power | BFW1000丨 1500W 丨 2000W 丨3000W |
Welding Thickness | 0.3-6.0mm |
Welding Speed | 0.7-2.0m/min |
Fiber | 50um，10m |
Modulation frequency | 20KHz |
Energy stability | <3% |
Cooling medium | Distilled water/Pure water |
Continuous working time | 24 hours |
Welding method | pulse，continuous |
Consumables | Protect lenses，Protect gas |
Spot diameter | 0-4mm |
Power | 4KW丨6KW 丨 8KW 丨10W |
Electrical Power Source | 220V/380V |
Environment requirements | Clean and dust-free; temperature: 13℃-28℃，humidity: 5%-75% |
LASER CLEANING SIZE | 50MM |

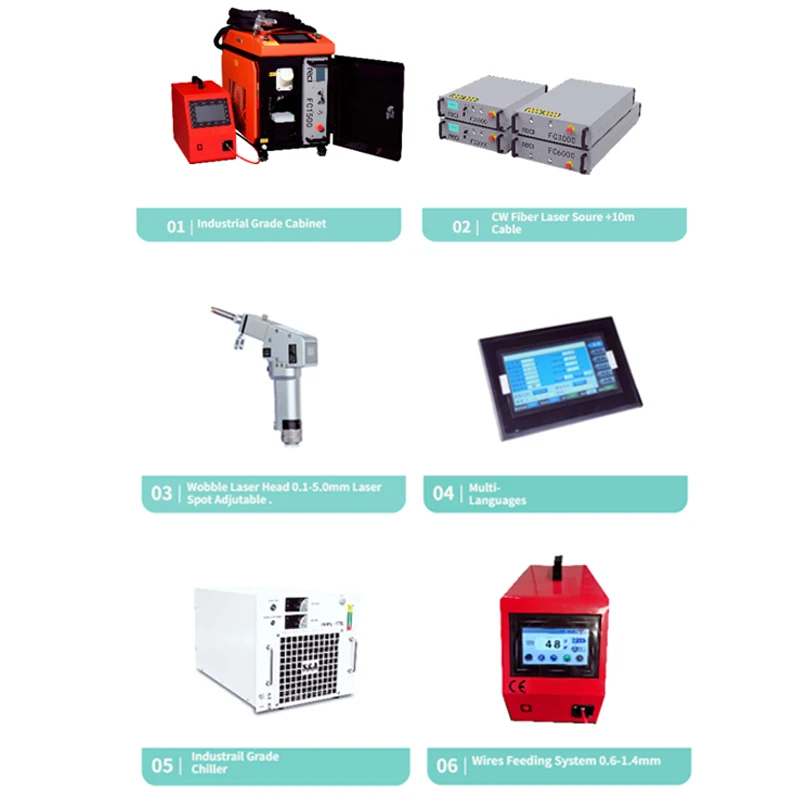

Main Parts
Advantages
BOAO laser Company
222
Company:
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) asthe high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines.
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) asthe high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines.
Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of
the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of
the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Certificates
Warranty and Service
Warranty (2 Year)
Terms and Conditions :
1. This warranty is provided only for product purchased from Beijing Boao Laser Technology Co.,Ltd directly or authorized dealer of Beijing Boao Laser Technology Co.,Ltd (hereinafter called Boao Laser).
2. Boao Laser warrants this machine to be free from manufacturer’s defects for a specified period.
3.Within the specified warranty period, Boao Laser will repair or replace non consumable parts(excluding cooled water, Cooling filter , cleanser and Largess such as tunable filters, protective glass etc.that are damaged under normal use (by judgement of Boao Laser) at no additional charge.
4. The warranty will not be covered under the following conditions:
. Out-of-warranty products.
.The product is modified without Boao Laser approval.
.Obvious attack of appearance whatever it is.
.The product is subjected to unusual physical or electrical stress, including physical damage, burnt
.Components and broken connectors.
.The serial number label is removed or altered.
5. The customer is responsible for returning the defective product at his own expense.
6. Your warranty period is calculated from the date of received this product.
Remark:
During the Warranty Periods ,The Consumer can send their engineer go to Boao Laser for training ,the
chargers is free(excluding air-fair, resident fair ). The consumer need our engineer go to their country or
company to training ,Boao Laser can assigned their engineer go to consumer country or company for
training , the consumer need take charge of the relevant fee for our engineer such as air-fair, resident fair
etc.( this Items can be discussed by two parts together )
Service Items :
1. We can resolve any problems for our laser machine within 48 hours . such as :you just let us know what kind of appearance happened from our machine then we can issue a complete resolving solution for you with photo and video .If the problems can not resolve and we will send our engineers or let our agent to resolve it for you.
2. During the warranty time ,we will free provide the spare parts for our laser machine.
3. We will provide the Training manual and video for our laser machine.
4. We will make the Technical Parameters settings special for your products and you just input parameters into our software then can process your products very well .
5. If possible, our company also free provide 2 days training for your engineers in our company.
6. We will provide detailed installation drawing(Electrical Diagram) and video for our customers once the machine has any problems.
