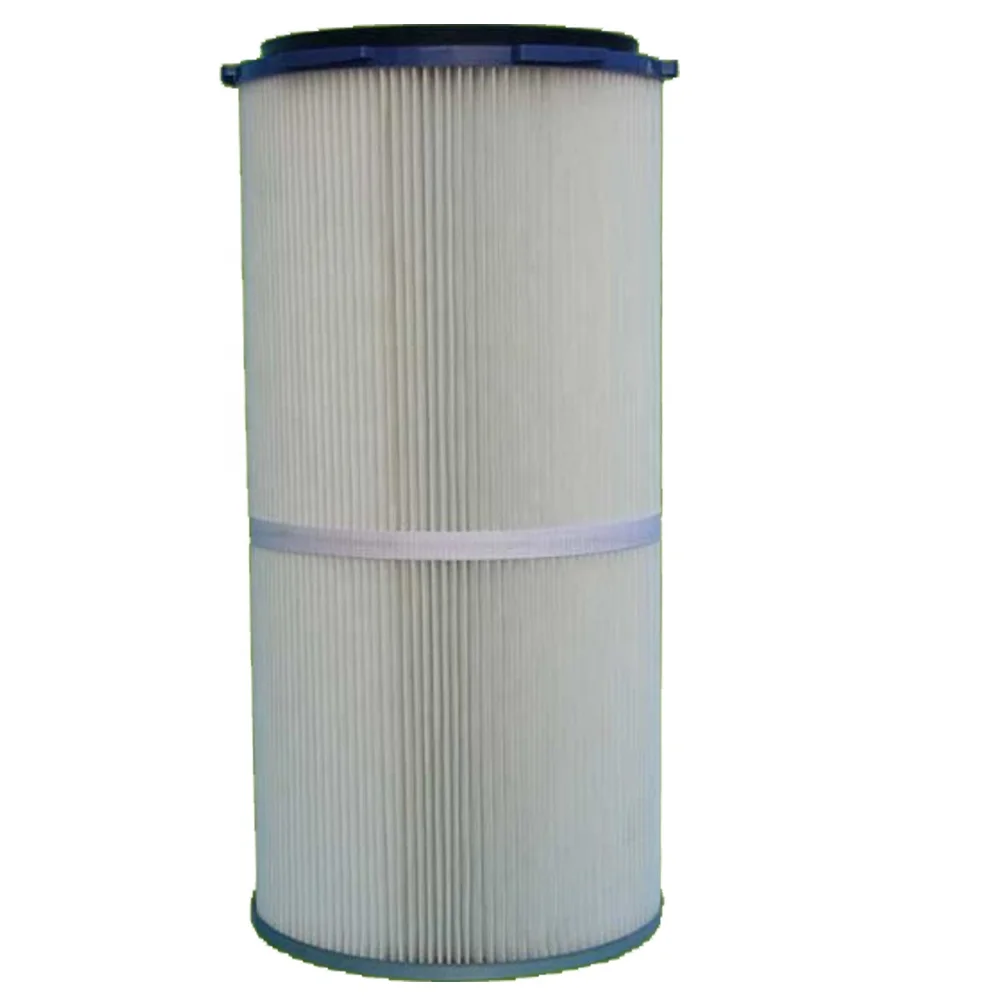

DFE ULTRA - WEB FR Cartridge FILTER P034303-016-436 P034303-016-142:

Feature:

(1)   Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.

(2) Spun bonded polyester with PTFE membrane, microspore Offers 99.99% filter efficiency.

(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.

(4) Excellent resistance to chemical erosion.

(5) Electrochemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

Specification:

Model	O.D	I.D	Length	Filtration surface(m2)
LE660*324	Φ325mm	Φ213mm	660mm	9.4m2
LE660*352	Φ352mm	Φ241mm	660mm	9.4m2
LE750*324	Φ324mm	Φ213mm	750mm	10.7m2
LE880*324	Φ324mm	Φ213mm	880mm	12.5m2
LE915*324	Φ324mm	Φ213mm	915mm	13.0m2

1. Base media: Spunbonded polyester
2. Operating efficiency: 99.9% on 1 micron
3. Washable: Several times
4. Maximum operating temperature: 200oF/93oC
5. Abrasion resistance: Excellent
6. Chemical tolerance: Excellent
7. Optional flame retardant media(FR): To order

Other composition:
1. Gasket: Neoprene rubber, good at absolute hermetic seal, improving the durability
and life.
2. Inside cage: Galvanized steel, to prevent corrosion.
3. Molded top: Available in a varitety of styles and sizes to fit a wide range of Tubesheet Holes.
4. Molded bottom: Helps resist abrasive wear at the bottom of the elements.

Applications:
1. Description: Excellent performance on moist, hygroscopic, or agglomerative dust.
2 Marktets: Thermal spray, welding, mining, chemical processing, metal buffing, pharmaceutical,cement, woodworking and etc.
3. Dust types: Fumed silica, metallic fume, metallurgical powders, and etc.
4. Available for collectors: SFF/XLC, SFFK, Torit DFT
5. Substitute: Donaldson, Nodic, BHA



OTHER RELEASE PART NO:

P191005 P191752 P030171 P030228 P191249 P030204 P190978 P190979
P191992 P191502 P191592 P191939 P030195 P191995 P146555 P146555
P534557 P191988 P191334 P191358 P191705 P191708 P191751 P191968
P030205 P030256 P030257 P191774 P030001 P191596 P191748 P125310
P030085 P030190 P030206 P030086 P030191 P030207 P191399 P191595
P191744 P191789 P030229 P030230 P030184 P030253 P030254
P190949 P191006 P191031 P191234 P191310 P030071 P191782 P190844
P190847 P195778 P030050 P030065 P030067 P030252 P190848 P191469
P030227 P190856 P191129 P030034 P030151 P030158 P030169 P030173
P030175 P030178 P191039 P191107 P191150 P191178 P191238 P191281
P191619 P191773 P191962 P199711 P030243 P030244 P030245 P030246
P777171 P778230 P030165 P030025 P030166 P030168 P030172 P030174
P030179 P030192 P191033 P191037 P191149 P191177 P191236 P191280 P191964 P030183
P191607 P191701 P191772 P191961 P199710 P191261 P191295 P191731 P191754 P191788 P191937
P191617 P191713 P191726 P191790 P191461 P191462 P191463 P191581
P191587 P191589 P191949 P191738 P030064 P030072 P191781 P030070 P191767 P157523

P142100 P142792 P142793 P142794 P142795 P142796 P142797 P142798
P142800 P142801 P142803 P142805 P142806 P142807 P142810 P142811
P142812 P145466 P145649 P145700 P145701 P145702 P145703 P145704
P145755 P145756 P145859 P148043 P148044 P148113 P148573 P148586
P148966 P148968 P148969 P148970 P150135 P150692 P150693 P150694 P030169 P030173
P150695 P151028 P151097 P151951 P153551 P154575 P154927 P157523 P030230
P158303 P158333 P158661 P158662 P158663 P158664 P158665 P158666 P191748 P125310
P158668 P158669 P158670 P191005 P191752 P030171 P030228 P191249 P030204 P190978 P190979
P191992 P191502 P191592 P191939 P030195 P191995P146555 P146555 P534557 P191988 P191334 P191358 P191705 P191708 P191751 P191968 P030205 P030256 P030257 P191774 P030001 P191596
P030085 P030190 P030206 P030086 P030191 P030207P191399 P191595 P191744 P191789 P030229
P190949 P191006 P191031 P191234 P191310 P030071 P191782 P190844 P190847 P195778 P030050 P030065 P030067 P030252 P190848 P191469 P030227 P190856 P191129 P030034 P030151 P030158
P030175 P030178 P191039 P191107 P191150 P191178 P191238 P191281
P191619 P191773 P191962 P199711 P030243 P030244 P030245 P030246 P777171 P778230 P030165P030025 P030166 P030168 P030172 P030174 P030179 P030192 P191033 P191037 P191149 P191177 P191236 P191280 P191607 P191701 P191772 P191961 P199710 P191261 P191295 P191731 P191754 P191788 P191937 P191964 P191738 P030064
P030183 P030184 P030253 P030254 P030072 P191781 P030070 P191767 P157523
P191617 P191713 P191726 P191790 P191461 P191462 P191463P191581 P191587 P191589 P191949
P031290-016-340 P034363-016-340 P033997-016-433 P034058-016-429
P034040-016-436 P033850-016-433 P191442-016 -340 P031475-016-340
P191828-016-340 P033113-016-340 P191868-016-340 P034156-016-436
P031823-016-002 P191551-016-340 P031581-016-002 P031621-016-002
P511339-016 -002 P511338-016-002 P033559-016-340 P511332-016-002
P031403-016-340 P033353-016-436 P033138-016-436 P191874-016-340
P191877-016-340 P033888-016-436 P032954-016 -340 P032947-016-340
P032952-016-340 P032953-016-340 P032950-016-340 P032951-016-340
P034227-016-436 P032949-016-436 P031387-016-340 P032948-016-436
P033112-016-436 P031411-016-340 P033427-016-436 P033108-016-436
P033204-016-436 P031345-016-340 P034312-016-340 P034670-016-436
P033998-016-433 P034125-016-436 P031412-016-340 P033993-016-436
P033348-016-436 P031287-016-340 P034238-016-431 P033978-016-340
P033652-016-436 P033426-016-436 P033651-016-436 P033647-016-436
P526592-016-340 P191151-016-340 P033735-016-340 P526591-016-340
P033739-016-340 P033980-016-436 P034041-016-436 P033346-016-436
P033341-016-431 P033100-016-436 P033908-016-436 P033999-016-340
P033349-016-340 P033577-016-436 P033876-016-436 P031577-016-002
P033994-016-436 P033740-016-340 P033836-016-436 P033347-016-436
P033114-016-436 P033118-016-436 P033355-016-436 P033104-016-436
P033943-016-436 P033946-016-436 P034411-016-436 P033759-016-431
P033976-016-002 P034396-016-436 P034355-016-436 P034369-016-340 P034206-016-436 P034220-016-340
P034318-016-436 P034332-016-436 P034225-016-436 P034299-016-436 P034157-016-436 P034198-016-436
P034060-016-340 P034076-016-436 P033842-016-340 P031294-016-340 P033643-016-436 P034366-016-340

P033337-016-436 P032750-016-002 P031848-016-002 P033887-016-436 P033584-016-340 P033195-016-429
P033849-016-340 P191870-016-340 P034668-016-436 P033928-016-436 P033183-016-340 P031592-016-002
P031298-016-340 P031340-016-340 P032367-016-002 P032398-016-002 P031236-016-340 P031332-016-340
P033146-016-436 P032801-016-340 P033137-016-340 P031336-016-340 P034064-016-436 P034281-016-436
P190896-016-340 P031410-016-340 P031349-016-340 P034046-016-340 P033182-016-340 P033087-016-436
P191827-016-340 P033184-016-340 P031380-016-002 P191865-016-340 P031474-016-340 P031286-016-340
P031470-016-340 P033843-016-340 P031234-016-340 P033198-016-436 P031328-016-340 P033101-016-340
P033096-016-340 P031233-016-340 P033929-016-340 P191860-016-340 P031372-016-002 P191859-016-340
P191845-016-340 P032565-016-340 P033197-016-436 P191825-016-340 P031350-016-340 P034219-016-340
P522963-016-340 P134186-016-340 P031685-016-340 P190931-016-340 P191197-016-340 P191512-016-340
P033924-016-433 P191145-016-340 P034080-016-436 P191625-016-340 P031851-016-436 P191115-016-340
P199411-016-340 P191116-016-340 P033023-016-340 P033840-016-340 P033615-016-436 P032232-016-436
P030592-016-340 P030685-016-340 P033086-016-436 P030590-016-340 P031568-016-340 P031791-016-436
P033931-016-433 P032403-016-340 P199609-016-433 P032221-016-433 P031585-016-431 P034077-016-436
P199612-016-429 P199418-016-433 P199476-016-426 P199415-016-429 P199419-016-431 P199611-016-431
P033477-016-436 P199413-016-431 P031424-016-436 P032355-016-436 P199474-016-436 P191920-016-436
P032931-016-436 P033334-016-436 P199475-016-436 P199610-016-436 P191889-016-436 P034662-016-340
P031716-016-340 P032731-016-340 P190901-016-340 P033063-016-340 P196121-016-429 P191139-016-429
P190914-016-340 P033298-016-340 P191804-016-433 P033085-016-436 P031653-016-431 P191065-016-426
