100% полиэфирное сырье для подъема, лямки и круглых лямок
US $0.27-$0.29
Лидер продаж 2021 Электрический самоходный гидравлический подъемник 6 м 8 10 12 14 16 столы
- Категория: Lifting, Pulling & Positioning >>>
- Поставщик: Shandong,Dingyuan,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.15 $* | 0.97 $* |
| Aug-17-2025 | 0.30 $* | 0.27 $* |
| Jul-17-2025 | 0.58 $* | 0.85 $* |
| Jun-17-2025 | 0.17 $* | 0.24 $* |
| May-17-2025 | 0.84 $* | 0.41 $* |
| Apr-17-2025 | 0.51 $* | 0.37 $* |
| Mar-17-2025 | 0.7 $* | 0.85 $* |
| Feb-17-2025 | 0.24 $* | 0.83 $* |
| Jan-17-2025 | 0.75 $* | 0.31 $* |
Характеристики

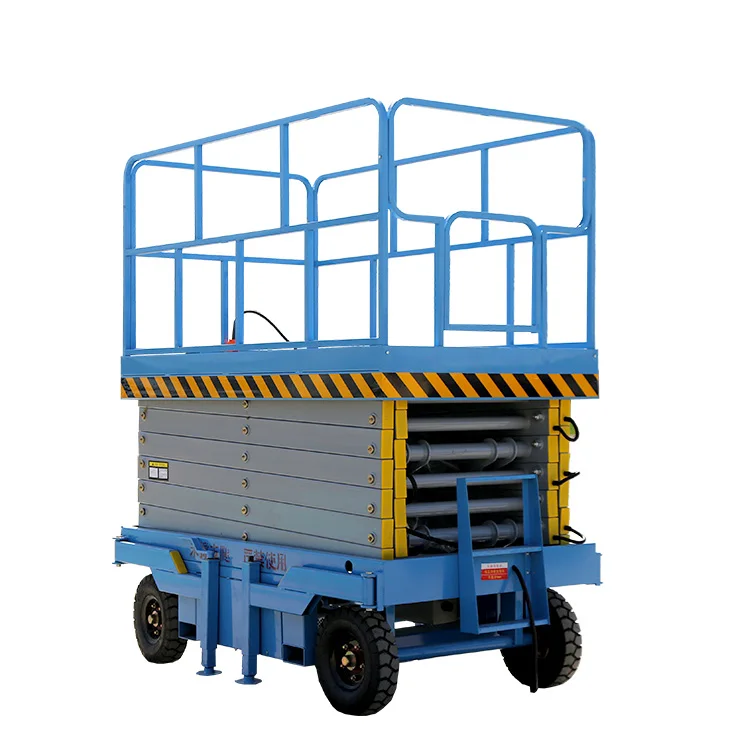

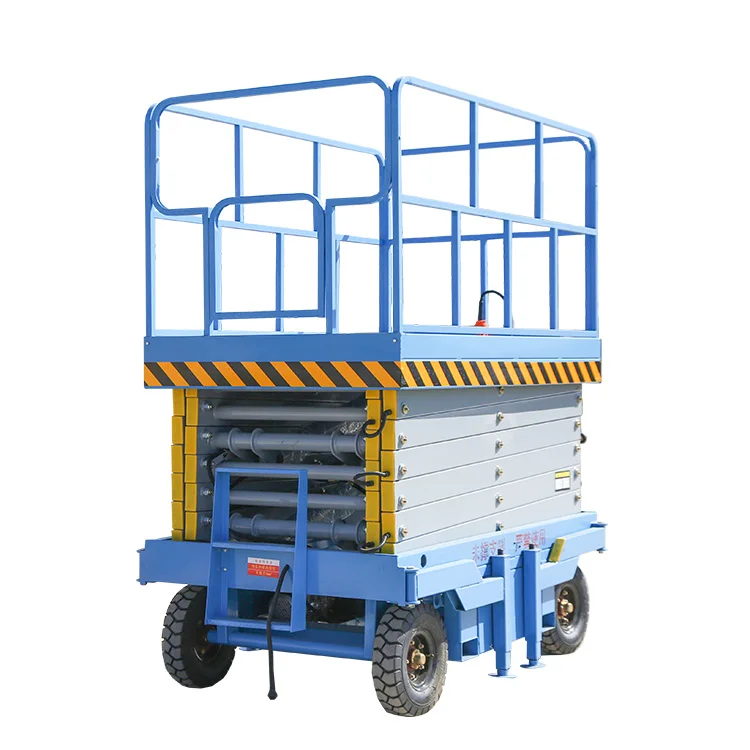

JDY GDJZD SERIES SCISSOR LIFT TABLE
Our Lift Table is designed off the feedback of numerous workshops around the country in need of a lift table that is smaller and not so high price point. With the small table, it's much easier to move around within the shop and much easier to find a storage location for it. What makes it unique? It's made to work on WALMARKET,BESTBUY and many other manufactures, making this table versatile for any job!
MAIN PARAMETERS:
MODEL NO | GTJZD-6 | GTJZD-6 |
MAX WORKING HEIGHT | 8.00m | 8.00m |
MAX HEIGHT OF PLATFORM | 6.00m | 6.00m |
RATED LOADING | 230kg | 320kg |
RATED LOADING OF EXPANDING TABLE | 113kg | 113kg |
SIZE OF WORKING TABLE | 2.26×0.81×1.13m | 2.26×1.13×1.1m |
OVERALL SIZE(UNFOLD) | 2.475×0.81×2.213m | 2.475×1.17×2.213m |
OVERALL SIZE (FOLD) | 2.475×0.81×1.763m | 2.475×1.17×1.763m |
LENGTH OF EXPANDING | 0.9m | 0.9m |
MIN GROUND CLEARANCE | 0.1/0.02m | 0.1/0.02m |
WHEELBASE | 1.92m | 1.92m |
MIN TURNING RADIUS | 3m | 3.1m |
RATED POWER OF DRIVING MOTOR | 2×24V/1.1kw | 2×24V/1.1kw |
RATED POWER OF RIDING MOTOR | 24V/2.0kw | 24V/2.0kw |
RISE SPEED | 3-5m/min | 3-5m/min |
MAX WALKING SPEED(UNWORK) | 4.0km/h | 4.0km/h |
MAX WALKING SPEED(WORKING) | 0km/h | 0km/h |
BATTERY CAPACITY | 4×6V/180ah | 4×6V/180ah |
RECHARGER | 24V/25A | 24V/25A |
MAX GRADE | 25% | 25% |
MAX GRADE OF WORKING | 1.5°/3° | 2°/3° |
WHEEL SIZE (DRIVING WHEEL) | Φ250×80mm | Φ250×80mm |
WHEEL SIZE | Φ300×100mm | Φ300×100mm |
MACHINE WEIGHT | 1750kg | 1960kg |
|
|
|
