 Single Phase static Round Watt-Hour Meter

   single phase electronic energy meter circle using the latest technology of manufacturing, with small size, light weight, long service life, used to measure the rated frequency of 60Hz, the reference voltage of 240V single-phase AC active electric energy, the use of dedicated large-scale integrated circuits, in order to ensure the accuracy and reliability of measurement using LCD display power consumption, table covers the use of flame-retardant Polycarbosilane production, phenolic base using high-quality plastic mold making, with double insulation, IP54 protection against dust, water etc. .

The design of the power meter to meet the broad needs of the market, it is a breakthrough in measurement technology changes and improves the efficiency of the energy meter, and has Anti-Electric Larceny infrared communications, low power consumption characteristics, the user can, through infrared light electric energy meter communication port for setting parameters or download the recorded data, with the former compared to the Electrical Energy Meter with more advantages.

the products comply with ANSIC12.10 and IEC62053-21, IEC 62052-11 standards of the relevant provisions of 1.0 Energy Measurement requirements



Specification

Ø Frequency Leading: 60Hz

Ø Operating temperature range: - 25℃~60℃

Ø Storing temperature range: - 30℃~80℃

Ø Electric current return route power loss: <0.3VA

Ø Voltage return route power loss: <0.8W/3.5VA

Ø Insulation strength: 4kV 50Hz 1 minute

Ø Striking potential: 6kV 1.2/50us

Ø Short-circuit current: 30Imax

Ø Pulse experiment: 4kV (IEC801 4)

Ø Weight: 0.9kg

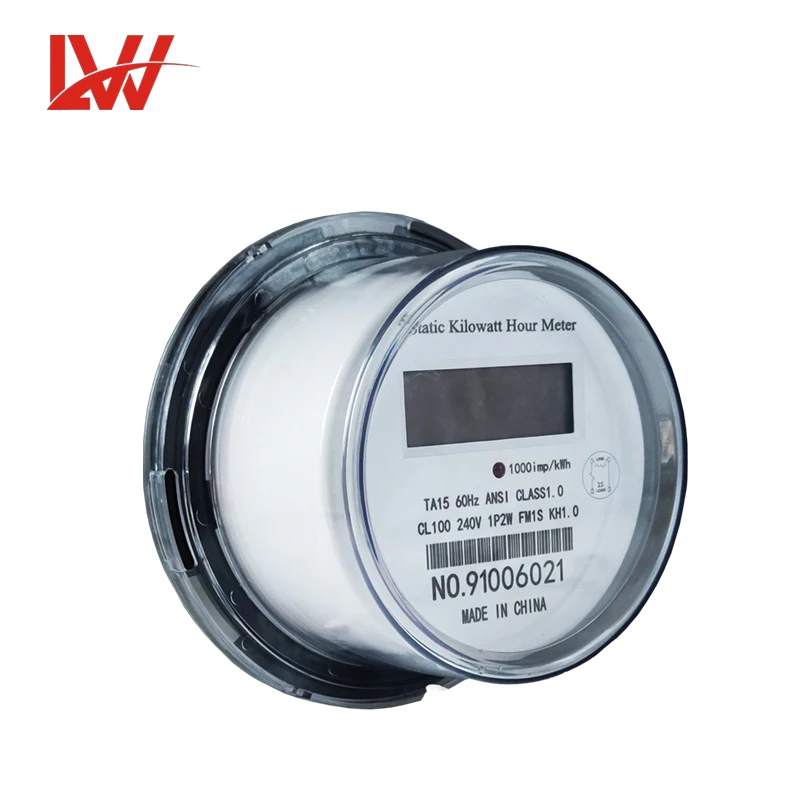

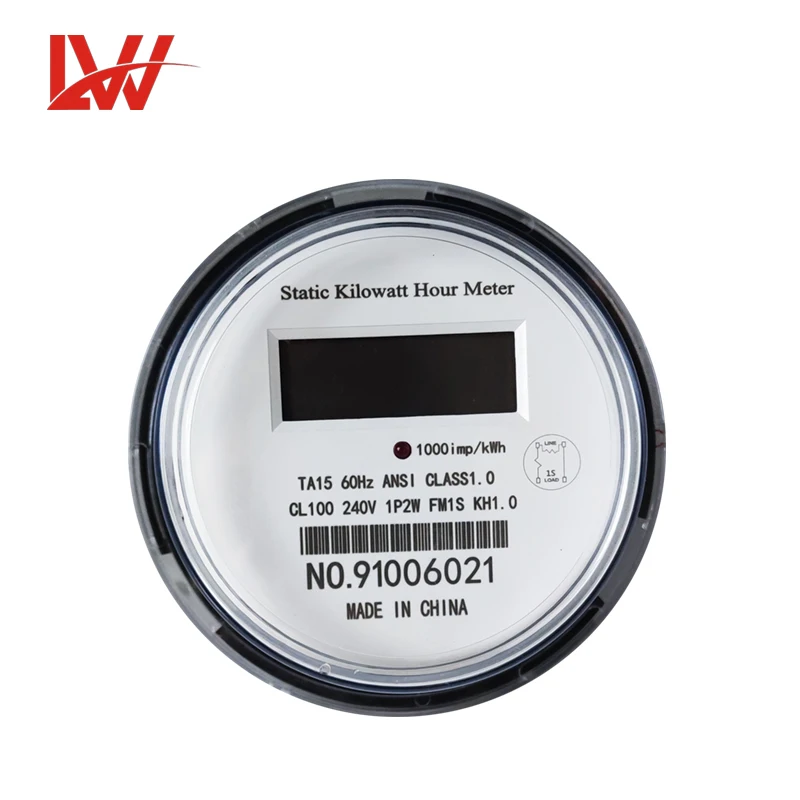

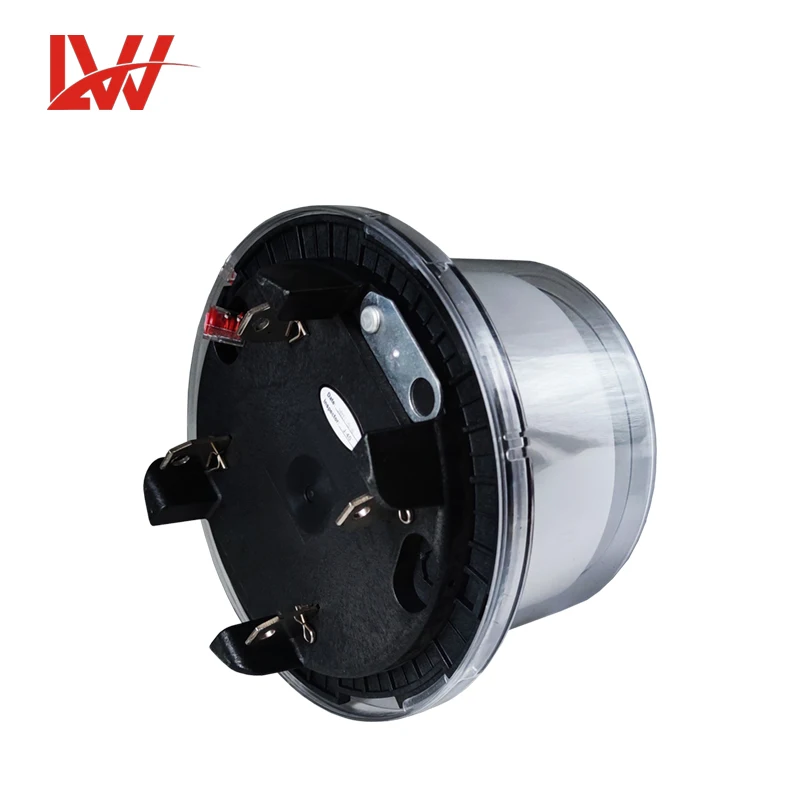

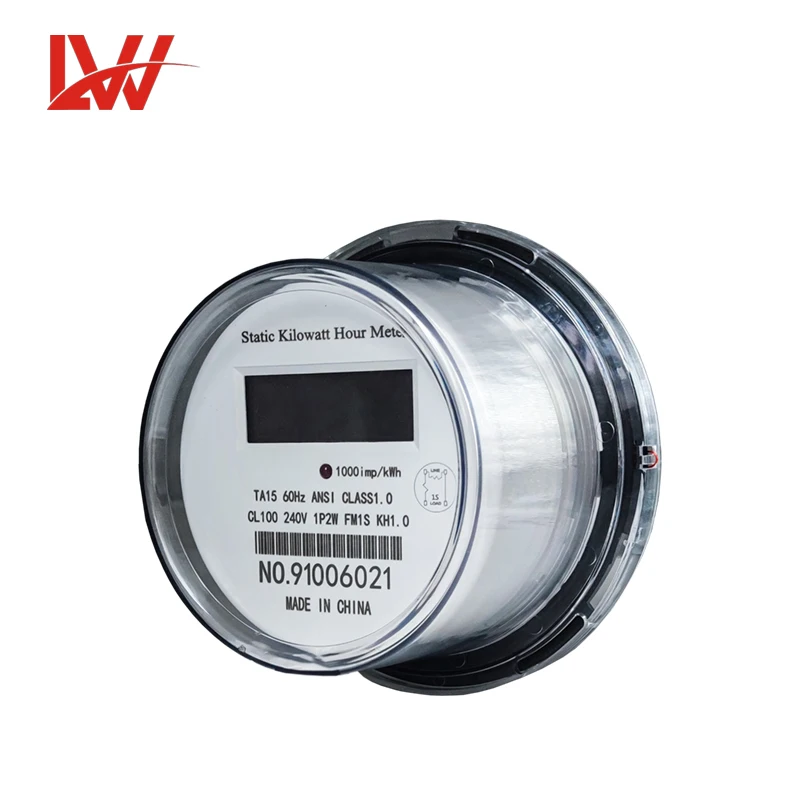

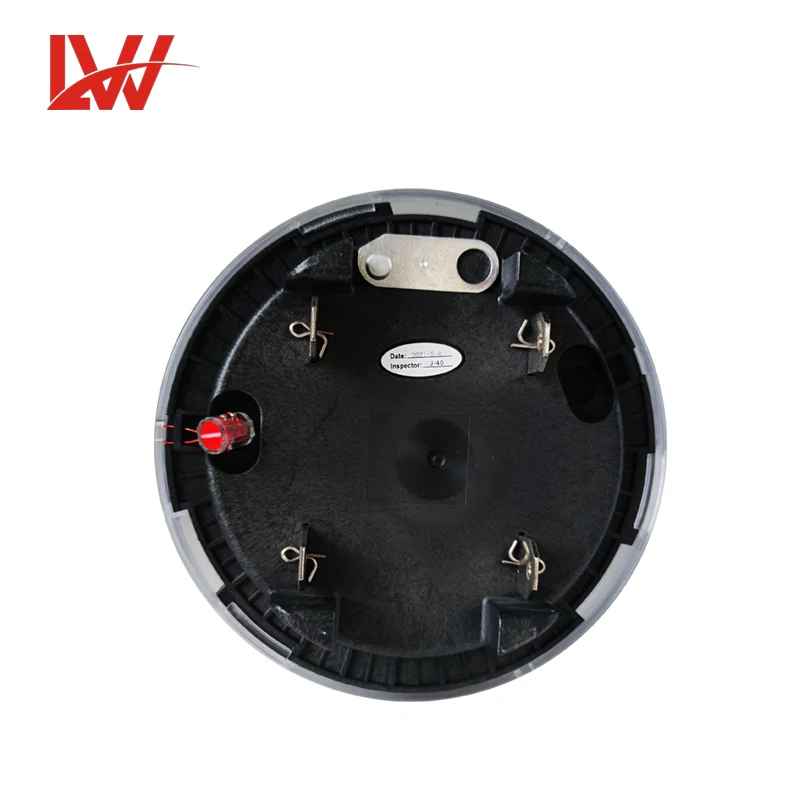

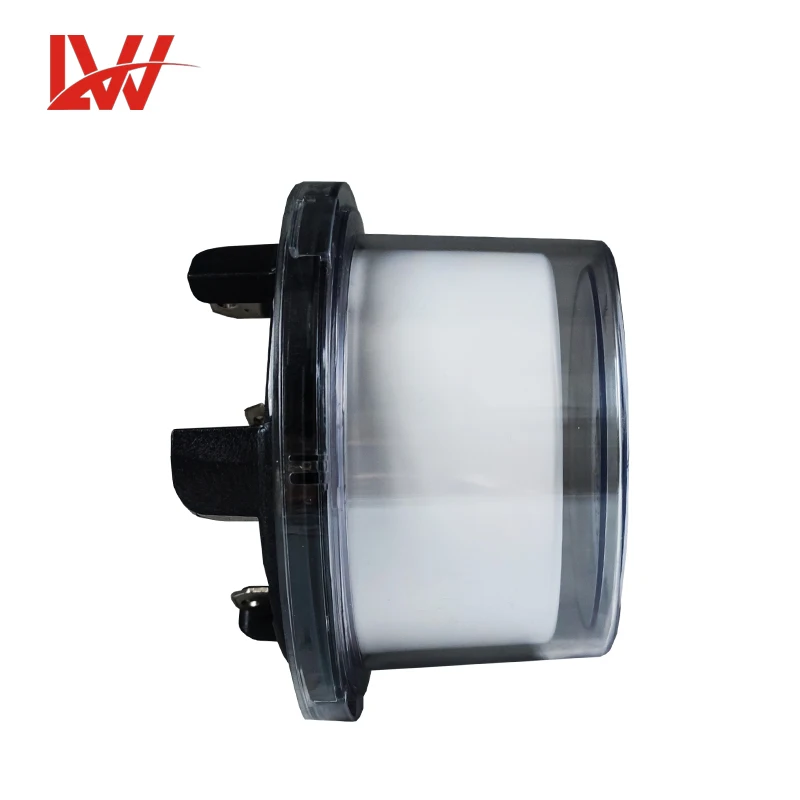

 Product Display
