Высокочастотный высоковольтный биполярный импульсный источник питания серии с

No

Item

Data

1

Product  type

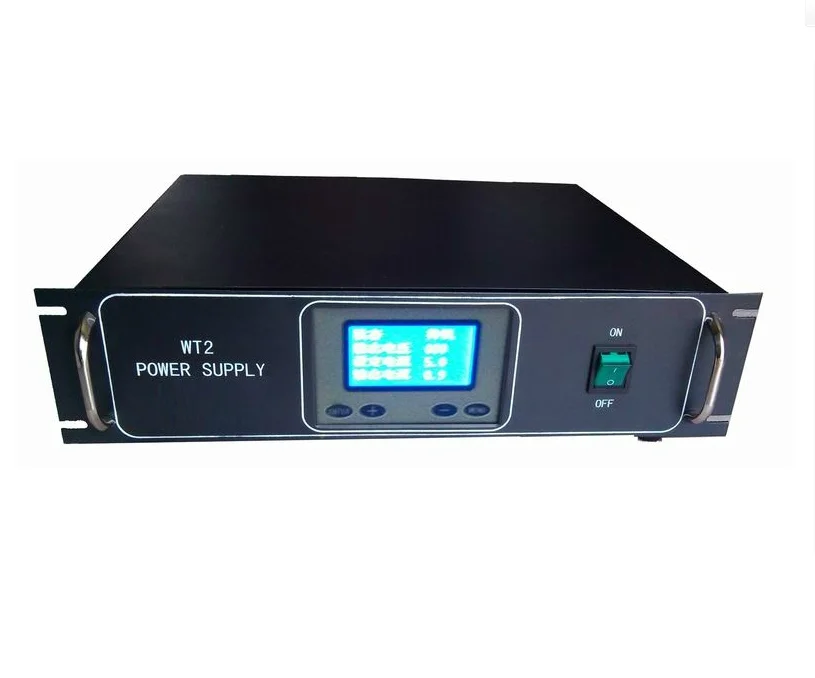

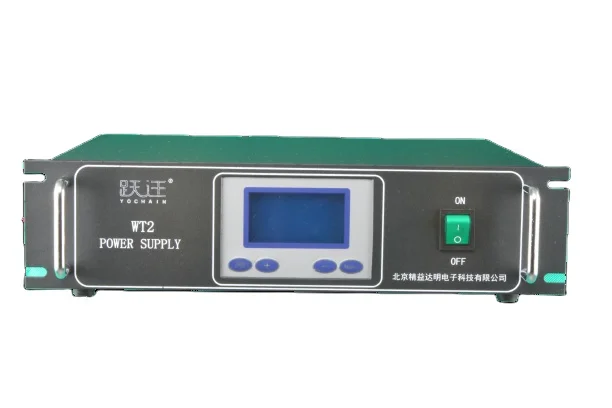

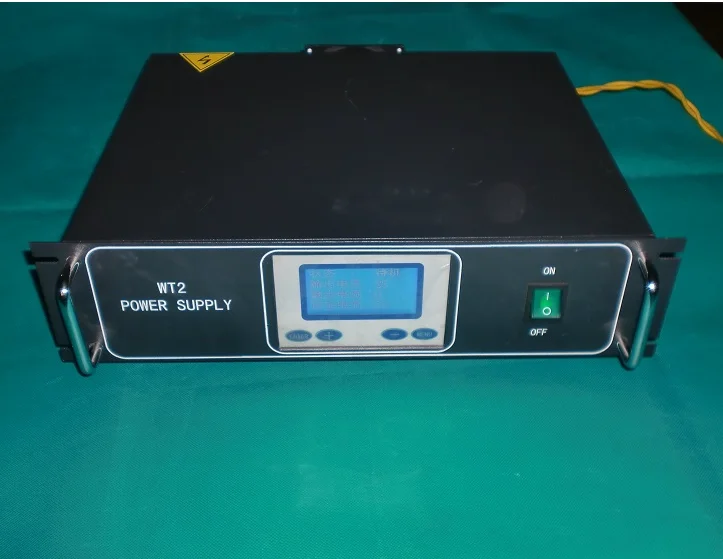

WT2 high frequency high voltage bipolar pulse power

2

Product model

WT2

3

Input voltage

AC220V±10%

4

Output power

1000W

5

Output current

1A ~ 20mA (series parameters)

6

Output voltage

1kV ~ 50kV (series parameters)

7

Output frequency

 20KHZ-50KHZ (adjustable)

8

Output wave form and mode

Quasi sine wave

9

Adjustment accuracy

≤1%

10

Efficiency

≥90%

11

Energy storage capacitance:

cosΦ≥0.9

12

Display mode

En +Cn

13

Ambient temperature

-35～+45℃

14

Ambient humidity

≤85%

15

Cooling mode

Air cooling

16

Overall dimension

400*95*370（mm ）

17

Installation dimension

18

Applicable fields

It is used in DBD discharge experiment, sewage treatment, atmospheric treatment, disinfection and sterilization, plasma generator and other occasions requiring high-frequency and high-voltage pulse signals

19

Product features

Flexible adjustment, pulse frequency, pulse current, pulse voltage and other parameters can be adjusted Small volume, light weight, simple structure, simple operation, stability and reliability The circuit adopts modular design, which is convenient for
debugging and maintenance. The protection design of the circuit enables the power supply to work in various complex environments.The prompt function in Chinese and English makes the problem clear and accurate
