Description:

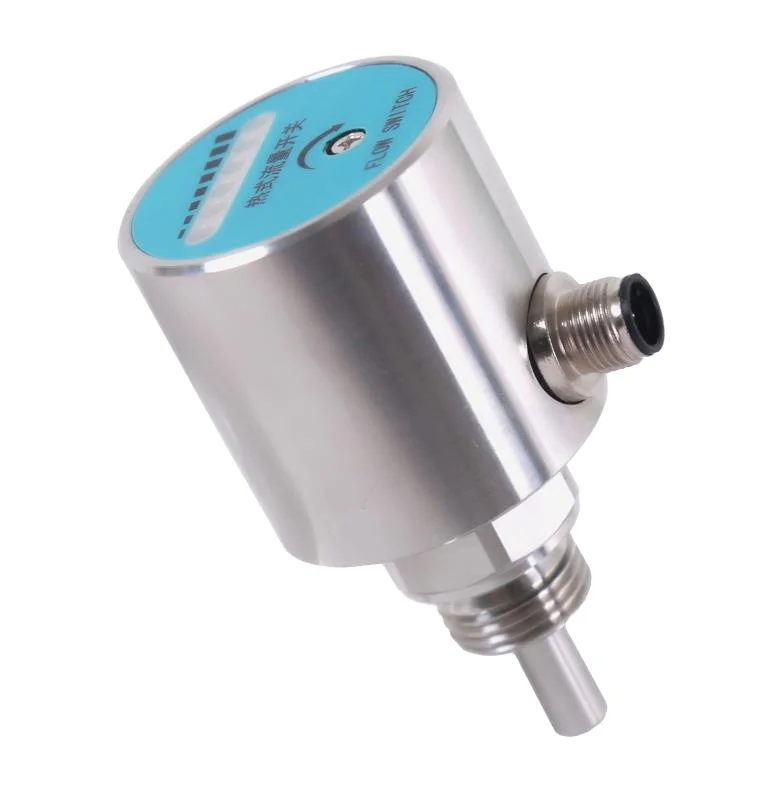

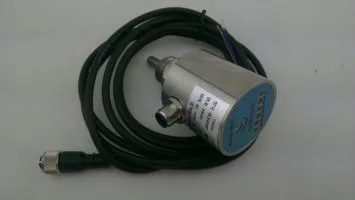

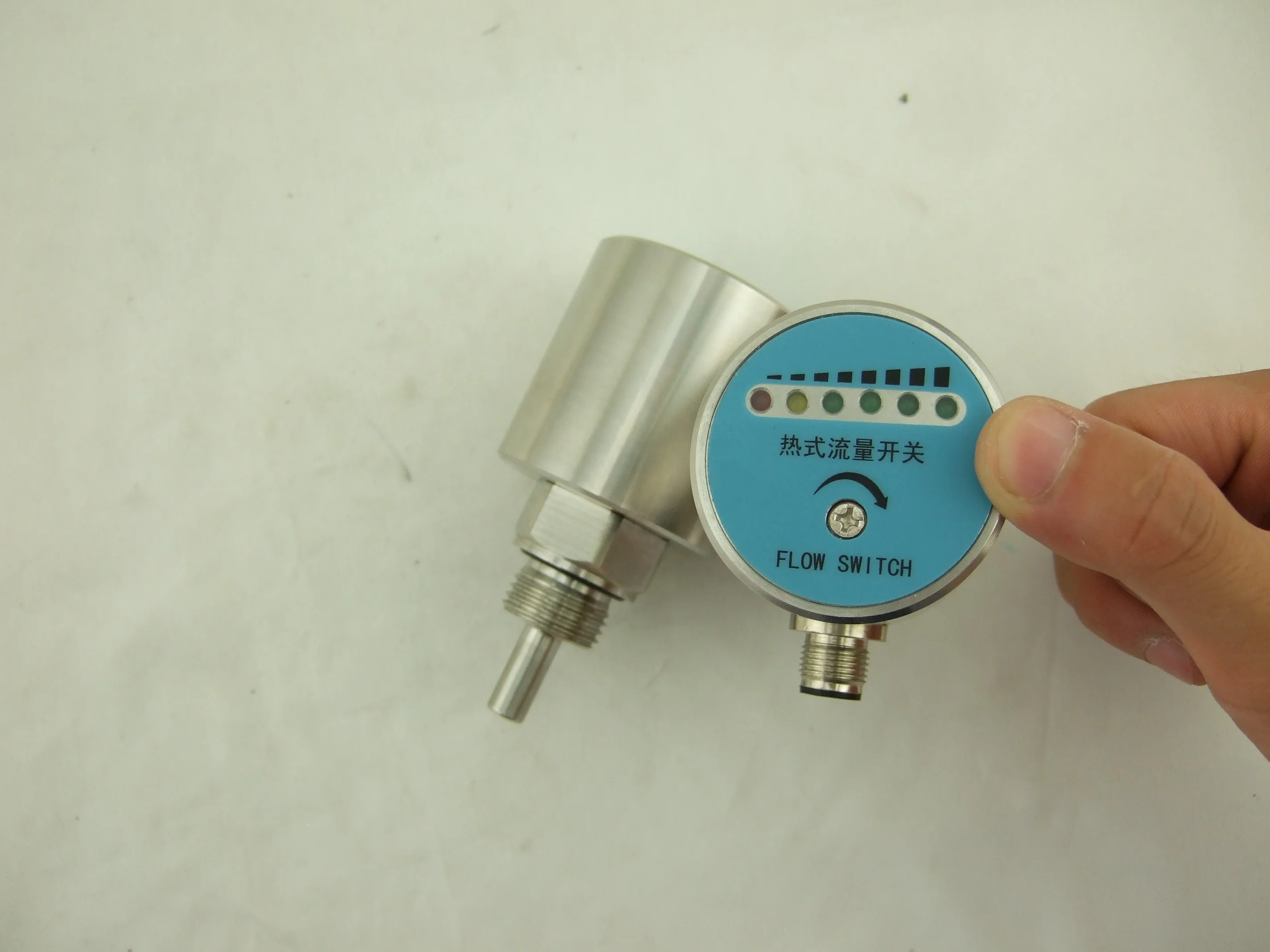

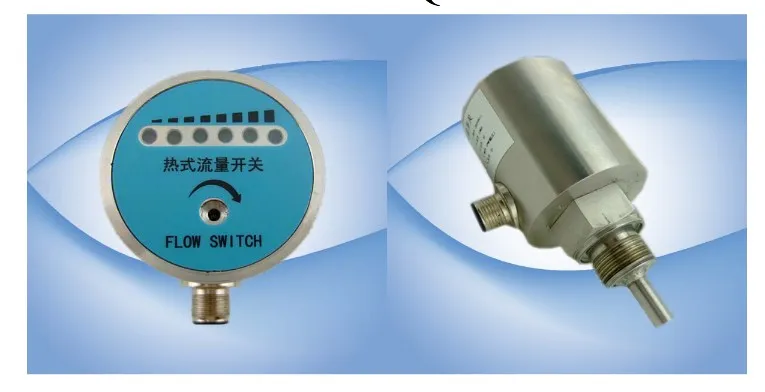

QFS-400 flow switch is a kind of real-time monitoring measurement instrument that used for liquid flow in pipeline .It adopts full metal jacket, no moving parts, output continuously adjustable, compact structure. 6 LED real time display the state of flow and output. Convenient installation, suitable for various pipe diameters. Widely used in hydropower and other pipeline fluid flow monitoring industry.
Model: QFS-400
Range:1~150cm/s(water),3~300cm/s(oil)

Feature:
High accuracy, good stability, long working life and high reliability
Small in size,convenient installation
All stainless steel case without movable components.
Maintenance free
Switching point could be set on site
LED display shows flow state and on-off state
Dimensions :( unit: mm)

 Electrical connection:

Code	Color	NO.
Excitation -	Brown	1
Excitation -	Blue	3
Relay: Normally open	White	2
Relay: Normally close	Gray	5
Relay:COM	BLACK	4
Transistor:NPN	BLACK	4
Transistor:PNP	BLACK	4

Technical Specifications:

Measuring media	dilute non-corrosive liquids(water,oil...)
Measuring ranges	bar	1~150cm/s(water),3~300cm/s(oil)
Excitation voltage	Vdc	24±20%VDC
Output signal	Relay	SPDT(≤250VAC/30VDC,3A)
	Transistor	NPN,PNP(≤24±20%VDC,1.2A)
Response time	s	2s(1~15s)
Initialize time	s	8s(2~15s)
Medium temp.	C	-20~80C
Environment temp.	C	-10~+70
Storage temp.		-25~85°C
Consumption current	mA	<90mA
Overload pressure	Mpa	10Mpa
Environment protection	IP rating	IP 67
Case Material		304 S
Material (wetted parts)		304 S

 Installation 1. The wetted parts need to immersed in fluid.Installation in small diameter pipeline to ensure that the probe can't contact with pipe's inner wall.
2 .When the fluid can not completely fill the pipeline, products should be installed in the bottom of the pipe. (Figure 1)

3. If there may be sediment in the pipeline, please products installed in the pipeline side wall, horizontal mounting (Figure 2), to avoid the air and sediment

4.Installation in a straight pipe close to bend or intersection place, the pipe length should not be less than 4 times the diameter of pipeline.
