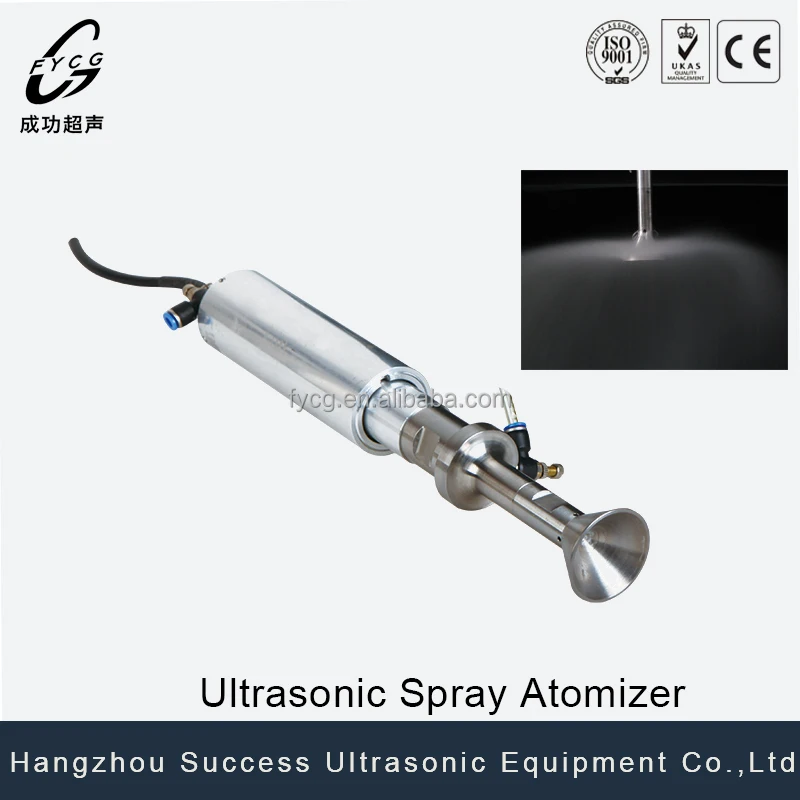

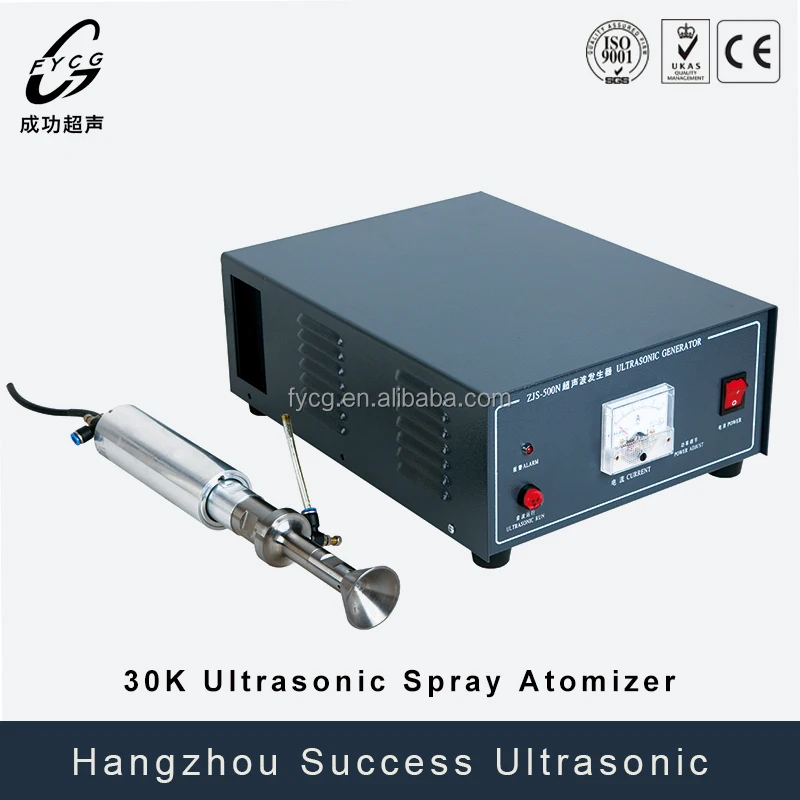

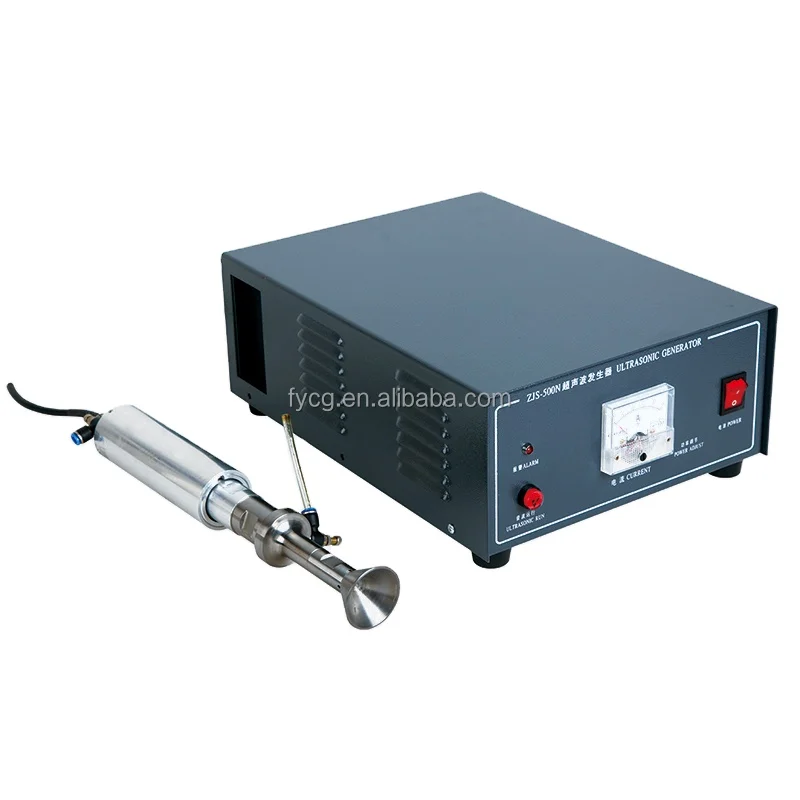

YP-W57 40Khz Ultrasonic Spraying Dryer Atomizer





 Ultrasonic Spray technology is used to coat practically any substrate shape, size or surface with uniform micron thick coatings, and even nanocoating thicknesses.







Feature







1.A major breakthrough in spray technology, you can spray a variety of liquids.

2.Low power consumption, the fog of great energy saving.

3.No plug, no abrasion, no noise, no pressure, no moving parts.

4.Can be any combination to meet the requirements of the spray volume.

5.The use of high-performance titanium and stainless steel.

















Parameter





Model	YP-W63	YP-W61	YP-W59	YP-W57	YP-W55	YP-W51
Frequency	15 Khz	20 Khz	30 Khz	40 Khz	50 Khz	60 Khz
Max Atomization Volume	150 L/H	100 L/H	70 L/H	30 L/H	10 L/H	5 L/H
Average Particle Diameter Of Fog	62 μm	51 μm	39 μm	25 μm	18 μm	10 μm
Power Consumption	0.001 Degrees/Kg			0.01 Degrees/Kg
Atomization Head Structure	Horn			Cylindrical
Power	500 W	300 W	100 W	60 W	30 W	30 W
The application of atomizing media	Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on
Use	Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying, metal milling and so on
