Часы DSTIKE D & B Leonardo (V4) Deauther BAD USB ESP8266 Atmega32u4
- Категория: Speakers & Accessories >>>
- Поставщик: Shenzhen,Muting,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 162.80 $* | 170.25 $* |
| Aug-18-2025 | 160.81 $* | 168.90 $* |
| Jul-18-2025 | 135.51 $* | 142.5 $* |
| Jun-18-2025 | 158.48 $* | 166.57 $* |
| May-18-2025 | 137.1 $* | 144.52 $* |
| Apr-18-2025 | 155.72 $* | 163.47 $* |
| Mar-18-2025 | 154.89 $* | 162.94 $* |
| Feb-18-2025 | 152.76 $* | 160.89 $* |
| Jan-18-2025 | 151.49 $* | 159.92 $* |
Характеристики
| ITEM | dstike watch |
| MODEL | G3-083 |
Contact us
Contact Person: Ms Sandy
Tel: +86 137 1424 2013
Email: 6475166(at)qq.com
Wechat: 0086 137 1424 2013
Skype: 0086 137 1424 2013
Whatsapp: 0086 137 1424 2013
Dear,Plz send us an inquiry with product title if you be interested with it ,And we are willing to provide you with better service
Please Check out the how-to video link :
https://www.youtube.com/watch?v=TMvpJiE8Yy8
What is it?

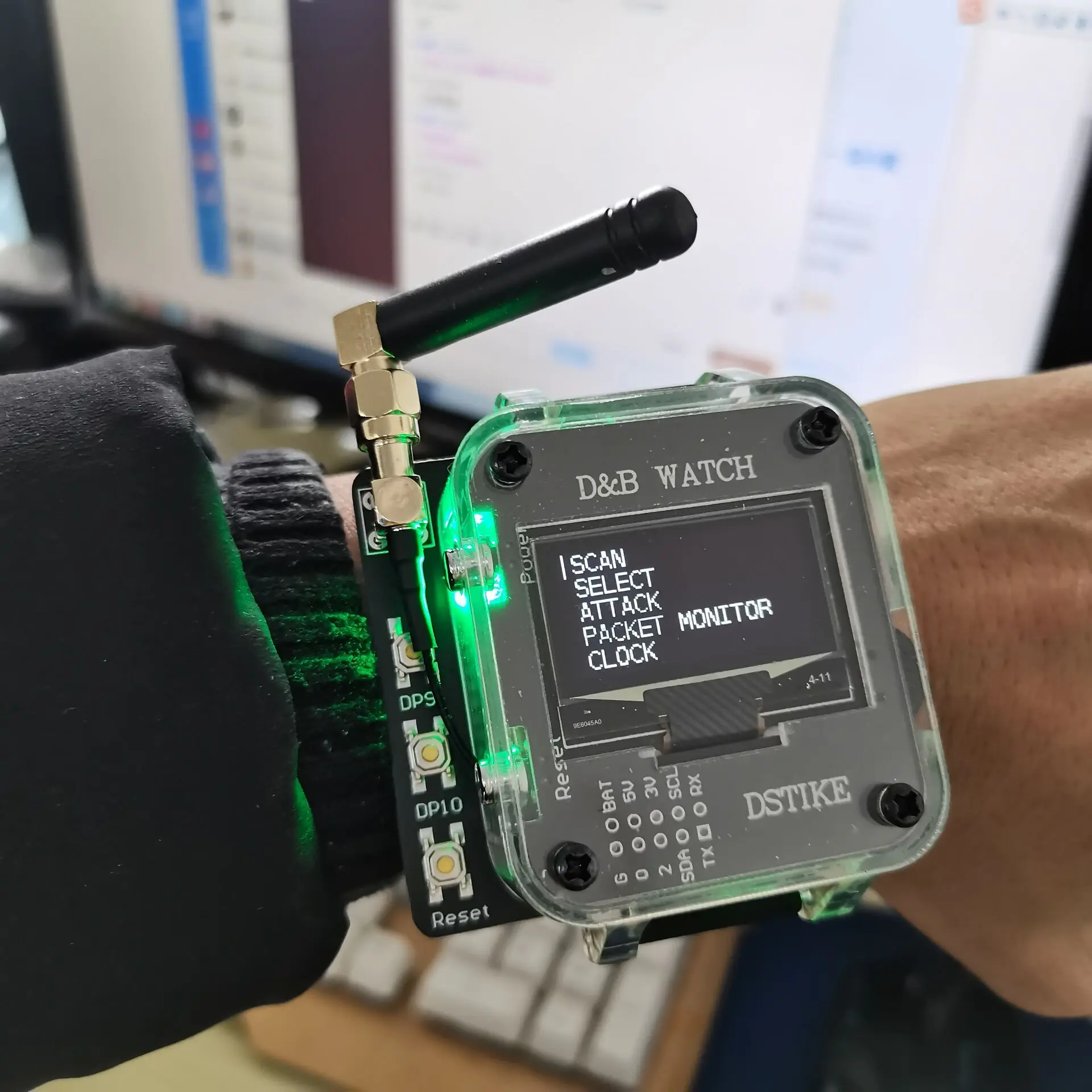

I call it D&B watch. It is a Deauther & Bad USB watch. You can also call it deauther watch V4. You can look Deauther Watch V3 to understand what is deauther.
Why did you make it?
In order to make it more fun. I added atmega32u4(Arduino Leonardo) to this watch. Now this watch not only disconnect wifi but also perform bad usb attack!
What makes it special?
Compare to deauther watch V3:

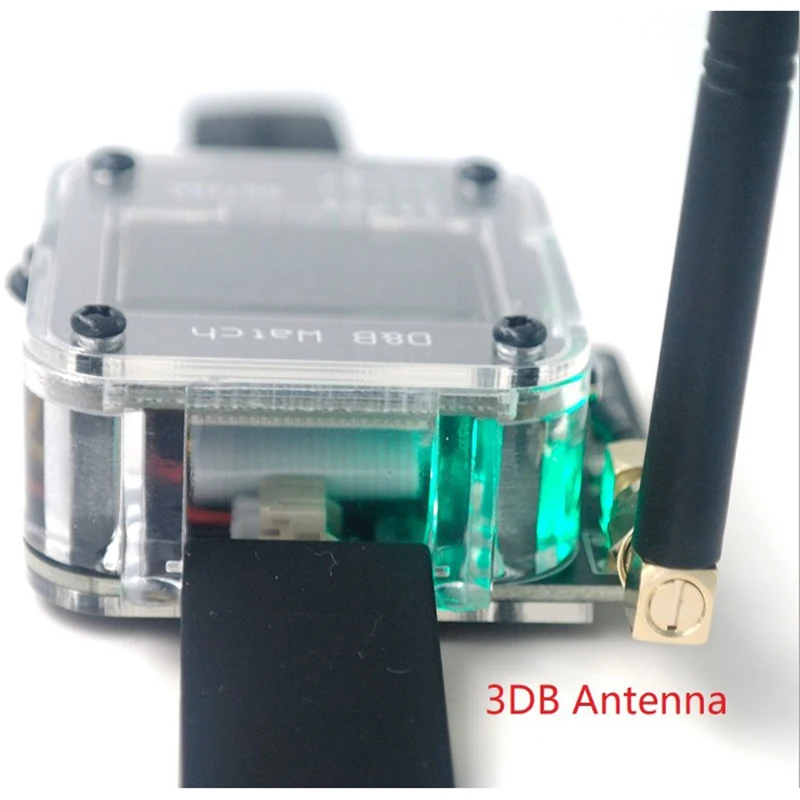

ESP07 changed to ESP07s: With an external 3dB antenna it could search more signal than V3. You can also add bigger antenna to the SMA connector.

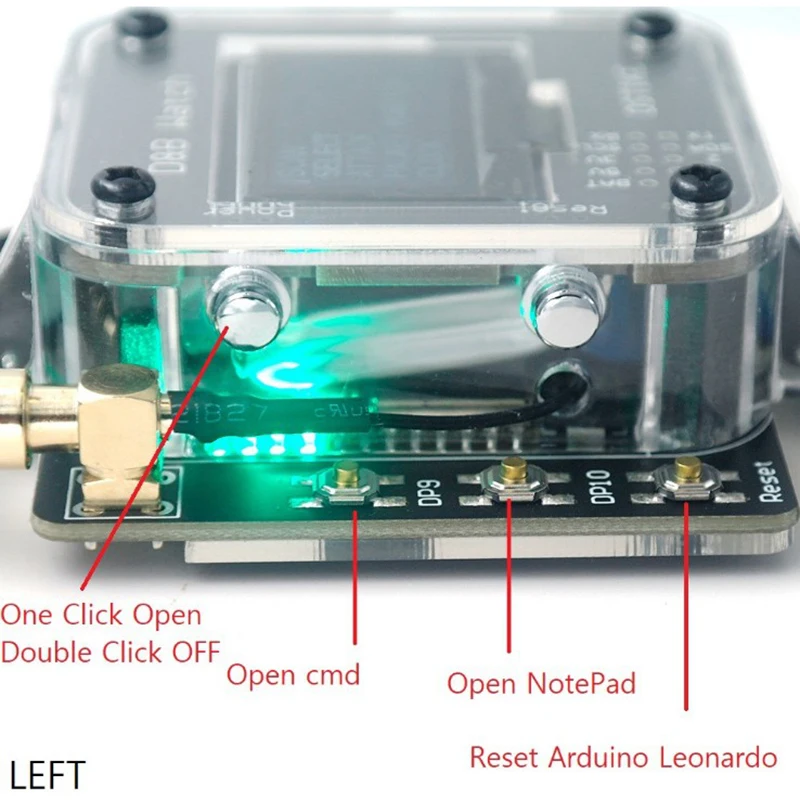

Added Atmega32u4: I flashed Arduino Leonardo bootloader already. You can program it as bad usb directly.Two buttons(Digital pin 9 and 10) could be used to execute different commands. I flashed a demo program. When bad usb port connects PC, press DP9 button cmd window will be opened. Press DP10 button Notepad will be opened. You can reprogram it via Arduino IDE.
Bridge: There are empty solder pads at the back of this watch. You can solder them to connect ESP8266 with atmega32u4. For example if you solder IIC pads this watch could become wifi duck.
Battery: 800mAh battery upgrade to 1000mAh. There are more space inside to put bigger battery instead.
Strap: Canvas strap upgrade to silicone strap.
Design: 3D case has been redesigned. Added bottom arcylic board to pretect this watch.

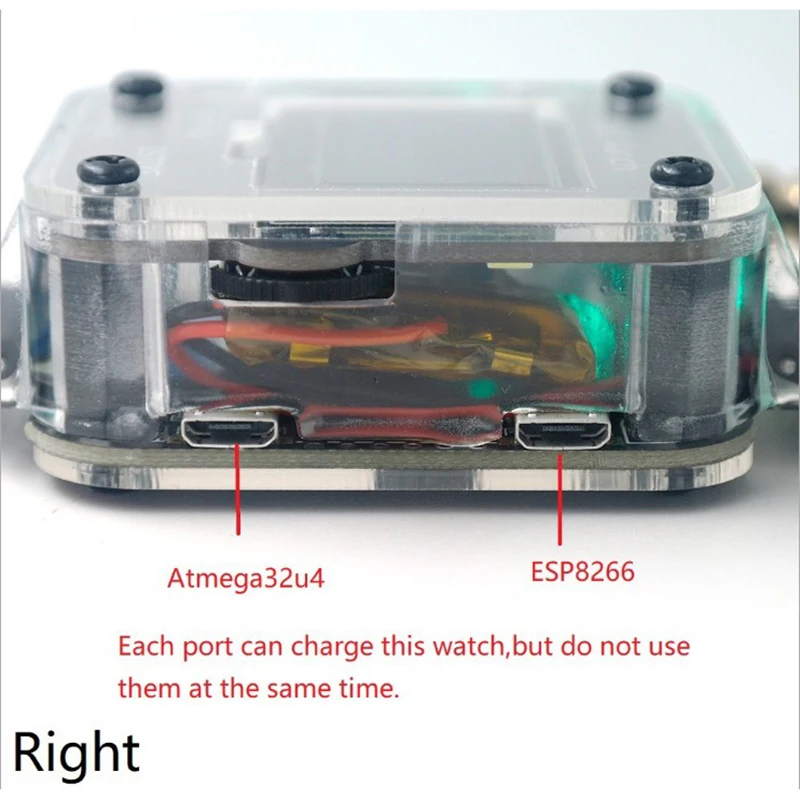

Charging: There are two usbs. Each usb could be used to charge battery. But I do not suggest you use them at the same time.

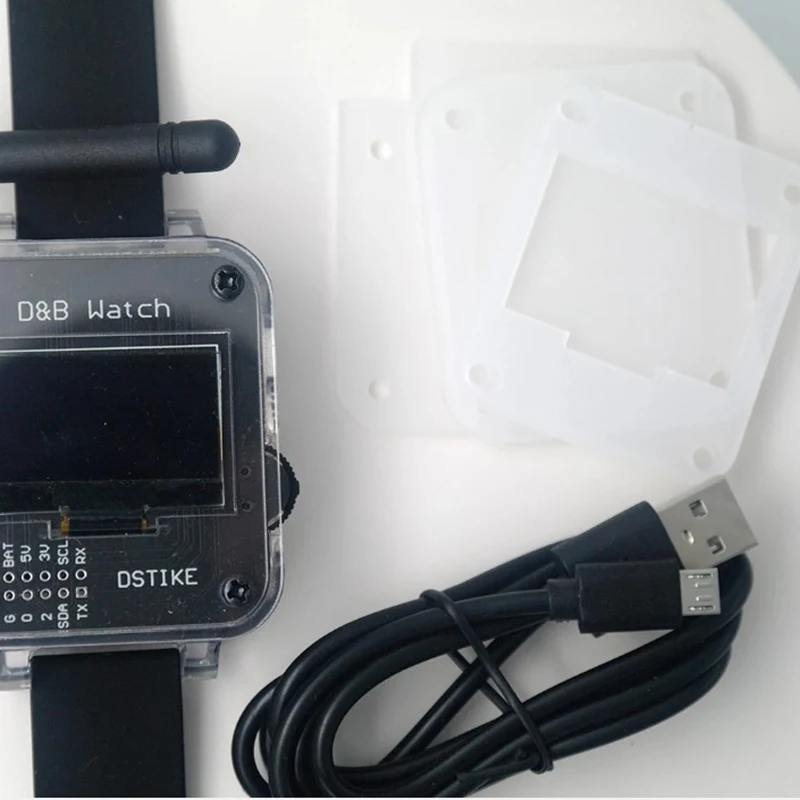

Product List:
D&B watch x1
Micro USB wire x1
Arcylic board x3
