Хорошая 6520 зеленая рыба электрическая изоляционная бумага для электрической машины сделано
- Категория: Electronic Accessories & Supplies >>>
- Поставщик: ZTELEC,Electric,Technology,(Zhengzhou),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1.62 $* | 1.53 $* |
| Jul-19-2025 | 1.47 $* | 1.79 $* |
| Jun-19-2025 | 1.67 $* | 1.42 $* |
| May-19-2025 | 1.47 $* | 1.36 $* |
| Apr-19-2025 | 1.19 $* | 1.89 $* |
| Mar-19-2025 | 1.87 $* | 1.95 $* |
| Feb-19-2025 | 1.60 $* | 1.92 $* |
| Jan-19-2025 | 1.43 $* | 1.94 $* |
Характеристики

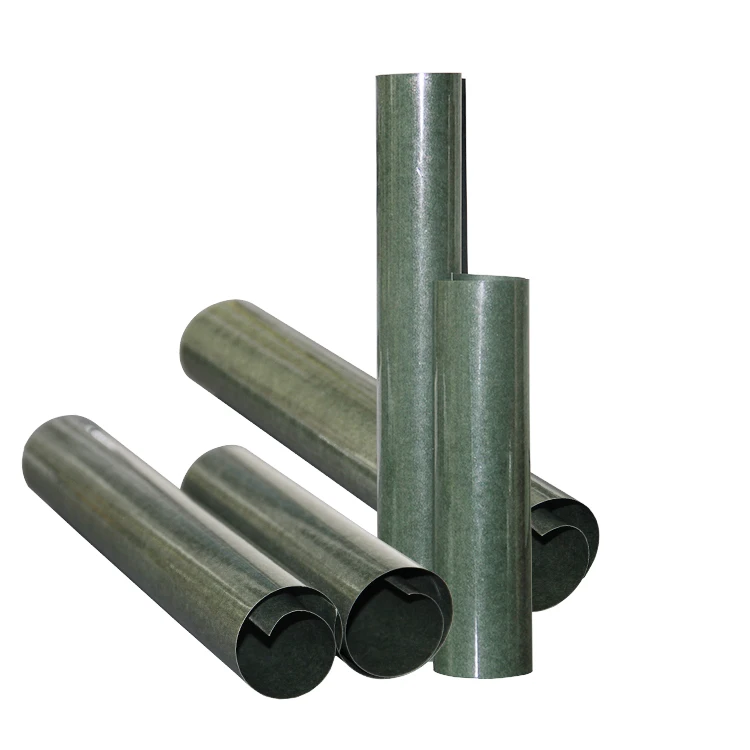

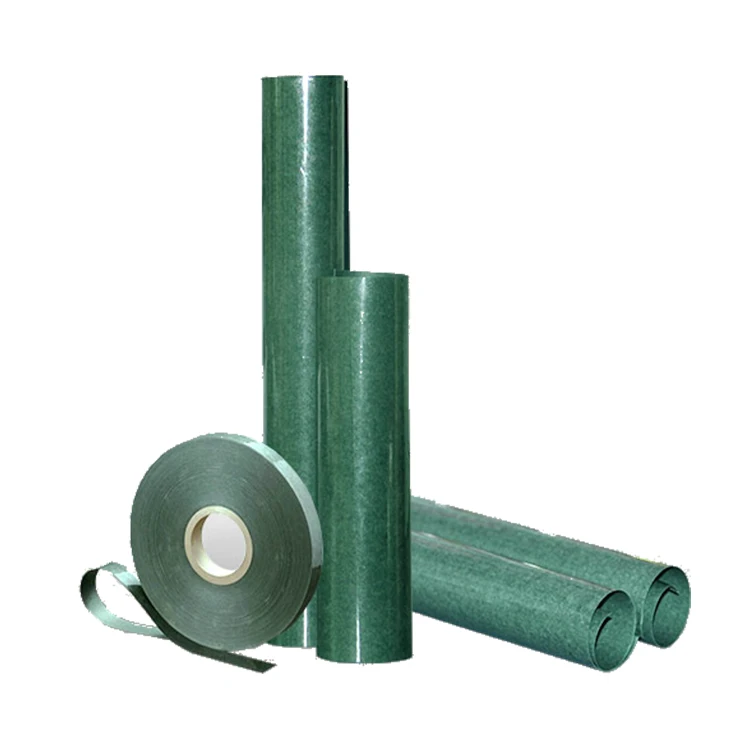

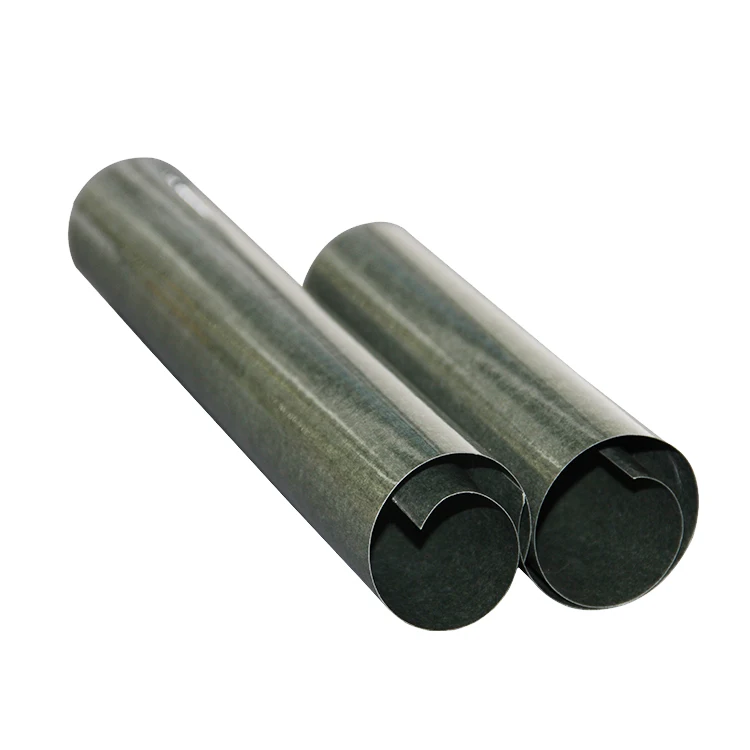

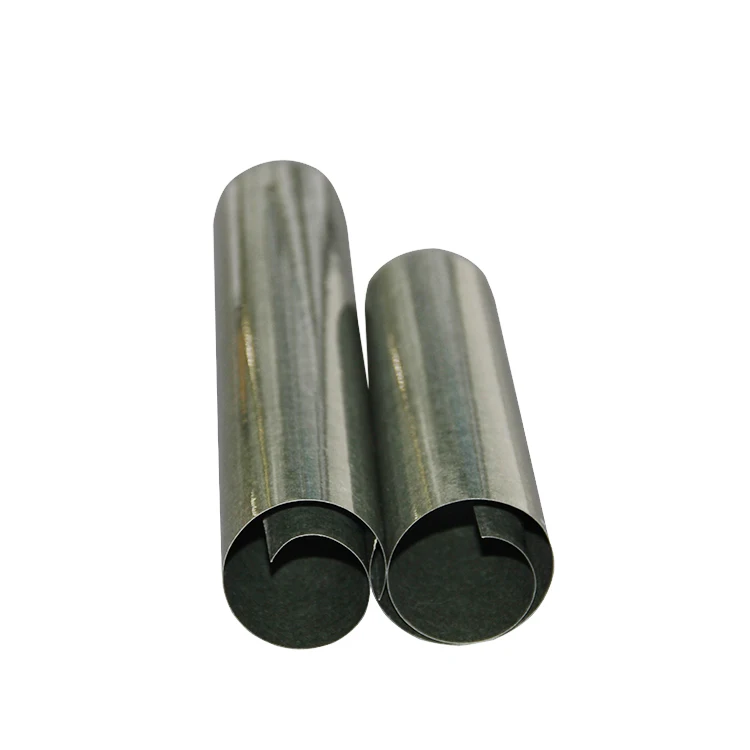

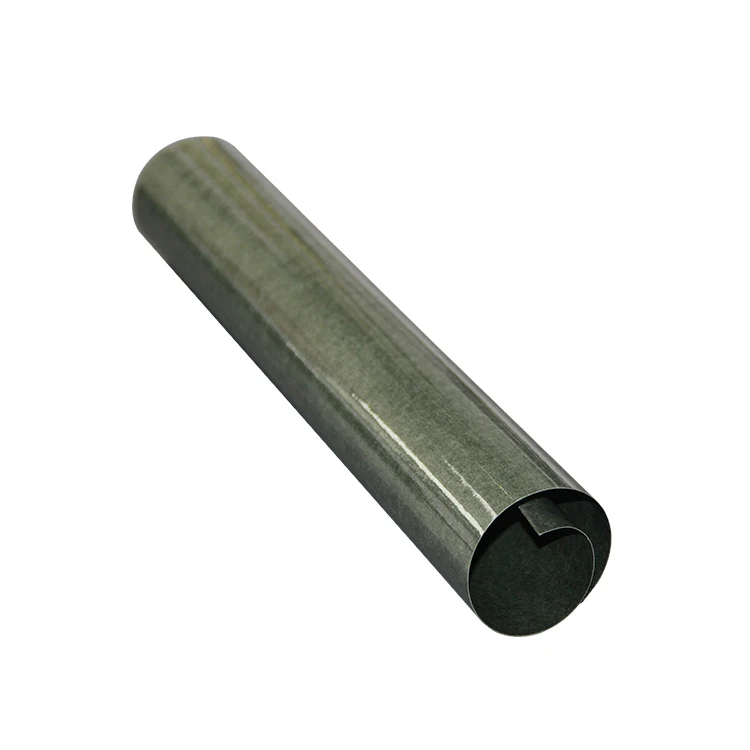

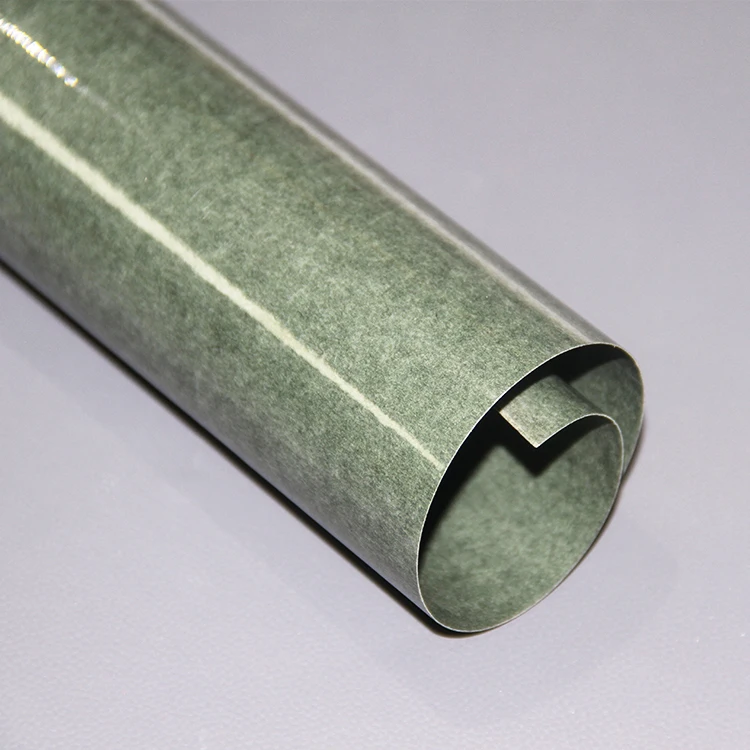

Good 6520 green fish electric insulation paper for electric machine made in China
6520 Fish Paper heat-resistant is grade E, and has good dielectric properties, high mechanical strength, suitable for slot gaskets and inter-turn insulation in electrical appliances.
Good 6520 green fish electric insulation paper for electric machine made in China Product Features:
1.High mechanical and tensile strength; Easily bendable and perforated without any cracking; Exceptionally light weight, about half the weight of aluminum.
2.Excellent electrical properties, ideal arc resistance, tear resistance; Possesses the beneficial properties of metals, plastics, rubber and leather; Environment friendly, poses no threat to nature, easily disposable.
Usage of 6250 fish paper: Green shell paper is used for electrical insulation materials on electrical appliances and motors. For example, between the fan wing and the fan head of a household ceiling fan, use screws to fasten a layer of green shell paper; there is a layer of green shell paper between the main shaft pressing ring of the lathe and the gear box. And it is also used to make 6250 polyester film composite foil.
| Indicator name | unit | value | |||||||||||
| 1 | Nominal thickness | mm | 0.15 | 0.17 | 0.2 | 0.22 | 0.25 | 0.27 | 0.3 | 0.35 | 0.5 | 0.6 | |
| 2 | Thickness deviation | mm | ±0.020 | ±0.020 | ±0.030 | ±0.030 | ±0.030 | ±0.030 | ±0.030 | ±0.035 | ±0.05 | ±0.060 | |
| 3 | Standard quantification and deviation | g/m2 | 190±28 | 215±32 | 250±38 | 275±40 | 310±45 | 330±50 | 370±55 | 490±73 | 570±90 | 730±110 | |
| 4 | Nominal film thickness | μm | 50 | ||||||||||
| 5 | Tensile Strength | No Bonding at Portrait | N/10Mm | ≥100 | ≥110 | ≥125 | ≥130 | ≥150 | ≥175 | ≥200 | ≥240 | ≥360 | ≥400 |
| After bending at Portrait | ≥70 | ≥75 | ≥80 | ≥85 | ≥95 | ≥100 | ≥110 | ≥180 | ≥275 | ≥320 | |||
| NoBonding at Transverse | ≥80 | ≥85 | ≥90 | ≥90 | ≥95 | ≥100 | ≥105 | ≥120 | ≥180 | ≥200 | |||
| After bending at Transverset | ≥50 | ≥50 | ≥50 | ≥55 | ≥60 | ≥70 | ≥80 | ≥115 | ≥175 | ≥190 | |||
| 6 | Elongation | No Bonding at Portrait | % | ≥2 | ≥3 | ||||||||
| After bending at Transverset | ≥8 | ≥10 | |||||||||||
| 7 | Breakdown Voltage | No Bending | kV | ≥8.0 | |||||||||
| After bending | ≥6.0 | ||||||||||||
| 8 | Normal Bond Strength | / | No layering | ||||||||||
| 9 | Heat State Bond Strength130±2℃ 10min | / | No layering, no foaming, no glue flow | ||||||||||
