Nanoradar 77Ghz Radar MR76S for Intelligent Transportation



MR76-T traffic flow radar uses 77GHz MIMO technology performs all targets in the scene Detection, able to eliminate stationary targets and various clutter resulting false alarms. Improved multi-target detection capability, The radar has high detection accuracy and can accurately measure , speed, distance, angle and other information of the moving target. The radar can detect 4 lanes and 64 targets at the same time
The distance, speed and angle information of the vehicle, the most The long-distance detection distance can reach 150 meters for the car.



Radar features:

*Work in 77GHz-ISM-Band for the detection of moving objects

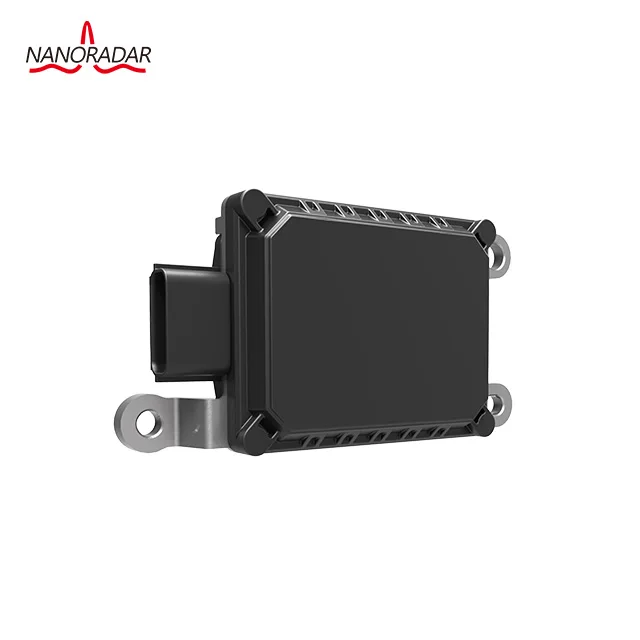

*Compact size (140x70x35mm)

*Accurately measure the direction, range, velocity and angle of moving targets

*Protection class IP67

*Hige detection rate



Specification:

Measuring performance                                    to natural targets (non-reflector targets)
Modulation		FMCW
Detection Range		0.20~170m(short,middle mode,±45°)
Resolution	spot target, none tracking	0.68m, ability to separate targets and objects 1.5…2 x resolution
Accuracy	spot target, none tracking	±0.10m
FOV		±45°@-16dB
Angle Resolution	spot target, none tracking	±0.1°(middle mode), ±0.3°@0°, ±1°@±45°(short mode)
Velocity Range		-400km/h...+400km/h (-leaving object, +approximation)
Velocity Resolution	spot target, none tracking	±1.23km/h
Velocity Accuracy	spot target, none tracking	0.1km/h
Antenna Channels		2TX/4RX=8 channels
Cycle Time		app. 30 ms for each mid and short range mode, total 60ms
Elevation beam	-6dB	14°
Azimuth beam	-6dB	18°

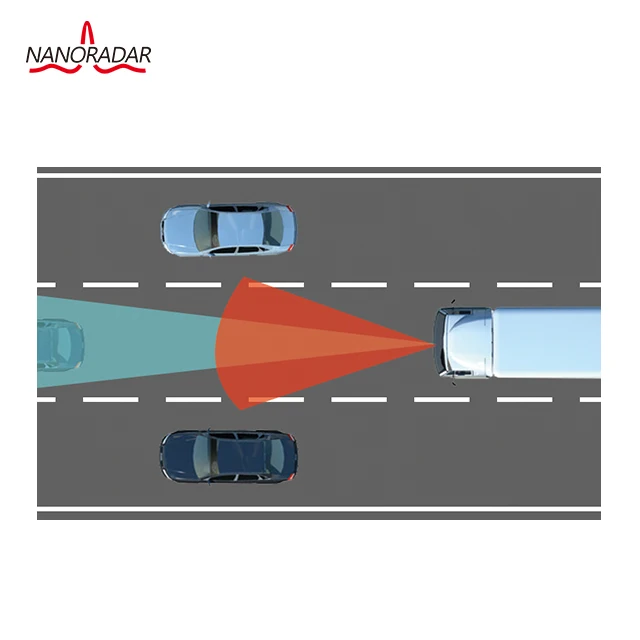

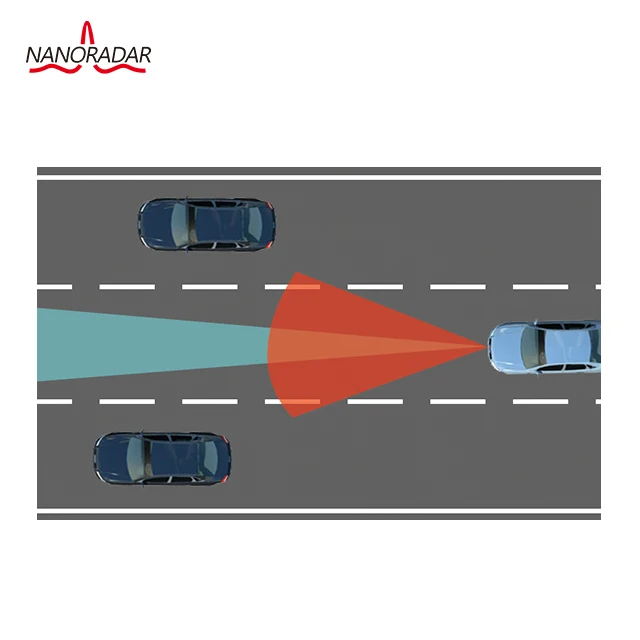

MR76 Dual beams (mid-range and short-range) work simultaneously and can not be switched. The detected targets are output in order of distance or RCS. By default, they are output by distance from near to far.
Operation Conditions
Transmit frequency	ETSI&FCC	76…77GHz
Transmit capacity	average/peak EIRP	29.8dBm
Power		+6.0V~32VDC
Consumption		2.5W
Working Temperature		-40℃…+85℃
Storage Temperature		-40℃…+90℃
Protection class		IP67
Interface
Interface		1xCAN- High speed 500kbit/s
Cover
Dimension	W*L*H	140*70*35mm
Weight		200g
Material	front/back	PBT+GF30 for front shell,Dia casting aluminum for back shell.



Radar description:

The MR76 USES 77GHz high-frequency electromagnetic waves to analyze the surrounding environment. The reflected signal is output as an object after several steps of processing. Objects are information about the location, speed and signal strength of radar reflections that are calculated and output once every period.



The Cartesian coordinates of the radar as below picture:



MR76 77GHz Radar for Automotive Front Collision Warning and ADAS

About Nanoradar:

Nanoradar, established in 2012, is specialized in developing, producing and selling millimeter wave radar for security, UAV, automotive, smart traffic and other industrial application. Our products covers 24GHz, 77GHz, 79GHz frequency band. We have successfully developed 10+ models MMW radar products. Nanoradar’s radar detection range covers 30-450 meters. The accuracy is up to 85% for security radar to identify pedestrians. As a leading MMW radar manufacture in China, Nanoradar products also well accepted in overseas market like US, Korea, UK, and France etc.



Nanoradar is providing 24GHz / 77GHz Radar Sensors and Systems.

1. NRA24---24GHz 50~200 meters UAV Altimeter Radar.

2. MR72---77GHz 40-80 meters UAV collision avoidance radar

3. CAR28T / 28F---Vehicle BSD/LCA radar  Heavy-duty vehicle collision avoidance radar.

4. MR76---77GHz 160 meters Automotive ADAS radar ( ACC/AEB)

5. NSR80W/NSR100W/NSR300W---Security perimeter intrusion detection
