Оборудование для обработки материалов однополосный контейнер наклонная машина быстрой загрузки и
- Категория: Other Material Handling Equipment >>>
- Поставщик: Shandong,Tavol,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2975.9 $* | 3124.43 $* |
| Aug-19-2025 | 2950.68 $* | 3098.33 $* |
| Jul-19-2025 | 2475.67 $* | 2599.24 $* |
| Jun-19-2025 | 2900.87 $* | 3045.2 $* |
| May-19-2025 | 2525.13 $* | 2651.71 $* |
| Apr-19-2025 | 2850.46 $* | 2993.63 $* |
| Mar-19-2025 | 2825.16 $* | 2966.31 $* |
| Feb-19-2025 | 2800.22 $* | 2940.14 $* |
| Jan-19-2025 | 2775.63 $* | 2914.76 $* |
Характеристики

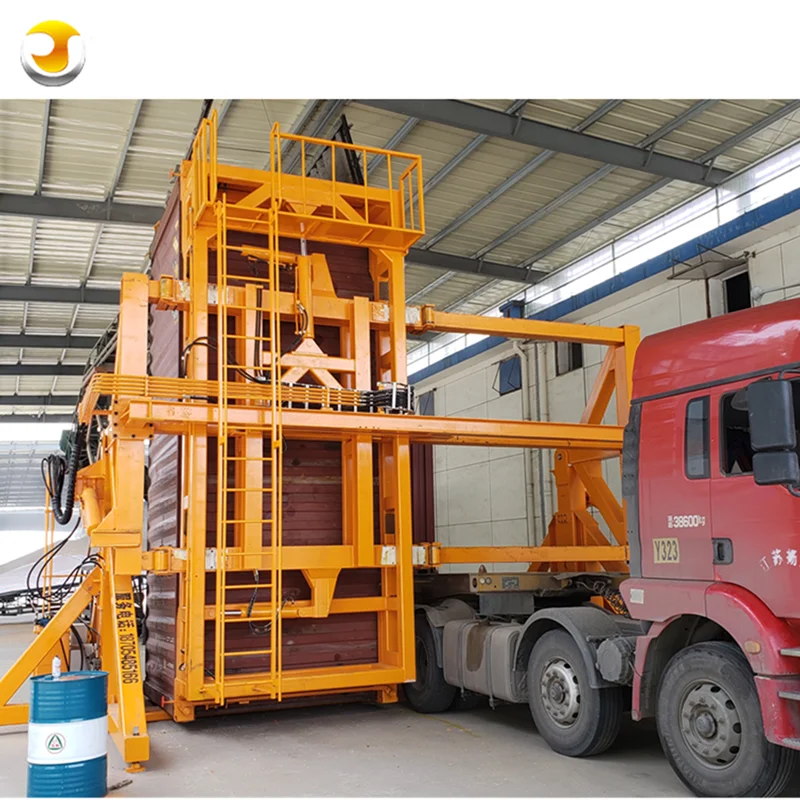

Product Overview
1. Container turning machine is mainly used for reverse transport and loading and unloading of grain, plastic, iron scrap, ore powder, coal, sugar and other granular bulk materials, mainly suitable for railway freight yard, wharf, mine, grain depot, coal yard and other places.
2. Easy to operate, fast packing speed, low operation cost, two people can operate the entire operation process, saving manpower, reliable.
3. The container can be turned 90 degrees to stand up, filled with any bulk materials by the belt conveyor, can make the container 100% full, no waste of space, high filling rate.

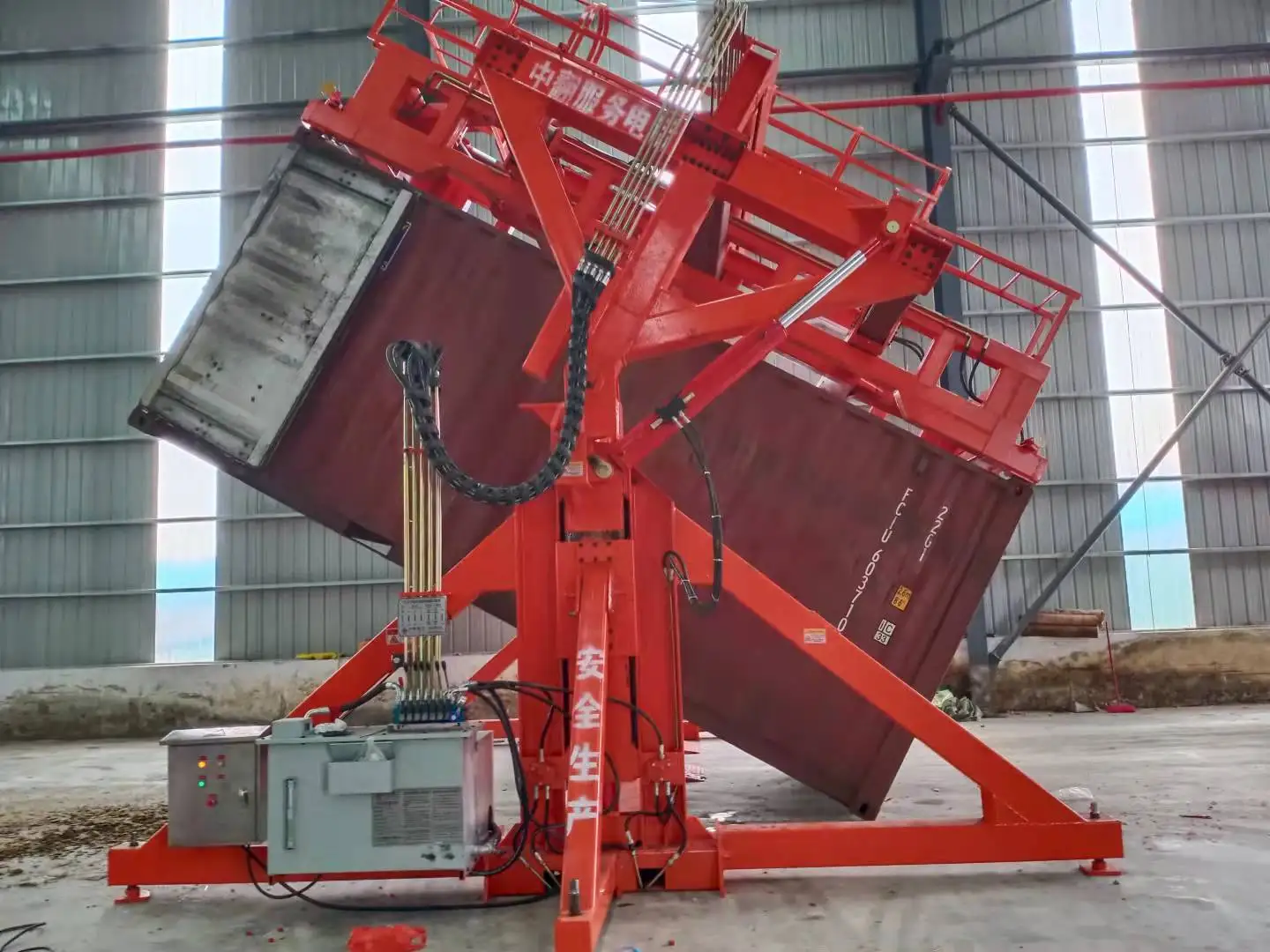

4. When unloading materials, the container can turn over at a free Angle, so as to realize fast unloading of all materials.
2. Easy to operate, fast packing speed, low operation cost, two people can operate the entire operation process, saving manpower, reliable.
3. The container can be turned 90 degrees to stand up, filled with any bulk materials by the belt conveyor, can make the container 100% full, no waste of space, high filling rate.
4. When unloading materials, the container can turn over at a free Angle, so as to realize fast unloading of all materials.
Detail Main Parts Show
Mechanical door
The radiator
Mobile casters
MODEL | FZJ35-SS | FZJ35-SD | FZJ35-DS | FZJ35-DD | |||
double-lane double-turn | Double lane single flip | Single lane double flip | single lane single turn | ||||
Applicable container model | 20FT (6058*2438*2591) | ||||||
Load capacity | 35T | ||||||
Mobile type | carrying weight on the back | ||||||
Minimum height of lifting point | 3780MM | ||||||
Lift height | 800mm | ||||||
Lane width | 5580mm | 3000mm | |||||
flip angle | 180 | 90 | 180 | 90 | |||
flip speed | 2.5/sec | ||||||
Motor power | Y2JD-180-4 18.5KW IP55 | ||||||
Voltage | 380V/50HZ | ||||||
hydraulic system working pressure | 25Mp | ||||||
Synchronized valve | DLF-D15L | ||||||
balancing valve | PHY-G18L | ||||||
reversing valve | ZDL0-12L-8T-CG-7CG | ZDL70-G12L-7T-6CG-6CG | |||||
hydraulic oil cylinder | 12 | 10 | 11 | 9 | |||
Lifting cylinder | 140mm/90mm-800mm | ||||||
Hydraulic oil model | L-HM46 | ||||||
control box | Stainless steel waterproof shell, waterproof, dustproof, Chint electrical components | ||||||
Other optional configuration functions | 1. Weighing system 2. Vibrator 3. Mailbox heating system 4. Hydraulic oil cooling system 5. Remote control system | ||||||
Overall dimensions | 9200*6050*(5470-6270) | 6620*6050*(5470-6270) | |||||
self-weight | 15T | 14T | 13T | 12T | |||
Alternative configuration
Weighing instrument
Directional control valve
Remote control system
flow distributing and collecting valve
Stainless steel electric box
oil pump
Customers' Feedback
Customized for Philippine customers
Installed in Vietnam
Customized for Malaysian customers
Use of granaries in Thailand
Used in ports
It is used in coal mines
Company Profile
Shandong Tavol Mechinery Co.,Ltd Belongs to Tavol Group.
The Tavol brand has entered the international market since 2003. In more than 20 year, more than 10, 000 customers from more than 80 countries have created huge profits by using Tavol brand cranes and lifting equipment.
From the product design to the manufacturing process all adopt ISO9001 international standards, China special equipment manufacturing license, CE certification certificate etc., to ensure that the product design information is complete, correct, unified, fully meet the requirements of users.
Quality is our culture.Also many of customers from different countries come to visit us to establish a long-term business
relationship with us. They said because of our crane, their heavy work becomes easy.
The Tavol brand has entered the international market since 2003. In more than 20 year, more than 10, 000 customers from more than 80 countries have created huge profits by using Tavol brand cranes and lifting equipment.
From the product design to the manufacturing process all adopt ISO9001 international standards, China special equipment manufacturing license, CE certification certificate etc., to ensure that the product design information is complete, correct, unified, fully meet the requirements of users.
Quality is our culture.Also many of customers from different countries come to visit us to establish a long-term business
relationship with us. They said because of our crane, their heavy work becomes easy.
