Ac Dc 90 градусов прямоугольный редукторный двигатель
US $22.50-$23.00

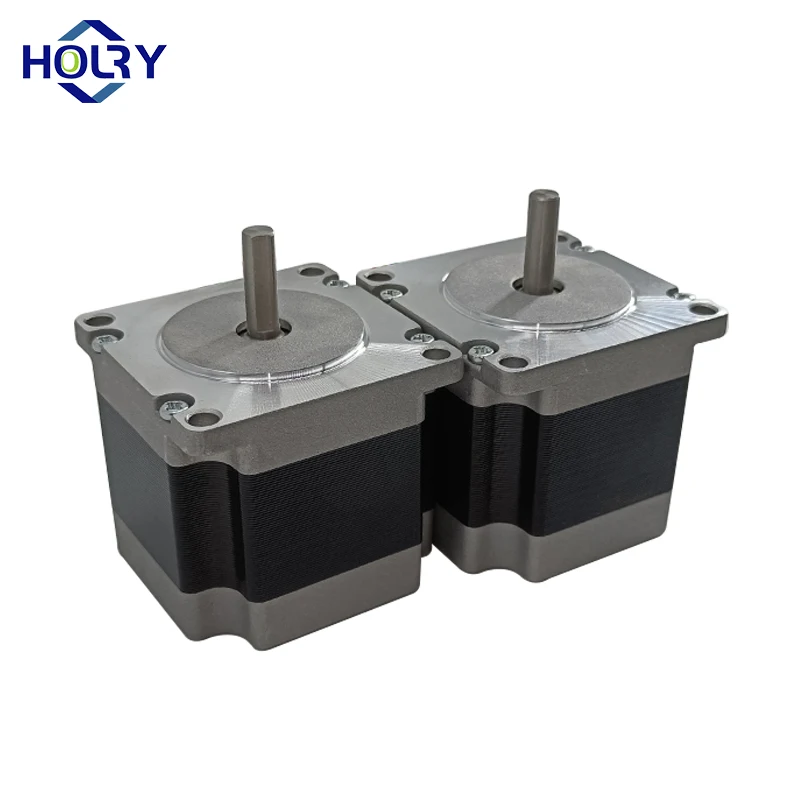

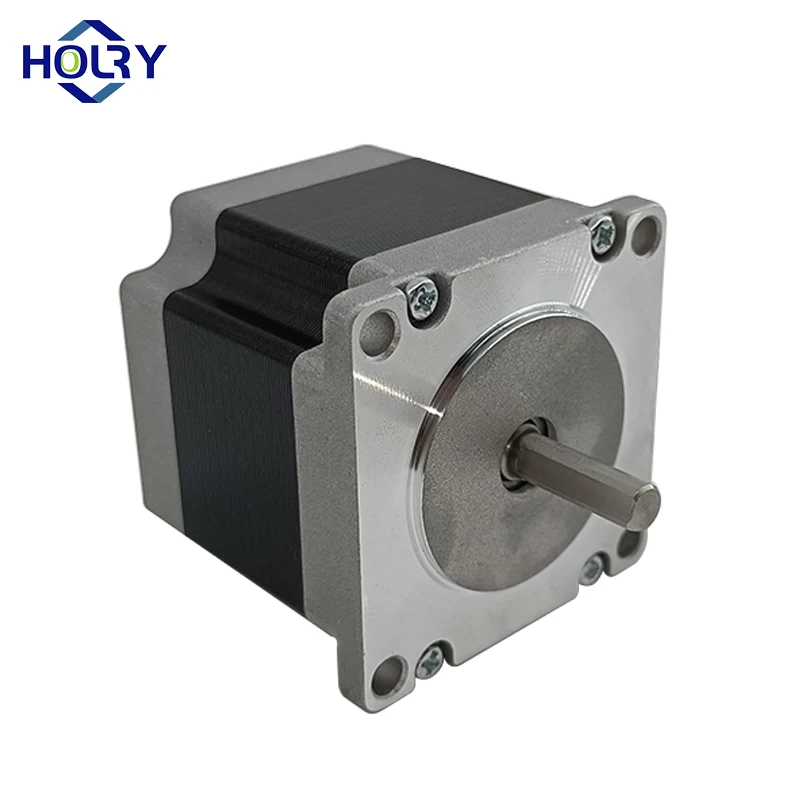

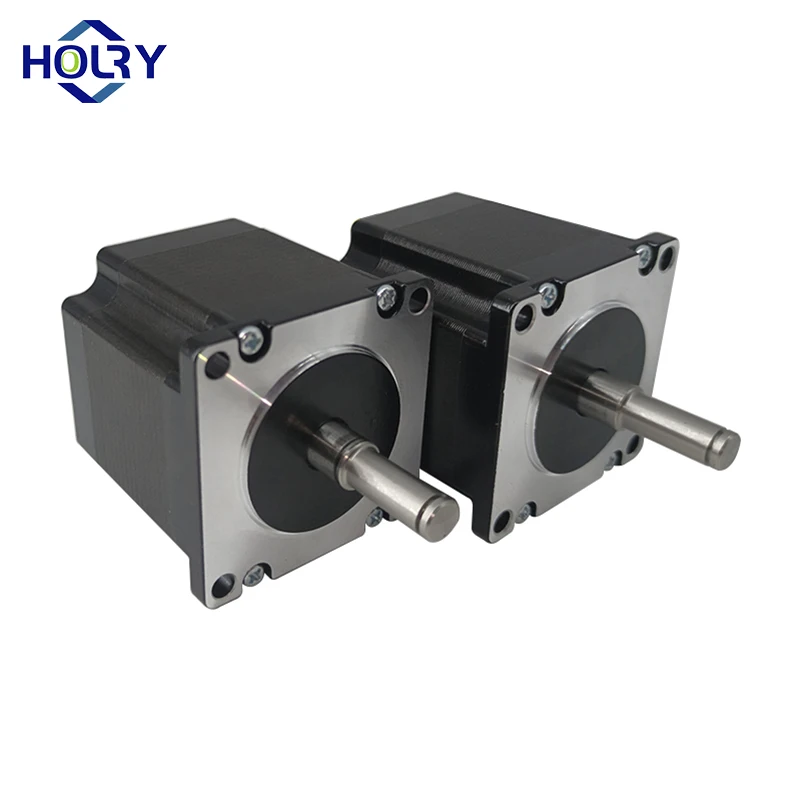

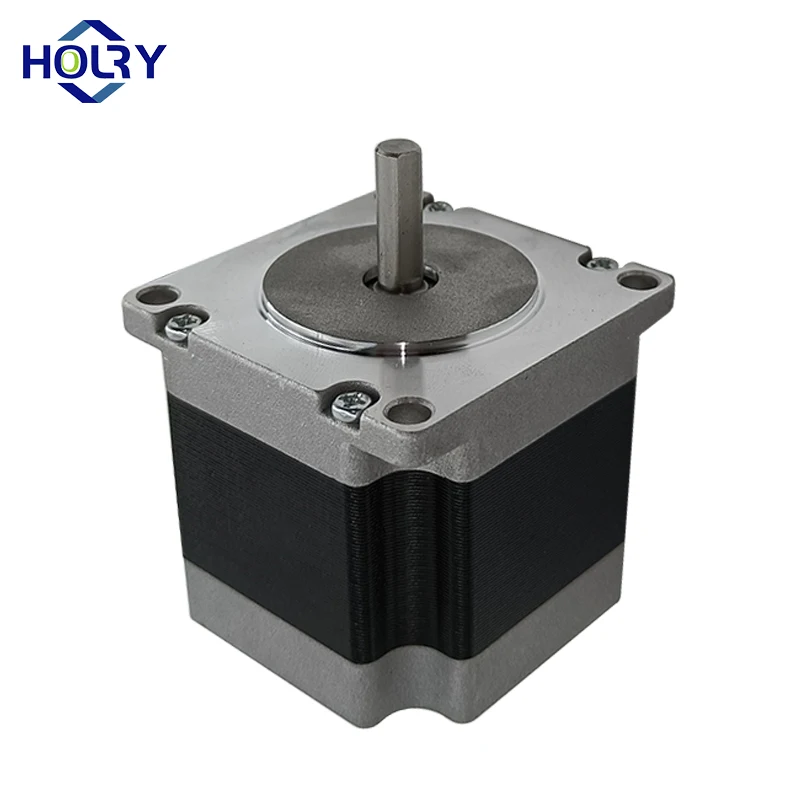

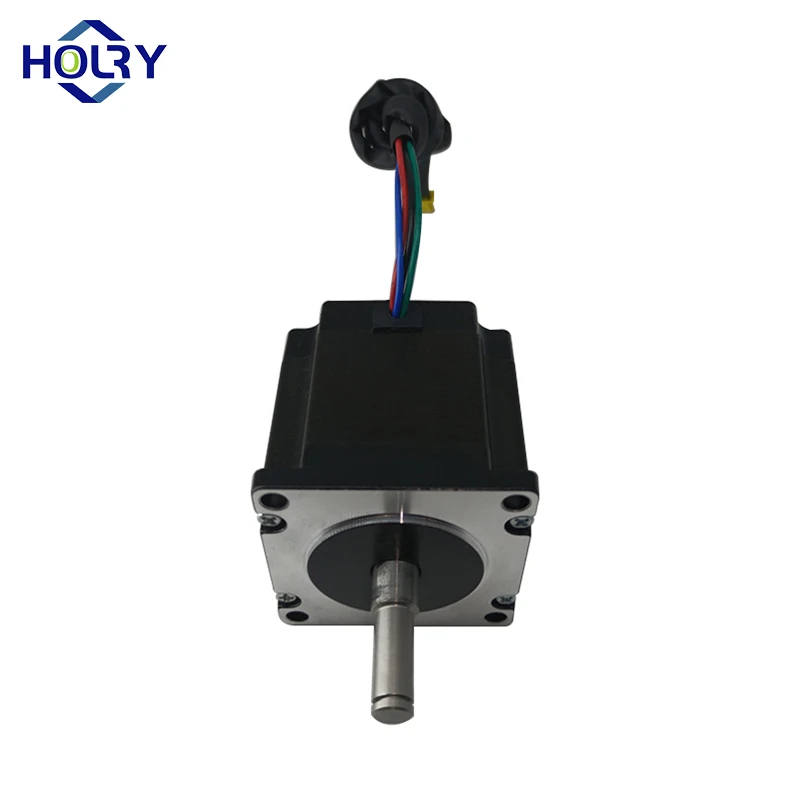

Высокоточные гибридные шаговые двигатели Наборы ЧПУ Угол шага 1 8 градусов 2 фазы 48 В 24 шаговый двигатель Nema
- Категория: Motors >>>
- Поставщик: Changzhou,Holry,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 17.85 $* | 18.13 $* |
| Aug-16-2025 | 17.89 $* | 18.5 $* |
| Jul-16-2025 | 14.10 $* | 15.88 $* |
| Jun-16-2025 | 16.62 $* | 17.36 $* |
| May-16-2025 | 14.33 $* | 15.37 $* |
| Apr-16-2025 | 16.92 $* | 17.78 $* |
| Mar-16-2025 | 16.92 $* | 17.22 $* |
| Feb-16-2025 | 16.14 $* | 17.8 $* |
| Jan-16-2025 | 16.86 $* | 17.61 $* |
Характеристики
Why Choose Us
Products Description
Product Paramenters
Item | Specifications |
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full Step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80℃ Max. (rated current, 2 phase on) |
Ambient Temperature | -20℃~+20℃ |
Insulation Resistance | 100MΩMin., 500VDC |
Dielectric Strength | 500VDC for one minute |
Shaft Radial Play | 0.02Max. (450g-load) |
Shaft Axial Play | 0.08Max. (450g-load) |
Insulation Class | B |
Series Model | Moter Length L(MM) | Rated Voltage (V) | Rated Current (A) | Phase Resistance (Ω) | Phase Inductance (mH) | Holding Torque (N.M) | Lead Wire (NO.) | Rotor Intertia (g.c㎡) | Motor Weight (Kg) |
57HB41F105B | 41 | 2.7 | 1.5 | 1.8 | 4.0 | 0.4 | 4 | 120 | 0.45 |
57HB41F2 | 41 | 2.0 | 2.0 | 1.0 | 1.7 | 0.4 | 4 | 120 | 0.45 |
57HB41F3 | 41 | 3.0 | 3.0 | 1.0 | 1.7 | 0.45 | 4 | 120 | 0.45 |
57HB51F105B | 51 | 2.6 | 1.5 | 5.0 | 13 | 0.7 | 4 | 275 | 0.65 |
57HB51F3 | 51 | 3.0 | 3.0 | 1.1 | 2.8 | 0.8 | 4 | 275 | 0.65 |
57HB56F1B | 56 | 6.0 | 1.0 | 6.0 | 16 | 0.9 | 4 | 300 | 0.7 |
57HB56F2 | 56 | 3.6 | 2.0 | 1.8 | 2.5 | 1.0 | 4 | 300 | 0.7 |
57HB56F3 | 56 | 2.5 | 2.8 | 0.9 | 2.5 | 1.2 | 4 | 300 | 0.7 |
57HB56S2 | 56 | 3.4 | 2.0 | 1.7 | 3.5 | 0.9 | 6 | 300 | 0.7 |
57HB64F2 | 64 | 7.2 | 2.0 | 3.6 | 12 | 1.4 | 4 | 360 | 0.85 |
57HB64S3 | 64 | 7.2 | 4.0 | 0.8 | 1.2 | 1.0 | 6 | 360 | 0.85 |
57HB78F105B | 78 | 6.3 | 1.5 | 4.5 | 15 | 1.9 | 4 | 480 | 1.1 |
57HB78F205 | 78 | 3.0 | 2.5 | 1.2 | 5.0 | 1.5 | 4 | 480 | 1.1 |
57HB78F3 | 78 | 3.6 | 3.0 | 1.2 | 5.0 | 1.9 | 4 | 480 | 1.1 |
57HB78S3B | 78 | 3.6 | 3.0 | 1.2 | 2.5 | 1.5 | 6 | 480 | 1.1 |
57HB82F3 | 82 | 2.1 | 3.0 | 0.7 | 2.3 | 2.0 | 4 | 530 | 1.2 |
57HB82F4BZ | 82 | 2.8 | 4.0 | 0.7 | 2.3 | 2.1 | 4 | 530 | 1.2 |
Company Profile
Certifications
Exhibition
Product packaging
FAQ
1. Do you have online contact info?
A1: Yes, Whatsapp is +86 13646117381
2. How can we know the product quality?
A2: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
3. Is this your final price? May i have the discount?
A3: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
4.Is there cheap shipping cost to import to our country?
A4: Yes, we have our regular shipping company, they have very good price.
5. Can we visit your factory?
A5: Yes welcome warmly. No. 295, Fumin Road, Lucheng Town, Qishuyan, Changzhou City, Jiangsu Province, China.
6.What is the Warranty for your products?
A6: All products product warranty for one year, free service for 11 years.
A1: Yes, Whatsapp is +86 13646117381
2. How can we know the product quality?
A2: We suggest you to order a sample. Also, you can send us email for detail photos for checking if you cannot get enough information in the product page.
3. Is this your final price? May i have the discount?
A3: Our price is the factory price, and if your quantity is larger, we will allow the discount for you.
4.Is there cheap shipping cost to import to our country?
A4: Yes, we have our regular shipping company, they have very good price.
5. Can we visit your factory?
A5: Yes welcome warmly. No. 295, Fumin Road, Lucheng Town, Qishuyan, Changzhou City, Jiangsu Province, China.
6.What is the Warranty for your products?
A6: All products product warranty for one year, free service for 11 years.
