Небольшой 14T экскаватор Changlin для строительной
- Категория: Excavators >>>
- Поставщик: Sinomach-Hi,International,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.44 $* | 0.72 $* |
| Aug-16-2025 | 0.20 $* | 0.3 $* |
| Jul-16-2025 | 0.75 $* | 0.65 $* |
| Jun-16-2025 | 0.19 $* | 0.27 $* |
| May-16-2025 | 0.12 $* | 0.61 $* |
| Apr-16-2025 | 0.88 $* | 0.56 $* |
| Mar-16-2025 | 0.2 $* | 0.32 $* |
| Feb-16-2025 | 0.94 $* | 0.85 $* |
| Jan-16-2025 | 0.81 $* | 0.1 $* |
Характеристики
Product Description

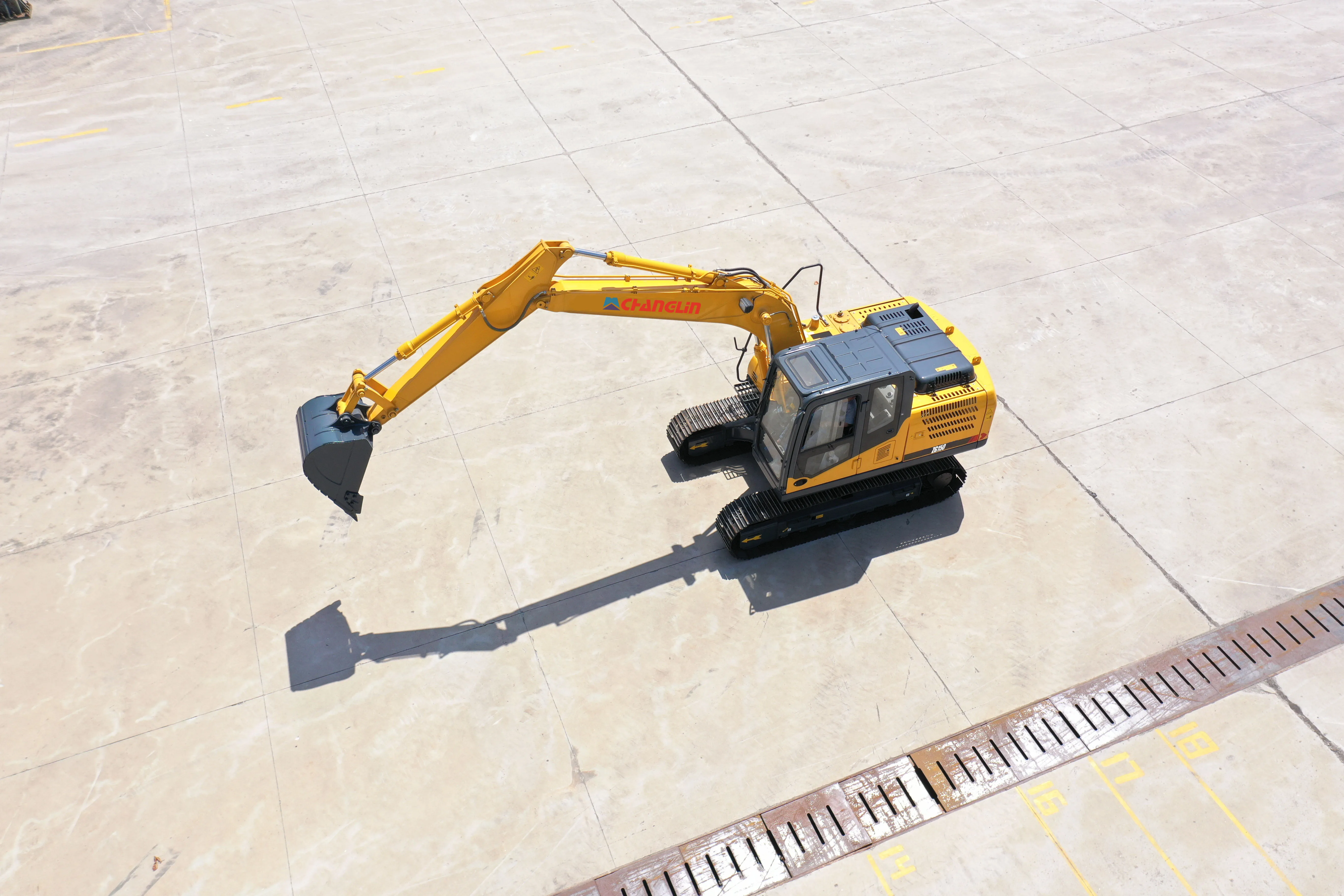

ZG150 15 tons Hydraulic Crawler Excavator
Model & Name
CHANGLIN 15 tons ZG150 Hydraulic Crawler Excavator capacity as Cat 313D2 and Komatsu PC150-5
Excavator ,Hydraulic Excavator, Crawler Excavator
Excavator , Hydraulic Excavator, Crawler excavator, Swamp type excavator, 15Tons excavator
Scope of Application:
CHANGLIN ZG150 Fixed Cummins EFI engine (conforming to -stage emission regulations), powerful, energy efficient, reliable and durable; advanced negative flow hydraulic system, comfortable operation, high operating efficiency, excellent cost performance; full power control, four power modes to adapt to different work; reliable and accurate fuel injection system, real-time control of fuel injection, making combustion more complete, fuel efficiency; full 3D modeling and finite element analysis technology to ensure the reliability and stability of structural parts.
Based on the above advanced technology, CHANGLIN ZG150 has been widely using in construction sites such as building construction, mining engineering, water conservancy project and etc.
Main Features:
Cummins' new generation of high-power EFI engines with strong power, low fuel consumption and high reliability
New hydraulic system, large displacement main pump, large flow main valve, large flow area, small pressure loss, more reasonable flow distribution, better coordination and easier operation
Equipped with large-caliber cylinders, optimizing the arrangement of each key hinge point, improving the digging force of the whole machine, setting the automatic supercharging function, and automatically increasing the digging force as the load increases
New generation control system intelligently adjusts the hydraulic absorption power according to the working conditions, and optimizes the system matching to ensure the full performance of the whole machine.
Equipped with high-resolution, high-brightness 5.7-inch color anti-glare monitoring instrument, intelligent electronic monitoring system, with vehicle maintenance information prompts, fault self-diagnosis and alarm and other functions
Safe and reliable new cab with automatic air conditioning
| Operating weight | Kg | 13890 |
| Rated bucket capacity | m3 | 0.6 |
| Overall length | mm | 7762 |
| Overall width(600mm track shoe) | mm | 2510 |
| Overall height | mm | 2983 |
| Trunable width | mm | 2510 |
| Cabin height | mm | 2825 |
| Groundclearance of counterweight | mm | 915 |
| Engine cover height | mm | 2243 |
| Min. ground clearance | mm | 416 |
| Tail length | mm | 3205 |
| Turning radius of turnable | mm | 2306 |
| Wheel base of track shoe | mm | 4030 |
| Chassis length | mm | 3010 |
| Chassis width | mm | 2490 |
| Track shoe gauge | mm | 1990 |
| Standard track shoe width | mm | 500 |
| Max. traction | KN | 122 |
| Travelling speed (H/L) | Km/hr | 5.9/3.4 |
| Swing speed | rpm | 13 |
| Gradeability | Degree(%) | 35(70%) |
| Ground pressure | Kgf/cm2 | 0.423 |
| Maximum digging radius | mm | 8335 |
| Ground maximum digging radius | mm | 8203 |
| Maximum digging depth | mm | 5491 |
| Ground maximum digging depth | mm | 5288 |
| Maximum vertical digging depth | mm | 4826 |
| Maximum digging height | mm | 8679 |
| Maximum dumping height | mm | 6174 |
| Min. front turning radius | mm | 2605 |
| Bucket digging force | kN | 100 |
| Stick digging force | kN | 68 |
| Model | Cummins QSF3.8-C115 | |
| Type | 4-cylinder in-line, four-stroke turbocharger | |
| Emission | Tier III | |
| Displacement | L | 3.76 |
| Rated power | 86KW(115PS)@2220RPM | |
| Max. torque | N.m | 470N.m@1400rpm |
