Предварительно сформированный кабельный зажим Adss
US $1.00-$10.00
Предварительно сформированный Удлинительный зажим для кабеля
- Категория: Power Accessories >>>
- Поставщик: Hebei,Crown,Wealth,Metal,Products,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.23 $* | 0.29 $* |
| Aug-18-2025 | 0.69 $* | 0.21 $* |
| Jul-18-2025 | 0.78 $* | 0.23 $* |
| Jun-18-2025 | 0.29 $* | 0.51 $* |
| May-18-2025 | 0.71 $* | 0.1 $* |
| Apr-18-2025 | 0.14 $* | 0.19 $* |
| Mar-18-2025 | 0.30 $* | 0.19 $* |
| Feb-18-2025 | 0.10 $* | 0.61 $* |
| Jan-18-2025 | 0.51 $* | 0.27 $* |
Характеристики

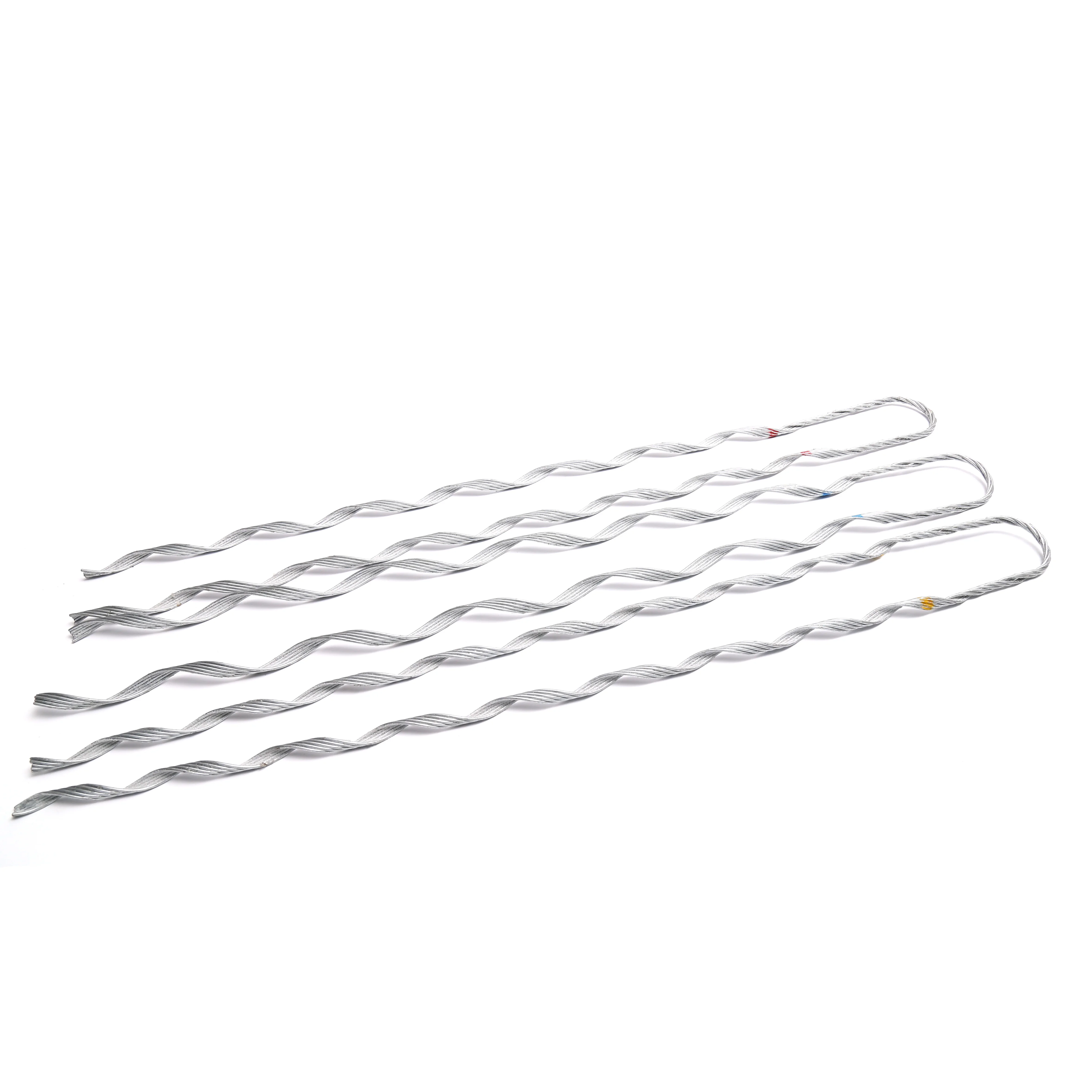

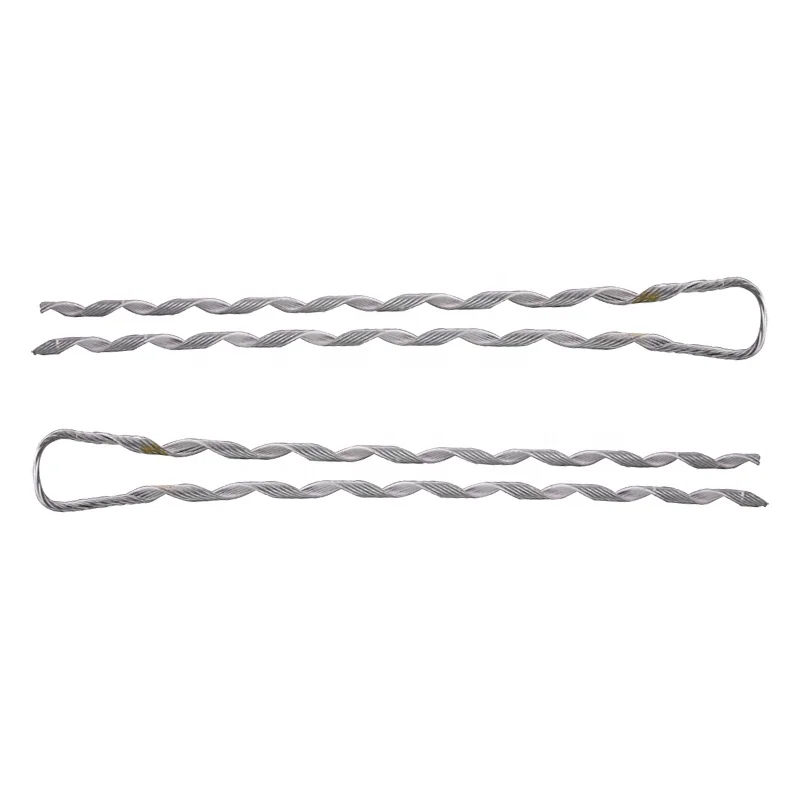

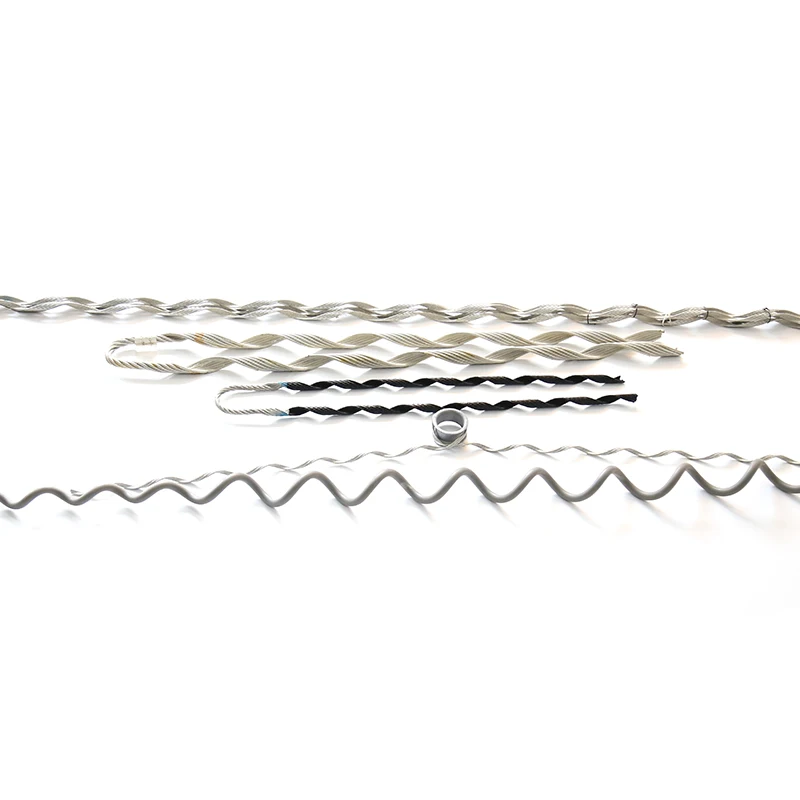

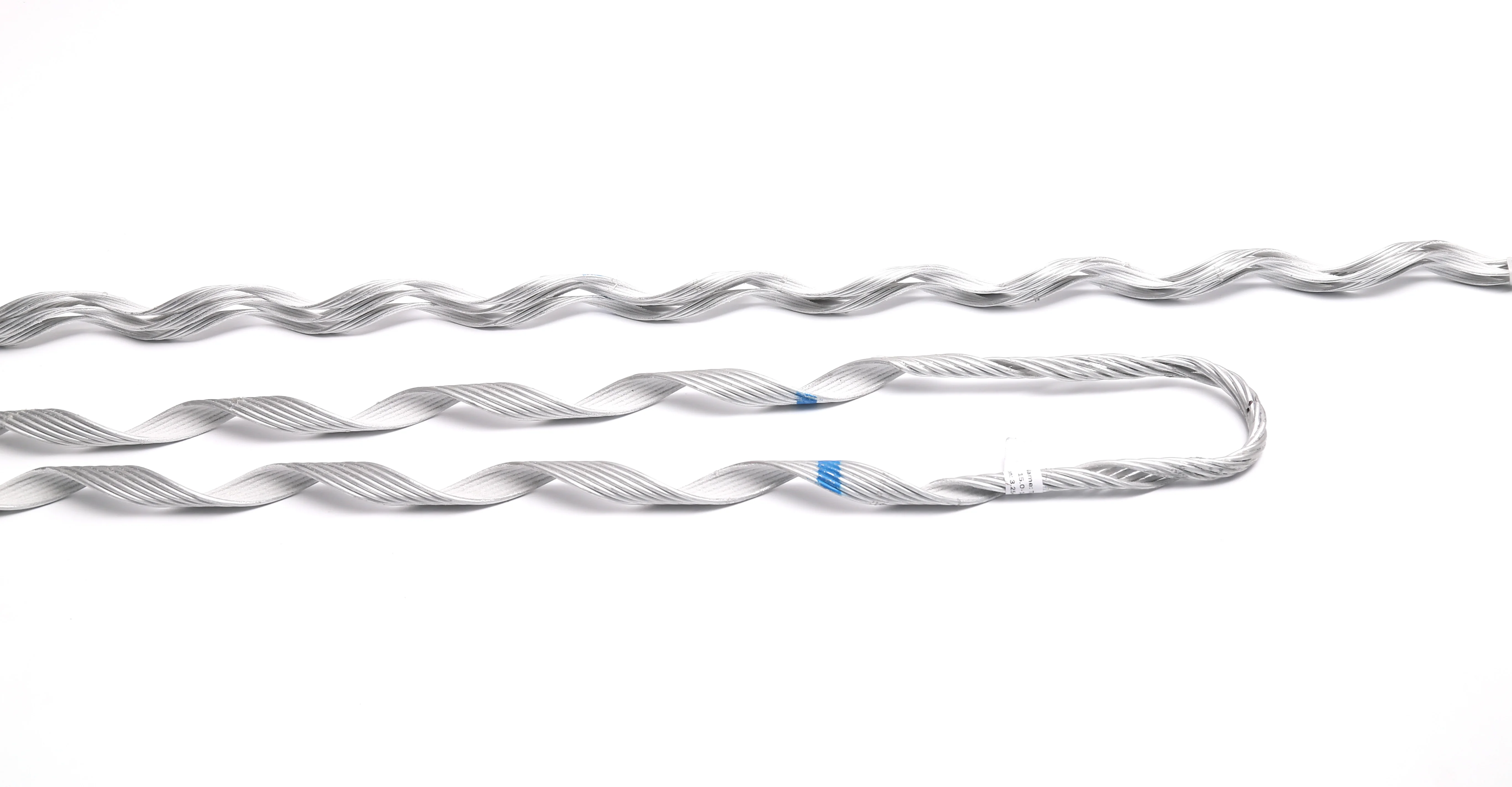

Preformed Tension Clamp Dead End Guy Grip for ADSS
Product Description
The preformed tension set is widely used for the installation of bare conductors or overhead insulated conductors for transmission and distribution lines, the reliability and economic performance of the product is better than the bolt type and hydraulic type tension clamp that widely used in the current circuit.
Innovative structure and precision design, so that the preformed tension set has a reliable performance and it is usually made of aluminum clad steel, galvanized steel wire and other materials.
| Product Name | preformed guy grip deadend |
| Material | Galvanized steel wire / Aluminum clad steel wire |
| Color | Silver |
| Product Type | Power accessories |
Features:
1. Materials are aluminium clad steel wire or galvanized steel wire.
2. Different span distance:0-100m, 101-200m, 201-300m, 301-400m, etc.
3. The preformed guy grip for span more than 200m, is composed of inner rods and outer rods.
4. Marked with various colour.
5. Grip strength can be over 95% RTS or customization.

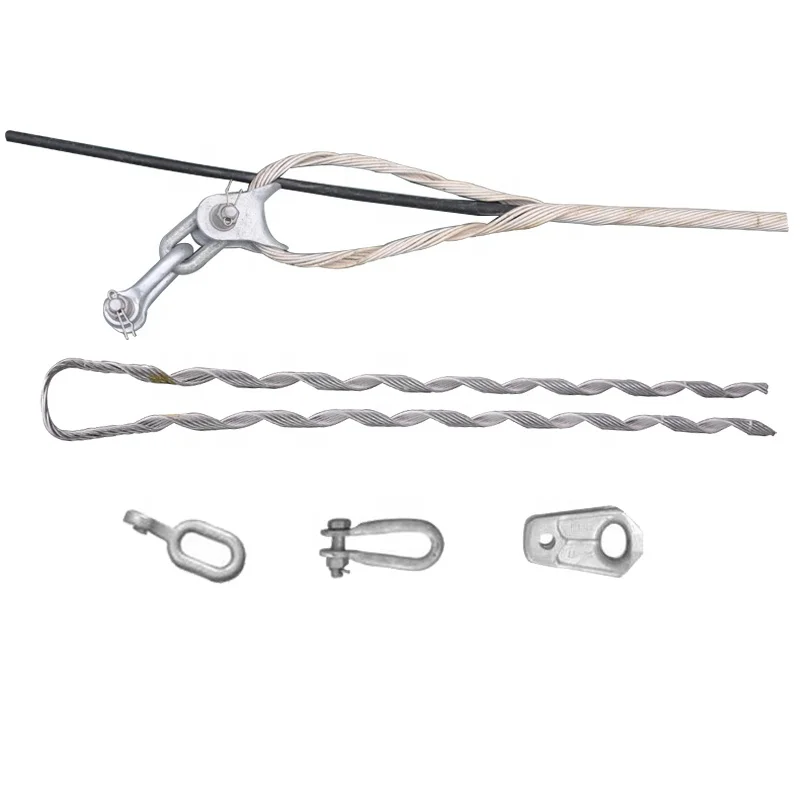

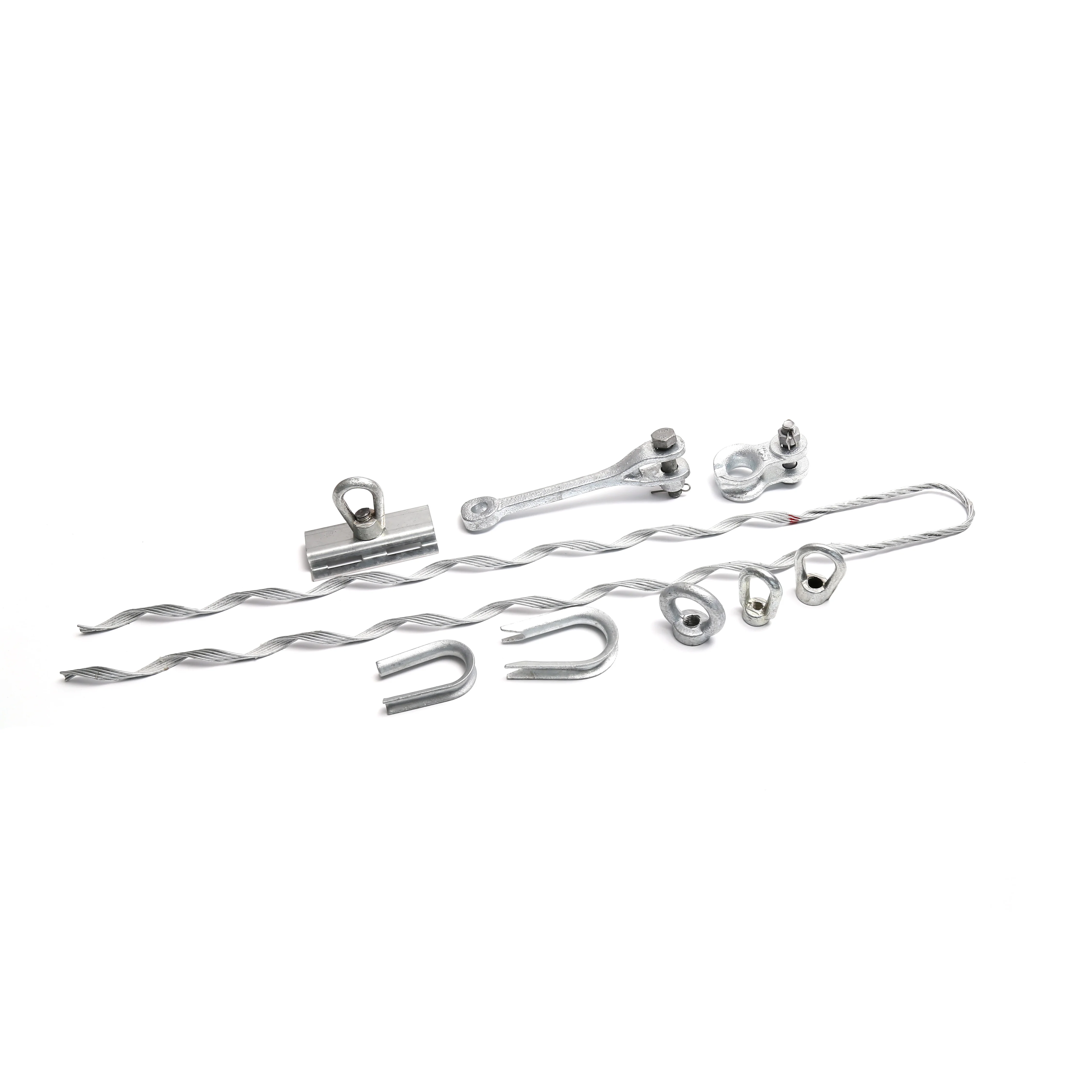

6. Installation with other hardware: thimble, U-shackle, extension loop, links, etc.
7. Saving metal material and reduce the cost of line.
8. Aging resistance.
9. Packing with carton box or wooden pallet.
Specification table:
Code | Rotation | Dia.Cable/mm | Number of Rods | Dia.of Rods/mm | Length/mm | Weight/kg |
CW-GUYSA-010 0940 | Left/Right | 9.0-9.4 | 5 | 2.5 | 780 | 0.31 |
CW-GUYSA-010 1040 | 9.5-10.4 | 5 | 2.5 | 830 | 0.4 | |
CW-GUYSA-010 1150 | 10.5-11.5 | 6 | 2.5 | 880 | 0.43 | |
CW-GUYSA-010 1240 | 11.6-12.4 | 6 | 2.5 | 910 | 0.44 | |
CW-GUYSA-010 1340 | 12.5-13.4 | 6 | 2.8 | 980 | 0.59 | |
CW-GUYSA-010 1490 | 13.5-14.9 | 7 | 2.8 | 1020 | 0.72 | |
CW-GUYSA-010 1590 | 15.0-15.9 | 7 | 2.8 | 1060 | 0.74 | |
CW-GUYSA-010 1690 | 16.0-16.9 | 7 | 3 | 1140 | 0.92 |
