Характеристики
FTTH Fiber Optic Cable
Products Description

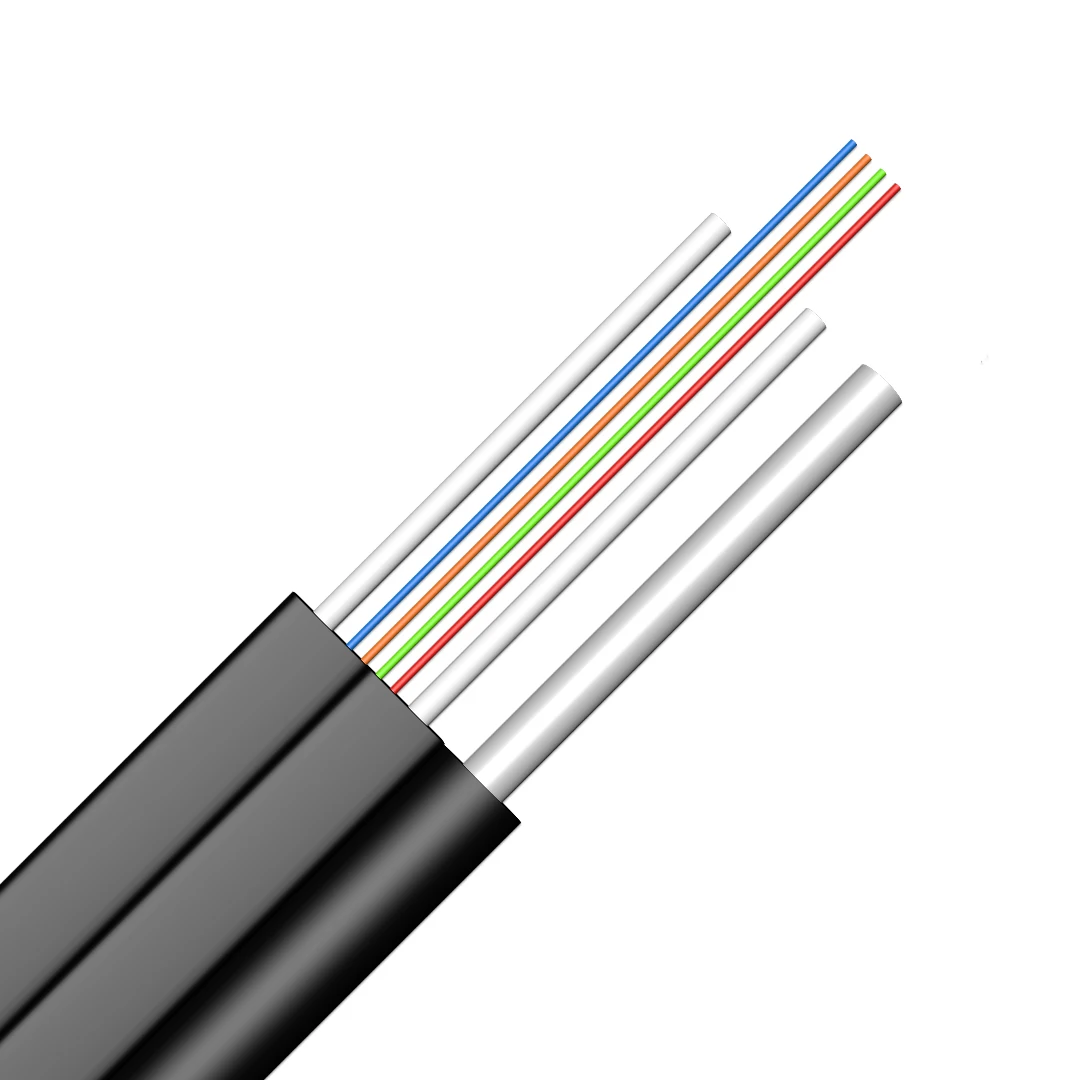

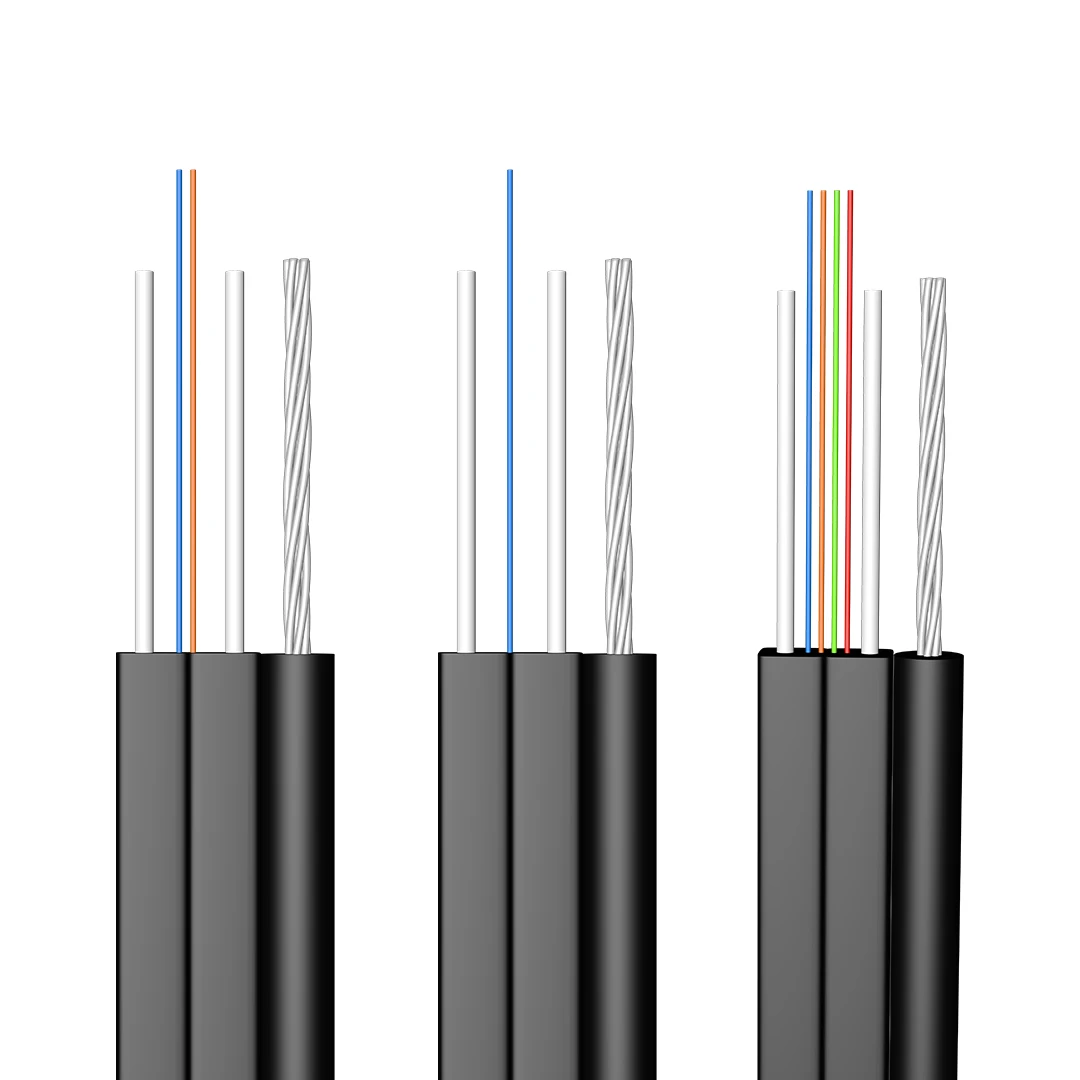

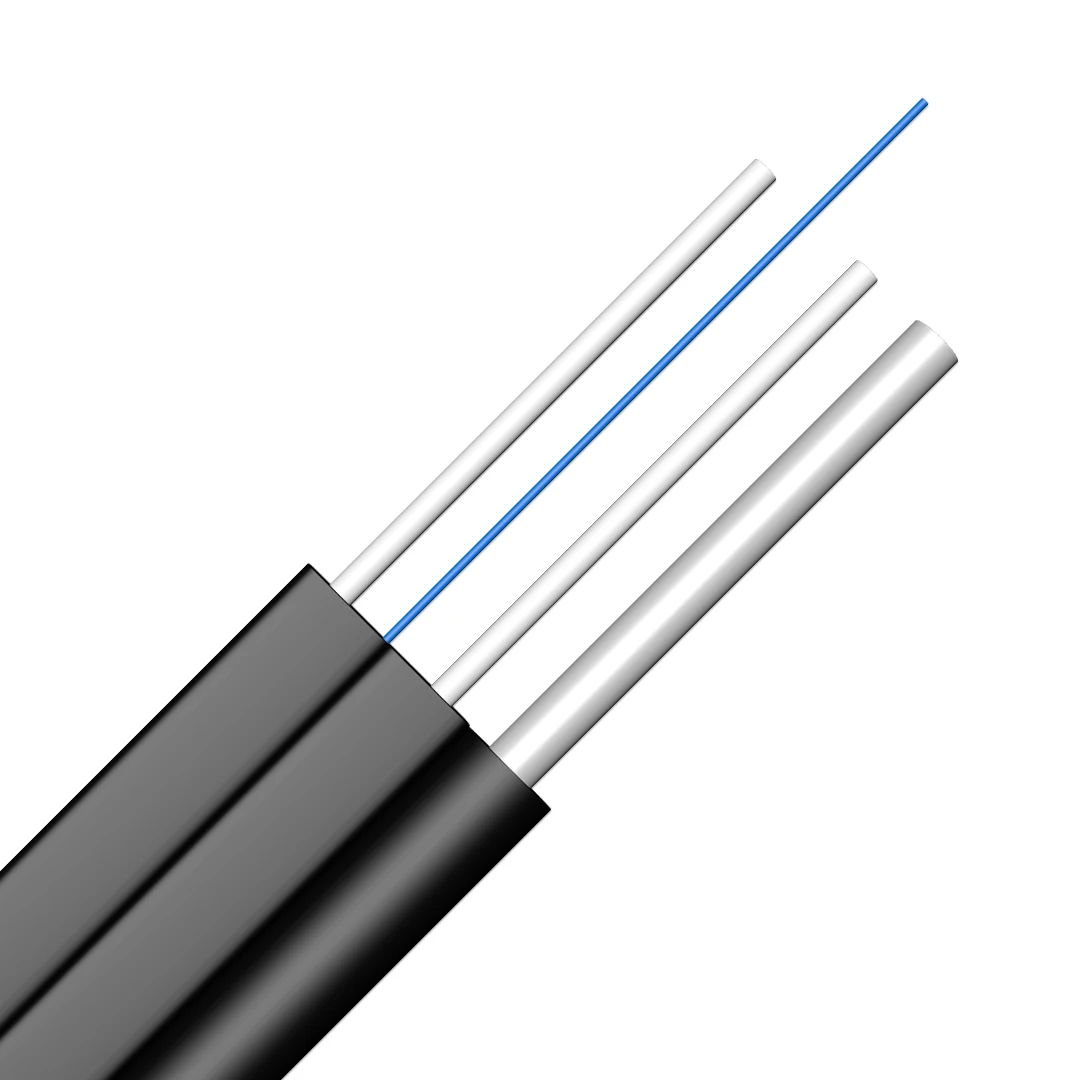

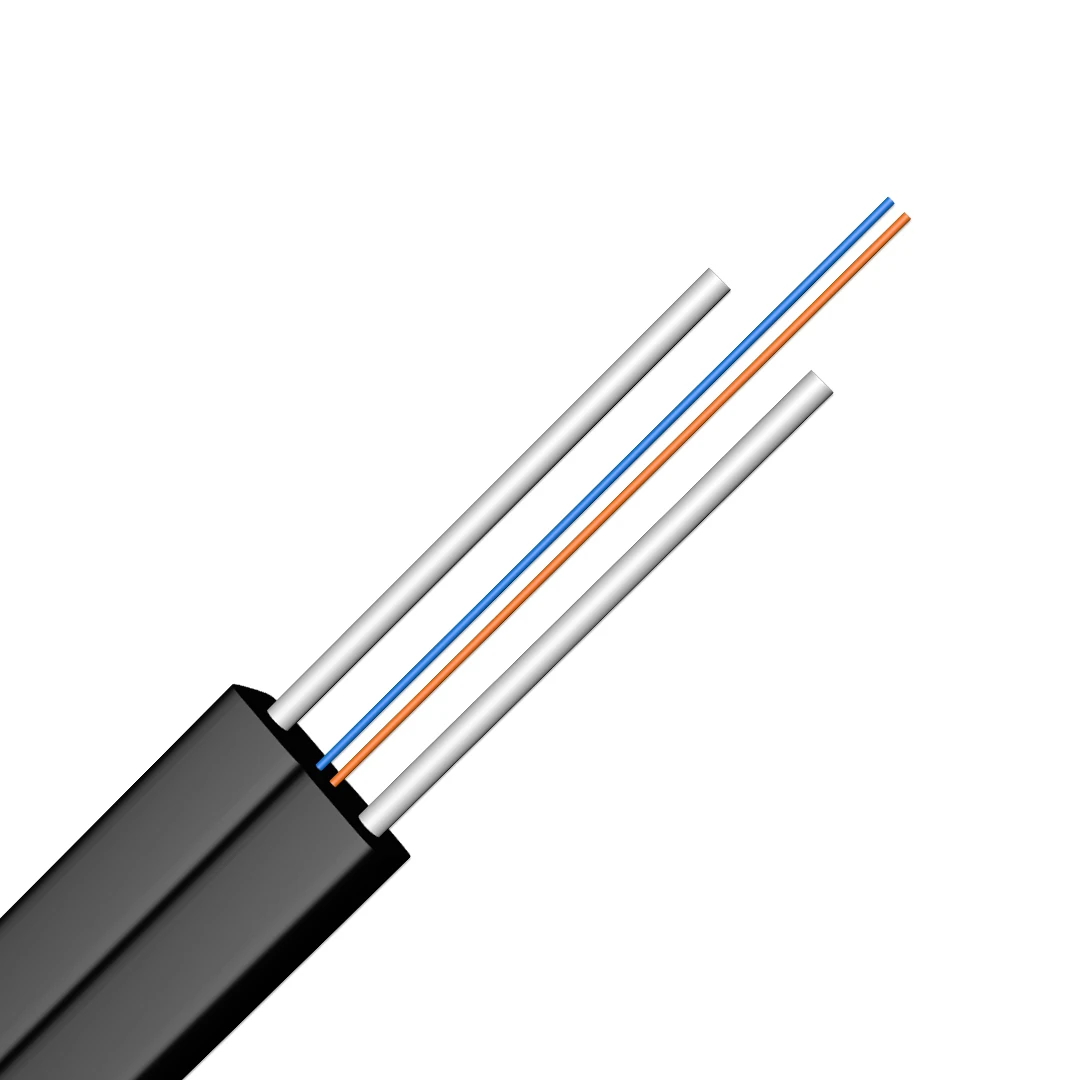

The optical fiber unit is positioned in the centre. Two parallel steel wire are placed at the two sides. Then the cable is
completed with a black or color LSZH sheath.
G657A+2*5.0LSZH +0.45 STEEL OR 0.50FRP +1.0 STEEL MESSENGER
FTTH Drop Cable
-Fiber Core:
1-4 cores(G657A1/G657A2),
3.0*2.0(±0.1)mm,
5.2*2.0(±0.1)mm;
-Messenger:
1.0mm Stranded steel wires;
Cable sheath:
1.8±0.2mmLSZH(black);
-Strength:
2*(0.5-0.8)mm FRP/Steel wire.
1-4 cores(G657A1/G657A2),
3.0*2.0(±0.1)mm,
5.2*2.0(±0.1)mm;
-Messenger:
1.0mm Stranded steel wires;
Cable sheath:
1.8±0.2mmLSZH(black);
-Strength:
2*(0.5-0.8)mm FRP/Steel wire.
Drop Cable FTTH | |
Cable size | 2.0(±0.1) mm × 5.2(±0.2)mm |
Cable weight | 8.1-9.8 kg/km |
Fiber type | 9/125 (G657A2) |
Short term tensile | 200, 600N |
Crush resistance | 1000, 2200N/100mm |
Cable sheath thickness | Max. 0.8mm, Min. 0.4mm |
Messenger sheath thickness | Messenger sheath thickness |
Attenuation | 0.4dB/km at 1310nm; 0.3dB/km at 1550nm |
Operation temp | -20~+70ºC |
Installation Method | Small bending radius used in door cabling; FTTH used in door network installation. |
Characteristics:
-Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
-Two parallel steel wire/FRP strength members ensure good performance of crush resistance to protect the fiber.
-Simple structure, light weight and high practicability.
-Novel flute design, easily strip and splice, simplify the installation and maintenance.
-Special low-bend-sensitivity fiber provides high bandwidth and excellent communication transmission property.
-Two parallel steel wire/FRP strength members ensure good performance of crush resistance to protect the fiber.
-Simple structure, light weight and high practicability.
-Novel flute design, easily strip and splice, simplify the installation and maintenance.
-Low smoke, zero halogen and flame retardant sheath.
Structure Characters:
-Good mechanical and environmental characteristics.
-Flame retardant characteristics meet the requirements of relevant standard.
-The mechanical characteristics meet the requirements of relevant standard.
-Soft, flexible, easy to lay and splice, and with big capacity data transmission.
-Meet various requirements of market and clients.
-Cable Technical Parameters
-Flame retardant characteristics meet the requirements of relevant standard.
-The mechanical characteristics meet the requirements of relevant standard.
-Soft, flexible, easy to lay and splice, and with big capacity data transmission.
-Meet various requirements of market and clients.
-Cable Technical Parameters
Products display
Packing & Shipping

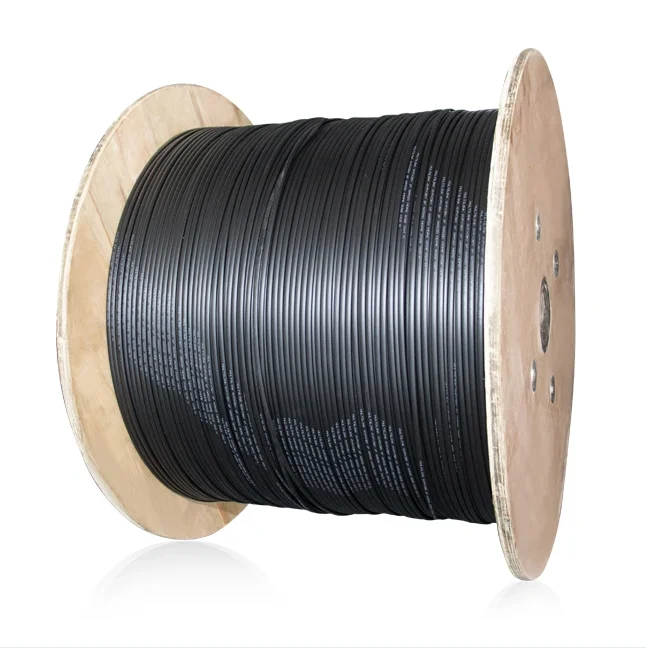

Inner packing: 3/5km wood drum.
Outer packing: carton, wooden drum.
Customized packing are welcomed!
Outer packing: carton, wooden drum.
Customized packing are welcomed!
Company Profile
We Hangzhou Jianye Cable Co.,Ltd is a Pioneer manufacturer with more than 10 years experience in the communications cable industry in China. We can professionally manufacture and supply coaxial cables, lan cables, fiber optic cables ,alarm cables etc,. Our company have passed ISO9001 , CE , RoHS , CPR and Anatel certificate. Free sample for verity, free box design, OEM production.And accept order against to clients’ specifications,no matter passing networking analyzer or fluke. Our current production capacity is about 50,000,000 meters per year.
Most of our products are exported to Europe, America,South America and South-east Asia. Etc. What is more, our company always devotes todeveloping custom cables according to clients needs.
Our factory is located in Lin an city, enjoying great convenience to Shanghai and Ningbo Port. We have very advanced testing machines, including Agilent and HP analyzer, We carefully test cables under ISO 9001-2000 quality management before shipping to the customers. And our quality is always reliable!
Warmly welcome to leave message!
FAQ
Q1.Are you the real manufacturer?
Yes,We are a professional manufacturer more than ten years, and we can control your order from the first beginning to the last.
Q2. About the quality?
Sample order is welcome, after price confirmation, free sample can be sent to you for quality checking.
Sample order is welcome, after price confirmation, free sample can be sent to you for quality checking.
Q3. Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
Q4. What is your delivery time?
Depends on the quantity,will arrange goods for asap after payment.
Q5. Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Please inform us before the production.
