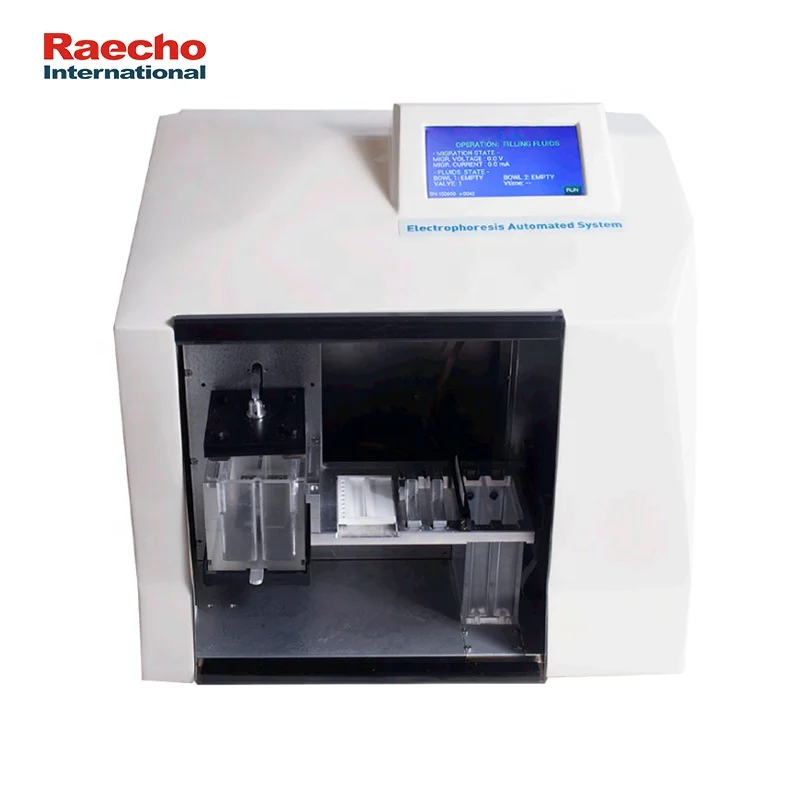

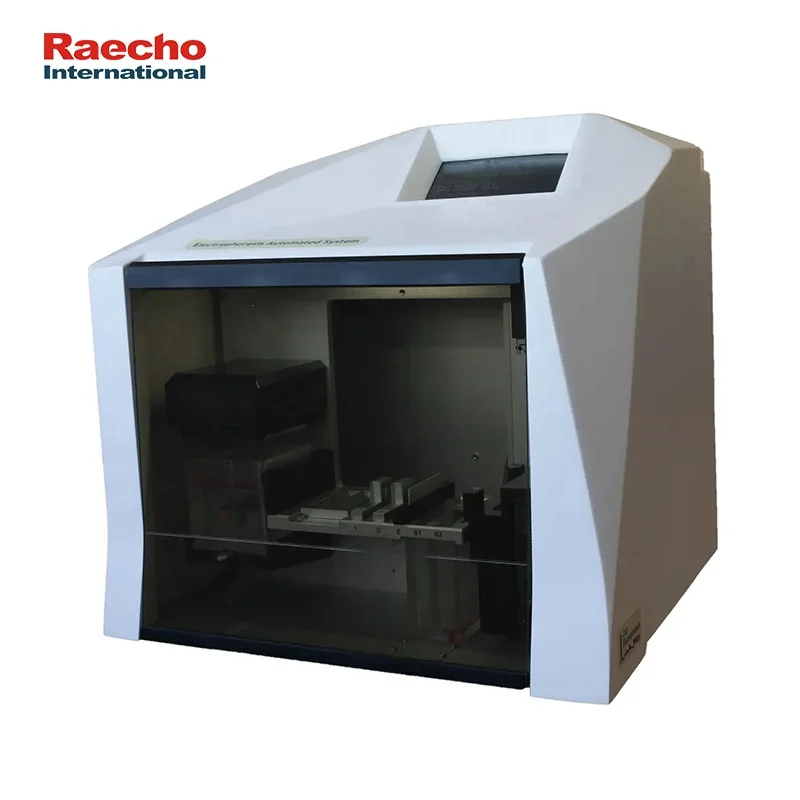

Лидер продаж лабораторное устройство для электрофореза автоматизированная система

Лидер продаж лабораторное устройство для электрофореза автоматизированная система

Категория: Other Lab Supplies >>>
Поставщик: Raecho,International,LimitedRaecho,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.86 $*	0.38 $*
Aug-18-2025	0.58 $*	0.21 $*
Jul-18-2025	0.35 $*	0.36 $*
Jun-18-2025	0.30 $*	0.0 $*
May-18-2025	0.72 $*	0.67 $*
Apr-18-2025	0.89 $*	0.24 $*
Mar-18-2025	0.90 $*	0.15 $*
Feb-18-2025	0.0 $*	0.96 $*
Jan-18-2025	0.8 $*	0.41 $*

Характеристики

Order with Trade Assurance

Product Description

Hardcare Characteristics
Electrophoretic methods	Serum Proteins, Hemoglobins, Lipoproteins
Sample	Serum, Plasma, Hemolysate
Support for the electrophoretic analysis	Cellulose acetate supported on Mylar®
Workload	8 samples
Operative rate	16 tests/hour
Densitometer	8 high power leds 550 nm+ 8 optical fiber + 8 photodiodes
Linearity	From 0 to 2.5 of O.D.

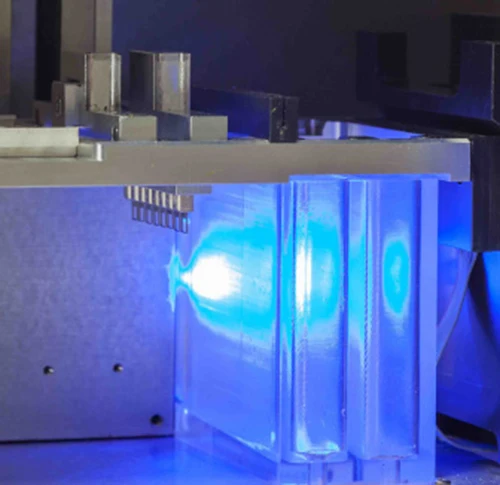

Migration chamber	Plastic block with titanium electrodes

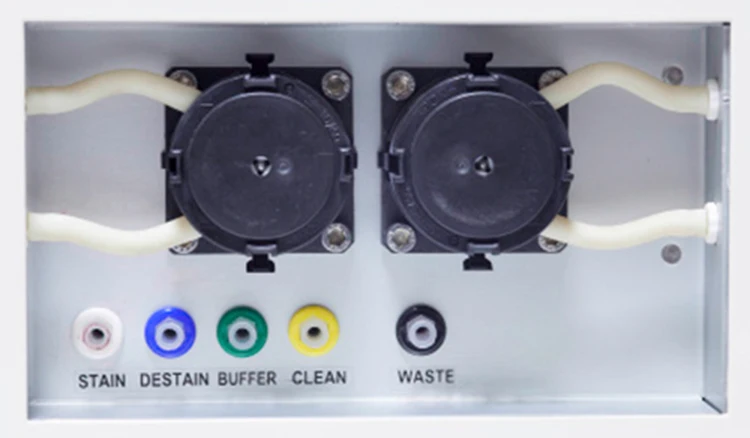

Soaking and staining-destaing compartments	Automated filling up to level
Power supply	Up to 220V 50Hz (Voltage and Current values can be set separately)
Size(WHD)	563646cm
Weight	18kg
Interface	USB
Computer	PC

Softcare Characteristics
Operative system	Microsoft Windows: XP/Vista/ 7 / 8.1/10
User interface	Monitor, keyboard and mouse
Graph minima points recognition	Automatic

FEATURES

1. USB port
2. Automated management of all the steps of the analytical cycle

3. Washing procedure of reagent tanks before switching the unit off

4. Bidirectional connection with host computer

5. Default parameters are not fixed and can be modified by changing the setting of working parameters

6. Acoustic and visual alarm in case of malfunction

FULLY AUTOMATED

1. Loading of all reagents into their respective tanks

2. Processing of the strip (soaking in buffer solution and removal of the excess of buffer solution before sample application)

3. Application of samples on the membrane

4. Electrophoretic migration

5. Staining and destaining

6. Densitometry by scanning the patterns and graphs display

7. Storage of patient’s data and results in the archive

8. Printout of graphs

COMPACT
Small dimension, suitable for small labs.

FLEXIBLE
The separation is carried out on small-sized supported cellulose acetate membranes that allow to run the electrophoretic test also with a low number of sample, without any additional cost increase per test.

HIGH THROUGHPUT
The system can work with a full load of 1 cellulose acetate strips in the same working session, which is 8 samples analyzed in about 30 minutes.

COMPLETE AND RELIABLE

Automated process ensures the best reproducibility of the results.

VERSATILE
The machine allows to perform serum proteins, hemoglobins and lipoproteins electrophoresis.

PATIENT’S REPORT

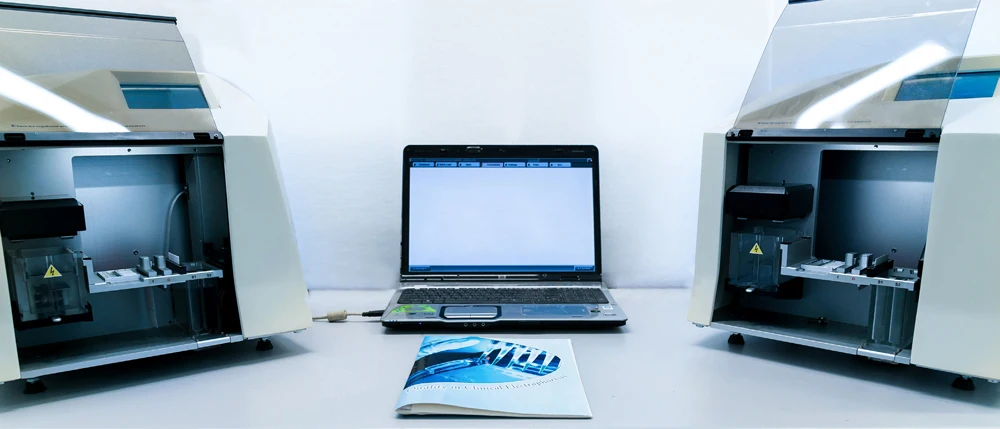

The instrument can be operated by a software installed on PC. It allows to add all the relevant information of the patients and to write descriptions and comments regarding the pattern. The software also allows host connection for bidirectional transfer of data.
