Product Description

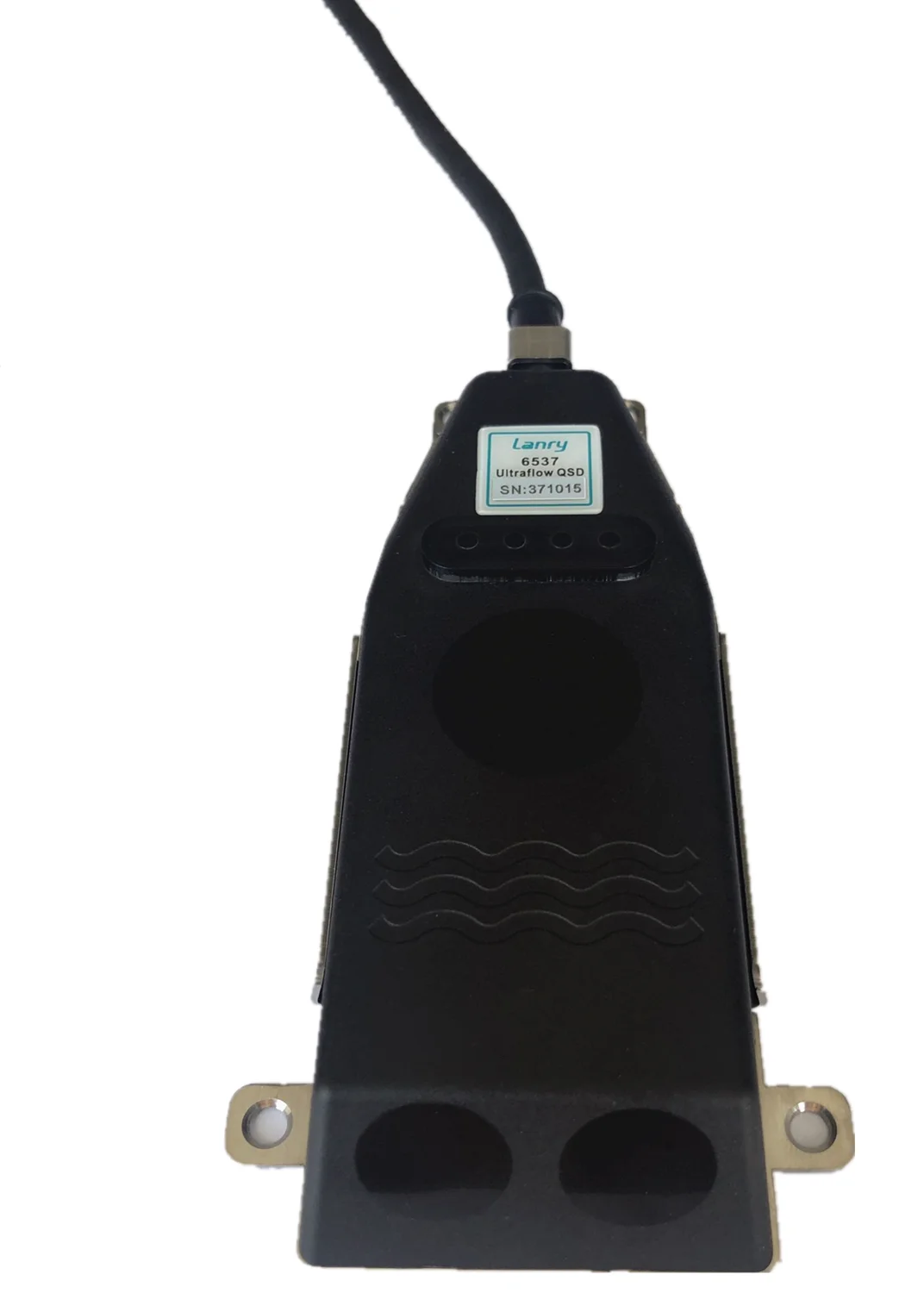

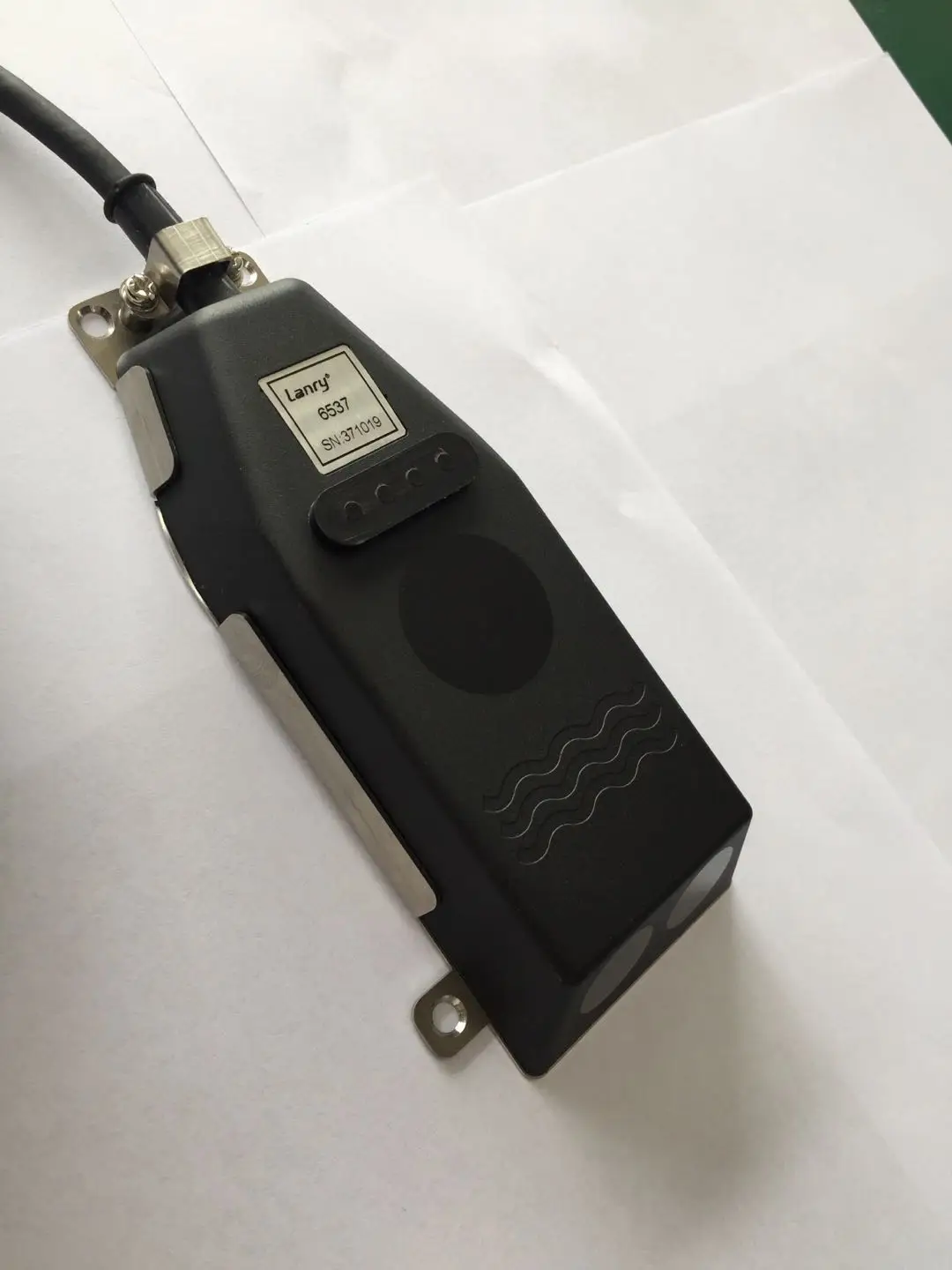

QSD6537 Open channel ultrasonic flow sensor/area velocity doppler flow transducer
Features
1. 20 coordinate points to describe cross section of the river’s shape.

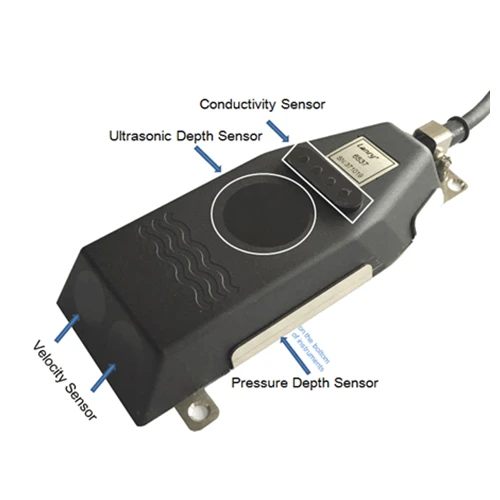

2. One instrument can measure the velocity, depth and conductivity simultaneously.
3. Velocity Range : 0.02mm/s to 13.2m/s bi-directional, accuracy is ±1% R. Flow rate range is optional (0.8m/s; 1.6 m/s; 3.2 m/s; 6.4 m/s;13.2m/s).
4. Pressure Depth Range: 0 to 10m; Accuracy: ±2mm. Ultrasonic Depth Range: 0.02-5m; Accuracy: ±1mm.
5. Measure velocity in both forward flow and back flow.
6. Depth is measured by both the pressure sensor and ultrasonic level sensor principles.
7. With barometric and pressure compensation function.
8. IP68 Epoxy-sealed body design, designed under water installation.
9. RS485/MODBUS output, connect to computer directly.
Specification
Velocity: | Velocity range: | 20mm/s-0.8m/s; 20mm/s-1.6m/s; 20mm/s-3.2m/s (default); 20mm/s- 6.4m/s; 20mm/s-13.2m/s Bidirectional velocity capability | |
Velocity accuracy: | ±1% R | ||
Velocity resolution: | 1mm/s | ||
Depth (Ultrasonic): | Range: | 20mm - 5000mm (5m) | |
Accuracy: | ± 1mm | ||
Resolution: | 1 mm | ||
Depth (Pressure)： | Range: | 0mm to 10000mm (10m) | |
Accuracy: | ±2mm | ||
Resolution: | 1 mm | ||
Temperature： | Range: | 0°C - 60°C | |
Accuracy: | ±0.5°C | ||
Resolution: | 0.1°C | ||
Electrical Conductivity (EC): | Range: | 0 to 200,000 µS/cm, Typically ± 1% of measurement | |
Accuracy: | ±1% R | ||
Resolution: | ±1 µS/cm | ||
recorded as a 16-bit value (0 to 65,535 µS/cm) or a 32-bit value (0 to 262,143 µS/cm) | |||
Tilt (accelerometer): | Range: | ±70° in roll and pitch axes. | |
Accuracy: | ±1° for angles less than 45° | ||
Output: | SDI-12: | SDI-12 v1.3, Max. cable 50m | |
RS485: | Modbus RTU, Max. cable 500m | ||
Environmental： | Operating temperature: | 0℃ ~+60℃ water temperature | |
Storage temperature: | -20℃ ~+60℃ | ||
IP class: | IP68 | ||

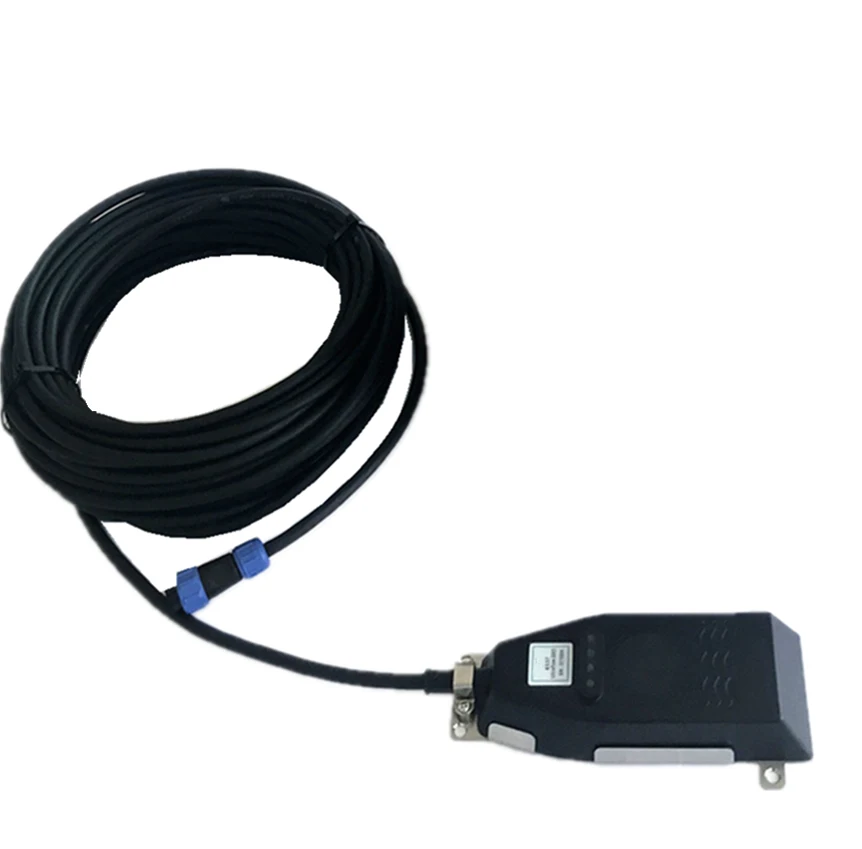

Others： | Cable: | The standard cable is 15m, the maximum option is 500m. | |
Sensor material: | Epoxy-sealed body, Marine Grade 316 Stainless Steel Mounting Bracket | ||
Sensor size: | 135mm x 50mm x 20mm (L x W x H) | ||
Sensor weight: | 1kg with 15m of cable | ||
Installation

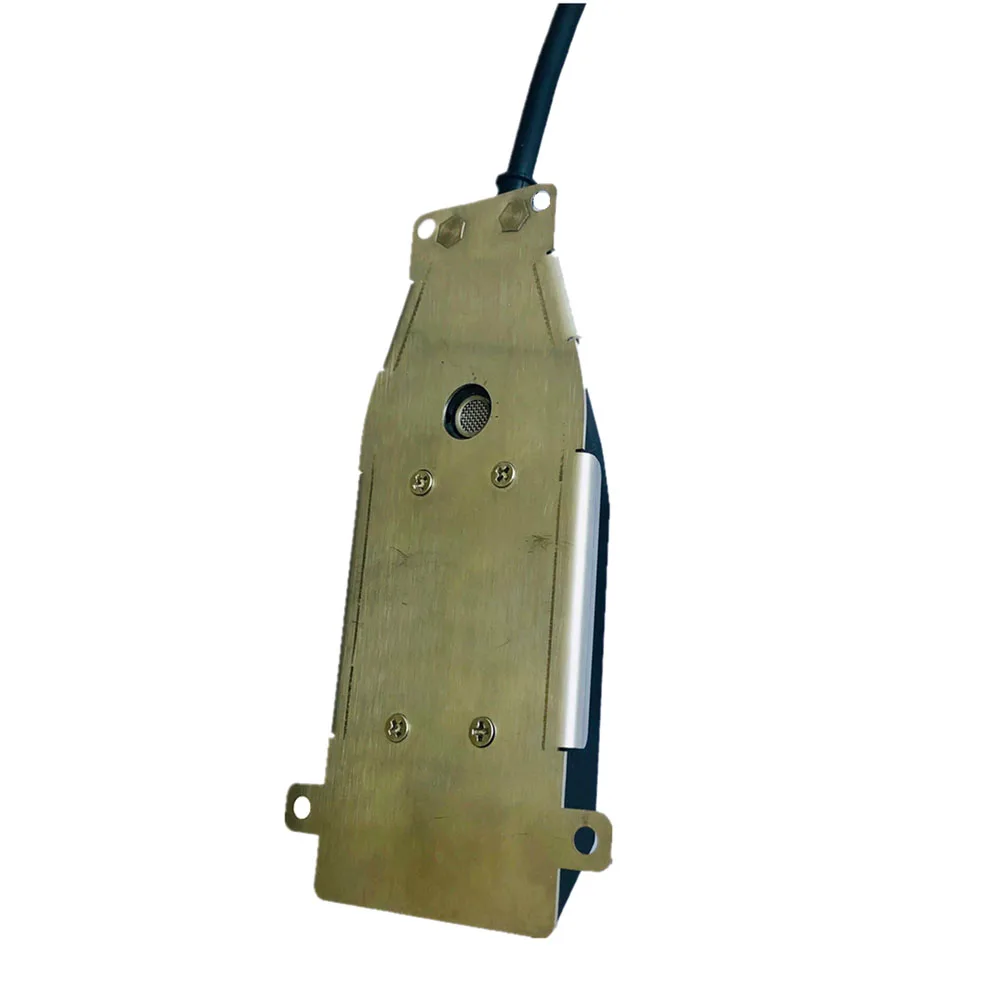

Stainless steel bracket
Applications
Open channel flow sensor widely applied to:
Industrial waste,open channel,sanitary sewer,not full pipe/partially filled pipe,canal,river,stream,irrigation,culvert and so on.
Exhibition
Certifications
Packing & Delivery
Hot product open channel doppler ultrasonic flow meter sensor for sanitary sewer
QSD6537 Customized logo Flow velocity Ultrasonic transducer could be carton packing
Delivery by DHL,UPS,FedEx or as your requirement.
Delivery day:7-10 working days
