Products Description

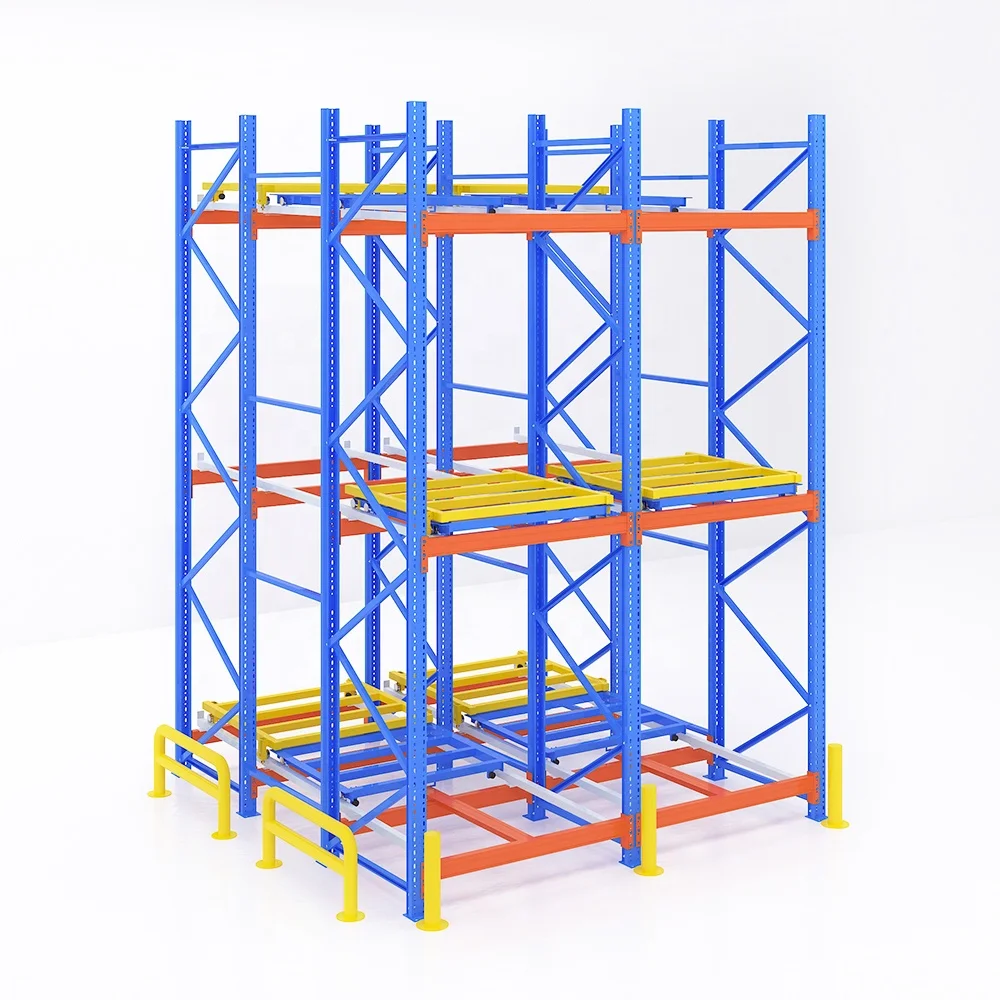

Push-back pallet rack is for high density storage. The depth is usually within 5 pallet positions. The rack takes "first-in-last-out (FILO)" access mode.
Characteristics
-Applicable to warehouses with high cost per unit area, such as cold storage, warehouses in prime locations in downtown, etc.
-Provide 20%-30% selectability
-Both safety and operating efficiency are higher than drive-in racks (drive through racks).
-Compared with adjustable pallet rack, it increases the utilization rate of the ground by about 60%.
-It can be used with a reach forklift or a counterbalanced forklift, and the forklift operation requirements are lower than drive-in pallet rack.
-Provide 20%-30% selectability
-Both safety and operating efficiency are higher than drive-in racks (drive through racks).
-Compared with adjustable pallet rack, it increases the utilization rate of the ground by about 60%.
-It can be used with a reach forklift or a counterbalanced forklift, and the forklift operation requirements are lower than drive-in pallet rack.

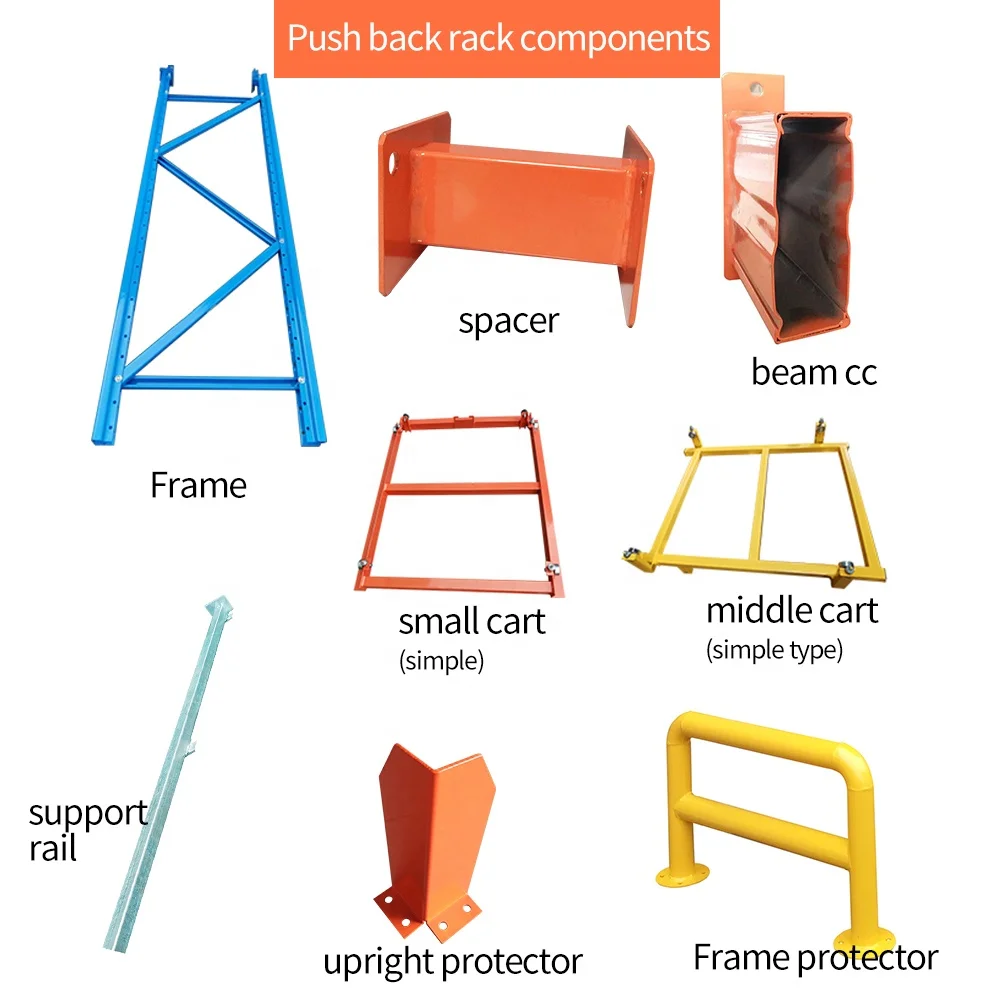

Components
The main components are upright frames, beam, support rail, and carrying cart. The rack is bolted structure and easy to dismantle
and install to a new place.
and install to a new place.
Middle Cart
Made of square tube. To save cost, the structure could be as simple as in above picture. Each has 8 bearing. Design could be
different as clients' needs.
Small Cart or 1st Cart
Made of angle steel, square tube. To save cost, the structure could be as simple as in above picture. Each has 8 bearings. Design
could be different as clients' needs.
could be different as clients' needs.

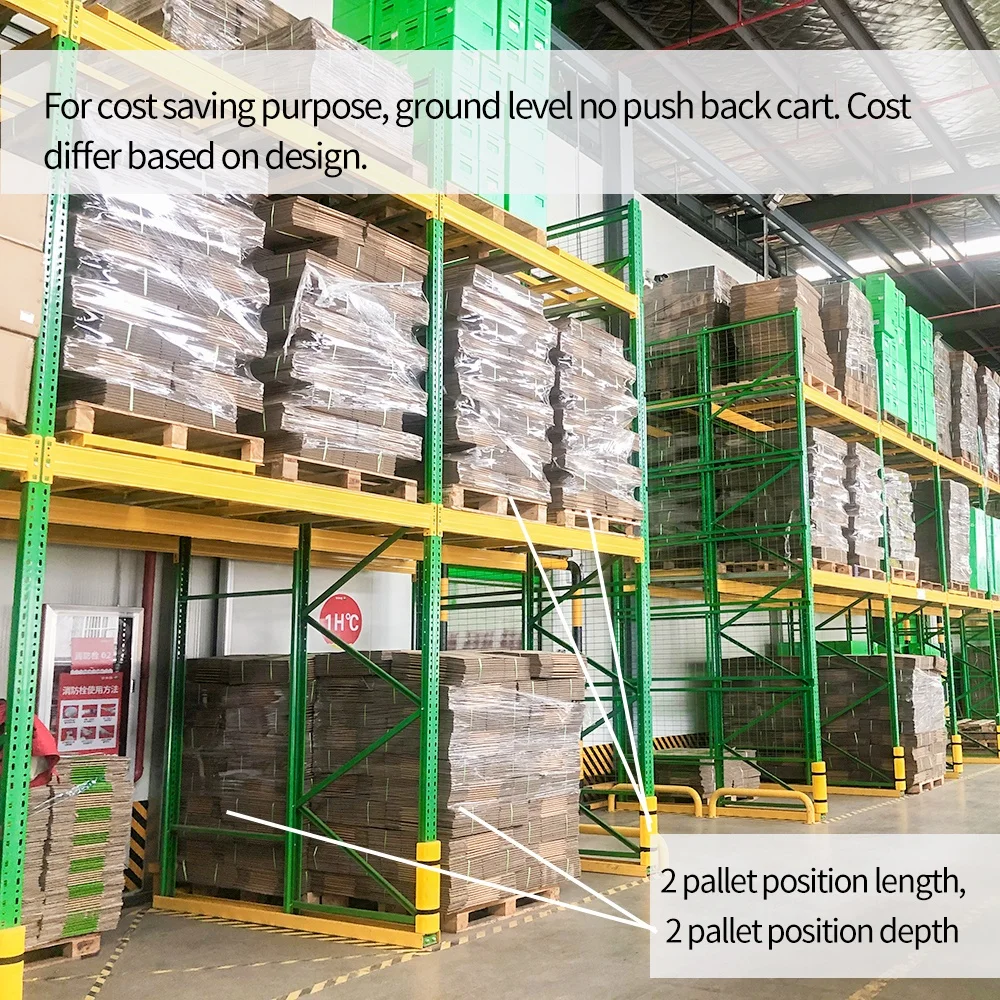

Protect Rail
Made of C-shape or U-shape steel. When ground level need no carts and pallet placed directly on ground. Protect rail is recommend.
Product Information
Rack Type | push back pallet rack | ||||
Rack Cost | Low, Medium Low,Medium,√Medium high,High,Higher | ||||
Pick-up Mode | first in, last out(FILO) | ||||
Structure | knock down or bolted | ||||
Forklift Aisle | around 3200mm,depends on customer's forklift parameter | ||||
Load Capacity & Dimension | Load capacity | ≤1500kgs/pallet | |||
Size | customized based on clients pallet | ||||
core components | frame(upright,also called column or post,bracing,base plate,fasteners), beam,support rail,cart,spacer | ||||
other | upright protector,frame protector, guide rail, protect mesh | ||||
Core Components Specification | upright(mm) | 80*60, 90*60, 90*70, 100*70, 120*95, 120*135 | |||
beam(mm) | 80*50, 100*50, 110*50, 120*50, 130*50, 140*50, 160*50 | ||||
Finish | Epoxy resin electrostatic spraying(powder coating),galvanized | ||||
Coating thickness | no less than 60um for average thickness for powder coating | ||||
Material | Q235B, or Q355 | ||||
ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey) Customized colors are available when order above 2*40gp containers | |||||

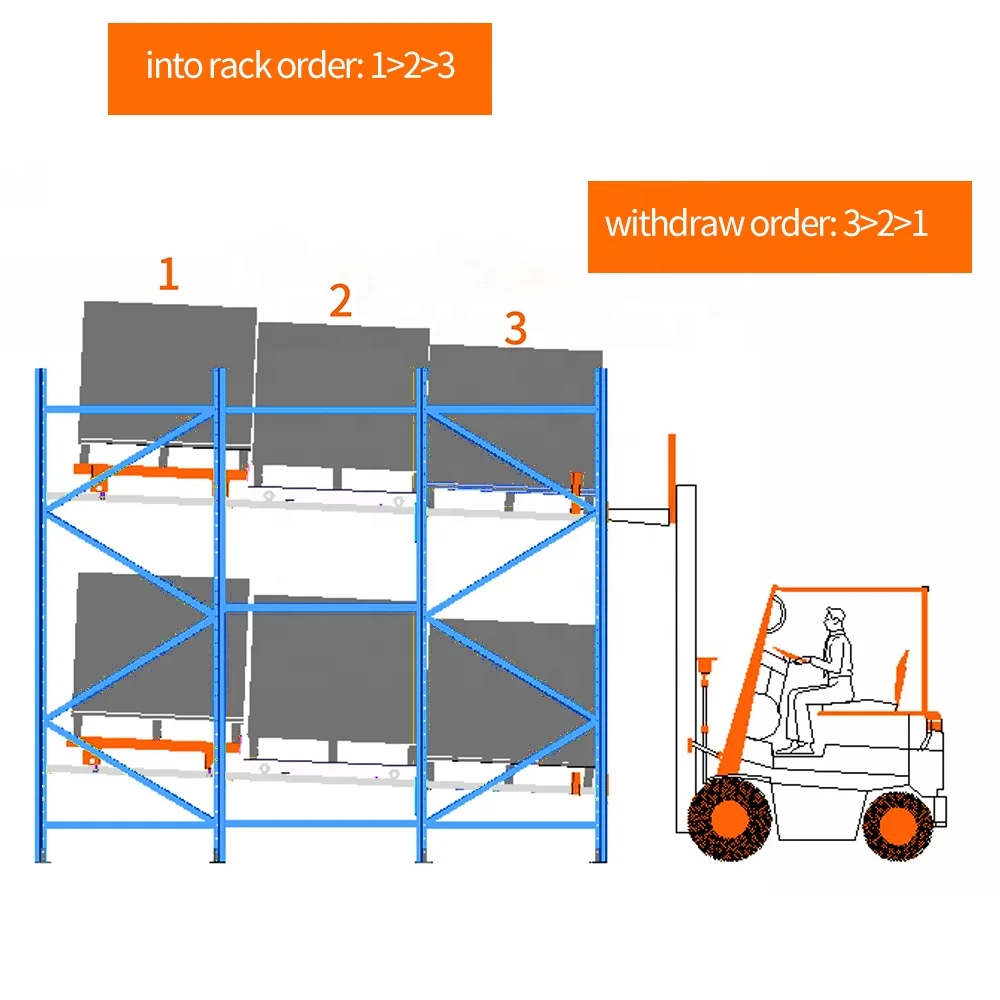

Loading
Carrying cart runs along the inclined support rail. 1st pallet is placed on the carrying cart, 2nd pallet pushed back 1st pallet
into the rack, 3rd pallet push the front 2 pallets into rack, the rest keep the same operation.
into the rack, 3rd pallet push the front 2 pallets into rack, the rest keep the same operation.
Unloading
Pallet at the pick-up end is carried out first, the next pallet slides to the pick-up point by gravity for unloading, other keep
the same.
Unlike drive in pallet rack, forklift truck don’t drive into the rack
Pallet at the pick-up end is carried out first, the next pallet slides to the pick-up point by gravity for unloading, other keep
the same.
Unlike drive in pallet rack, forklift truck don’t drive into the rack
Recommend Products
Our Services
Packaging & Shipping
For container order: stretch film+carton board+packing belt+plywood stick+plywood pallet leg
For less than container order:plywood box or other that can keep the product safe during transportation
Other: based on clients' needs, such as vacum packing etc.
Buying Guides
Company Information
Nanjing Hongbo Metal Products Co., Ltd.(hereafter mentioned as HBrack) is a company full of vitality. He committed to providing clients with better metal products and service.
HBrack has designers who have been in warehouse rack design more than 10 years. They have rich experience in complex structure.
The products provided including adjustable pallet racking, shelving, cantilever racking, drive-in racking, mezzanine floor, live racking, drawer racking, stacking rack, wire container, steel pallet, steel cage and other warehouse storage related products.
The service provided include storage rack design, producing and installation. The product done is from common pallet rack to complex mezzanine floor.
HBrack has designers who have been in warehouse rack design more than 10 years. They have rich experience in complex structure.
The products provided including adjustable pallet racking, shelving, cantilever racking, drive-in racking, mezzanine floor, live racking, drawer racking, stacking rack, wire container, steel pallet, steel cage and other warehouse storage related products.
The service provided include storage rack design, producing and installation. The product done is from common pallet rack to complex mezzanine floor.
