G3PE-225B DC12-24 реле> твердотельные реле по хорошей цене
US $5.00-$46.00
Интеллектуальный сервомотор Feetech 24 в 12 кг для логистического оборудования специальные Сервоприводы с роботизированным рычагом
- Категория: >>>
- Поставщик: Shenzhen,Feite,Model,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 69.85 $* | 72.5 $* |
| Aug-19-2025 | 68.98 $* | 71.73 $* |
| Jul-19-2025 | 57.25 $* | 60.12 $* |
| Jun-19-2025 | 67.53 $* | 70.94 $* |
| May-19-2025 | 59.16 $* | 62.35 $* |
| Apr-19-2025 | 66.20 $* | 69.21 $* |
| Mar-19-2025 | 66.88 $* | 69.25 $* |
| Feb-19-2025 | 65.37 $* | 68.6 $* |
| Jan-19-2025 | 64.6 $* | 67.27 $* |
Характеристики
Servo Features:
1.12 bit high precision magnetic coding senso
2. Aachieve 0-360 degrees any angle controllable
3. Multi-turn continuous operation mode
4. Feedback position/speed/voltage/current/temperature/load parameters
5. Overload and over-current protection
6. Suitable for application in industrial equipment, logistics, robot and other industries
3. Multi-turn continuous operation mode
4. Feedback position/speed/voltage/current/temperature/load parameters
5. Overload and over-current protection
6. Suitable for application in industrial equipment, logistics, robot and other industries
Products Description
24V 12KG Brushless Magnetic code servo | ||
Weight | 270 | |

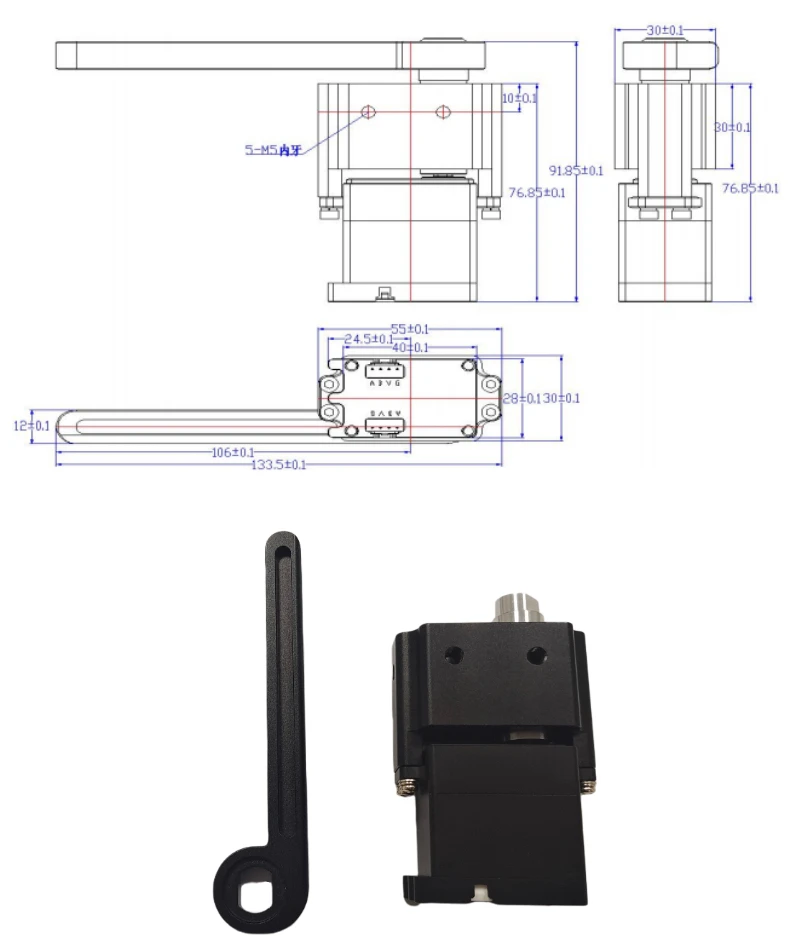

Size | 30X55X76.85mm | |
Angle Sensor | 12Bits Magnetic Coding | |
Servo Motor | Brushless Motor | |
Servo Gear | Steel Gear | |
Servo Horn Type | 6T/OD4.75mm | |

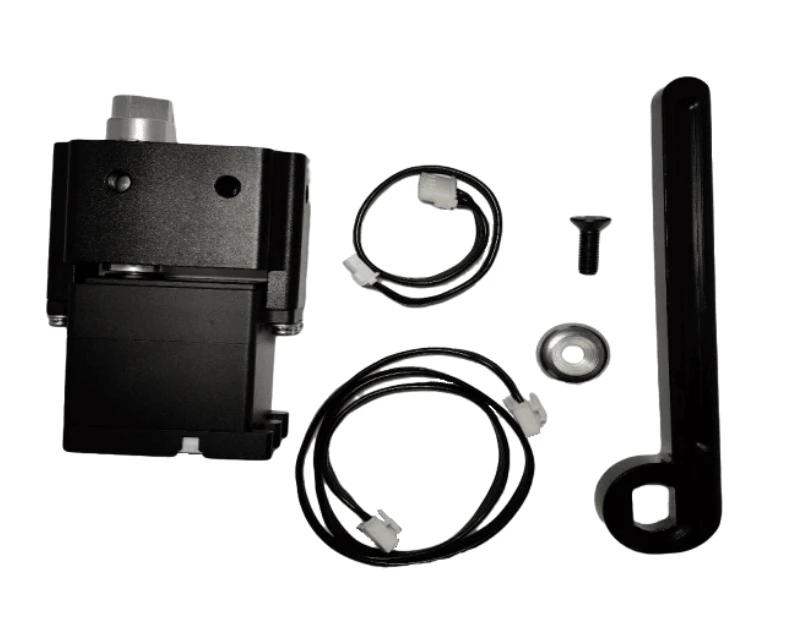

Connector and Cable | 40cm with TJC25020-4P | |
Operating Temperature Range | -20℃～60℃ | |
Electrical Specification | ||
Operating Voltage | 24V | |
Servo Toque | 12kg/24V | |
No Load Speed | 0.098sec/60°(102RPM) | |
Running Current ( no load) | 130mA | |
Stall Current (at locked) | 0.6A | |
Idle Current (at stopped) | 35mA | |
Rated Current | 500mA | |
Terminal resistance | 1.13Ω | |
Running degree | 360°(when 0～4096) | |
Feedback | Load、Position、Speed、Input Voltage、Current（、Temperature | |
Servo Function:
* Electronic Protection: Over hot/ load protection
* Step Middle Position: One-key calibration of the median
* Operating Modes: Angle Servo Mode / Velocity Open Loop / Closed Loop Mode
* Multi-Loop Mode: It can control the absolute position of plus or minus 7 circles (but the number of power-down circles is not saved)
* Step Middle Position: One-key calibration of the median
* Operating Modes: Angle Servo Mode / Velocity Open Loop / Closed Loop Mode
* Multi-Loop Mode: It can control the absolute position of plus or minus 7 circles (but the number of power-down circles is not saved)

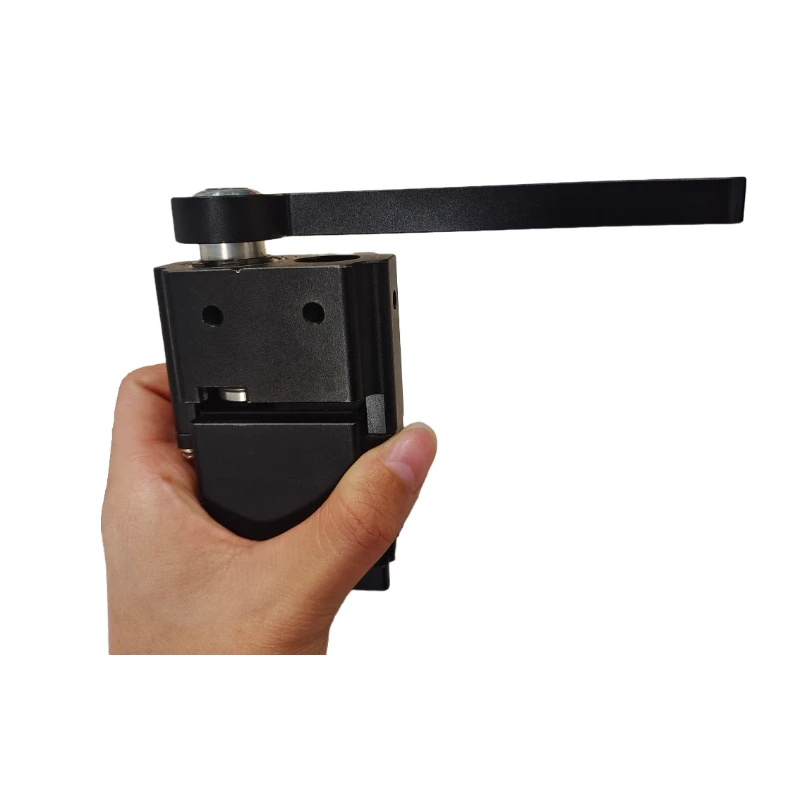

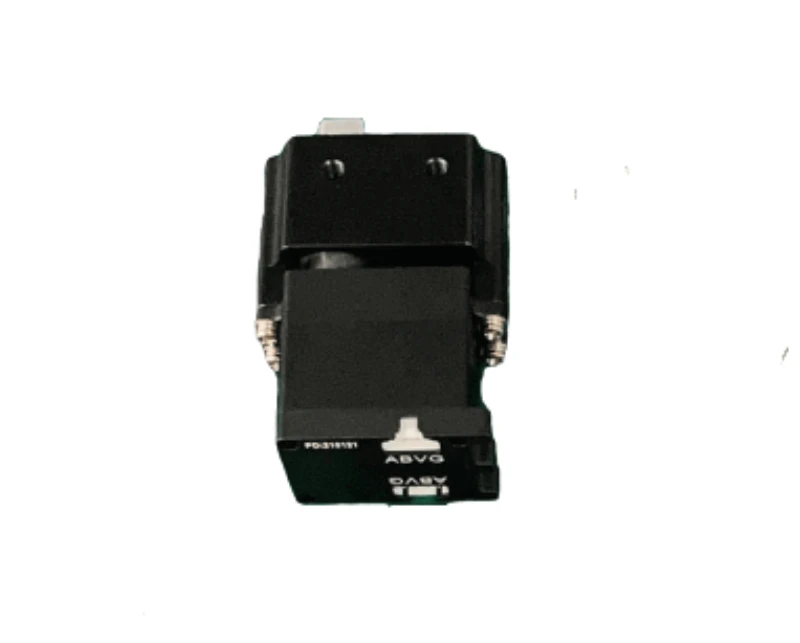

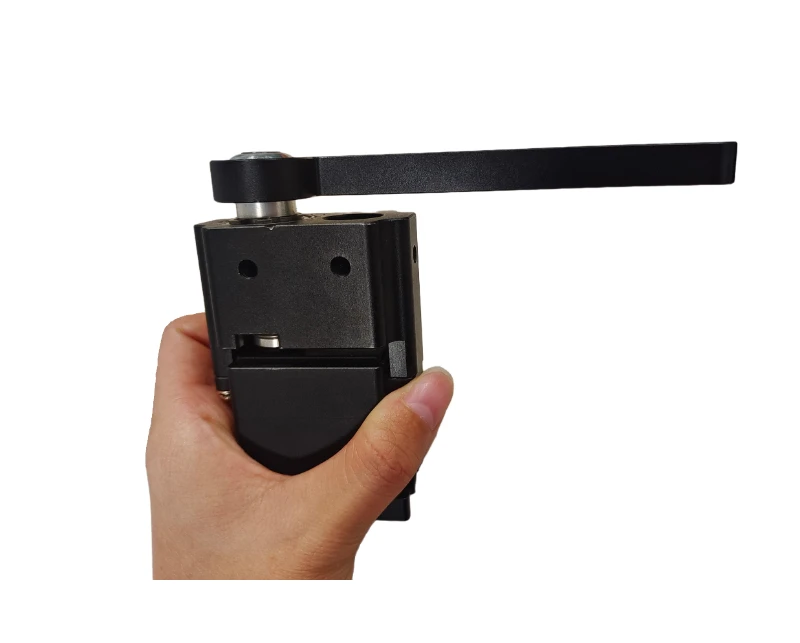

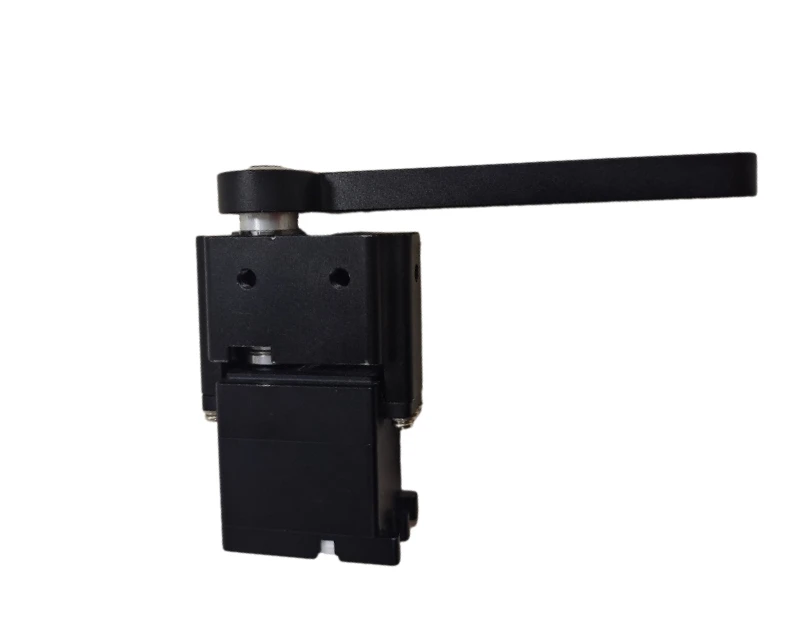

Details Images
Application
The servo has a long lever, suitable for use in the field of industrial equipment such as logistics equipment shuttle vehicles / unmanned express vehicles
Our Company
Shenzhen FEETECH RC Model Co., Ltd was established in 2011.
We are a research and development, customization, production and sale of high-quality servos for artificial intelligence products company.
It is committed to providing customized servo and industry solutions for enterprise users, and has been highly recognized and widely adopted by the partners.
Feetech make arduous efforts to promote the artificial intelligence industry development . The brand of “FEETECH” is based on the concepts of Flying, Excellent, Efficient and Technology.
We look forward to working with you to build a better future together!
Contact Us
Choose our,you can:
1.Your Logo label or print
2.Servo Wire:length,wire core,wire color.3.Packing:PE Bag,Color Box,plastic box with your Logo
4.Cable connector:1-4 pin JR,JST, XH
5.Output Gear:
The material:Plastic,Copper,steel,aluminium.
Output teeth:25 T Spline,hexagonal,and so on
6.CNC case:Case structure,color
7.Electronic function More......
Our Services & Strength
Specialized in ODM and OEM and Custom Made we can provide electronic design, structure design and production of 0 one-stop
customized service, Please feel free to share with me your idea.
Specialized in ODM and OEM and Custom Made we can provide electronic design, structure design and production of 0 one-stop
customized service, Please feel free to share with me your idea.
If the servo does not match your requirements , please do not hesitate to contact with us, we have hundreds of servos for optional, and we are professional servo manufacturer since 2011, customizing servo as per requirements is our advantage.
FAQ
1. How can I know the product is suitable for me?
First, you need to provide us the more details information about the product. We will recommend the item to you according to your requirement of specification. After you confirm, we will prepare the samples to you. also we will offer some good advances according to your product use.
2.The price you are offering is with shipping costs included?
The price does not include the shipping cost.We offer several shipping solutions,make sure customers choose the most economical one.
The price does not include the shipping cost.We offer several shipping solutions,make sure customers choose the most economical one.
3. Can I come to your company to visit?
YES, you can come to our company to visit at anytime, and welcome to visit our company.
4.what can you buy from us ?
We are specialized in servos,manufacturing various kinds of servos:programmable servo, robotic servo, digital servo,analog servo,485 S-bus intellegent servo etc.
We are specialized in servos,manufacturing various kinds of servos:programmable servo, robotic servo, digital servo,analog servo,485 S-bus intellegent servo etc.
5. How do contact us ?
Please send an inquiry .
Quality Control:
To guarantee our quality, our QC will inspect the goods from the following steps:
1. Raw materials, to control the quality from the source.
2. Semi-finished products.
3. Before package, our QC will inspect the 100% goods .
To guarantee our quality, our QC will inspect the goods from the following steps:
1. Raw materials, to control the quality from the source.
2. Semi-finished products.
3. Before package, our QC will inspect the 100% goods .
