Интеллектуальный контроллер дорожного сигнала постоянного тока 24 В или переменного 220
- Категория: Traffic Lights >>>
- Поставщик: Hangzhou,Eaglerd,Traffic,Industry,And,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 4379.87 $* | 4598.92 $* |
| Aug-15-2025 | 4342.65 $* | 4559.25 $* |
| Jul-15-2025 | 3643.89 $* | 3825.27 $* |
| Jun-15-2025 | 4269.14 $* | 4482.30 $* |
| May-15-2025 | 3717.91 $* | 3903.15 $* |
| Apr-15-2025 | 4195.66 $* | 4405.31 $* |
| Mar-15-2025 | 4158.82 $* | 4366.82 $* |
| Feb-15-2025 | 4122.55 $* | 4328.73 $* |
| Jan-15-2025 | 4085.62 $* | 4289.47 $* |
Характеристики
HangZhou Eaglerd Traffic Industry & Trade Co.,Ltd
We are the professional supplier of roadway safety and traffic facilities products,we are engaging in the roadways safety products' production, construction and sale . Our products focus on the roadway safety and"Let the road more safety "is our purpose, Our products are sold to worldwide ,our product got CE approval and CNAS certification,Our market includes EU,USA, South America, Middle East , East South Asia, Africa, Russia, Australia ETC. Our Development and Research and Sale office located on Hangzhou City , also we have four production bases, located on Hangzhou Lingjiang Industry Area, Nanjing Lishui country, Liaoning Province and Hebei Province. Our products include Raised Pavement Markers (road stud),Highway Delineator , Anti-Glare Screen, Solar Traffic Facilities(including solar road stud, solar traffic light, solar trafficsignal) , Guardrail , Reflective Sheeting for traffic sign, Fencing barrier serial, Glass Beads for road reflective marker, Rubber Speed Hump, Traffic light, Traffic signal ,Traffic Cone , Lane Divider, Convex Mirror, Road Line Marking Machine and Paint.
Our competitive is professional and comprehensive with quality and price, you are warming welcome to cooperate with us.

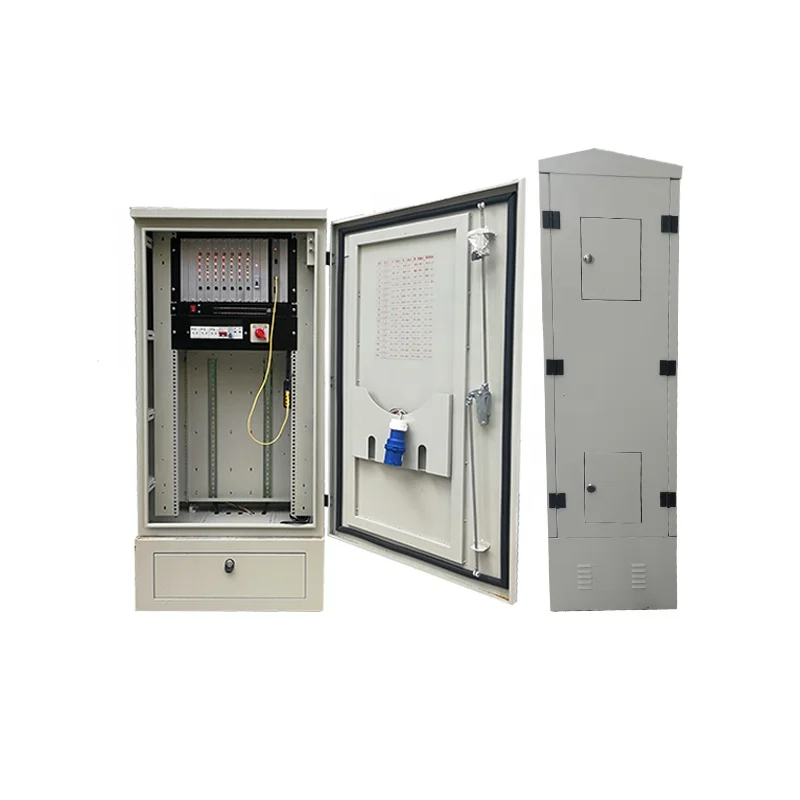

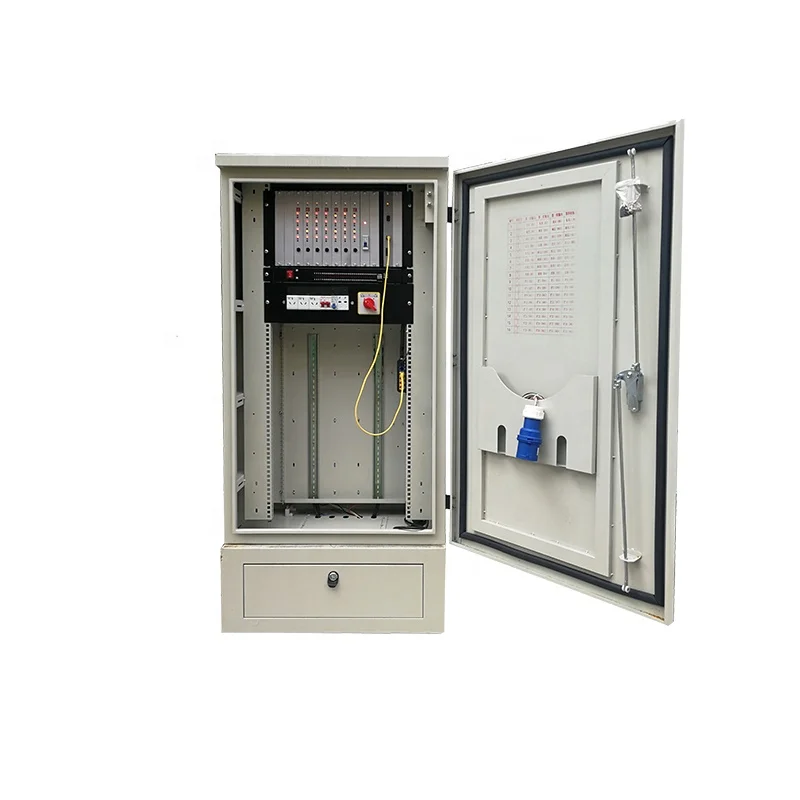

DC 24V or AC 220V Traffic signal light controller 7G
Product Functions
·Sixteen independent phases (extend to 40 phases available). ·
64 lines of detection input (TTL electric level), video detection input, microwave radar detection input, earth
induction input, and ultrasonic test input are all available.·Direct access to GPS function.
·Yellow flash, all red, light-off control functions. Shift to yellow flash, red light or light-off in cases of red light failure,
required warning, or accident.
required warning, or accident.
·Multiple protocols, independent agreement, PLCP-6.0, GB25280-2016, NTCIP, and national standard GB20999-2007
agreement are available
agreement are available
·The data will be saved during the power failure. The lifetime of the data storage is more than 5 years.
·The outside of the cabinet is corrosion resistant. It is 2mm hot dip galvanized steel, powder painting, waterproof,
moisture-proof and dustproof. The controller can operate in bad environment as high windy, rainy, hail and
thunderstorm weather.
moisture-proof and dustproof. The controller can operate in bad environment as high windy, rainy, hail and
thunderstorm weather.
·Operating voltage is AC220V±10%, and operating frequency is 50~60Hz.
·Operating temperature is from -40℃ to 85℃, and operating humidity is from 5% to 90%.
IP Rating: IP65.

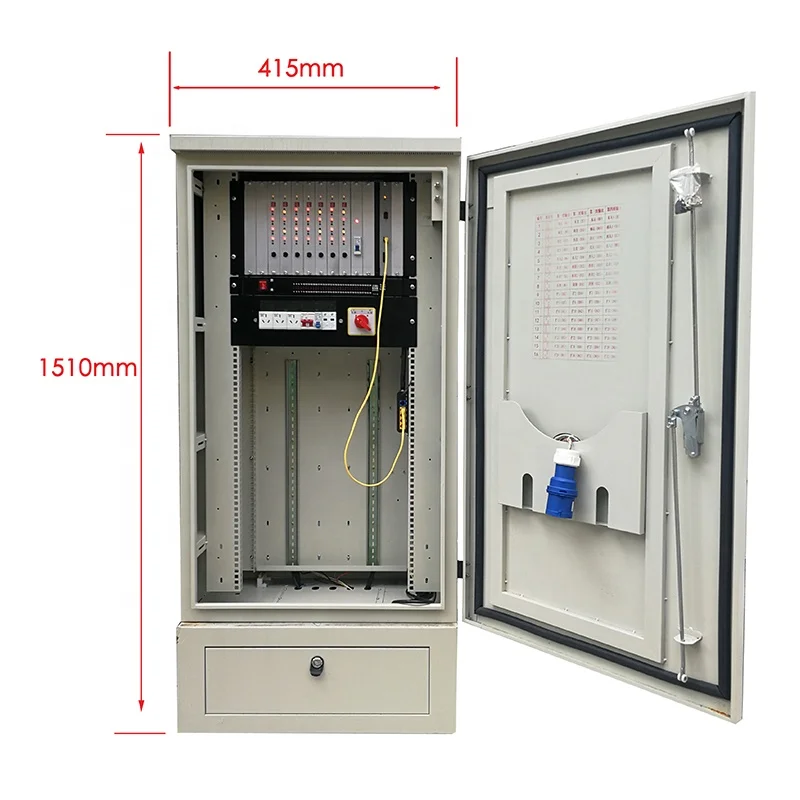

External dimension | Weight | Rated Input Voltage Range | Output Signal Lines | Single Output Power |
530*415*1510mm | 90kgs | AC 176V~264V OR DC 24V | Standard 56 Outputs, extended to 110 outputs | Max 500w |
Product Functions
·No cable coordinated, inducted, single point optimized, multi-period times and second pedestrian crossing
controlled modes. The system is self-adapted, line controlled, bus prioritized, special vehicle prioritized,
emergency prioritized and other controlled methods.
controlled modes. The system is self-adapted, line controlled, bus prioritized, special vehicle prioritized,
emergency prioritized and other controlled methods.
·40 pieces of the countdown display screen can be connected. Multiple intersections can be controlled
simultaneous. The modes includes Learning style, communication style and pulse-style countdown, displayed in
half way or wholly. The priority controlled countdown frequency conversion display is supported. Multiple
countdown agreements are supported. ·Multiple Interface means can be connected to the command center, including wired and wireless Ethernet Interface RJ-45 and the Serial Communication Interface of the RS-485. Interface is rich. ·Modes of "holiday", "weekend", "tidal" and "ordinary", each with 48 time programs. Total 16 time periods, can be
extended to 48 periods.
simultaneous. The modes includes Learning style, communication style and pulse-style countdown, displayed in
half way or wholly. The priority controlled countdown frequency conversion display is supported. Multiple
countdown agreements are supported. ·Multiple Interface means can be connected to the command center, including wired and wireless Ethernet Interface RJ-45 and the Serial Communication Interface of the RS-485. Interface is rich. ·Modes of "holiday", "weekend", "tidal" and "ordinary", each with 48 time programs. Total 16 time periods, can be
extended to 48 periods.
·The lamp color output interface includes RS-485, RS-232, and AC 220V output interface mode. The output board
can be customized (by modifying the address code on the board, which is convenient for maintenance).
Diversifled output interface. 56 outputs (extend to 110 outputs available: 60 outputs of vehicle signals, 30 outputs
of non-vehicle signals, 20 outputs of pedestrian signals). The maximum output loading is 500W each output.
can be customized (by modifying the address code on the board, which is convenient for maintenance).
Diversifled output interface. 56 outputs (extend to 110 outputs available: 60 outputs of vehicle signals, 30 outputs
of non-vehicle signals, 20 outputs of pedestrian signals). The maximum output loading is 500W each output.
·Signal lamp fault detection function for green conict, lamp extinguishing, red and green lights brightening at the
same time etc. And it will degrade after failure.
same time etc. And it will degrade after failure.
·Open shutdown detection.
·The product structure is simple, modular design, stable and reliable, and maintenance is convenient. The card
supports hot plug function. ·The event log and operation record of the abnormal state will be recorded.
supports hot plug function. ·The event log and operation record of the abnormal state will be recorded.
·32-bit embedded microprocessors(ARM) with high process. ·Handheld PDA mode (Android APP )
·With wireless or wired manual operation interface, it supports local special duty control and two keys access to
remote control.
·With wireless or wired manual operation interface, it supports local special duty control and two keys access to
remote control.
Packing in cartons，1pc/ctn
We also have kinds of traffic lights，200mm-300mm-400mm,full ball traffic light,arrow traffic,u turn traffic light,solar traffic light,and even the relevant traffic light controller，such as 22G controller，44 controller and also this one 7G.
