Система умной парковки автомобиля программное обеспечение оборудование для диспенсер билетов управления парковкой
- Категория: Parking Equipment >>>
- Поставщик: Shenzhen,Ricom,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.91 $* | 0.92 $* |
| Aug-17-2025 | 0.14 $* | 0.7 $* |
| Jul-17-2025 | 0.22 $* | 0.38 $* |
| Jun-17-2025 | 0.92 $* | 0.94 $* |
| May-17-2025 | 0.35 $* | 0.75 $* |
| Apr-17-2025 | 0.36 $* | 0.66 $* |
| Mar-17-2025 | 0.2 $* | 0.15 $* |
| Feb-17-2025 | 0.50 $* | 0.67 $* |
| Jan-17-2025 | 0.59 $* | 0.78 $* |
Характеристики
smart car parking system price software parking equipment ticket dispenser for parking lot management automatic barrier
Product Description
Our LPR Camera Built-in Algorithm for Asia/Middle East/European Union/America/North America/South America/Africa
Each Country With Different Algorithm,License Plate Recognition is more accurate !
We have many projects in mainland China and has rich on-site installation and commissioning experience. If your PACS/ACS accessories are broken, you can ask us to find the same accessories.

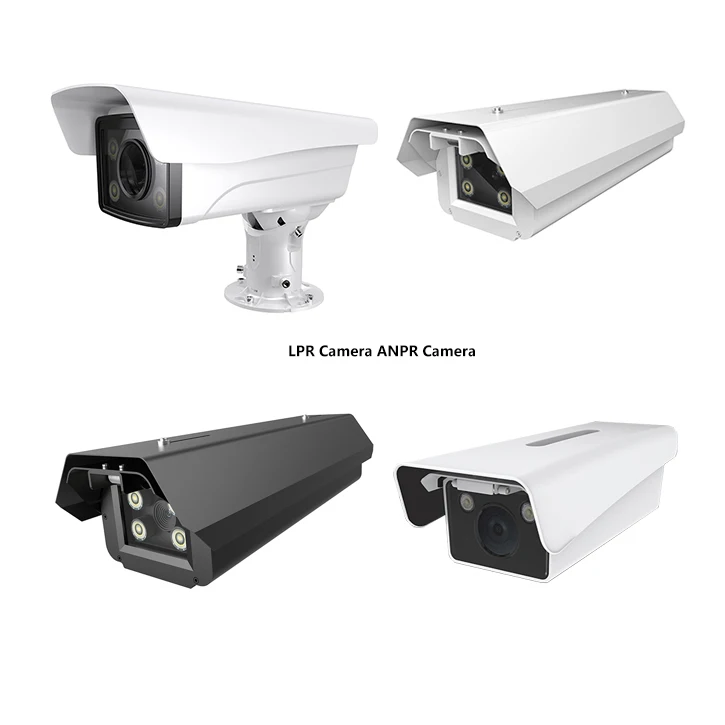

1-LPR/ANPR Camera:
The specification as following:
| Sensor | 1/2.8" CMOS |
| Min illumination | 0.1lux color |
| Time of exposure | 0-1ms or customize |
| Lens | Variable lens,manual focus,2.8-12mm |
Video Compress | Compress standard | H264 |
Compress bit rate | 512-5000kbps | |
Dual-stream | Main:1080P/720P/D1(704*576)/CIF(352*288)/640*360 Sub:D1(704*576),CIF(352*288),640*360 | |
Dual-stream
| ||
Sub:D1(704*576),CIF(352*288),640*360
| ||
Frame rate | 1-25fps,default 25fps | |
Interface | Power supply | 12V/2A,support 9-15V DC |
Internet | one RJ45 100M Ethernet | |
Internet
| one RS485 | |
one RS485 Default8GB SD/TF card,extend capacity to 128G | ||
TF card | ||
Reset | Reset parameter | |
USB | USB Type A | |
IO interface | one in one out | |
Audio | one in one out | |
Fill light | Support external fill light | |
Realiability | Temperature | -20℃~+70℃ |
IP class | IP66 | |
Power | <7W | |
consumption | <7W
| |
consumption Power supply | ||
12V-2A | ||
Images ISP | Image set | brightness,contrast,saturability,definition,exposure |
Low Light | Support | |
2D/3D Denoise | Support | |
Wide Dynamic | Support |
2-Display screen
Specification:
Name | Specification | Color |
Two line display screen | 64*32cm | Red and green light |
Four line display screen | 128*64cm | Red and green light |
3-Column: the column and the appearance of the product are formed by cold-rolled iron sheet, strong and waterproof.
4-Fill light:
With an automatic light sense < 30Lux, the light will be automatically opened according to the surrounding environment of the project site, and will remain bright until the supplementary light
detects that the surrounding environment becomes brighter, and the light sense will be
automatically closed when it is greater than 30Lux.
Output voltage | AC220V |
Rate power | 12W |
Exposure distance | 3-20meters |
Light sensor feature | Below 30LUX, instantly lit up;Higher than 30LUX, delay 3 minutes to turn off the light |
Features of the controller | the switch on and off is controlled by the German relay, which is stable and reliable. |
Lamp bead type | 12PCS high brightness white light chip |
Light Angle | 45 degrees |
Anti-glare treatment | acrylic anti-glare optical lens + photocatalyst anti-glare grating |
Protection grade | IP65 |
Shell material | tempered glass, die-cast aluminum |
Light weight | 0.8KG |
Light dimension | 180*140*55mm |
Package dimension | 200*160*60mm |

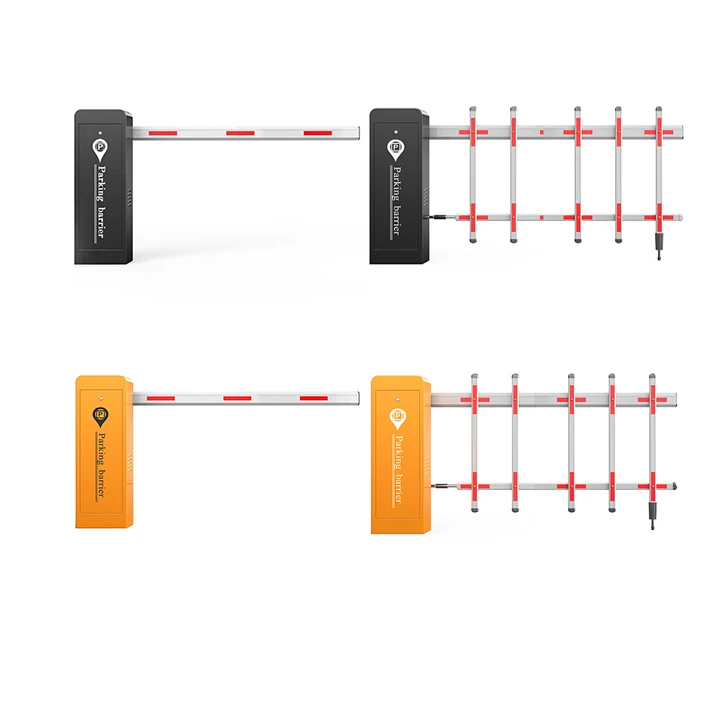

5-Barrier gate:barrier gate is generally divided into straight boom barrier,folding arm
barrier,fence barrier,advertising barrier and high speed barrier.
Generally used a lot in the parking lot is straight bar and folding arm barrier,the following
is the corresponding parameters:
Ordinary 3-6 second straight boom/folding arm barrier:
Dimension | 1050*345*295(mm) |
Color | Red,Yellow,Orange |
Boom length | Support 1-6meters customize |
Startup speed | 3-6 second,50HZ |
Operate temperature | -25℃±70℃ |
Voltage | AC220V |
Rate power | 90W |
Remote control distance | <50meters |
Motor shaft speed | 140rotate/minute |
6-Computer:the computer configuration required by the parking lot system can
be referred to the following list, or our industrial PC can be used:
Operate system | Win7 64bit or Win10 64bit |
CPU | Support AVX instruction set |
Processor | Intel third generations or later i3,i5 or i7,pentium and celeron not support |
AMD FX,Athlon series,APU series after bulldozer architecture | |
Ram | 4GB |
The Easiest Way is to use CPU-z to detect it at glance
7-Industrial PC: in order to reduce some problems caused by customers when
installing software and data,Our company specially makes industrial PC for parking
lot software exclusively, Preloaded operate system,parking management system
software and database,turn on and use immediately The computer designed as
industry class without fan,feature of it:support without fan,low noise,with CPU intel
low power consumption intel I5 4300u,1.9GHz processor,total rate power consumption
only 18W.Support 2*COM serial port and inductry communication.Mainboard electrictity
boot,dual displa,one port VGA,one port HDMI,it have gigabit and wifi function.
Industrial PC configuration as following:
CPU | I5 4300 |
Ram | 4GB ddr3 |
Hard disk | 64GB SSD+1TB HDD |
Dimension | 23*15*4.3cm |
