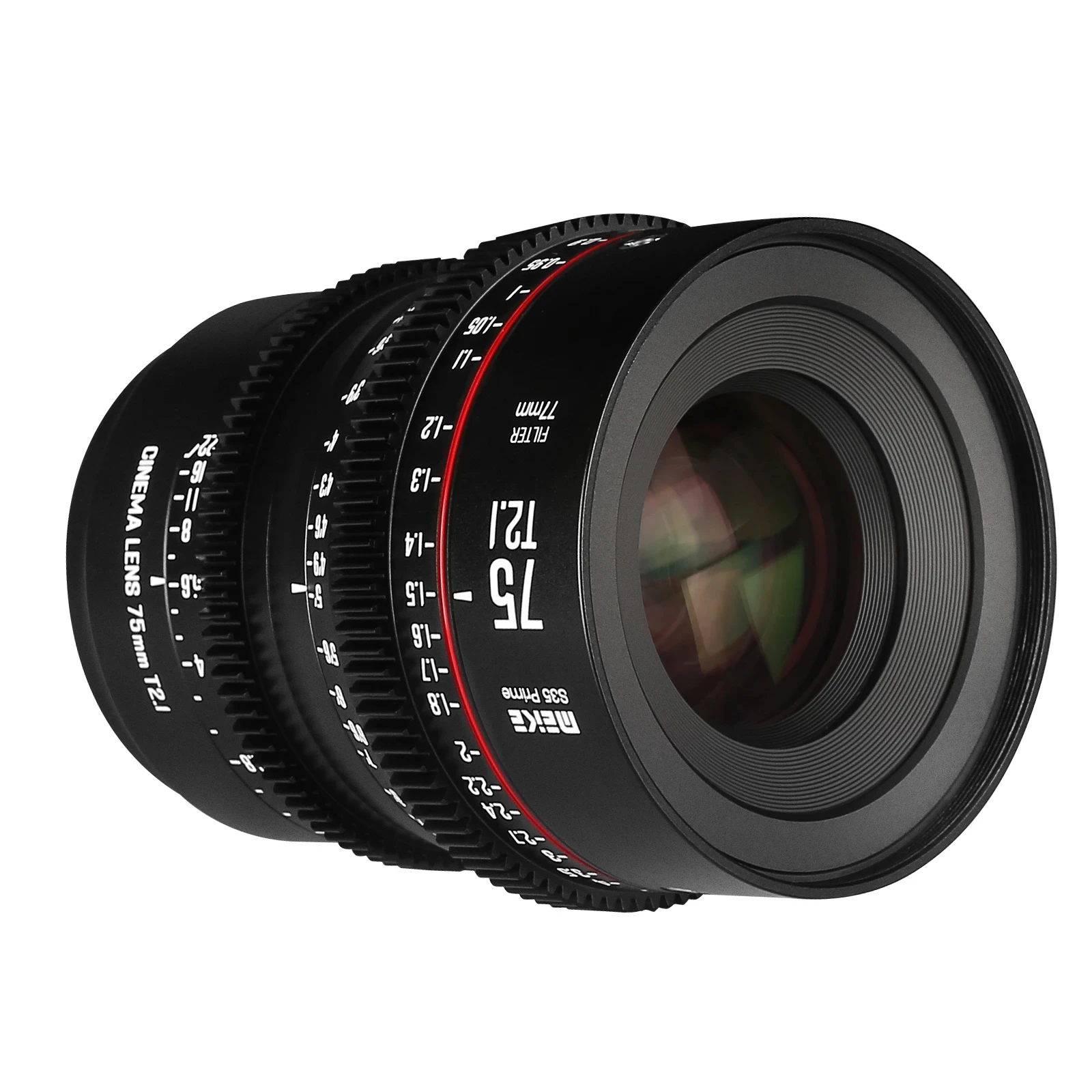

Meike Prime 75mm T2.1 for Super 35 Frame Cinema Camera System,such as RED Komodo,BMPCC6K,BMPCC6K Pro,Z CAM S6, and Sony FS5II,Canon C70 etc.

the Meike 75mm T2.1.With a image circle of 33.6 mm,this lens compatible with Super 35 cameras,and it will be available in two lens mounts,PL/EF.

This lens is one of Meike’s cine lens in newSuper35-Prime Cine Lens Series.It has industry-standard 0.8mm pitch gears on the focus and aperture ring.

The complete set includes18mmT2.1,25mmT2.1,35mmT2.1,50mmT2.1,75mmT2.1,100mmT2.1
35mmT2.1, 50mmT2.1 and 75mmT2.1 have been released.

Specifications

Lens Mount: PL/EF

Min Focal Dist:70cm

Filter Thread:ø77

Outer Diameter:80mm

Structure:13 Elements in 11 Groups

Focal Length:75mm

Aperture Range:T2.1-T22

Iris Blades:13

Gear Mod: M0.8

Focus Rotation: 270 Degree

Dimensions (Ø x L):

PL: φ85.5 ×98.5 mm

EF: φ85.5 × 106.5mm

Weight:

PL: 910g

EF:
940g

FOV:

Diagonal: 23.9 °

Horizontal: 19°

Vertical: 14.6 °
