Products Description
Applications and features.

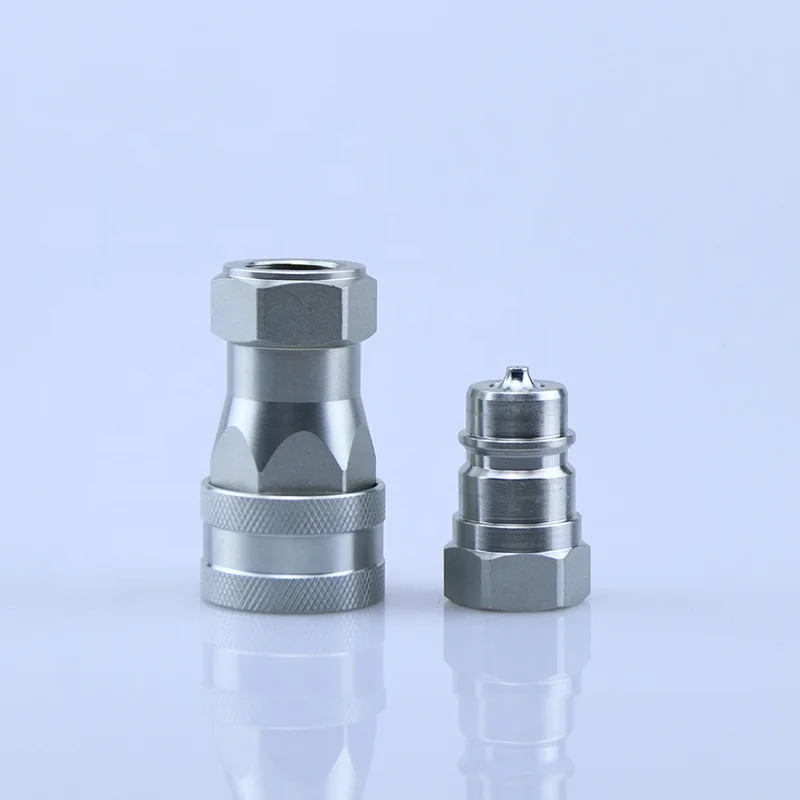

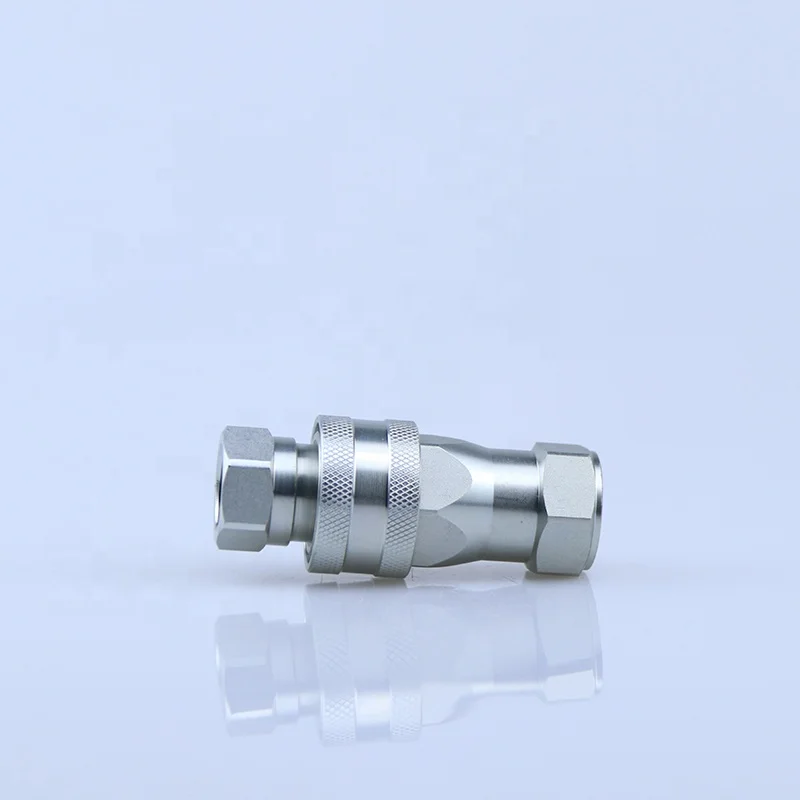

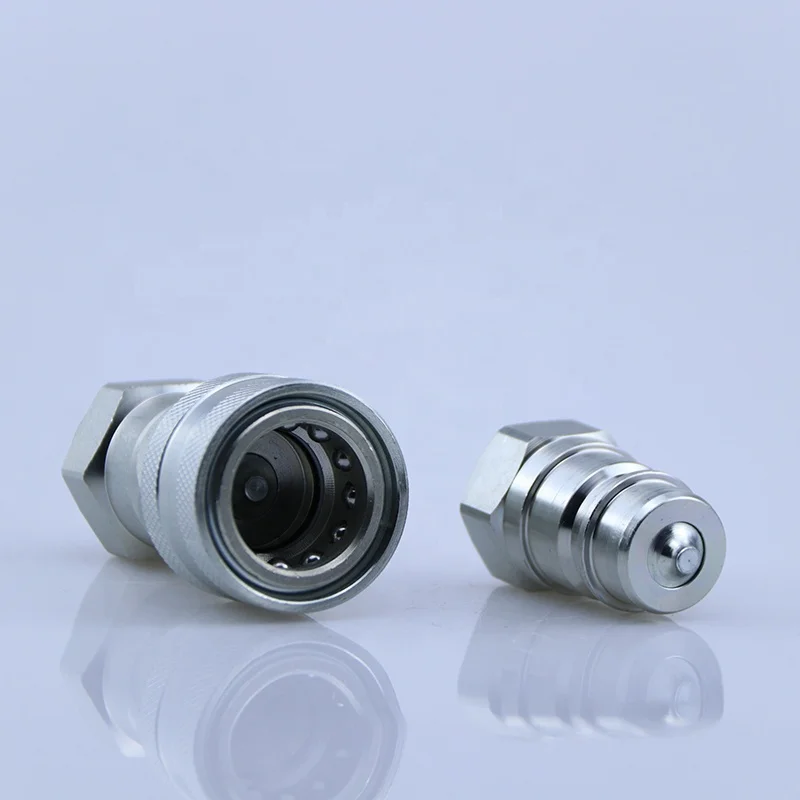

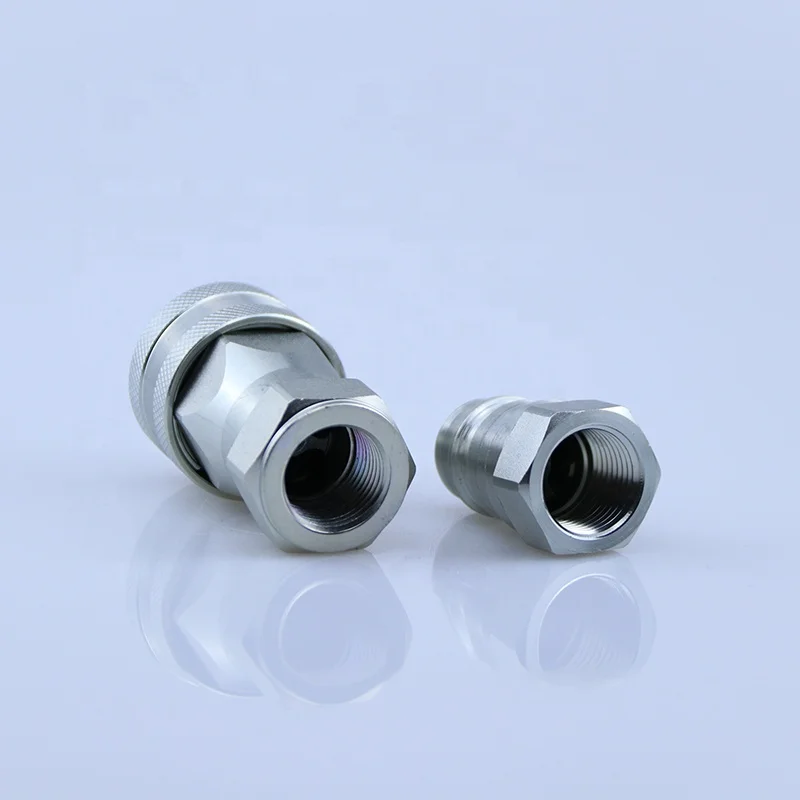

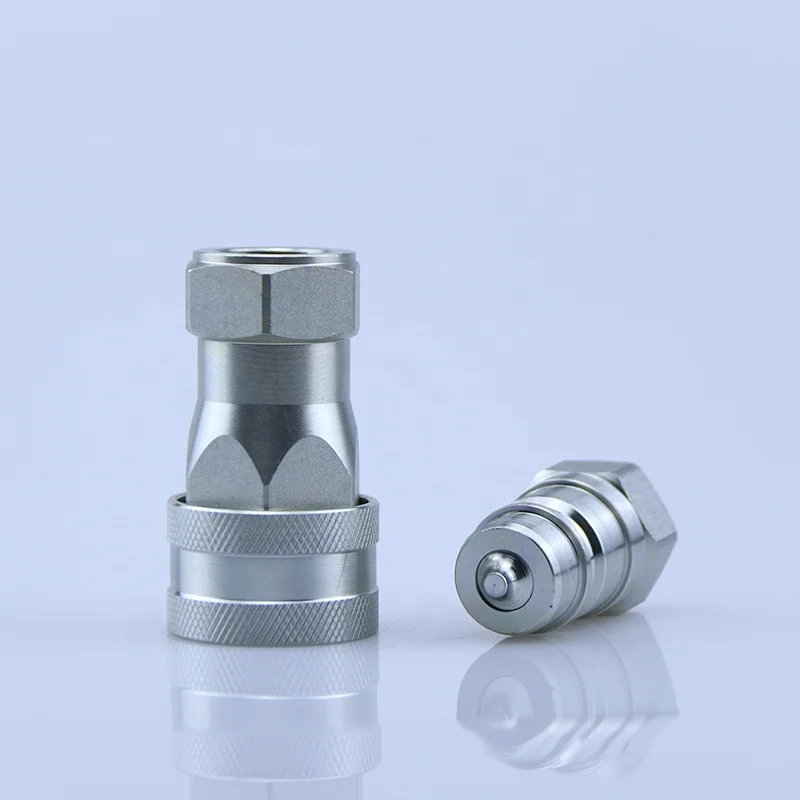

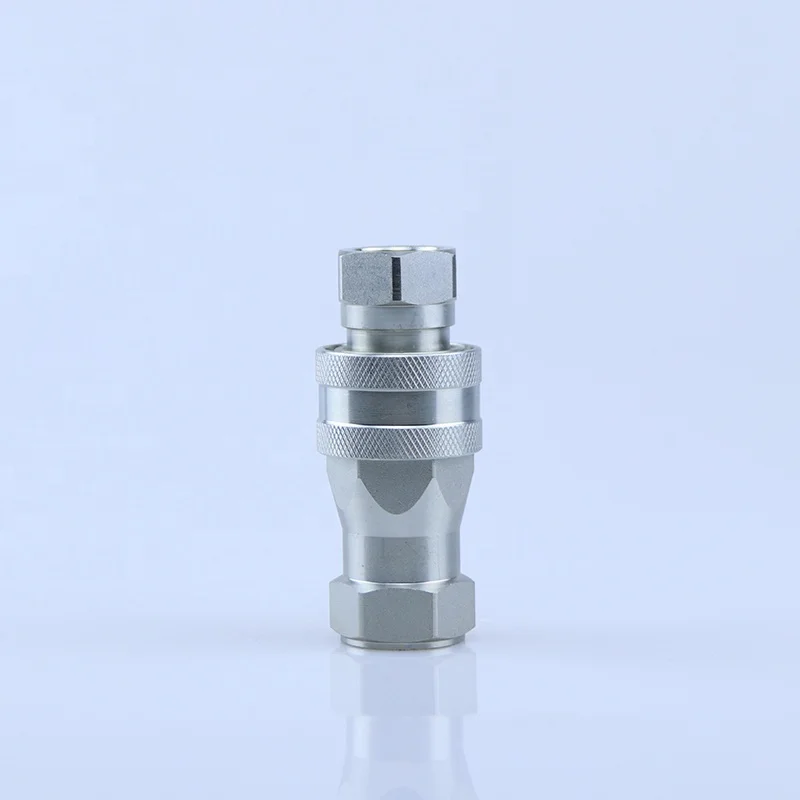

1. The H002 Series hydraulic quick couplings are mainly used for construction equipment, forestry equipment, hydraulic machinery and oil equipment and other required hydraulic applications.
2. Poppet valves are available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. H002 series conforms to the standard of ISO7241-A.
5. Compatible with PARKER 6600 Series,FASTER ANV Series AEROQUIP 5600 Series and HANSEN HA 15000 Series.
2. Poppet valves are available to prevent uncoupled leakage . Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
3. Critical parts are hardened for durability.
4. H002 series conforms to the standard of ISO7241-A.
5. Compatible with PARKER 6600 Series,FASTER ANV Series AEROQUIP 5600 Series and HANSEN HA 15000 Series.
Product name | Open and Close Type Hydraulic Quick Couplings | ||||||||
Part No. | H002 | ||||||||
Body size | 1/4 | 3/8 | 1/2 | 3/4 | 1 | ||||
Rated Pressure(PSI) | 5000 | 4000 | 4000 | 3000 | 3000 | ||||
Rated flow(L/Min) | 11.34 | 22.68 | 45.36 | 105.84 | 189 | ||||
Material | Carbon steel, stainless steel, brass or according to customer's requirements | ||||||||
Application | Construction equipment，forestry equipment，hydraulic tools，oil equipment，steel mill machinery and other industry required hydraulic connection | ||||||||
Standard | ISO7241-A | ||||||||
Temperture Range | -20℃~80℃ | ||||||||
