Китай 90 мм редуктор скорости двигателя планетарный для машины резки
- Категория: Speed Reducers >>>
- Поставщик: WUXI,EAST,AI,MACHINERY,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 190.17 $* | 200.32 $* |
| Aug-19-2025 | 189.76 $* | 198.12 $* |
| Jul-19-2025 | 158.22 $* | 166.23 $* |
| Jun-19-2025 | 186.8 $* | 195.85 $* |
| May-19-2025 | 162.73 $* | 170.35 $* |
| Apr-19-2025 | 182.28 $* | 191.51 $* |
| Mar-19-2025 | 181.48 $* | 190.14 $* |
| Feb-19-2025 | 179.28 $* | 188.25 $* |
| Jan-19-2025 | 178.25 $* | 187.47 $* |
Характеристики
Details Images

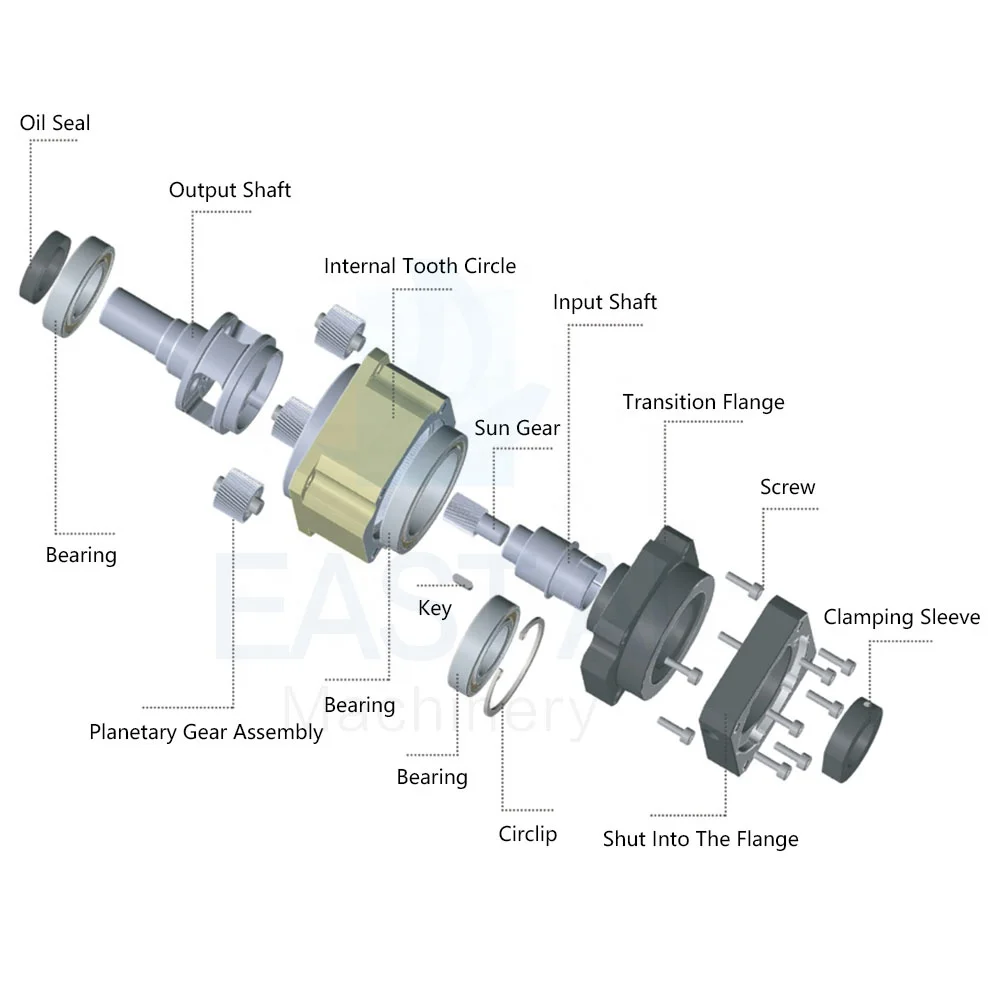

1. Use Ansys Technology To Perform Finite Element Analysis On The Strength Of The Gears, And At The Same Time, Trim The Tooth Profile And Lead Of The Helical Tooth Surface To Reduce The Impact And Noise During Gear Meshing And Increase The Service Life Of The Gear Train.
Life;
2. The Gear Material Is Made Of High-quality Low-carbon Alloy Steel. After Carburizing And Quenching, It Reaches About Hrc60. It Is Processed By High-precision Machine Tools To Ensure That The Accuracy Of The Gear Is Below Iso 5, So As To Obtain The Best Quality.
Abrasion And Impact Resistance;
3. The Ring Gear And The Output Flange Are Designed In An Integrated Manner, Using High-quality Steel And Formed By Hot Forging, So As To Obtain A High Material Density. The Integrated Design Can Ensure That All Geometric Dimensions Can Be Formed At One Time, And Other
Compared With The Built-in And Clip-on Structures, It Has Higher Precision And Strength;
4. The Planetary Wheel Bearing Adopts Full Needle Roller Bearing Without Cage, Which Increases The Output Torque And Rigidity Of The Reducer;
5. The Cage-type Planet Carrier And The Output Shaft Are Integrated, And The Bearings At Both Ends Are Supported To Ensure Higher Strength And Precision;
6. The Input Shaft And The Motor Are Clamped By Split Type, After Dynamic Balance Test, To Ensure The Coaxiality And Zero Backlash Power Transmission At High Input Speed;
7. Use Fully Synthetic Grease And Seal Design According To Ip65 Protection Grade To Ensure That The Lubricating Oil Does Not Leak And Is Maintenance-free.
Life;
2. The Gear Material Is Made Of High-quality Low-carbon Alloy Steel. After Carburizing And Quenching, It Reaches About Hrc60. It Is Processed By High-precision Machine Tools To Ensure That The Accuracy Of The Gear Is Below Iso 5, So As To Obtain The Best Quality.
Abrasion And Impact Resistance;
3. The Ring Gear And The Output Flange Are Designed In An Integrated Manner, Using High-quality Steel And Formed By Hot Forging, So As To Obtain A High Material Density. The Integrated Design Can Ensure That All Geometric Dimensions Can Be Formed At One Time, And Other
Compared With The Built-in And Clip-on Structures, It Has Higher Precision And Strength;
4. The Planetary Wheel Bearing Adopts Full Needle Roller Bearing Without Cage, Which Increases The Output Torque And Rigidity Of The Reducer;
5. The Cage-type Planet Carrier And The Output Shaft Are Integrated, And The Bearings At Both Ends Are Supported To Ensure Higher Strength And Precision;
6. The Input Shaft And The Motor Are Clamped By Split Type, After Dynamic Balance Test, To Ensure The Coaxiality And Zero Backlash Power Transmission At High Input Speed;
7. Use Fully Synthetic Grease And Seal Design According To Ip65 Protection Grade To Ensure That The Lubricating Oil Does Not Leak And Is Maintenance-free.
Trans High Precision Helical Planetary Gear Speed Reducer Reduction Gearbox For Servo Motor | ||||
Stage | One Stage | Two Stage | ||
Reduction Ratio | 3,4,5,8,10 | 16,20,25,28,32,40,50 | ||
Length | A 80 | A 89 | ||
Rated Input Speed | 3000 | 3000 | ||
Maximum Input Speed | 4500 | 4500 | ||
Maximum Radial Force | 280 | 320 | ||
Maximum Axial Force | 200 | 240 | ||
No-load Torque | 0.2 | 0.2 | ||
Full Load Efficiency | 90 | 88 | ||
Return Clearance | ≤7 | ≤10 | ||
Noise | ≤62 | ≤62 | ||
Weight | 0.7 | 1 | ||
Average Lifespan | 20000 | |||
Torsional Rigidity | 1.3 | |||
Lubrication Method | long-term | |||
Turn Around | Input/Output Syntropy | |||
Protection Level | IP65 | |||
Installation Method | Arbitrairily | |||
Professional Machine Display
Our Services
East Ai has a powerful team which has inddependent design development of pneumatic components from product design to peoduction operations
In case the product does not meet your expectations, we offering a sampling service ,giving you the opportunity to properly evaluate products before you buy.
In order to meet higher requirements from customers around the world ,we import premiere machines from developed countries
East AI has esrablished strict quality management system , from selection of
raw material to components testing
If you want your products to get certified (CE/BV/ISO/RoHS/SGS etc). please feel free to contact us for detailed discussion.
Packing is one part of our job. we provide state of the art packing .to deliver your goods safely and securely.
Packing & Shipping
Packing Details :Inner brown craft paper/outside carton/wooden pallets.
Delivery Details : 20-25 days after received the payment.
Delivery Details : 20-25 days after received the payment.
FAQ
Q1: Are You Manufacture or Trade Company?
A1: We are manufacture,we have 10 years experience for supply Metal material and products in domestic.
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3: What is your terms of payment ?
A3:
Q2: How can we guarantee quality?
A2: Always a pre-production sample before mass production;Always final Inspection before shipment;
Q3: What is your terms of payment ?
A3:
1.T/T: 30% deposit in advance, the balance 70% paid before shipment
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Q4: Can you provide Certificates for aluminum materials ?
A4:Yes,we can supply MTC-Material Test Certificate.
Q5: Can you provide sample?
A5: Yes, we can provide you sample, but you need to pay for the sample and freight firstly. We will return the sample fee after you make an order.
2.30% down payment, the balance 70% paid against L/C at sight
3.Upon negotiation
Q4: Can you provide Certificates for aluminum materials ?
A4:Yes,we can supply MTC-Material Test Certificate.
Q5: Can you provide sample?
A5: Yes, we can provide you sample, but you need to pay for the sample and freight firstly. We will return the sample fee after you make an order.
