Плоская форма диаметр 12x3 мм 11 8x1 оптический Инфракрасный германий Windows AR/DLC покрытие 8-14um для термического
- Категория: Lenses >>>
- Поставщик: Chengdu,Jingao,Photoelectric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 21.11 $* | 22.73 $* |
| Aug-19-2025 | 21.18 $* | 22.3 $* |
| Jul-19-2025 | 18.99 $* | 19.41 $* |
| Jun-19-2025 | 21.86 $* | 22.96 $* |
| May-19-2025 | 18.2 $* | 19.60 $* |
| Apr-19-2025 | 21.33 $* | 22.97 $* |
| Mar-19-2025 | 20.10 $* | 21.28 $* |
| Feb-19-2025 | 20.39 $* | 21.17 $* |
| Jan-19-2025 | 20.63 $* | 21.66 $* |
Характеристики
Product Description

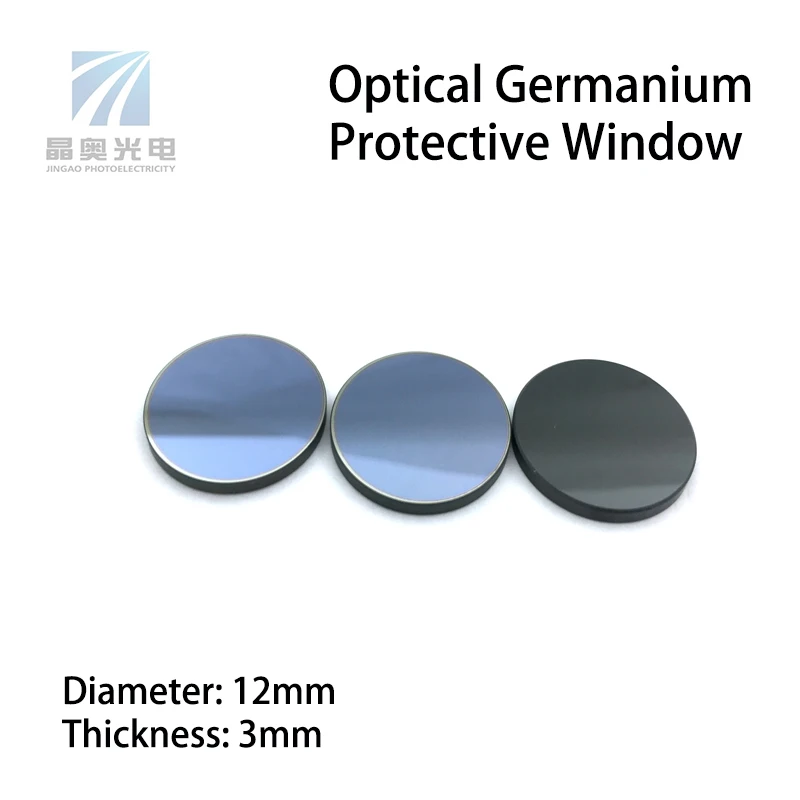

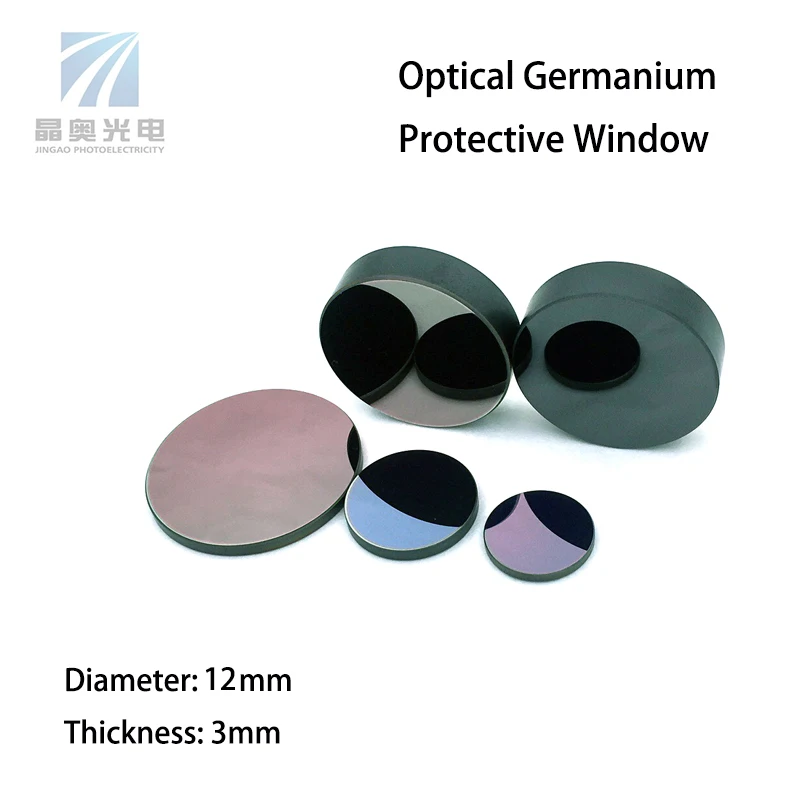

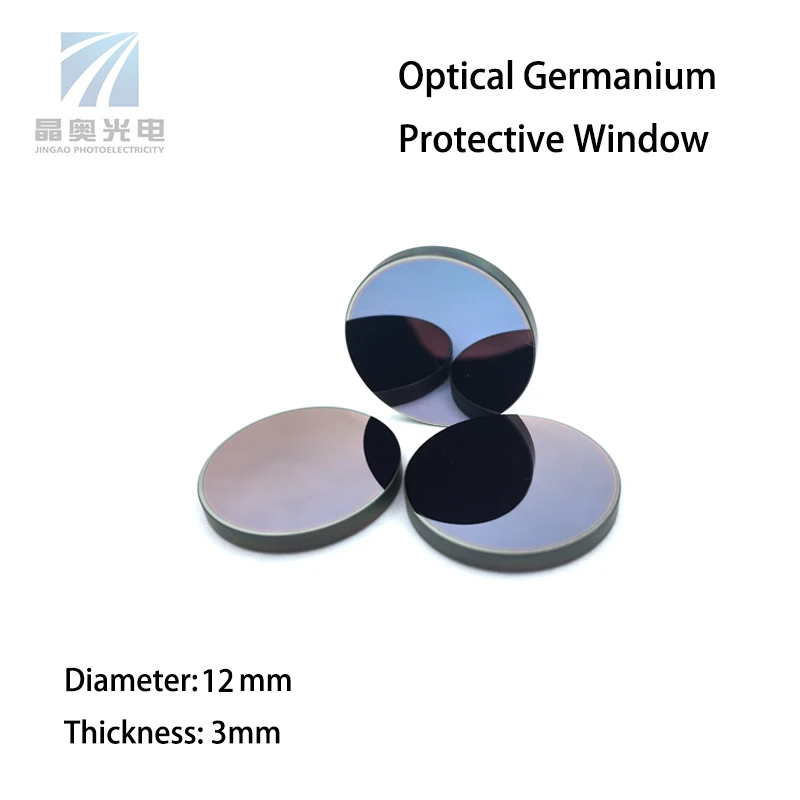

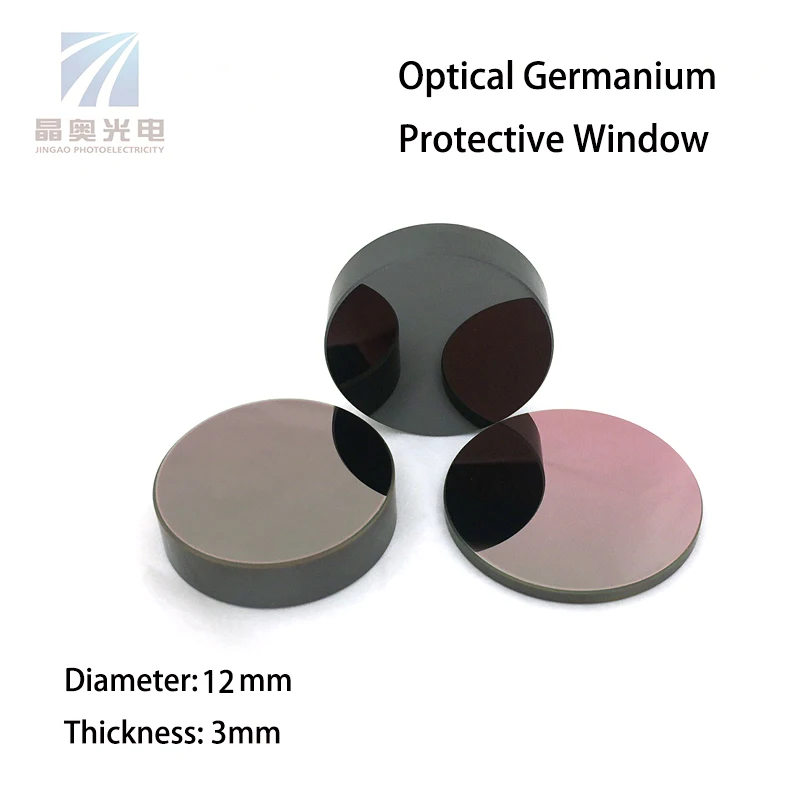

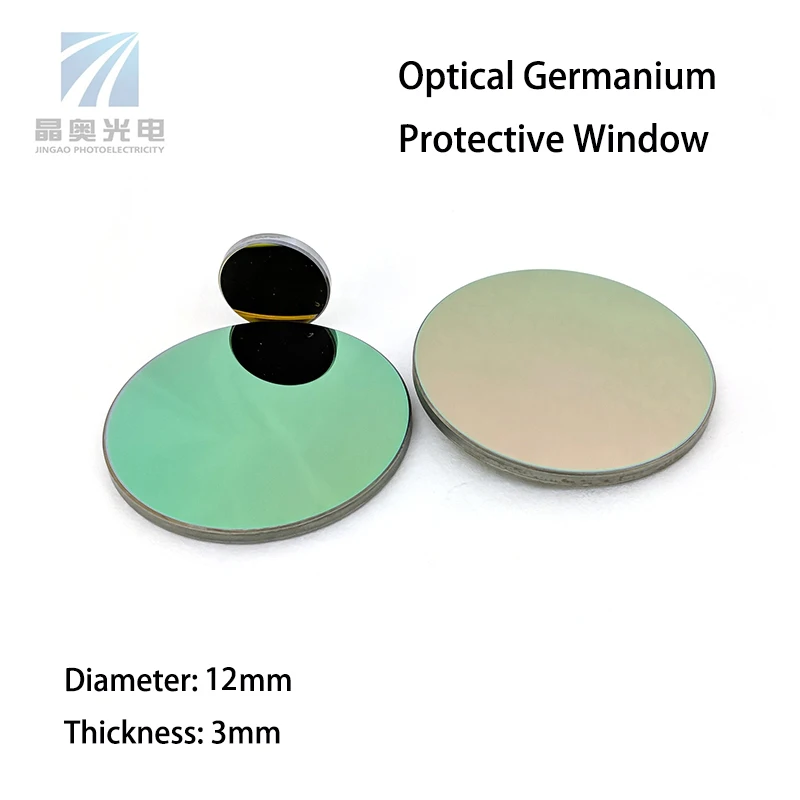

Infrared Plano Shape D12x3mm D11.8x1mm Optical Germanium Windows AR/AR AR/DLC Coating 8-14um for Thermal Application
Applicable to infrared imaging, monitoring, infrared inspection, telemetry and infrared spectroscopic optical system | ||||||||
Technical Requirements | Commercial Grade | Precision Grade | High Precision | |||||
Size range | 1-600mm | 2-600mm | 2-600mm | |||||
Diameter tolerance | ±0.1mm | ±0.025mm | ±0.01mm | |||||
Thickness tolerance | ±0.1mm | ±0.025mm | ±0.01mm | |||||
Parallelism | ±3' | ±1' | ±30'' | |||||
Surface quality | 60-40 | 40-20 | 20-10 | |||||
Surface accuracy | 1.0λ | λ/10 | λ/20 | |||||
Coating | 3-5μm OR 8-12μm AR, <2% per Surface | |||||||
Beveling | 0.1-0.5*45。 | |||||||
Substrate | Germanium or other optical crystal | |||||||
Diameter | Thickness | Diameter | Thickness | |||||
(mm) | (mm) | Coating | (mm) | (mm) | ||||
10 | 1 | 3-5μm OR 8-12μm AR, <2% PER Surface | 75 | 3 | ||||
12.5 | 1 | 75 | 5 | |||||
20 | 2 | 76.2 | 6 | |||||
25 | 3 | 80 | 8 | |||||
30 | 3 | 90 | 10 | |||||
38.1 | 3 | 100 | 10 | |||||
40 | 4 | 150 | 15 | |||||
50 | 3 | 180 | 18 | |||||
50.8 | 3 | 200 | 20 | |||||
63.5 | 5 | 300 | 35 | |||||
Feature of germanium window
Ge Windows Germanium (Ge) is the preferred lens and window material for high performance infrared imaging systems in the 8–12 μm wavelength band. Its high refractive index makes Ge ideal for low power imaging systems because of minimum surface curvature. Chromatic aberration is small, often eliminating the need for correction. Germanium is most widely used for lenses and windows in IR systems operating in the 2 μm - 12 μm range. Its transmission is very temperature sensitive, becoming opaque near 100°C. Environment does not cause problems because Germanium is inert, mechanically rugged, and fairly hard.
It is also used extensively as a substrate for production of optical filters. Germanium covers the whole of the 8-14 micron
thermal band and is used in lens systems for thermal imaging. It can be AR coated with diamond producing an extremely tough front
optic. Application as window, lens, beam splitter, ATR prism or filter in spectrometers and in thermal imaging.Germanium is a high index material that is used to manufacture Attenuated Total reflection (ATR) prisms for spectroscopy. Its
refractive index is such that germanium makes an effective natural 50% beam splitter without the need for coatings.
thermal band and is used in lens systems for thermal imaging. It can be AR coated with diamond producing an extremely tough front
optic. Application as window, lens, beam splitter, ATR prism or filter in spectrometers and in thermal imaging.Germanium is a high index material that is used to manufacture Attenuated Total reflection (ATR) prisms for spectroscopy. Its
refractive index is such that germanium makes an effective natural 50% beam splitter without the need for coatings.
Company Profile
Chengdu Jingao Photoelectric Technology Co., Ltd adheres to the quality-based, market-oriented pursuit, and is committed to research and development and production of optical lenses, infrared optical lenses, large-diameter windows, lenses, prisms and other optical products that meet domestic and international needs, and pursues reliability on the basis of high quality. The company serves customers at home and abroad with mature products, stable quality and perfect service system! The company's products pursue service first and quality first. Together with our customers, we will continue to create brilliant! Warmly welcome friends from all walks of life come to visit, guide and negotiate business!
transport&FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). If you are very urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samples placing orders?
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
-Yes.Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the season you place the order.
Usually we can ship within 7-15 days for small quantity,and about 30 days for large quantity.
4.What is your payment term?
-T/T,Western Union,MoneyGram,and Paypal.This is negotiable.
5.What is the shipping method?
-It could be shipped by sea,by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect).Please confirm with us before placing orders.
6.How do you make our business long-term and good relationship?
-a. We keep good quality and competitive price to ensure our customers benefit ;
-b. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
