Product Description
start corrugated carton box business using India Bangladesh popular corrugated cardboard printing slotting die cutting machine
Our SYKM series corrugated carton box cardboard printing slotting die cutting machine is one set worker saving , energy saving equipment,with pneumatic locking, electric separation, electric phase adjusting function, it is widely used in corrugated carton box making industry, and you can also chose to combine slotting function , die cutting function onto the machine; Low investment, to performance and good quality make it very popular among our domestic and foreign carton box manufacturers; Single colors, Double colors, Three colors, Four colors five colors printer machine can be chosen,for the feeding unit, you can chose the 120-150 sheets/minute lead edge automatic feeding unit or use the semi-auto chain driving feeding unit which speed is 50-60 sheets/minute
Main Technical Data
Printing color: single, double, three, four or 5 colors
Function: printing slotting die cutting
Max cardboard sizes: 1470*2600mm
Min cardboard sizes: 350*680mm
Working speed: 100-120 sheets/minute; 120-150 sheets/minute; 50-70 sheets/minute
Suitable for: 3 layer, 5 layer, 7 layer cardboard (3-9mm)
Max slot width*Length: 7mm*300mm
Min slot distance: 160*160*160*160mm(positive blade);300*60*300*60mm(negative blade)
Overall size: 6700*2600*2400mm
Weight: 4500kg
Total power: 6.0KW
Optional configurations: fully automatic PLC touch screen control system; Automatic collection stacker
Detailed Parts Information
1) Cardboard feeder: chain cardboard feeder; Square steel and heavy iron plate welded working
table; With a brush on the working table, to clear the dust.
2) The electric adjust. computer-controlled one-click resize, slotting, creasing pitch axis synchronous electric adjustment, electric adjust the height of carton boxes.
3) The creasing wheel outer coated with high quality rubber, will not damage the cardboard.
4) The creasing wheel gap, the feed roller gap, slotting blade gap adjustment using self-locking mechanism.
5) Moving the ball screw slot blades adopt ball screw, long life and high precision.
6) Creasing wheel, slotting blade sliding synchronized adjustment, electric control.
7) Slotting blade width 7mm, using nine Lok Si material. After heat treatment, after grinding tough, sharp knife, long service life.
8) Slotting sizes and max feeding cardboard sizes can be customized
Detailed Images

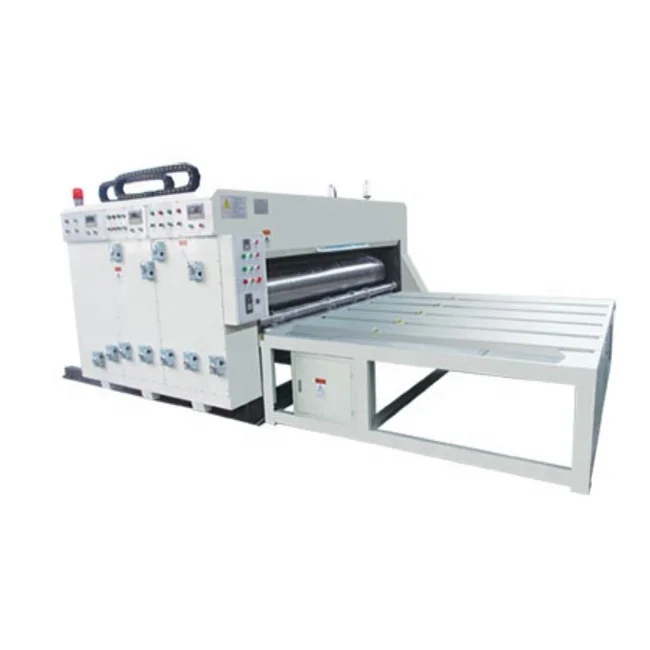

Chain driving semi-automatic cardboard feeding unit
Automatic cardboard feeding unit is optional
Chrome plated pressing rollers and printing rollers
Pressing rollers diameter can be customized, can also add printing plate hanging unit
Pneumatic locking, electric separating
Top quality driving gear system
Slotting sizes and distance electric adjust by button
Top quality and good performance slotting blades
Multi-color printing function can be added
Die cutting unit can be chosen also
Packing & Delivery
Packing of our cardboard waterink printer machine
Plastic film wrap the whole machine, then load into container directly
Wooden box packing can be customized, buyer should pay for the related cost
Item | Semi-auto carton box printing machine without stacker | Lead edge auto corrugated box printing slotting machine with auto stacker | Lead edge auto corrugated carton box printing slotting die cutting machine with auto stacker |
Loading container | 1*20"GP container | 1*40"GP | 1*40"HQ+1*20"GP |
Delivery of our carton box manufacturing machines
30-35 days after 30% T/T prepayment, 70% before delivery
Delivery from Qingdao or Tianjin seaport, need 3-5 days delivery from our factory to seaport
Our Service
Pre-sales service
* any questions about our carton box printer machines by email/phone will be replied within 24 hours
* according to your cardboard sizes, recommend the best suitable model carton printing machine to you
* Customized production is available from us
In sales service
* Confirm all the technical details of the machine with you carefully, and make the conract correctly
* Consult the shipping cost, insurance cost to your seaport for your reference
* Inform you the production progress of your orders timely
* Confirm all the technical details of the machine with you carefully, and make the conract correctly
* Consult the shipping cost, insurance cost to your seaport for your reference
* Inform you the production progress of your orders timely
After-sales service
* Engineers are available to overseas installation and training
* quick wear parts steady supply and maintenance instruction.
* 24 hours online service for carton printer
* 24 hours online service for carton printer
www.pefct.com
Skype: vastsea-777
What's app: 008618561832088
Skype: vastsea-777
What's app: 008618561832088
