Характеристики
Product Description

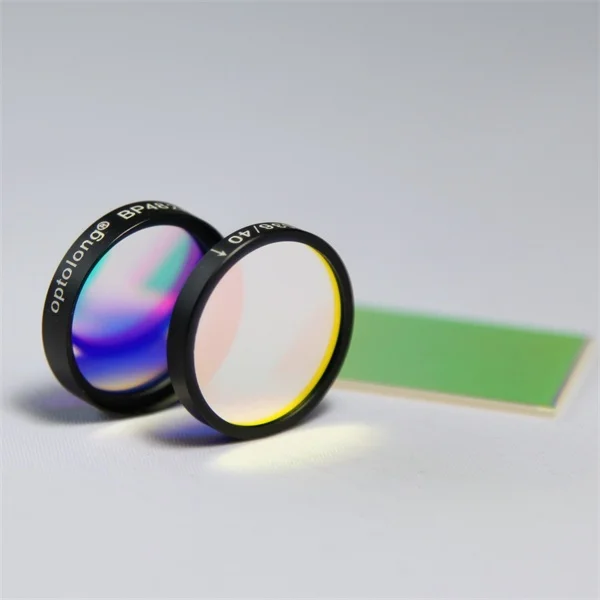

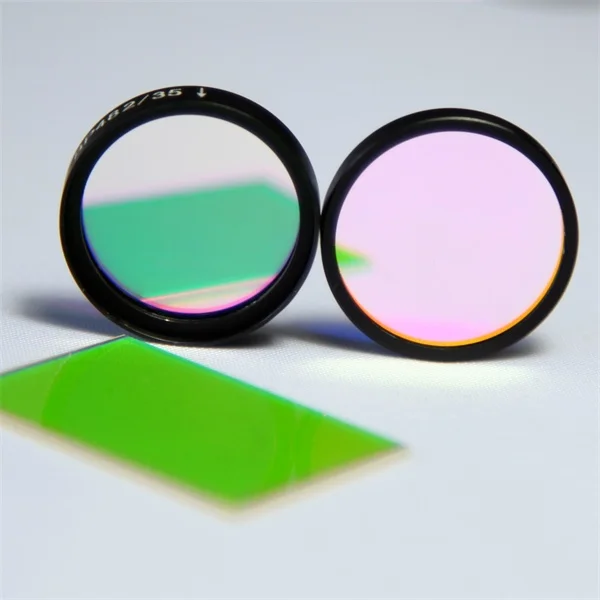

Fluorescence Filters introduce:
Microscope Fluorescence Filters/Set are commonly used in various microscopes to enable peopleto observe various Fluorescence Effect more conveniently. Microscopes commonly used foroptical fiters include fluorescence microscope, laser, scanning confocal fluorescence microscope, confocal microscope, and total internal reflection fluorescence microscope;Itis mainly used in the fields of life science and biomedicine. Its main function is to separate andselect excitation light and characteristic band spectrum of emission fluorescence of substances inbiomedical fluorescent penetrant inspec tion analysis system.
Fluorescent filter group is generally composed of three lenses: EXcitation filter(ex), dichroic mirror (dm)and EMission filter (em). they are all in filter box (Cube).These can be supplied as a set or as a single piece.
Fluorescent filter group is generally composed of three lenses: EXcitation filter(ex), dichroic mirror (dm)and EMission filter (em). they are all in filter box (Cube).These can be supplied as a set or as a single piece.
Specification
Diameter (mm): | 12.50 /25.0 /50.0 +0.00/-0.10 |
Center Wavelength CWL (nm): | 386 |
Full Width-Half Max FWHM (nm): | 27 |
Minimum Transmission (%): | 90 |
Optical Density OD (Average): | ≥5.0 |
Coating: | Hard Coated |
Compatible Fluorophore: | DAPI Excitation |
Blocking Wavelength Range (nm): | 250 - 1100 |
Bandwidth (nm): | 23 |
Surface Quality: | 40/20,60/40,80/50 |
Angle of Incidence (°): | 0 ±5 |
Mount Thickness (mm): | 3.5 ±0.1 |
OD 5 Blocking Wavelength Range (nm): | 300 - 360 & 510 - 700 |
OD 6 Blocking Wavelength Range (nm): | 410 - 510 |
Substrate: | UV Grade Fused Silica |
Substrate Thickness (mm): | 0.3-5.0 ±0.25 |
Transmitted Wavefront, RMS: | λ/4 |
Company Profile
Optolong Optics Co.,ltd
Optolong Optics Co.,ltd supply fluorescence filter form 1999, we have distributor around the word and had 20 years of experience in the filter industry, mainly including standard products for fluorescence filters, OEM products, and standard products for astronomical filters. Regarding the company details,please browse our website:www.optolongfilter.com
Company information:
Company profile:
-Founded in 1999.
-Main products are as follows:
1. Bandpass Filters 200-1200nm for optical sensor and imaging processing application.
2. Fluorescent filters standard: Single-band CFP, GFP, DAPI, FITC, TRITC, Texas Red, Cy5
3. Fluorescence filters OEM: OEM exitation filter, emission filter, dichroic filter for fluorescence detection instrument
4. Beamsplitter,AR protective windows and reflection mirror
-Founded in 1999.
-Main products are as follows:
1. Bandpass Filters 200-1200nm for optical sensor and imaging processing application.
2. Fluorescent filters standard: Single-band CFP, GFP, DAPI, FITC, TRITC, Texas Red, Cy5
3. Fluorescence filters OEM: OEM exitation filter, emission filter, dichroic filter for fluorescence detection instrument
4. Beamsplitter,AR protective windows and reflection mirror
Certifications
Our Advantages
Our service
1. Dimesion size, thickness up to customer requirements
2. Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
3.AR HR DLC coating or as your requestv
2. Many material could be choosed, like BK7, Fused Silica, Sapphire, MgF2, CaF2, Ge, Si, Znse, ZnS and so on.
3.AR HR DLC coating or as your requestv
Packing & Delivery
Obsorb plastic box packing We usually use PVC film vacuum packing high voltage condenser paper, PE foam, density cystosepiment,
anti-static bubble bag, etc. according to different kinds of products prevent from scratching, bruising, and smashing during
shipping. Delivery Details: 7 days for stock. 3-4 weeks for custom-made products for sample. in common, 4 weeks for mass
production
anti-static bubble bag, etc. according to different kinds of products prevent from scratching, bruising, and smashing during
shipping. Delivery Details: 7 days for stock. 3-4 weeks for custom-made products for sample. in common, 4 weeks for mass
production
FAQ
Q: How to order or how is the enquiry process?
A: There is two way to contact us. By mail and by phone.
Mail: please pending all the enquiries&orders to Ali online. Your requirement would be respond within 1 hour during 9:00am to 10:00 pm(Beijing time) at working day.
Phone: phone call is available from 9:00 am to 18:00 (Beijing time) from Monday to Saturday. Phone number : +86-0871-68317717. Fax to our sales using number + 86-087168317850.
Q: Do you accept the OEM service for different type of filters or different size?
A: Yes. Optical thin film coating design are awailiable for bandpass filter, fluorescence instrument filter, astronomy light pollution filter, anti reflection filter, bleam splitter and dichroic mirror. Please check the OEM service we could offer on OEM item.
Q: How long is the lead time?
A: Stock filter within 7 days. Normal OEM order within 15 days. Volumn production order about 20 days or according to the agreement between Optolong and client.
Q: Could Optolong support on prototype for sample offer?
A: There is no MOQ requirement for the prototype filters. We even could offer free samples according to the condition.
Q: There is some problem with the product design. Could you help us to resolve the problem?
A: With years of developing, we have much experience and own understanding of coating design according to different applications. There is much we could do for you.
A: There is two way to contact us. By mail and by phone.
Mail: please pending all the enquiries&orders to Ali online. Your requirement would be respond within 1 hour during 9:00am to 10:00 pm(Beijing time) at working day.
Phone: phone call is available from 9:00 am to 18:00 (Beijing time) from Monday to Saturday. Phone number : +86-0871-68317717. Fax to our sales using number + 86-087168317850.
Q: Do you accept the OEM service for different type of filters or different size?
A: Yes. Optical thin film coating design are awailiable for bandpass filter, fluorescence instrument filter, astronomy light pollution filter, anti reflection filter, bleam splitter and dichroic mirror. Please check the OEM service we could offer on OEM item.
Q: How long is the lead time?
A: Stock filter within 7 days. Normal OEM order within 15 days. Volumn production order about 20 days or according to the agreement between Optolong and client.
Q: Could Optolong support on prototype for sample offer?
A: There is no MOQ requirement for the prototype filters. We even could offer free samples according to the condition.
Q: There is some problem with the product design. Could you help us to resolve the problem?
A: With years of developing, we have much experience and own understanding of coating design according to different applications. There is much we could do for you.
