Характеристики



Product Description：

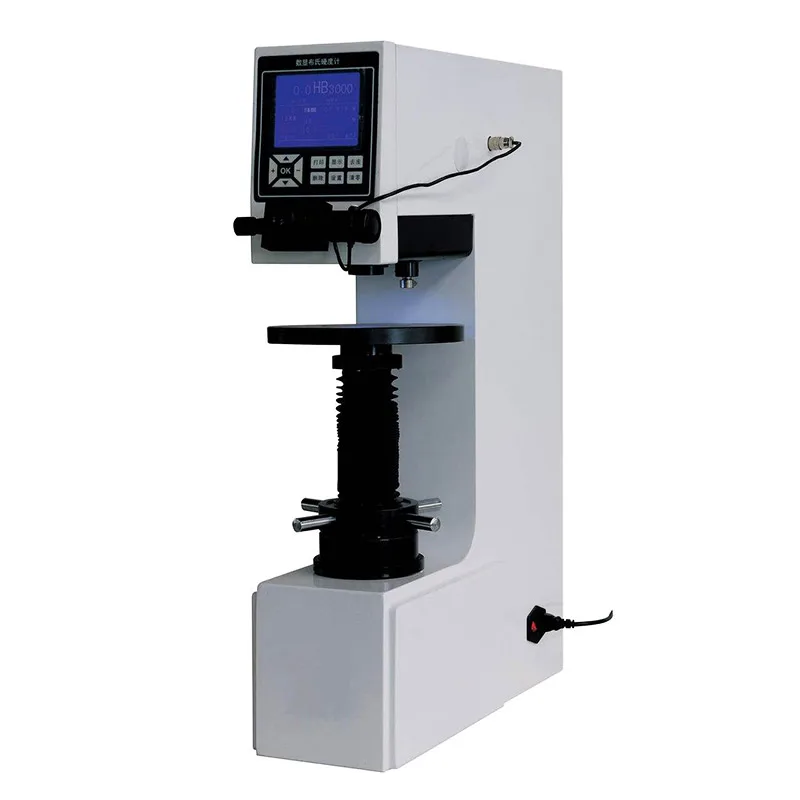

Brinell hardness test is mainly used for hardness measurement of cast iron, steel, non-ferrous metals and soft alloys, etc. In addition, it can also be used for hardness measurement of some non-metallic materials such as hard plastics and bakelite. It is suitable for factories, workshops, laboratories, colleges and universities and scientific research institutions.


Product advantages
1. The automatic electronic closed-loop pressure sensor control system is adopted, which can easily realize the automatic
operation of loading, holding and unloading;
2. The product body adopts the precision casting molding process, with stable
performance and attractive appearance;
3. Dual lens, 20×, 40× optical configuration can be selected at will;
4. High-definition LCD screen, simple interface, easy to operate;
5. Precise control system, which can automatically convert the unit of the full hardness scale;
6. With software hardness value correction function, the hardness value can be directly corrected within a certain range;
7.The test data is automatically grouped and saved. Each group of the database can save 10 data, and a total of more than 1000 data can be saved;
8. The upper limit and lower limit of the hardness value can be set. When the test value exceeds the set range, it will automatically alarm;
9. Support 12 languages, you can switch at will


Test force
62.5kgf, 100kgf, 125kgf, 187.5kgf, 250kgf, 500kgf, 750kgf, 1000kgf, 1500kgf, 3000kgf
612.9N, 980.7N, 1226N, 1839N, 2452N, 4903N, 7355N, 9807N, 14710N, 29420N
Hardness test range
8～650HBW
Hardness reading
Digital LCD to read hardness value
Reading glass magnification
20×
Objective magnification
1×, 2×
Micrometer drum minimum division value
0.01mm
Turret Type
Manual turret
dwell time
0～60s
Indenter Specifications
φ10mm ball indenter, φ5mm ball indenter, φ2.5mm ball indenter
Maximum height of specimen
230mm
The distance from the center of the indenter to the machine wall
175mm
Executive standard
ISO 18265, ASTM E140, GB/T 1172
Host weight
165kg
power supply
AC220V/50Hz
Dimensions
560×270×920mm
