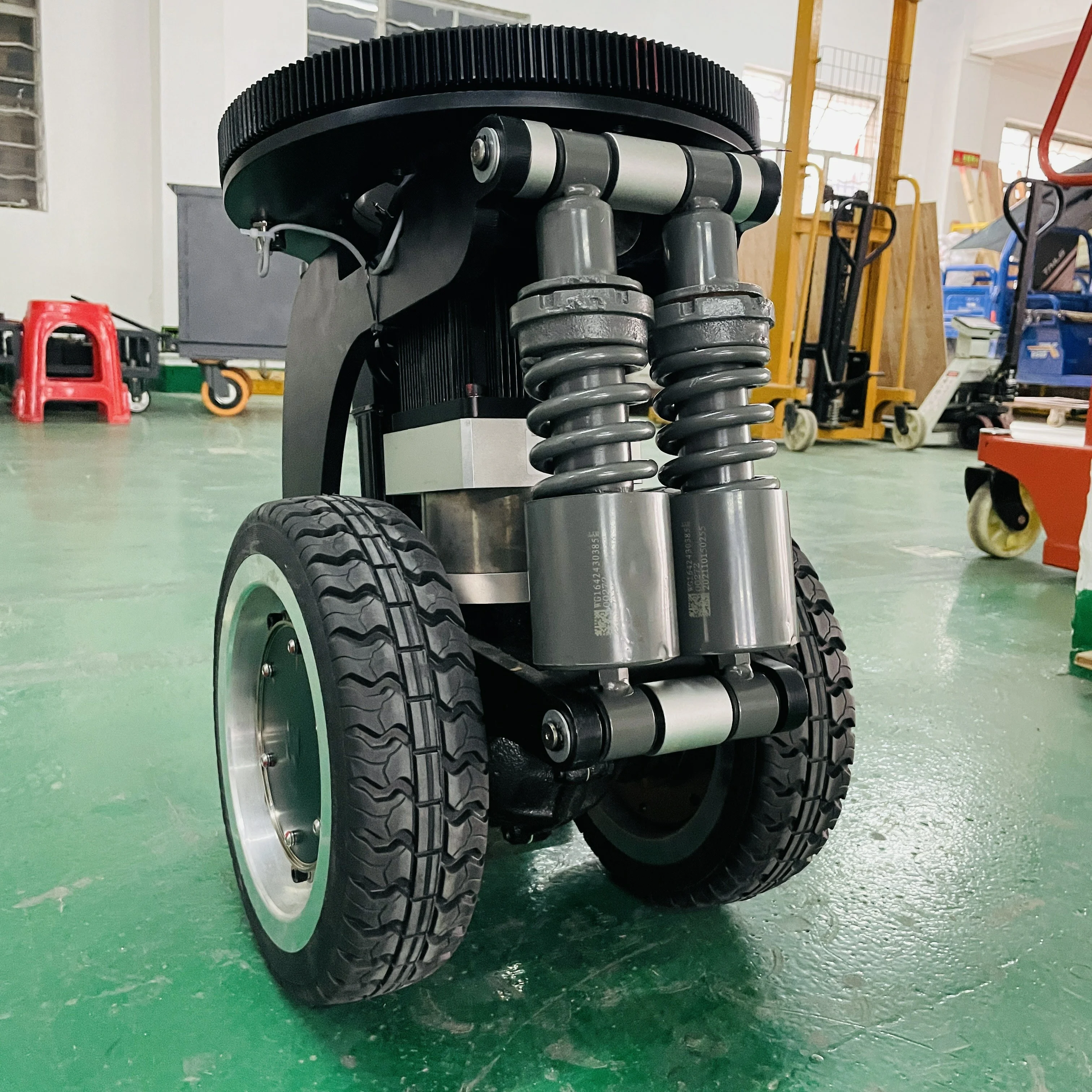

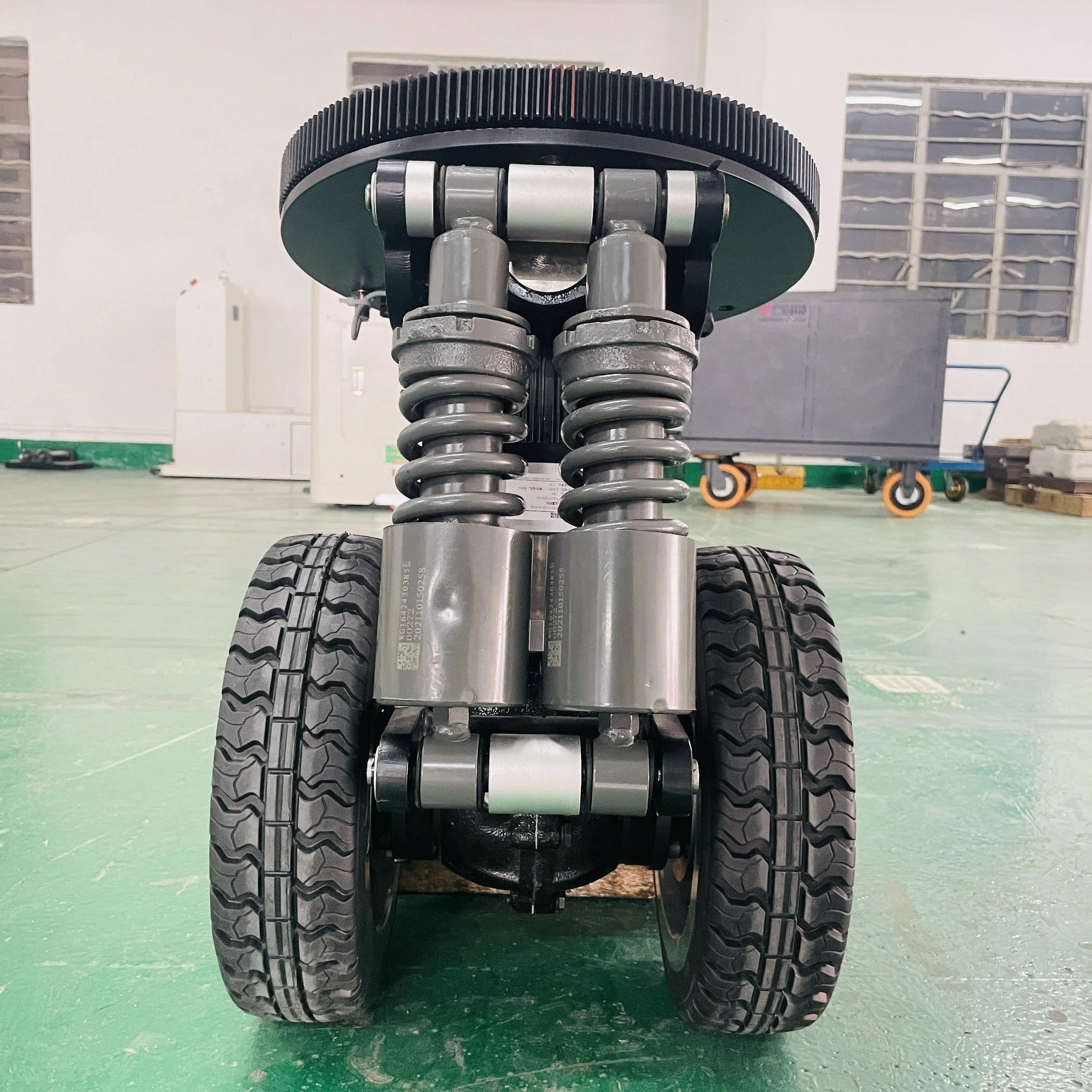

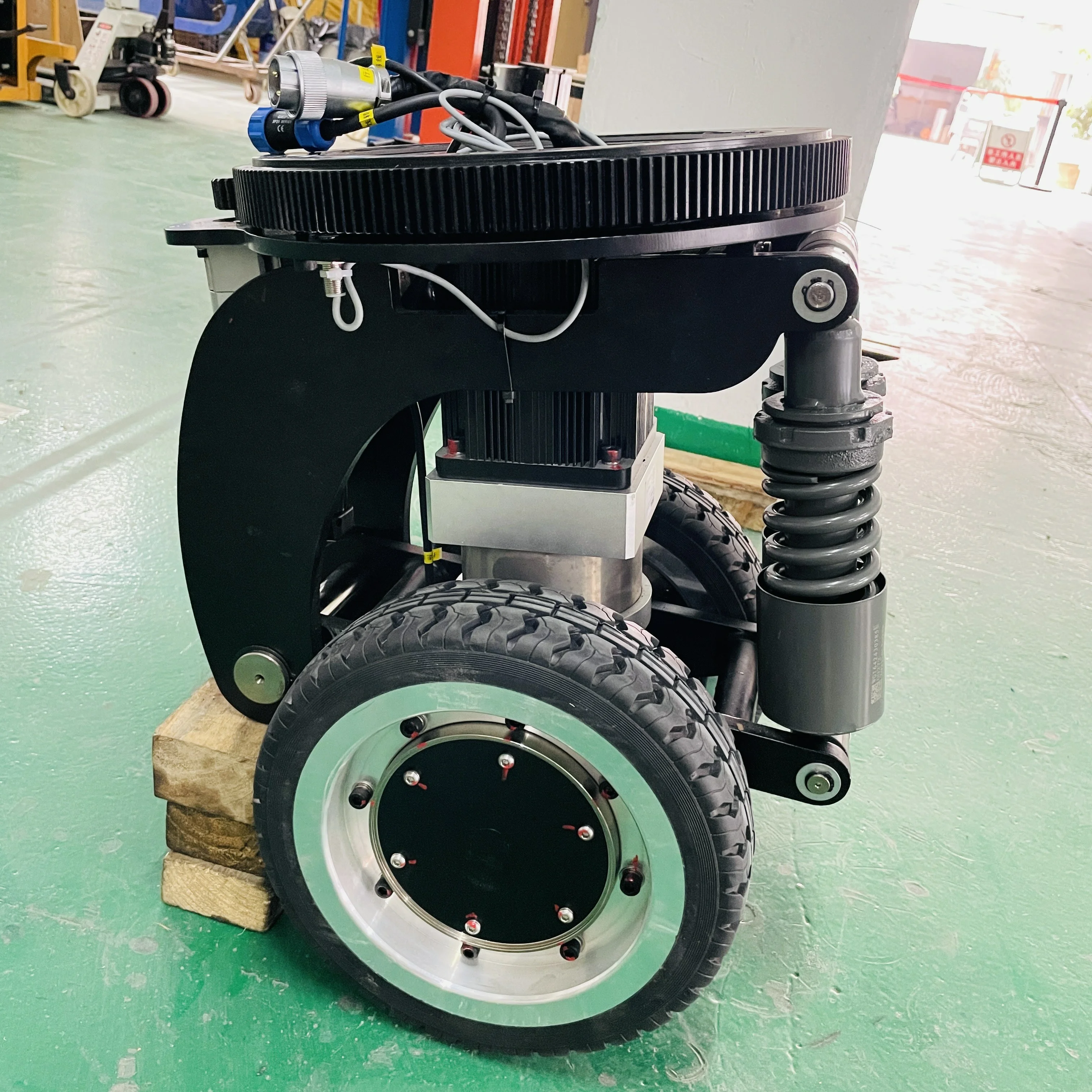

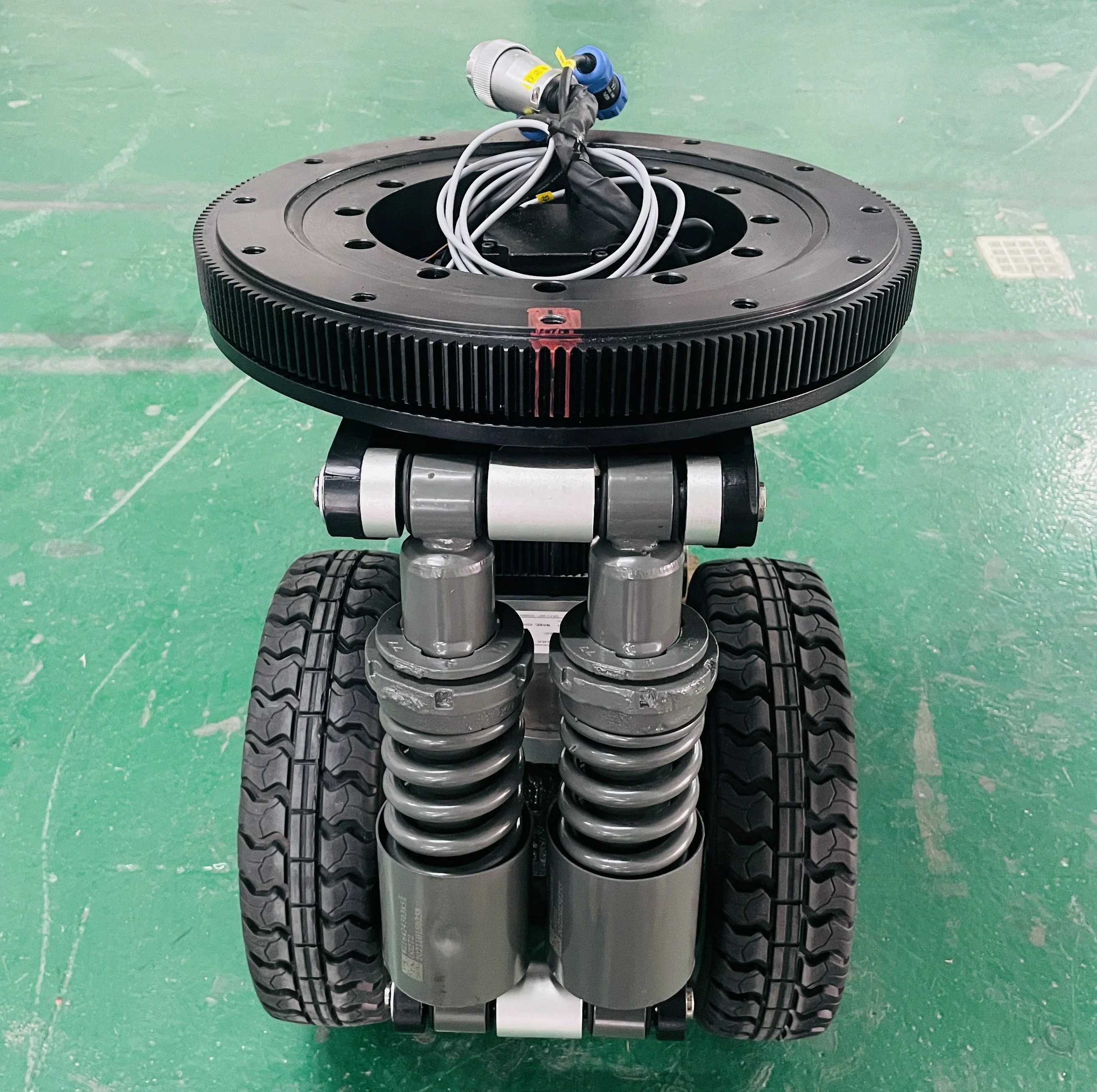

Индивидуальный привод колес AGV 3000 кг с рулевым и
- Категория: Material Handling Equipment Parts >>>
- Поставщик: Guangzhou,Wisdom,Wheel,Science,Technology,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 5117.54 $* | 5373.60 $* |
| Aug-20-2025 | 5074.1 $* | 5328.47 $* |
| Jul-20-2025 | 4257.65 $* | 4470.44 $* |
| Jun-20-2025 | 4988.63 $* | 5237.75 $* |
| May-20-2025 | 4343.97 $* | 4560.93 $* |
| Apr-20-2025 | 4902.8 $* | 5147.49 $* |
| Mar-20-2025 | 4859.37 $* | 5102.88 $* |
| Feb-20-2025 | 4816.63 $* | 5057.11 $* |
| Jan-20-2025 | 4773.76 $* | 5012.83 $* |
Характеристики
Product Overview
PU wheel with planetary reduction transmission structure
This structure is one of the most important parts of the drive wheel.
It can reduce the speed of the motor and increase the output torque at the same time.
Planetary Gearbox: 1 to 3 levels
Speed ratio: 7-120 I
Traction motor
Wheel model up to 7500W
It powers the drive steering wheel.
Motor type: Servo/Brushless/Brushed
Rate Speed (customizable): 3000r/min
Rate Voltage: DC24-70V / AC 220V
Motor and driver are sold as a bundle

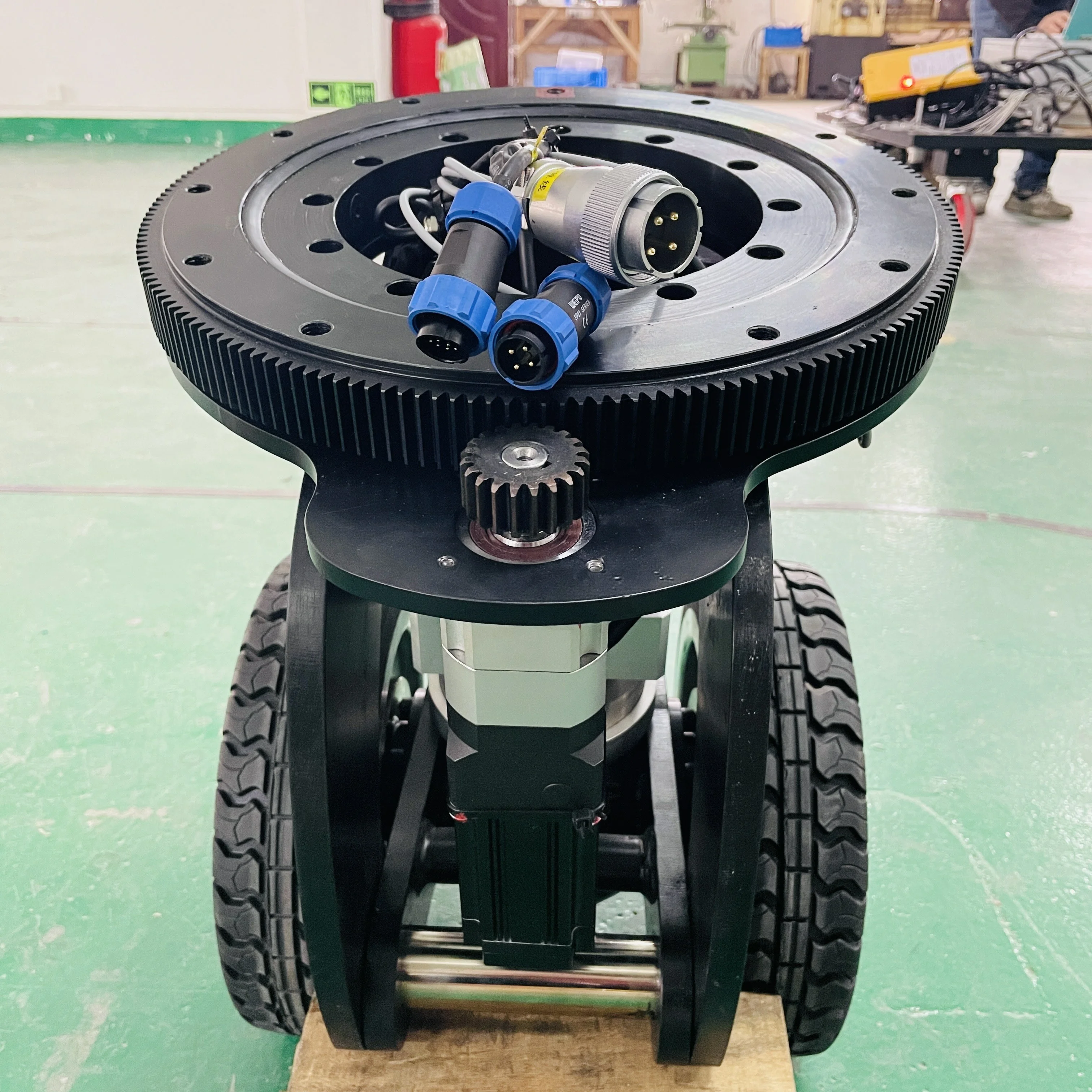

Steering motor with planetary gearbox
Provides power and torque to the steering function of the drive wheels.
Motor type: Servo/Brushless/Brushed
Rate Speed (customizable): 3000r/min
Rate Voltage: DC24-70V / AC 220V

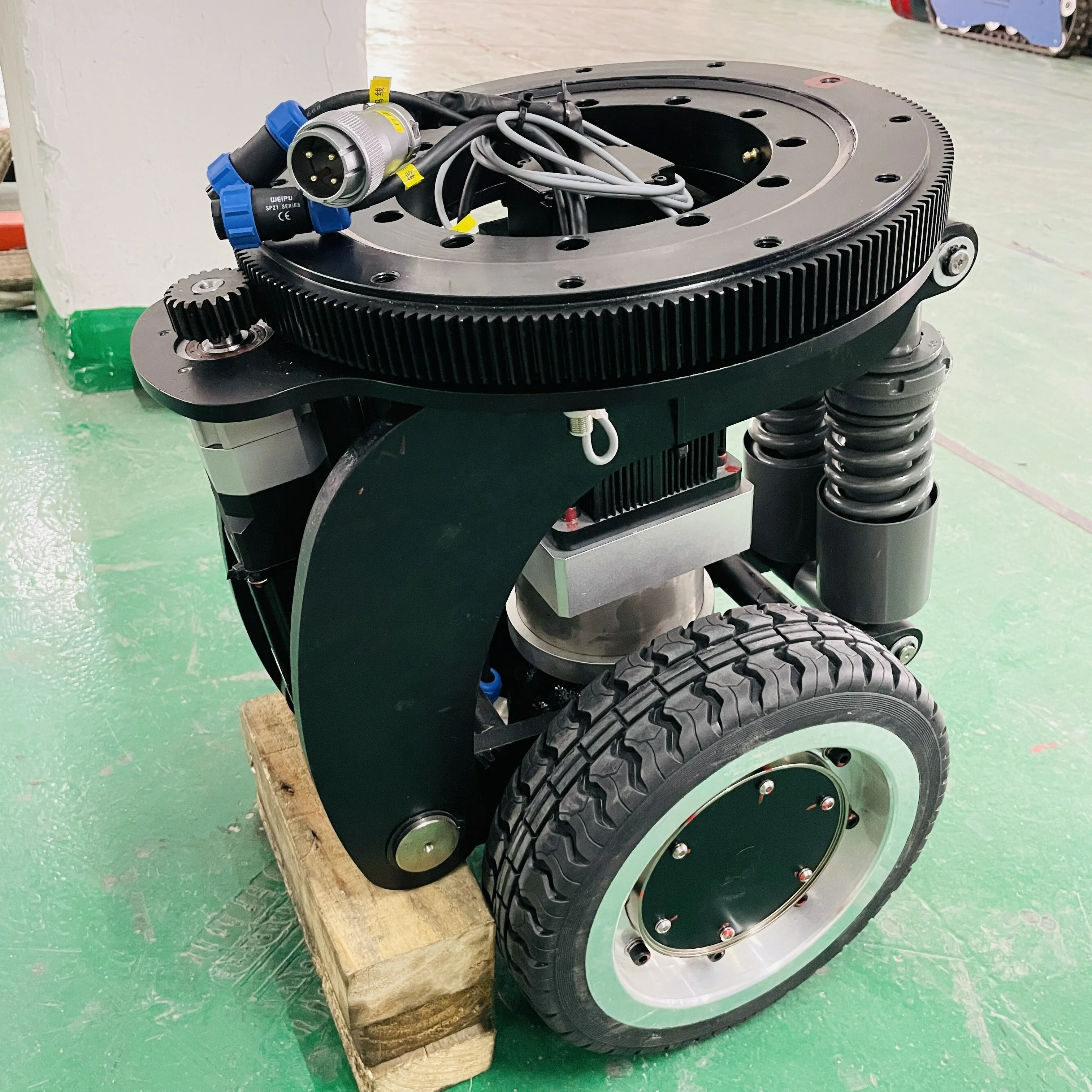

Gear Bearing
Necessary parts for steering wheel to achieve steering, Integrate carrying and steering.
ODM and OEM accepted
Material: Steel
Brake
Stop or reduce the speed of the running steering wheel.
If the drive wheel needs to climb a slope, it must need a brake.(Optional)
Standard steering drive wheels are available with suitable brakes.
Metal support structure
Link various important parts of the steering wheel, while supporting and improving the bearing capacity of the steering wheel
ODM and OEM accepted
Material: Steel
Material: Steel
Product Specification
Technical Parameter | ||||||||
Model | ZL-B543 | |||||||
Gearbox | Level 2 planetary | |||||||
Speed ratio | I | 7-120 | ||||||
Wheel diameter | mm | 270*270 | ||||||
Fastest speed | m/min | 20-200 | ||||||
Shock stroke | mm | ±10 | ||||||
Damping pressure | KG | 1500 | ||||||
Temperature | ℃ | -10 to +55 | ||||||
Weight | KG | about 70 | ||||||
Traction motor technical parameter | ||||||||
Motor type | Servo / Brushless | |||||||
Rated power | W | 1000-3000 | ||||||
Rated voltage | V | DC24-76V / above AC220V | ||||||
Rated speed | rpm/min | 3000 | ||||||
Rated torque | N.m | 3.18-9.68 | ||||||
Steering motor technical parameter | ||||||||
Motor type | Servo / Brushless | |||||||
Rated power | W | 400-750 | ||||||
Rated voltage | V | DC24-76V / above AC220V | ||||||
Rated speed | rpm/min | 3000 | ||||||
Rated speed | N.m | 1.28-2.39 | ||||||
Steering reducer speed ratio | I | 35-120 | ||||||
Mechanical limit range | ±120° | |||||||
Angle limit | Proximity switch NPN / PNP | |||||||
Angle sensor | Potentiometer / Incremental / Absolute value (Optional) | |||||||
Product Application
AGV forklift single drive unit
As a common handling mode of AGV, AGV forklift has very strict requirements on the precise positioning and high power of the drive wheel. The single steering drive wheel + 2 casters can allow the forklift to achieve any function of walking in addition to rotating in place.
Latent type AGV
Standard height AGV
Large Platform Truck
Our steering wheel matches AGVs of different heights
Match any AGV system and transport equipment
ZL-130
Installation height: 130mm
Load: 500 kg
ZL-270
Installation height: 270mm
Load: 1000 kg
ZL-380
Installation height: 380mm
Load: 3000 kg
Drive Wheel Control Kit
Steering wheel drive remote control kit (brushless motor as an example)
One-stop solution for steering wheel drive, just connect a suitable battery and drive easily by remote control. Save time and effort without electrical engineering installation.
It is feasible to add lifting equipment on the basis of the steering wheel too.
