Вертикальный деревообрабатывающий фрезерный станок MB

Вертикальный деревообрабатывающий фрезерный станок MB

Категория: Wood Saw Machines >>>
Поставщик: Foshan,Zhong,Er,CNC,Machinery,Co.,Ltd.

Цена:750,00 $ - 800,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	893.56 $*	938.48 $*
Aug-20-2025	885.24 $*	929.75 $*
Jul-20-2025	743.33 $*	780.85 $*
Jun-20-2025	870.27 $*	914.37 $*
May-20-2025	758.83 $*	796.16 $*
Apr-20-2025	855.43 $*	898.47 $*
Mar-20-2025	848.70 $*	890.79 $*
Feb-20-2025	840.57 $*	882.87 $*
Jan-20-2025	833.57 $*	875.48 $*

Характеристики

Product Description

We have private customization (size, function, etc.) welcome to consult

Parts Details

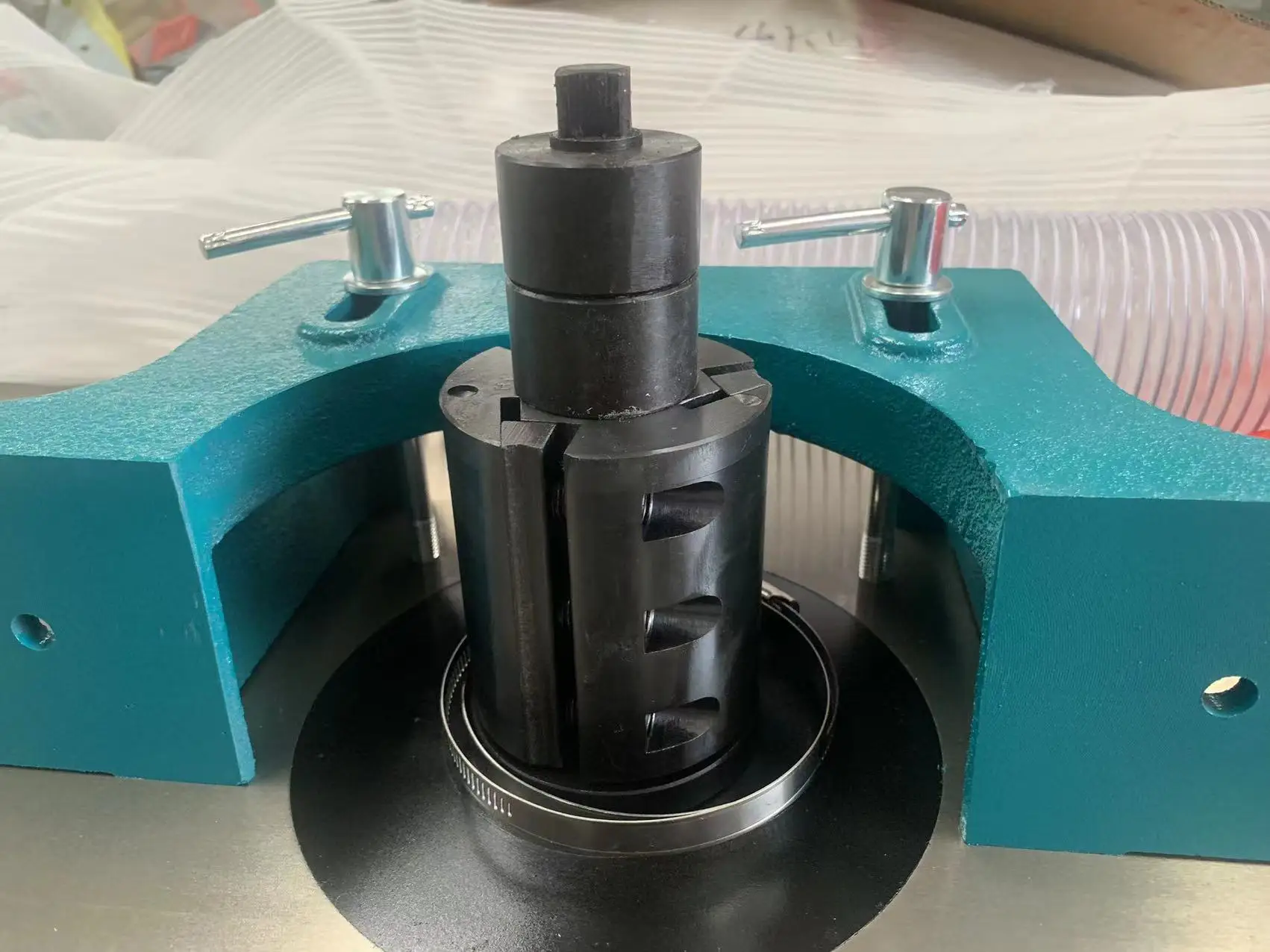

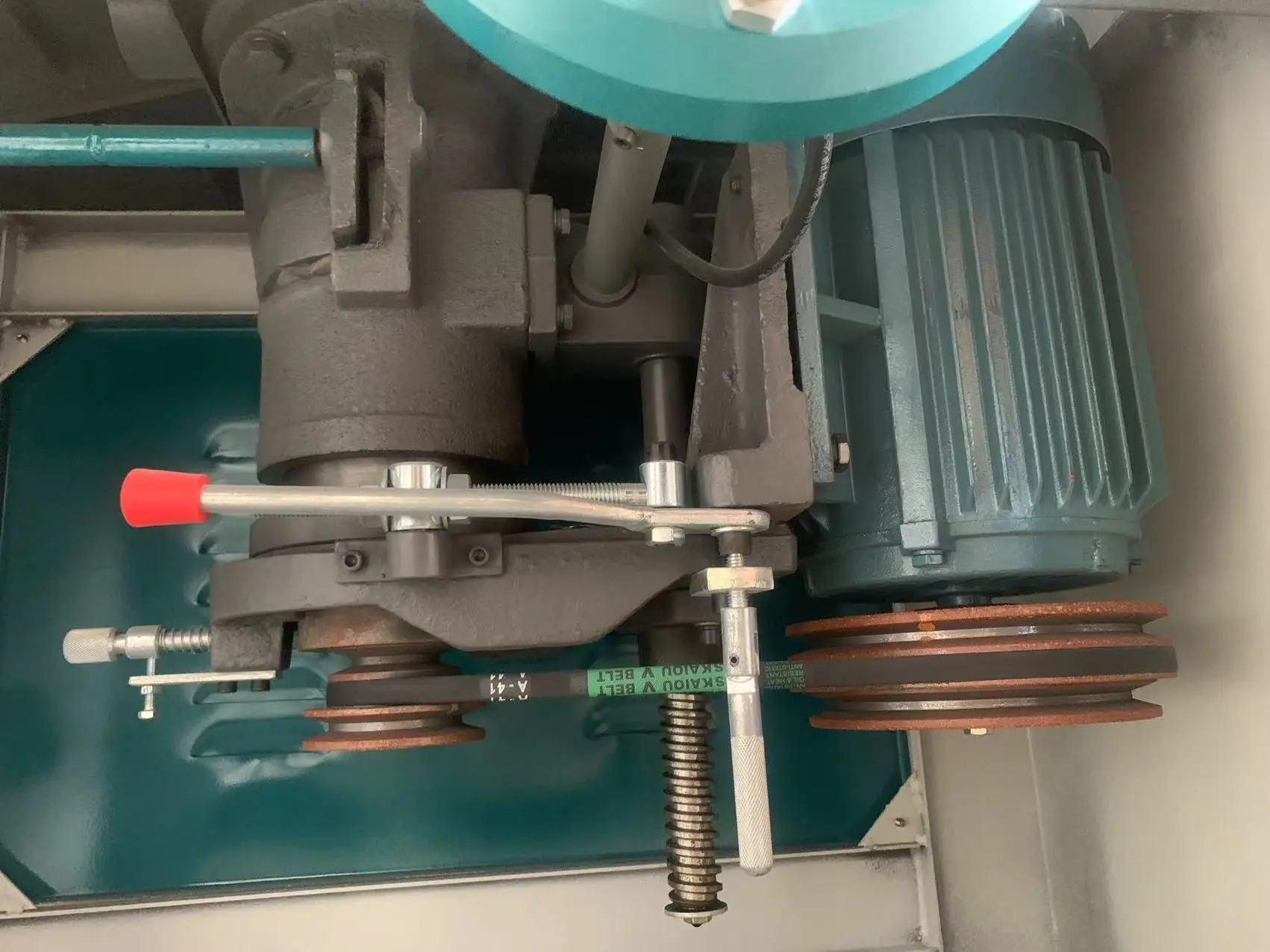

Machine Spindle

Profiling Baffle

Worktable

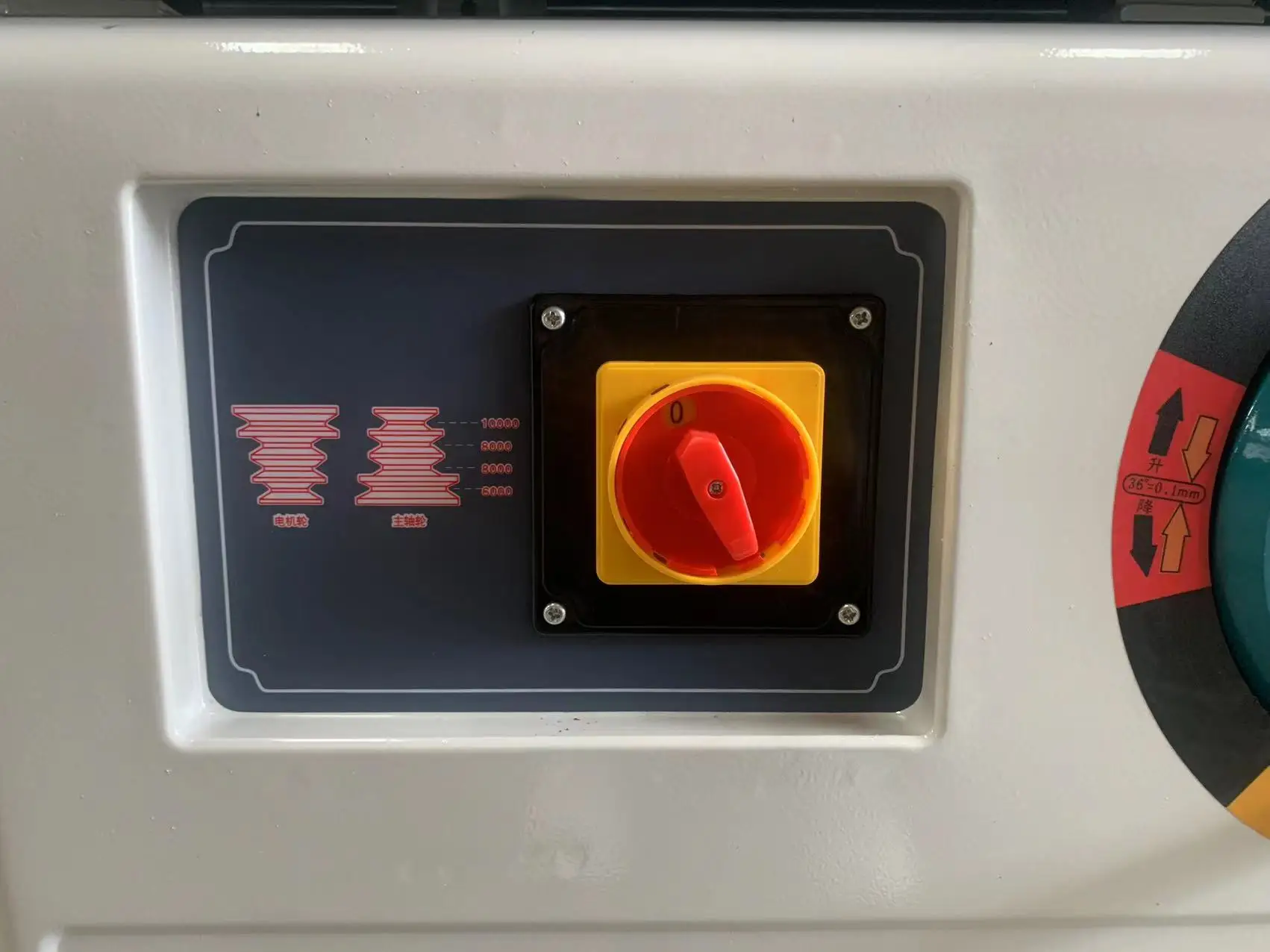

Switch

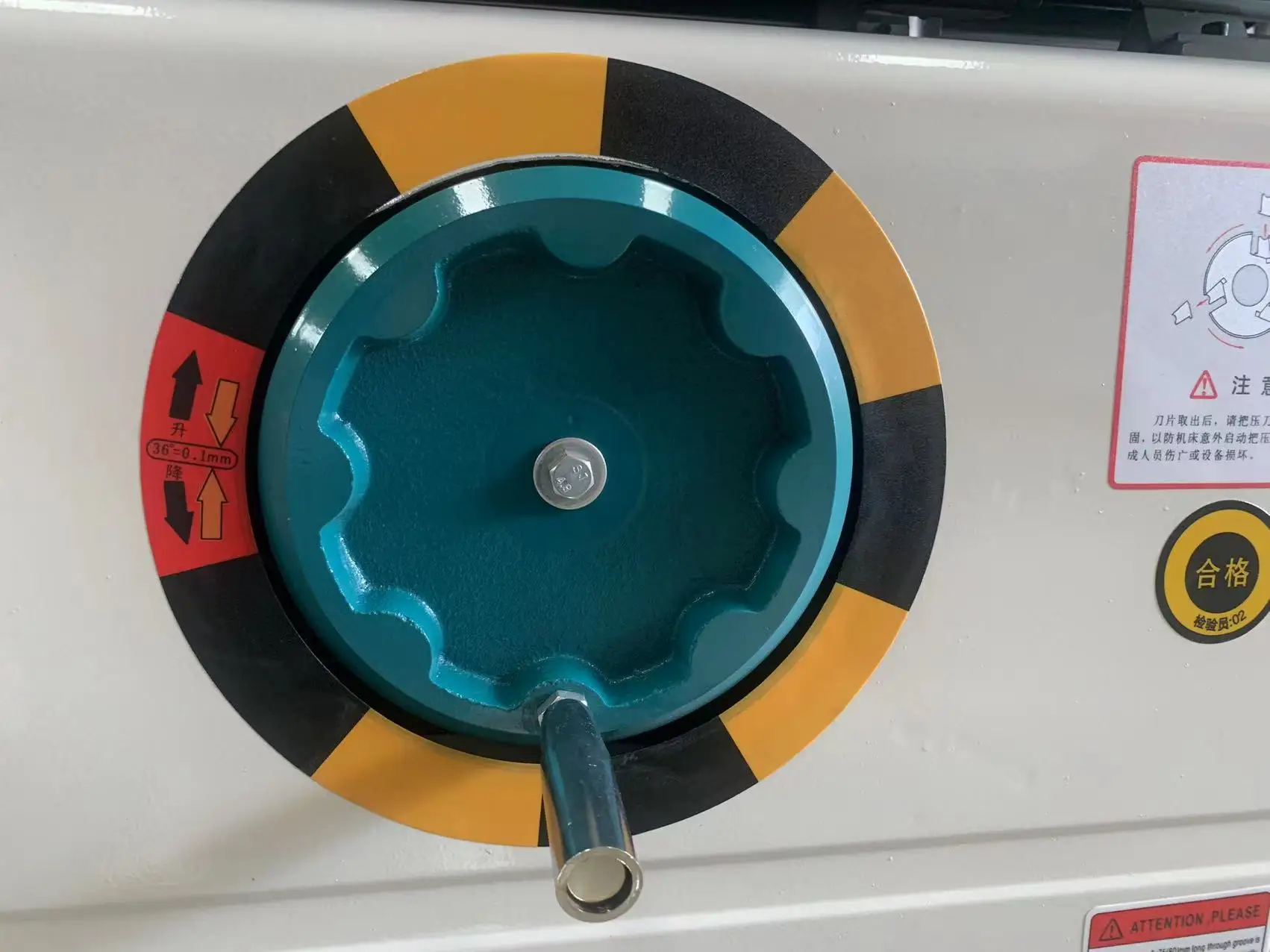

Elevating Handwheel

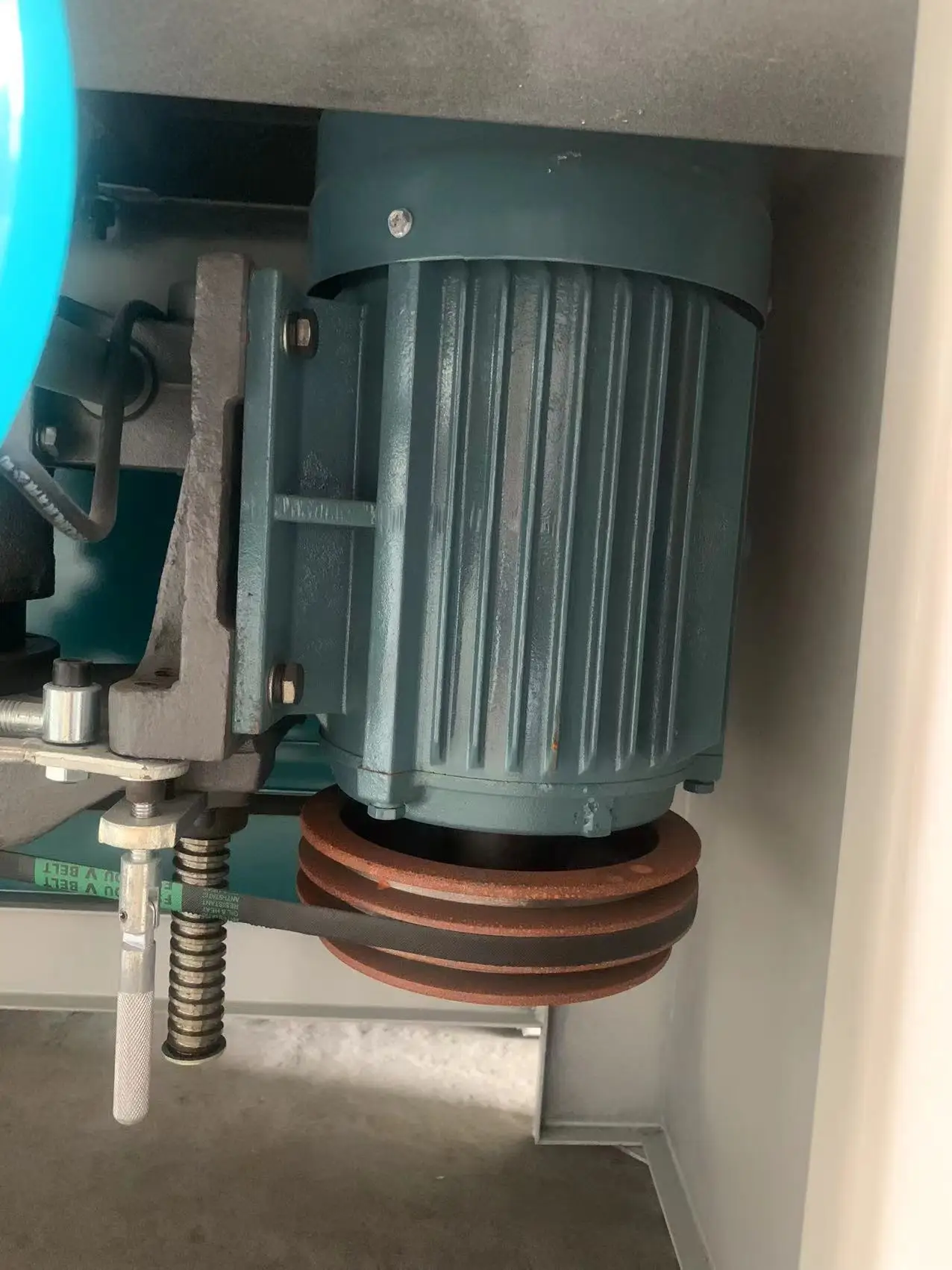

Power Wiring

Features of ZE-MX5117B Single Spindle Shaper：

1. Used in carpentry workshops.
2. The key parts are imported parts, so the rotation precision is high, strong and durable. The speed has three gears, which can be selected for various processing.
3. The spindle rotates counterclockwise, and the corresponding cutter head is installed, which can be used alone. To ensure the processing speed and processing quality, the machine has excellent performance, stability, practicality and easy operation.

Specification

Name	Single Spindle Shaper
Model Number	ZE-MX5117B
Working table size	1130*670mm
Max. working thickness	120mm
Spindle dia	dia35mm
Spindle speed	6000/8000/10000r/min
Install power	4kw/5.5kw
Direction of rotation	counterclockwise
overall size	11306701020mm
Weight	350kgs
China standard voltage is 380v, if you need to change it, add $45

Notice

1. Before starting milling, mechanical inspection and pre-work preparations must be done, the motor is turned on, and the milling operation can be performed after the machine tool runs normally.

2. When cutting, grooving, and threading operations, select the milling cutter according to the mouth shape, groove shape and line shape of the processing component. When choosing an assembled milling cutter, install the blade on the tool holder, then place it on the platform to check the evenness of the blade edge at a right angle, and install the milling cutter on the cutter shaft.
3. When processing larger components, it should be operated by two people. The advancing and pulling should be closely coordinated, and the speed should be uniform and not too fast. It should be adapted to the rotation speed of the milling cutter. When the component is processed to about 200mm, it can be pushed with a wooden stick to prevent hand injury.
4. When the cutting operation is carried out, two people are generally required to operate. When the wood passes 15mm of the cutting edge, the wood can be pressed by hand and slowly pulled.
5. When the integral milling cutter is selected, it can be installed directly. After the milling cutter and the cutter shaft are fastened, turn the handwheel to adjust the milling cutter to the desired height. Adjust the guide plate and install it firmly, and cover the protective cover. During operation, start the motor, and after the operation is normal, push the component forward along the table against the guide plate, press the component with the left hand, and push the component with the right hand.
6. When the tenoning operation is performed, the wood can be clamped on the trolley, and the end of the wood can be pulled out of the tenon when the trolley moves forward.
7. When milling curved parts, it is necessary to design a curved guide plate to replace the guide ruler according to the shape of the part, and fix the guide plate on the worktable. The curved surface of the mold should be consistent with the curved surface of the part to be processed. During operation, clamp the part on the mold, so that the curved surface of the mold slides against the curved surface of the guide plate, and the curved surface of the part is processed by the cutter head.

Production Process

Sample Room

Packing & Delivery

Wooden box packaging, additional charges according to machine size!

Company Profile

Foshan Zhonger CNC machinery Co.,Ltd .is an enterprise based on Woodworking equipment manufacturing, which has the high -tech industry development direction. The company has many years of woodworking machinery production experience , its main product”Sliding Table Saw , Precision Panel Saw”also gets a high reputation in the industry. The company has been adhering to the purpose of “ quality first, customer is supreme”, in order to make full use of technology and brand advantages, set up sales management system and zstrong the marketing team .The high-quality after-sale service personnel and professional installation team can provide high-quality and timely technical consulaation and installation maintenance service to our customers v All the staff of Foshan Zhonger CNC Marchinery Co.,Ltd .welcome to enterprises come to visit our company and negotiate the business , we are willing to move forward with you an create the bright future together!

Why Choose Us

1.How do I order a product that works for me?

We recommend that you consult with our customer service staff before ordering and inform customer service I have a large order, can I place an order first at a low price? In your case, we may charge the normal price in the first order, but we guarantee that the difference will be refunded after a certain number of orders are placed.

:2.Can you provide designers to help you design ?

Yes, we can provide you with a technical engineer to complete your solution.Please send us pictures or related scheme sketches on the Internet.

3.Can I produce if I want a different configuration?

Yes ,We are manufacturers and fully support customization! Customers who require customization will check the details with our sales staff in advance to avoid deviations and errors!

4.What is the delivery time?

Normal 380V voltage 10-15 days, other voltage is 15 days.

5.What is the payment term？

T/T 30% in advance and balance before shipment, LC or by negotiation.

6.What is the guarantee?

12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service
all the lifetime.

7.What is the technical support?

1) Technical support by phone, email or MSN/Skype around the clock

2) Friendly English version manual

3) Engineer available to service machinery oversea

8.What is the after sales services?

you will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel etc. We can also send our engineer to your factory, but need you take charge of all travelling cost and labour cost 100USD/day
