Горячая Распродажа сварочный аппарат для железной проволоки и стальных пластин пневматический станок точечной сварки листового металла с длинной
- Категория: Welding Equipment >>>
- Поставщик: Hebei,Kaiye,Machinery,Equipment,Co.,Ltd.Hebei,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-18-2025 | 234344.80 $* | 239031.31 $* |
| Jul-18-2025 | 190059.64 $* | 193860.82 $* |
| Jun-18-2025 | 230654.93 $* | 235267.5 $* |
| May-18-2025 | 228809.22 $* | 233385.89 $* |
| Apr-18-2025 | 182678.23 $* | 186332.6 $* |
| Mar-18-2025 | 225118.82 $* | 229620.79 $* |
| Feb-18-2025 | 223273.67 $* | 227738.14 $* |
| Jan-18-2025 | 221428.3 $* | 225857.61 $* |
Характеристики
Product Overview

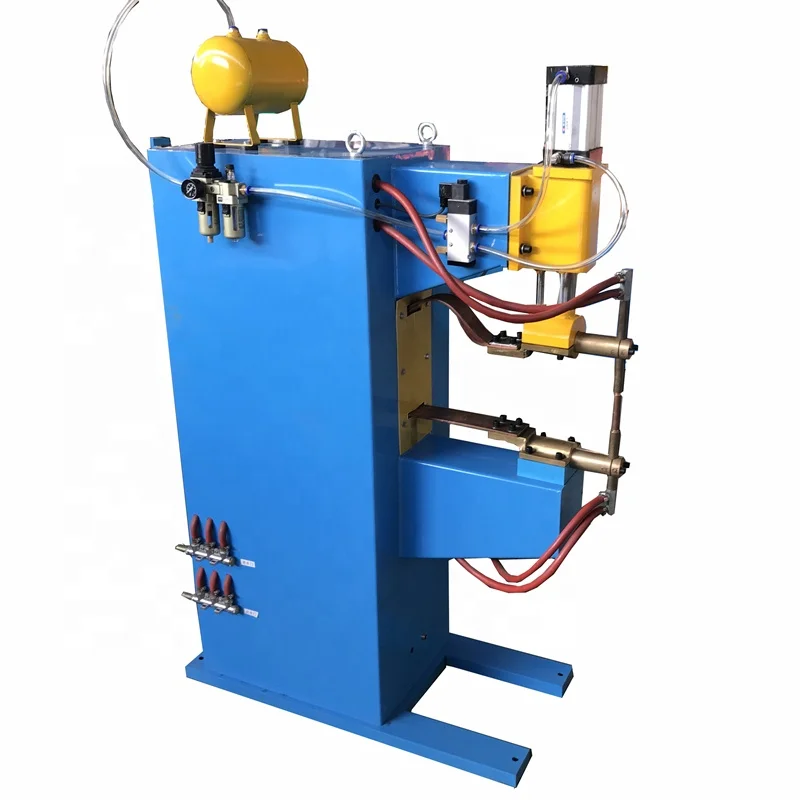

Pneumatic spot welding machine

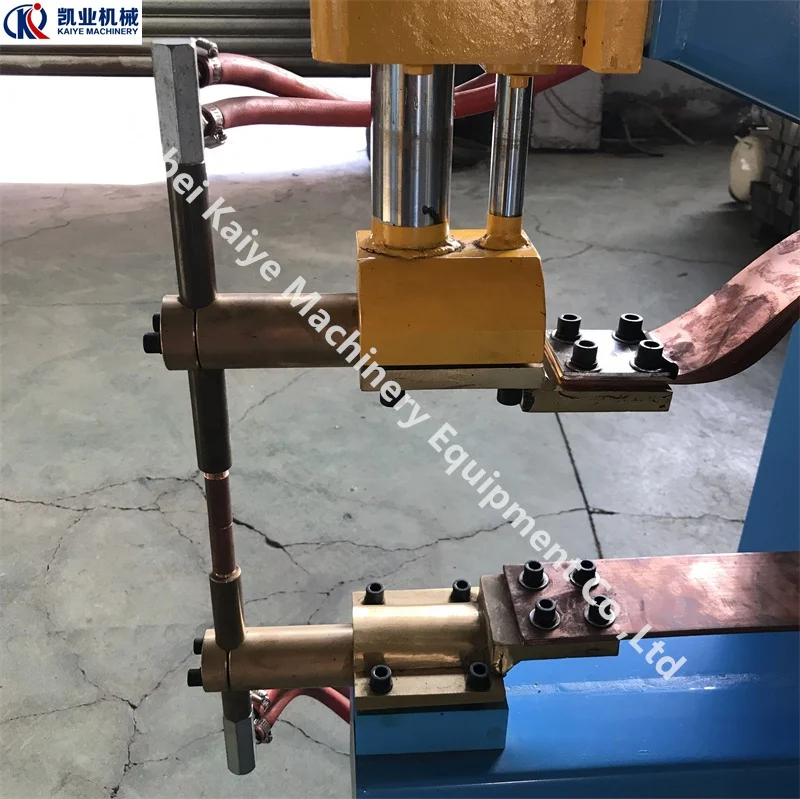

The pneumatic spot welding machine adopts the principle of double-sided double-point over-current welding. When working, two electrodes pressurize the workpiece to form a certain contact resistance between the two layers of metal under the pressure of the two electrodes. When the welding current flows from one electrode to the other electrode, an instantaneous hot fusion is formed at the two contact resistance points, and the welding current flows from the other electrode to the two workpieces to form a circuit, And will not damage the internal structure of the welded parts.
Product advantage

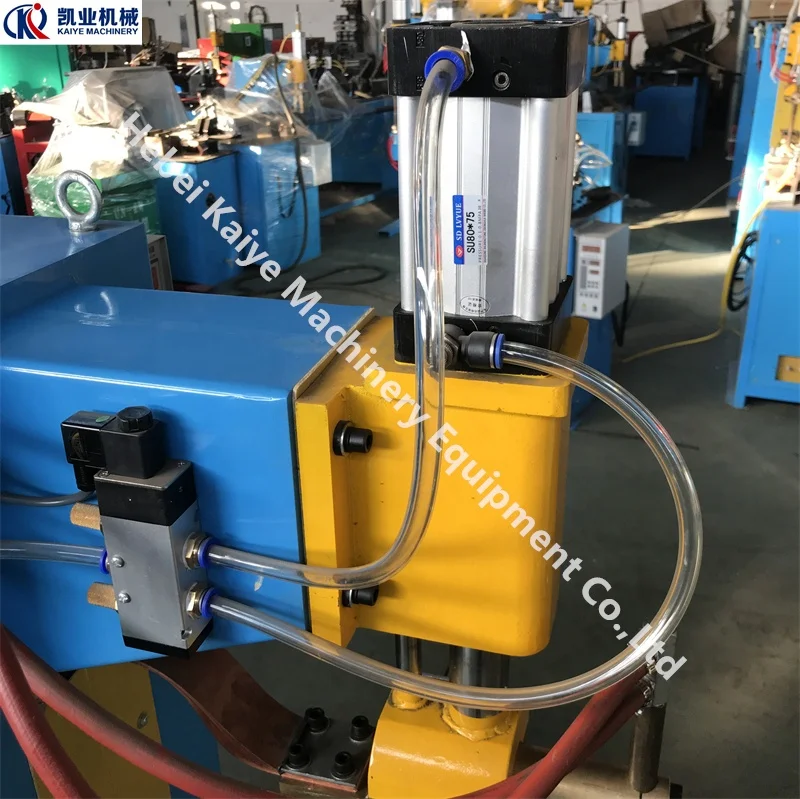

Our machinery adopts high-precision guiding mechanism with good wear resistance, piston straight rod pressurization, fast welding speed and stable pressurization.

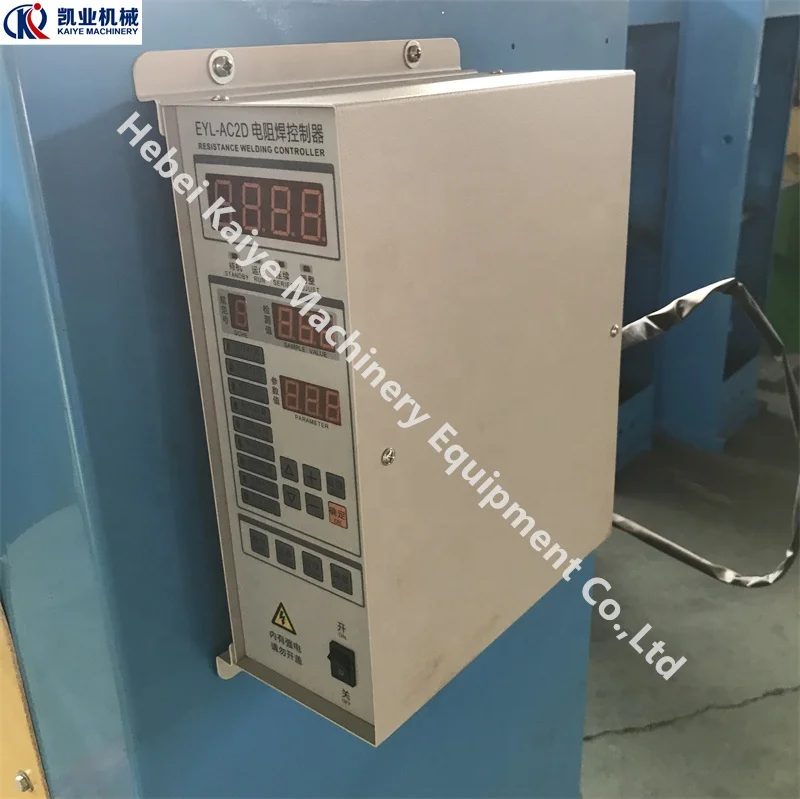

Microcomputer constant voltage control system, two-stage discharge, accurate control of welding time and welding current, convenient adjustment.
High magnetic conductivity silicon steel sheet, secondary overall structure, large output current, energy saving and environmental protection.
It is widely used in high-quality welding of copper, aluminum, iron, stainless steel and other metals of various wire, plate and special-shaped types.
Working principle.
The process of spot welding is to turn on cooling water; Clean the surface of the weldment. After accurate assembly, send it between the upper and lower electrodes and apply pressure to make it in good contact; The contact surfaces of the two workpieces are heated and partially melted by power on to form Nuggets; Maintain the pressure after power failure to make the nugget cool and solidify under pressure to form solder joints; Remove the pressure and take out the workpiece. Welding parameters such as welding
current, electrode pressure, energizing time and electrode working surface size have a significant impact on welding quality.
current, electrode pressure, energizing time and electrode working surface size have a significant impact on welding quality.
The spot welder uses the high-temperature arc generated by the instantaneous short circuit between the positive and negative poles to melt the welded materials between the electrodes to achieve the purpose of combining them. The structure of spot welding machine is very simple. It is a high-power transformer, which changes AC into low-voltage and high-current power supply, which can be DC or AC.
Product Parameters
Model | SWM-40 | SWM-75 | SWM-100 | SWM-125 | SWM-150 | ||||
Rated capacity (kva) | 40 | 75 | 100 | 125 | 150 | ||||
Rated load duration | 20%-50% | ||||||||
Welding thickness (mm) | 2.0+2.0 | 3.0+3.0 | 4.0+4.0 | 5.0+5.0 | 5.5+5.5 | ||||
Welding pressure | >300 | >300 | >500 | >500 | >800 | ||||
Welding speed | 60-80 times/min | ||||||||
Company Information
Factory History.
Hebei kaiye machinery equipment Co.,Ltd was founded in 1999 and has been focusing on the field of steel bar and wire processing equipment for 20 years. Now it has become a high-tech enterprise integrating R & D, design, manufacturing, sales and service.
Factory R&D Team.
The factory has a strong and experienced R&D team. The average working life of team engineers has exceeded 10 years.
Our technology is along the most advanced international route, and we can design reasonable solutions according to the requirements of
customers.
customers.
Main production machinery.
Company's main products include Reinforcing Mesh welding machine, Fence mesh welding machine, Gabion mesh machine, Hexagonal mesh
machine, EPS 3D panel welding machine, Chain link fence machine, Grassland fence machine, Wire drawing machine, as well as various wire mesh supporting equipment.
machine, EPS 3D panel welding machine, Chain link fence machine, Grassland fence machine, Wire drawing machine, as well as various wire mesh supporting equipment.
Certification
Customer and Market
We have partners all over the world.
FAQ
Q: Are you a trading company or manufacturer?
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
A: Our company is a factory integrating production and sales. We can provide competitive prices and services.
Q:Where is your factory located?
A: Our factory is located in Anping county, Hebei Province of China. The nearest airport is Beijing airport or Shijiazhuang airport. We can pick you up from Shijiazhuang city.
Q: How many years are your company engaged in the wire mesh machines?
A: More than 20 years. We have our own technology develop department and testing department.
Q: Can your company send your engineers to my country for machine installation, worker training?
A: Yes, our engineers went to more than 60 countries before. They are very experienced.
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in your factory.
Q: Can you export and supply the customs clearance documents we need?
A: We have much experience for exporting. And we can supply the CE certificate, Form E, passport, SGS report etc, your customs clearance will be no problem.
If you are interested in our machines,
please contact us now,
We will provide you with professional and reasonable solutions.
