Электрохромная переключаемая термостойкая морозостойкая непрозрачная прозрачная пленка pdlc стекло
- Категория: Building & Industrial Glass >>>
- Поставщик: Sinoped,Liaoning,Optronic,Technology,Co.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 119.63 $* | 125.16 $* |
| Aug-20-2025 | 118.53 $* | 124.85 $* |
| Jul-20-2025 | 99.58 $* | 104.18 $* |
| Jun-20-2025 | 116.94 $* | 122.25 $* |
| May-20-2025 | 101.47 $* | 106.66 $* |
| Apr-20-2025 | 114.20 $* | 120.67 $* |
| Mar-20-2025 | 113.68 $* | 119.39 $* |
| Feb-20-2025 | 112.94 $* | 118.83 $* |
| Jan-20-2025 | 111.41 $* | 117.89 $* |
Характеристики
Products Description
Manufacturing Technique
Item | Mode | Specification | ||
Optical Parameter | Visible Light Transmittance | Power on | >83% | |
Power off | >53% | |||
Parallel Light Tansmittance | Power on | 75% | ||
Power off | <2% | |||
Haze | Power on | <4% | ||
Power off | >95% | |||
Viewangle | Power on | >150° | ||
Electrical Parameter | Operating Voltage | Power on | AC48V-65V/ 50Hz | |
Response Time | Power off-on | <200ms | ||
Power Dissipation | Power off-on | 6-8 W/㎡ | ||
Size Parameter | Thickness | 0.38mm | ||
Maximum Size | 6000mm*2000mm | |||
Operating Parameter | Operating Temperature | -30°C-50°C | ||
Storage Temperature | -40°C-70°C | |||
Service Times | Power on | >12 years | ||
Switching Times | >2 millions | |||
Product | PDLC smart laminated glass |
Glass type | Tempered glass+PDLC smart film+tempered glass |
Glass size | Custom size |
Thickness | 4+4mm, 5+5mm, 6+6mm, 8+8mm, 10+10mm, 12+12mm, 15+15mm, 19+19mm |
Visible light transmittance | When power on: >80% / When power off: >50% |
Parallel light transmittance | When power on: >80% / When power off: <2% |
Working voltage | 40V/48V/65V |
Working temperature | 10-60℃ |
Storage temperature | -10-60℃ |

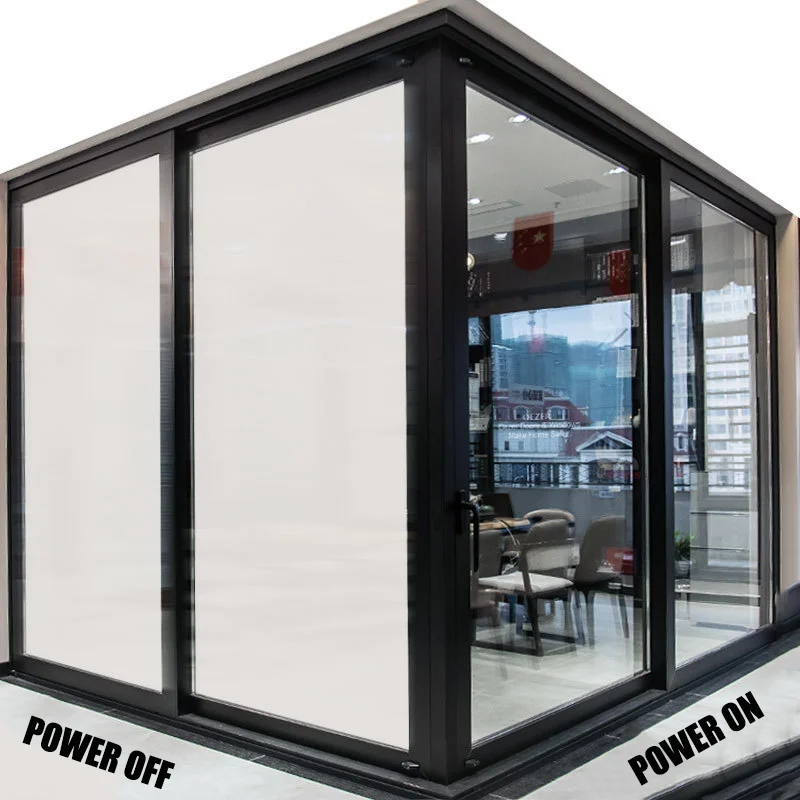

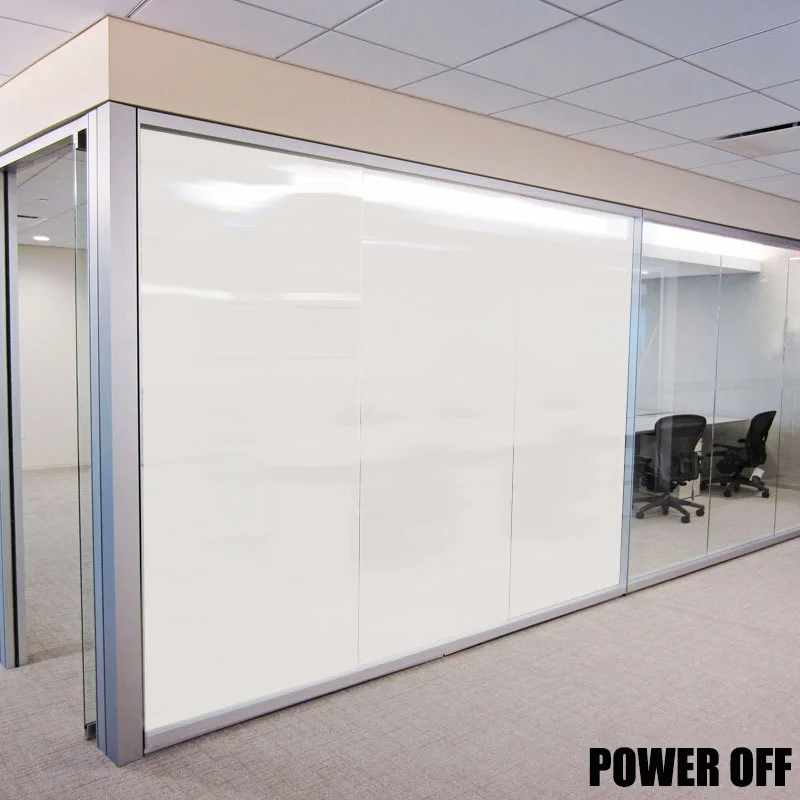

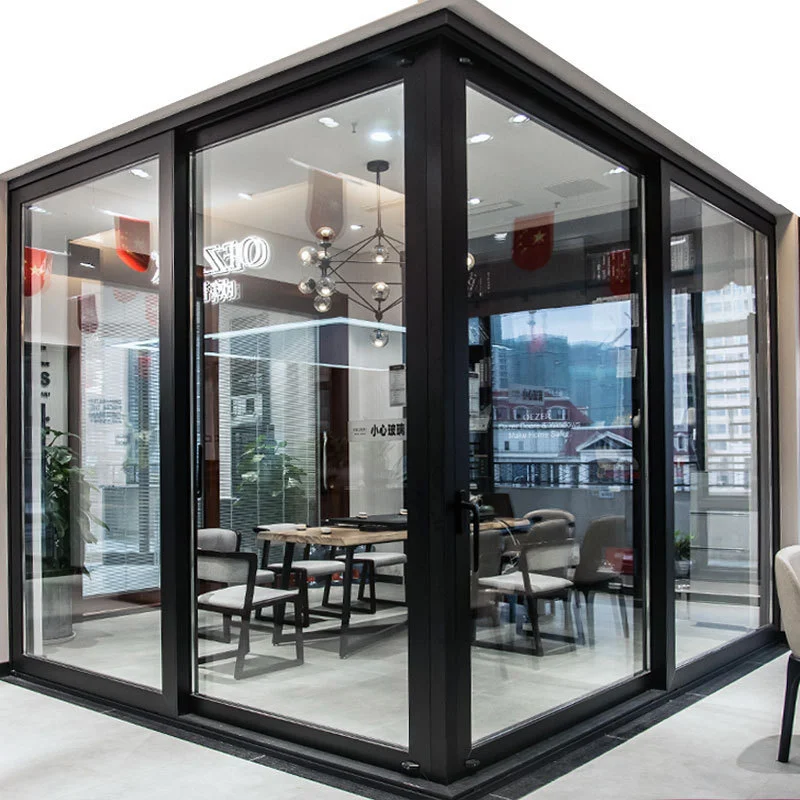

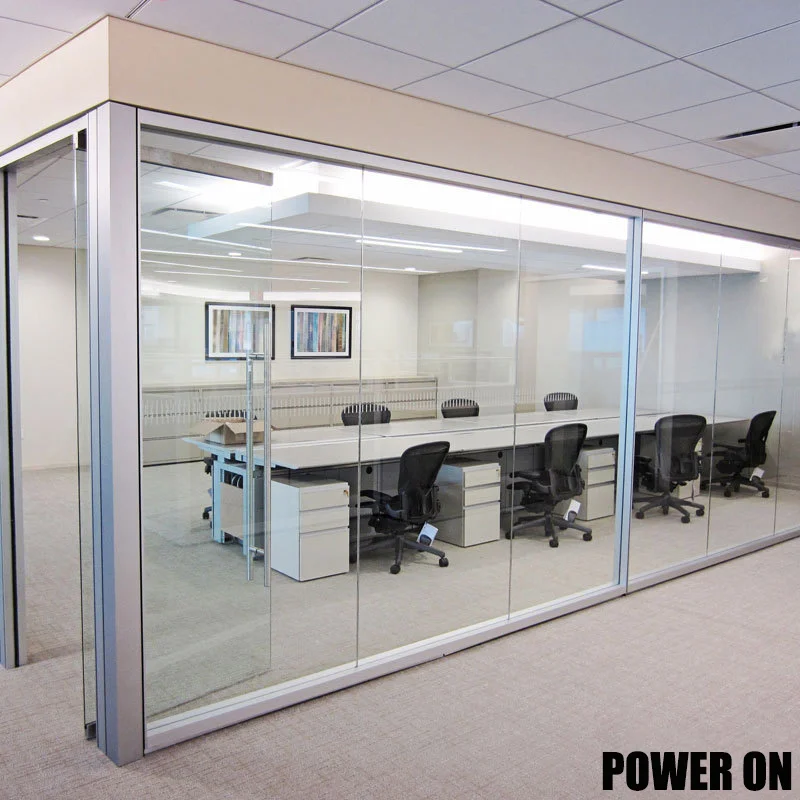

Product use effect

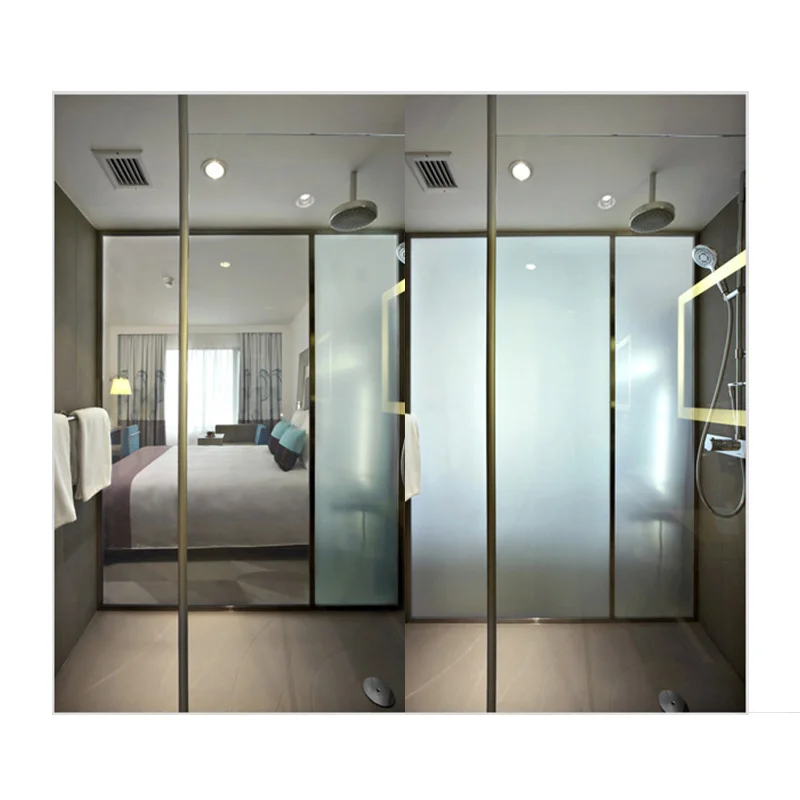

Product application scenarios
Our Advantages
1 | Immediate and precise switching regulation. |
2 | Improved ease of use and more security. |
3 | Efficient use of space in building environments. |
4 | Aesthetic attractiveness. Energy saving through reduced A / C cooling. |
5 | Low operating voltage, Excellent contrast for rear projection purposes. |
6 | UV protection and stability (blocks over 99% harmful UV radiation). |
7 | Exceptional optical quality and reliable technology. |
Product packaging and shipping
Company Profile
Liaoning Sinoped Optronic Technology Co., LTD
Liaoning Sinoped Optronic Technology is a high-tech optical products manufacturing enterprises, the companys main products are cover glass, touch screen, electromagnetic screen, polyimide conductive hardening film.
FAQ
1. How does Smart Film work?
In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and the film looks dark gray or white. In “On State” the light is transmitted and the film looks transparent.
2. What is the product lead time?
Lead time for PDLC Film Products is 5-7 days after received payment.
3. What is the size of your package?
In “Off State” when no electrical power is applied on the smart film the light is absorbed or scattered and the film looks dark gray or white. In “On State” the light is transmitted and the film looks transparent.
2. What is the product lead time?
Lead time for PDLC Film Products is 5-7 days after received payment.
3. What is the size of your package?
1 roll / 60 square meter 1* box L146*W38*H38CM
4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.
5. Is there a MOQ (Minimum of Quantity)?
1 square meter
6. What is the expected life of your products?
Life expectancy is approximately 10 years or switch >2000000times.
4. What are your shipment terms?
We deliver it by air/express transportation.
Customer clear custom, release and deliver to final destination.
5. Is there a MOQ (Minimum of Quantity)?
1 square meter
6. What is the expected life of your products?
Life expectancy is approximately 10 years or switch >2000000times.
