Резервуар для хранения азота 100 м3 Co2 криогенный резервуар жидкого газа 15
- Категория: Pressure Vessels >>>
- Поставщик: Henan,Yuji,Boiler,Vessel,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 11900.28 $* | 12495.25 $* |
| Aug-16-2025 | 11800.84 $* | 12390.32 $* |
| Jul-16-2025 | 9900.50 $* | 10395.93 $* |
| Jun-16-2025 | 11600.4 $* | 12180.6 $* |
| May-16-2025 | 10100.95 $* | 10605.49 $* |
| Apr-16-2025 | 11400.78 $* | 11970.23 $* |
| Mar-16-2025 | 11300.21 $* | 11865.5 $* |
| Feb-16-2025 | 11200.7 $* | 11760.31 $* |
| Jan-16-2025 | 11100.58 $* | 11655.75 $* |
Характеристики

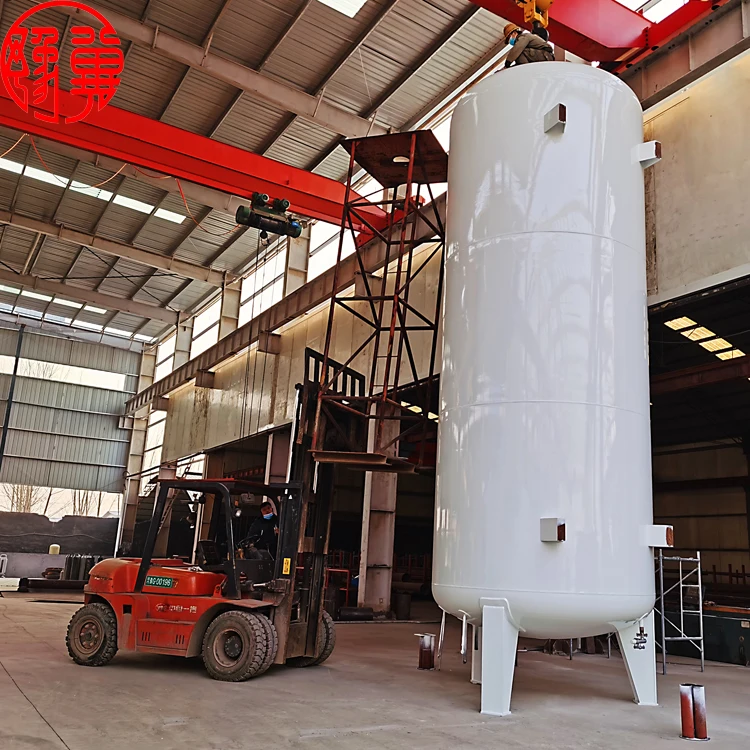

Product Description
Cryogenic liquid storage tank is a series of products in the first, second and third class pressure vessels produced by our company. The series of products are strictly in accordance with TSG21-2016 "Fixed Pressure Vessels Safety Technical Supervision Regulations", GB/T150-
2011 "Pressure Vessel", GB18442-2011 "fixed vacuum adiabatic Cryogenic pressure vessel" design, manufacture, inspection and acceptance.Low temperature liquid storage tank is double wall, vertical (horizontal) structure, vacuum powder insulation, with compact structure, low daily evaporation rate, small footprint, centralized control, safe and reliable, easy operation and maintenance, etc.
Ccryogenic vessel tank parameters | ||||||||
Model | Working pressure（Mpa） | Medium | Volume（m³） | Weight（kg） | ||||
YUL5/0.8 | 0.8Mpa | LOx、LN2、 | 5 | 3412 | ||||
YUL10/0.8 | 10 | 5300 | ||||||
YUL20/0.8 | 20 | 8200 | ||||||
YUL30/0.8 | 30 | 12900 | ||||||
YUL50/0.8 | 50 | 18900 | ||||||
YUL100/0.8 | 100 | 34480 | ||||||
YUL5/1.6 | 1.6Mpa | LOx、LN2、 | 5 | 3900 | ||||
YUL10/1.6 | 10 | 6780 | ||||||
YUL20/1.6 | 20 | 10700 | ||||||
YUL30/1.6 | 30 | 14600 | ||||||
YUL50/1.6 | 50 | 23370 | ||||||
YUL100/1.6 | 100 | 36000 | ||||||
Specification
item | value |
Place of Origin | China |
Brand Name | YUJI |
Condition | New |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | Ordinary Product |
Warranty of core components | 1 Year |
Core Components | PLC, Pressure vessel, Pump |
Dimension(L*W*H) | Customized |
Capacity | Customized |
Weight | 100 |
Volume (m³) | 5~250m³ |
Inner Material | Q345R |
Outer Material | Q345R |
Design Pressure(MPa) | 0.2~3.5 |
Max Working Pressure(MPa) | 3.6 MPa |
Design Standard | ASME/PED/GB |
Working Temperature(℃) | -196℃ - 40℃ |
Warranty | 1 Year |
Key Selling Points | Automatic |
Applicable Industries | Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining, Automotive parts, aerospace parts |
Product name | 20m3 Liquid Co2 Tank Food Grade Storage Cryogenic vessels Tank |
Application | Industry Equipment |
Material | Q345R/Q235 |
Working medium | liquid nitrogen ,liquid oxgen,liquid argen,LNG |
Keyword | Cryogenic vessels |
LPG Tank Capacity | 5~250m³ |
Standard | GB150-1998"Pressure Vessels" |
Packing & Delivery
1.20&40 container or 20&40 flat container packing, according to the model of boiler.
2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
3.The products could be transported by ship and train, customers could designate the ports.
4.If necessary, the small auxiliaries could be transported by airplane.
2.the smaller auxiliary equipments are encased by using the strong intensity wooden or plywood box.
3.The products could be transported by ship and train, customers could designate the ports.
4.If necessary, the small auxiliaries could be transported by airplane.
Company Profile
Henan Yuji Boiler Vessel Manufacturing Co., Ltd. is the general administration of quality supervision, inspection and quarantine of the People's Republic of China approved the boiler and pressure vessel designated manufacturing enterprise, The company passes ISO 9001 international quality system certification, and gains the EU CE and other international certification ect.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
The main products are oil gas fired boiler, coal fired grate boiler, biomass fired grate boiler, thermal oil heater, electric heating boiler etc. Yuji boiler has exported to more countries, including Uzbekistan, Pakistan, Vietnam, Indonesia, Cambodia, Myanmar, Russia, Mongolia, Switzerland etc.
We ensure the quality of our products with our life. Quality assurance systems are set, include the design production, technology management, material experiment, welding control, inspection and audit, measurement and production management. The technology center has enterprise cooperation relationship with Many famous universities in China, leading the industry with innovation and new technology, and building a strong research and development system.
The main products are oil gas fired boiler, coal fired grate boiler, biomass fired grate boiler, thermal oil heater, electric heating boiler etc. Yuji boiler has exported to more countries, including Uzbekistan, Pakistan, Vietnam, Indonesia, Cambodia, Myanmar, Russia, Mongolia, Switzerland etc.
FAQ
1. who are we?
We are based in Henan, China, start from 2020,sell to Domestic Market(60.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Oil Gas Fired Steam Hot Water Boiler,Biomass Coal Fired Boiler,Electric Generator Boiler,Boiler Valve Parts,Pressure Vessels
4. why should you buy from us not from other suppliers?
We hold grade B boiler manufacture license and class D1 & D2 pressure vessels design and manufacture license, and also pass to ISO 9001:2000 quality management system certification and CE certificate of EU.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
We are based in Henan, China, start from 2020,sell to Domestic Market(60.00%),Eastern Europe(10.00%),Southeast Asia(10.00%),Africa(5.00%),South Asia(5.00%),Southern Europe(5.00%),Eastern Asia(5.00%). There are total about 201-300 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Oil Gas Fired Steam Hot Water Boiler,Biomass Coal Fired Boiler,Electric Generator Boiler,Boiler Valve Parts,Pressure Vessels
4. why should you buy from us not from other suppliers?
We hold grade B boiler manufacture license and class D1 & D2 pressure vessels design and manufacture license, and also pass to ISO 9001:2000 quality management system certification and CE certificate of EU.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese
