Сверхмощный воздушный молот кузнеца C41-250kg
- Категория: Metal Forging Machinery >>>
- Поставщик: Shandong,Gsk,Cnc,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 19028.75 $* | 19979.92 $* |
| Aug-17-2025 | 18868.95 $* | 19811.33 $* |
| Jul-17-2025 | 15830.42 $* | 16622.61 $* |
| Jun-17-2025 | 18548.45 $* | 19475.95 $* |
| May-17-2025 | 16150.64 $* | 16958.47 $* |
| Apr-17-2025 | 18229.2 $* | 19140.81 $* |
| Mar-17-2025 | 18069.27 $* | 18972.61 $* |
| Feb-17-2025 | 17909.29 $* | 18804.8 $* |
| Jan-17-2025 | 17749.71 $* | 18636.24 $* |
Характеристики

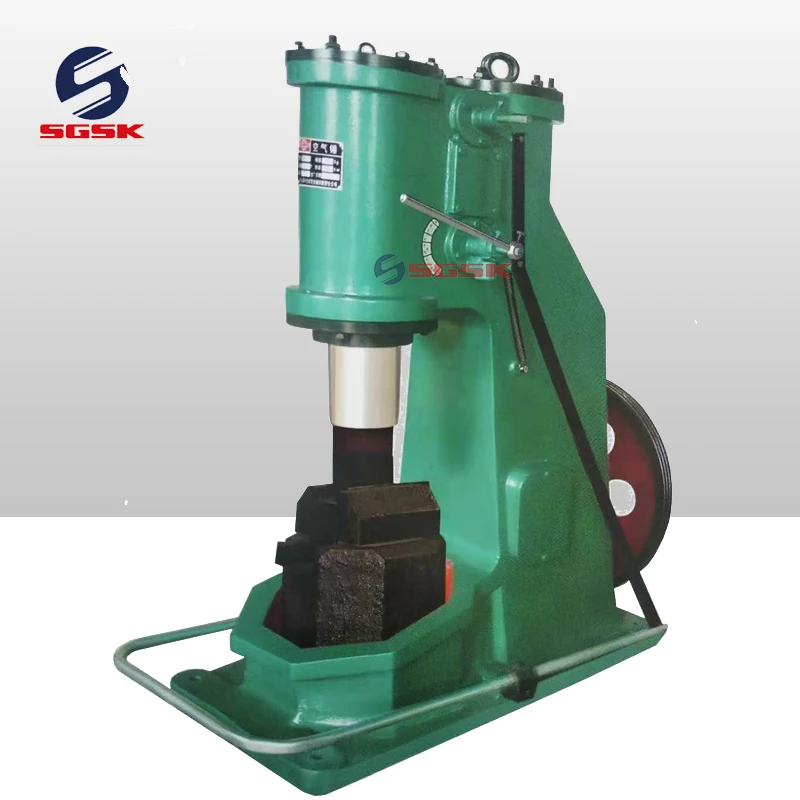

Heavy duty air hammer C41-250kg air hammer kit
Products Description
Details Display
The main performance characteristics:
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Product main technical specification:
1. Powered by compressed air, meet the needs of production safety, and tapping force against frequency by adjusting the air pressure control,
2. The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3. Simple mechanism ,Is not easy to damage
Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending using a die cushion can be a variety of open die forging.
Product main technical specification:
Technical Specifications | ||||||||
1 | Weight of falling parts | Kg | 250 | |||||
2 | Max. hit energy | Kj | 5.6 | |||||
3 | Hit number | min -1 | 150 | |||||
4 | Distance from bottom die surface to bottom surface of lead | mm | 450 | |||||
5 | Tup axis to hammer body | mm | 430 | |||||
6 | Dimension of top die surface | mm | 220 X 100 | |||||
7 | Dimension of bottom die surface | mm | 220 X 100 | |||||
8 | Distance from botton die surface to base | mm | 750 | |||||
9 | Motor | Type | -- | 180L-4 | ||||
Rate power | kw | 22 | ||||||
Speed | r.p.m | 1470 | ||||||
10 | Overall dimension | mm | 2875 X 1405 X 2570 | |||||
11 | Anvil Weight | kg | 2950 | |||||
12 | Total Weight | kg | 8200 | |||||
