Характеристики
Product Description

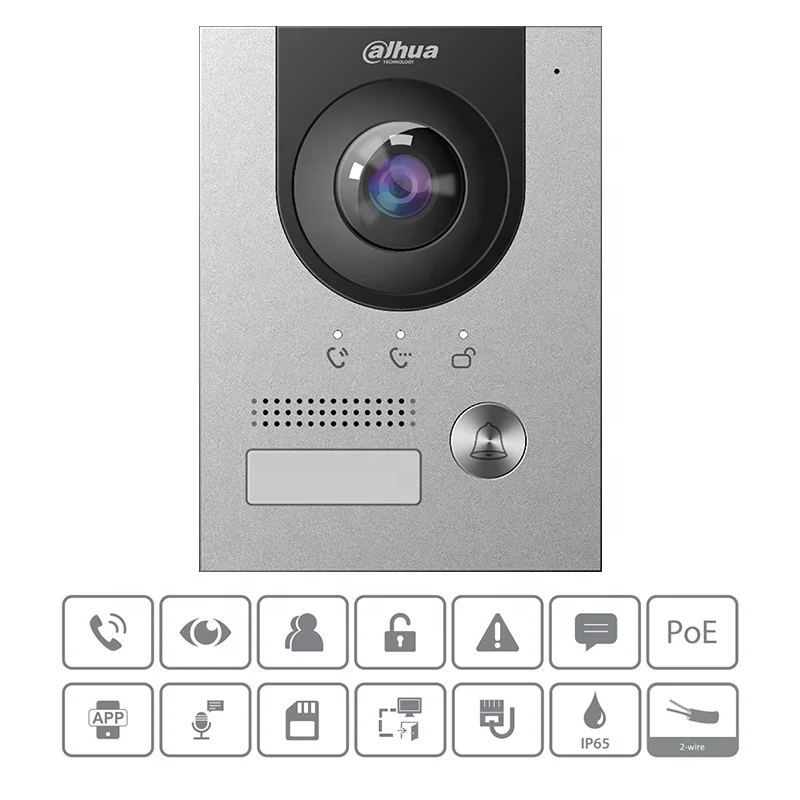

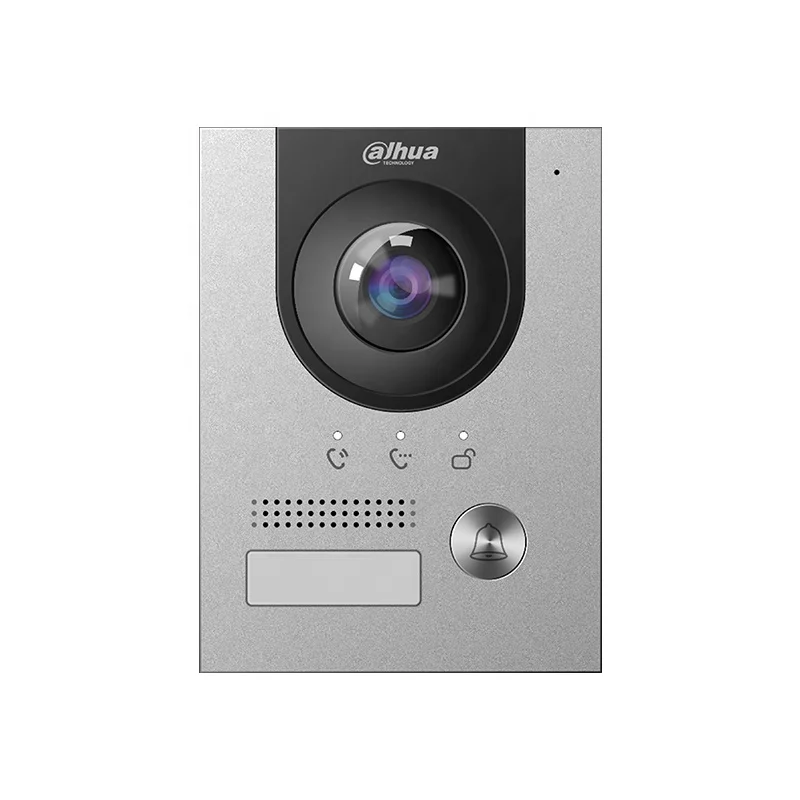

VTO2202F-P-S2
2-wire IP Villa Door Station
> Anodized alumimum front panel
> CMOS low illumination 2MP HD colorful 160° fisheye camera
> Video intercom function
> Access control function that supports two locks
> Mobile phone app, talk to the visitor or unlock the door remotely on
> Compatible with 2-wire interface & RJ45 interface
> IK07&IP65
> Support H.265
> Support surface and flush mount
> PoE
> Anodized alumimum front panel
> CMOS low illumination 2MP HD colorful 160° fisheye camera
> Video intercom function
> Access control function that supports two locks
> Mobile phone app, talk to the visitor or unlock the door remotely on
> Compatible with 2-wire interface & RJ45 interface
> IK07&IP65
> Support H.265
> Support surface and flush mount
> PoE

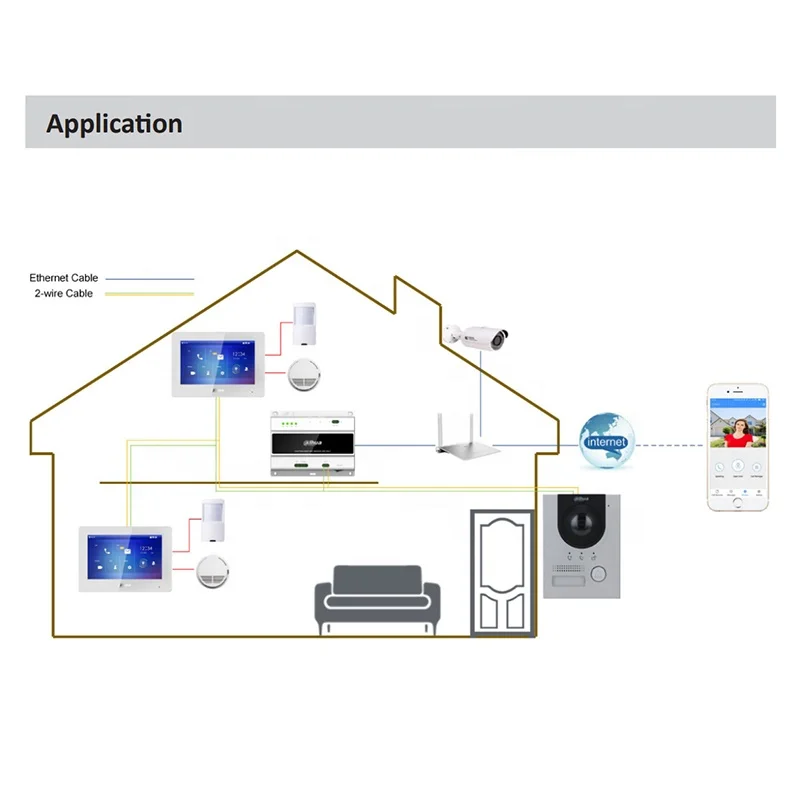

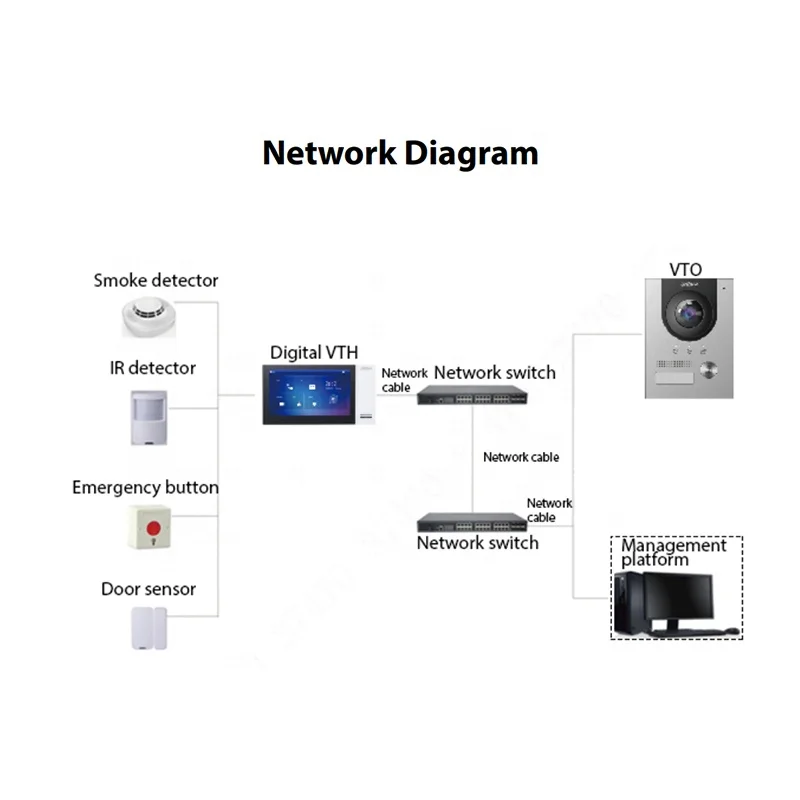

The IP Apartment Solution provides a large scale system with rich functionality such as video intercom, real-time video surveillance and intrusion detection. Various authentication methods (password, RFID card) provide maximum security. Management center calling capabilities as well as calling between residents provide great convenience to residents and property management personnel.
System | ||
Main Processor | Embedded processor | |
Operating System | Embedded Linux Operation System | |
Button Type | Mechanical | |
Interoperability | ONVIF; CGI | |
Network Protocol | SIP; P2P; IPv4; UPnP; SNMP; DNS; DDNS; RTSP; RTP; TCP; UDP | |
Basic | ||
Camera | 1/2.5" 2MP CMOS Low Illumination HD Colorful Fisheye Camera | |
Field of View | Horizontal: 168.6°; vertical: 87.1; diagonal:176.7° | |
Focal Length | 1.9 mm | |
WDR | 120 dB | |
Noise Reduction | 3D NR | |
Video Compression | H.265 | |
Video Resolution | 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) | |
Video Frame Rate | 25 fps | |
Video Bit Rate | 256 Kbps to 4 Mbps | |
Light Compensation | Auto IR | |
Day/Night | Auto (ICR) | |
Audio Compression | G.711u | |
Audio Input | 1 channel | |
Audio Output | Built-in speaker | |
Audio Mode | 2-way voice communication | |
Audio Enhancement | Echo suppression/digital noise reduction | |
Audio Bit Rate | 16 KHz, 16 Bit | |
Status Indicator Light | 3 | |

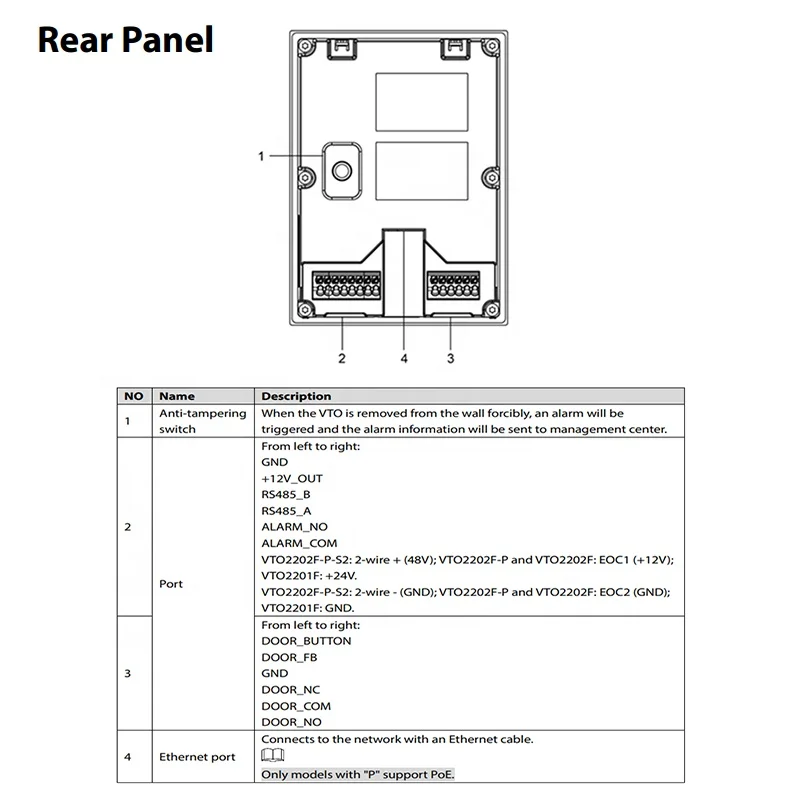

Port | ||
Electric Lock | 1 | |
Alarm Output | 1 | |
Power Output | 1-ch 12 VDC 100mA | |
Exit Button | 1 | |
Door Status Detection | 1 | |
Lock Control | 1 | |
Network Port | One RJ45 10M/100M network port | |
General | ||
Appearance color | Silver | |
Power Supply | Dahua 2-wire switch (max. power supply distance 50 m) | |
DC 48V 1A | ||
Standard PoE | ||
Power Adapter | Optional | |
Installation | Flush/surface mount | |
Certifications | CE; FCC; UL | |
Accessory | Flush/surface mount | |
Product Dimensions | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") | |
Protection | IK07; IP65 | |
Operating Temperature | –30°C to +60°C (–22°F to 140°F) | |
Operating Humidity | 10%–90% (RH, non-condensing) | |
Operating Altitude | 0 m–3000 m | |
Power Consumption | ≤ 12W | |
Net Weight | 0.35 kg (0.77 lb) | |
Gross Weight | 0.4 kg (0.88 lb) | |
