Сверлильный станок для бурения скважин/для бурения скважин
US $888.00-$1050
Лучшая цена маленькая добыча дизельная молотковая дробилка PC300 * 200 для кораллового камня
- Категория: Mining Machinery >>>
- Поставщик: Henan,China,First,Engineering,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 1269.47 $* | 1294.50 $* |
| Jul-19-2025 | 1029.79 $* | 1050.92 $* |
| Jun-19-2025 | 1249.27 $* | 1274.2 $* |
| May-19-2025 | 1239.20 $* | 1264.92 $* |
| Apr-19-2025 | 989.44 $* | 1009.49 $* |
| Mar-19-2025 | 1219.55 $* | 1243.82 $* |
| Feb-19-2025 | 1209.67 $* | 1233.32 $* |
| Jan-19-2025 | 1199.70 $* | 1223.69 $* |
Характеристики
Product Description
Hammer crusher, also named hammer mill is consisted of box body, rotor, hammer heads, impact liner plates, sieve plate, etc. It has the features of simpler structure and large crushing ratio. Moreover, It is suitable for both wet and dry materials.

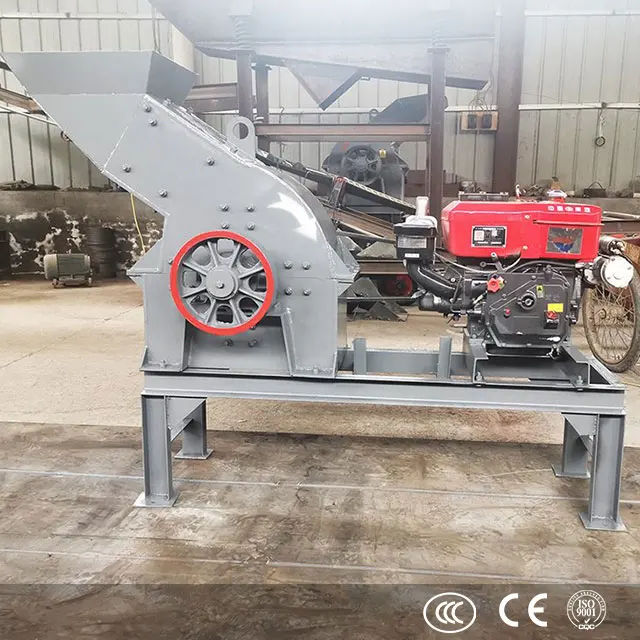

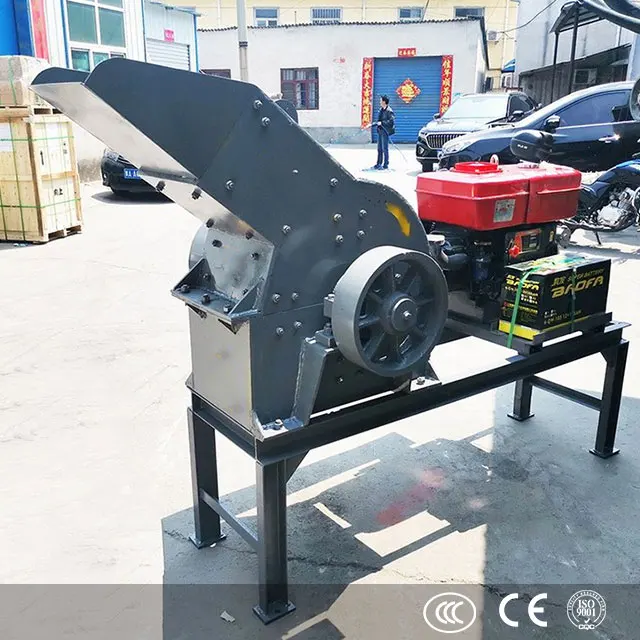

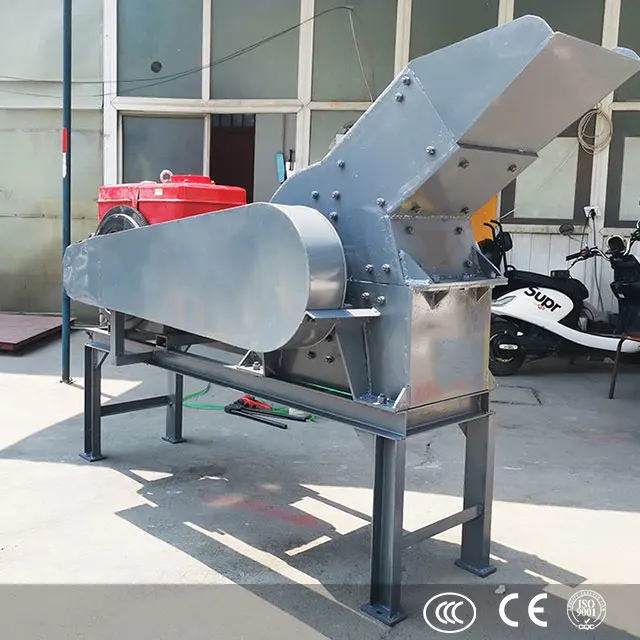

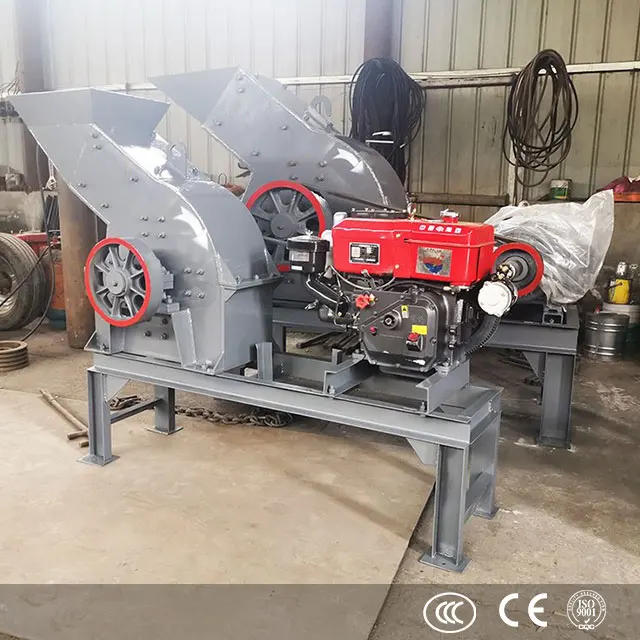

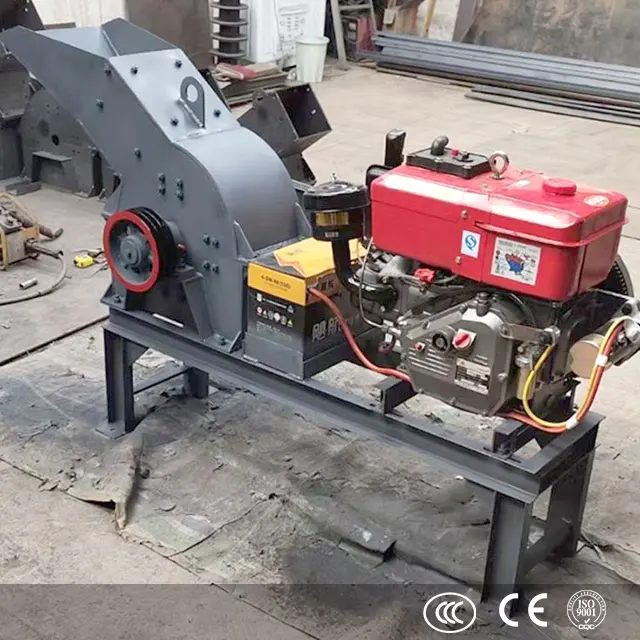

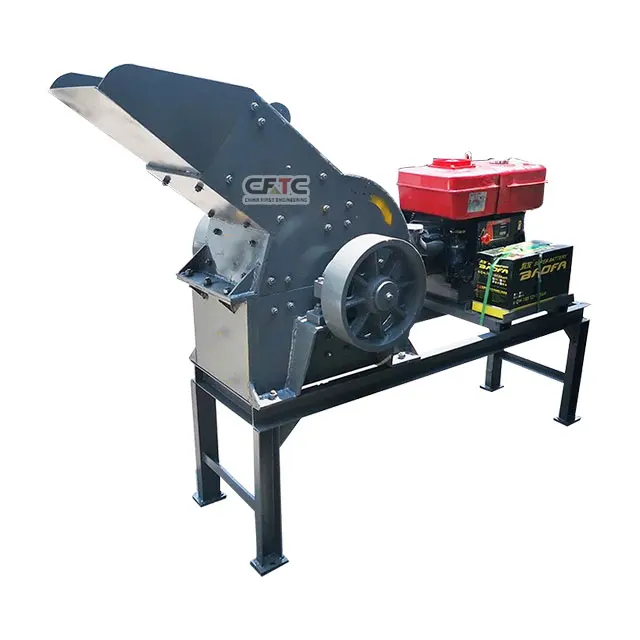

Detailed Images
Technical Parameters | ||||||
Model | Max Feeding Size (mm) | Discharge Opening (mm) | Capacity (tph) | Motor (kw) | Weight (t) | Overall Dimension (mm) |
PC300x200 | ≤100 | ≤10 | 5.5 | 1-5 | 0.6 | 612x920x750 |
PC400x300 | ≤200 | ≤25 | 11 | 5-10 | 0.8 | 900x670x860 |
PC600x400 | ≤250 | ≤30 | 22 | 10-22 | 2.26 | 1200x1050x1200 |
PC800x600 | ≤250 | ≤35 | 55 | 18-40 | 4.8 | 1310x1180x1310 |
PC1000x1000 | ≤350 | ≤35 | 90 | 30-55 | 8 | 1800x1590x1775 |
PC1200x1200 | ≤350 | ≤35 | 132-160 | 50-80 | 19.2 | 2060x1600x1890 |
Working Principle
The main working parts of the hammer crusher is consisted of main shaft, disc, pin shaft, hammer heads, etc. The electric motor drives the rotor to rotate at high speed in the crushing cavity. The material is fed into the crusher machine through the upper feeding port, which is struck, impacted, cut and grinded by the hammer heads with high rotation speed. In the lower part of the rotor, there is the sieve plate where crushed materials with particle size smaller than the sieve hole will be discharged. Crushed materials larger than the size of the sieve hole will be further struck and grinded by hammer heads before being discharged finally.
Our Service
Pre-Sales Service
* Price quotation;
* Technical solution;
* Visit workshop and stone quarry crushing site;
After-Sales Service
* On-site installation, commission, training;
* Engineers available to service machinery overseas.
Packing & Delivery
Customer site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Zimbabwe, etc. and our products are well received by customers.
All machine has a 1-year quality assurance.
All machine has a 1-year quality assurance.
Welcome your order!
Related Products
FAQ
1. Stone quarry cusher machine your company manufacturers.
CFTC is an experienced manufacturer of hammer crusher (max. capacity: 3000tph), jaw crusher (disel engine jaw crusher and electric jaw crusher), new type impact crusher, cone crusher, sand making machine etc. Thus, we can provide selectable technical solutions.
2. Application fields of your crusher machines.
Mining, cement, building materials, road construction, etc.
3. Does your company provide working video of your stone quarry crusher machines?
Of course, CFTC provides working video of stone quarry crusher for your reference.
4. Does your company provide flow chart for stone quarry crushing plant project?
Yes. CFTC has professional technical engineers who provide technical instructions or technical solutions such as flow chart for your stone quarry project according to the actual operation;
