Удлинительный кабель для материнской платы
US $7.19-$8.56
Внешняя видеокарта блок питания кронштейн GPU для ноутбука внешняя независимая mini pcie
- Категория: Other Computer Accessories >>>
- Поставщик: Shenzhen,Wenjun,Technology,Development,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.91 $* | 0.14 $* |
| Aug-19-2025 | 0.49 $* | 0.0 $* |
| Jul-19-2025 | 0.43 $* | 0.19 $* |
| Jun-19-2025 | 0.35 $* | 0.23 $* |
| May-19-2025 | 0.41 $* | 0.60 $* |
| Apr-19-2025 | 0.50 $* | 0.75 $* |
| Mar-19-2025 | 0.62 $* | 0.87 $* |
| Feb-19-2025 | 0.16 $* | 0.45 $* |
| Jan-19-2025 | 0.15 $* | 0.85 $* |
Характеристики
Products Description

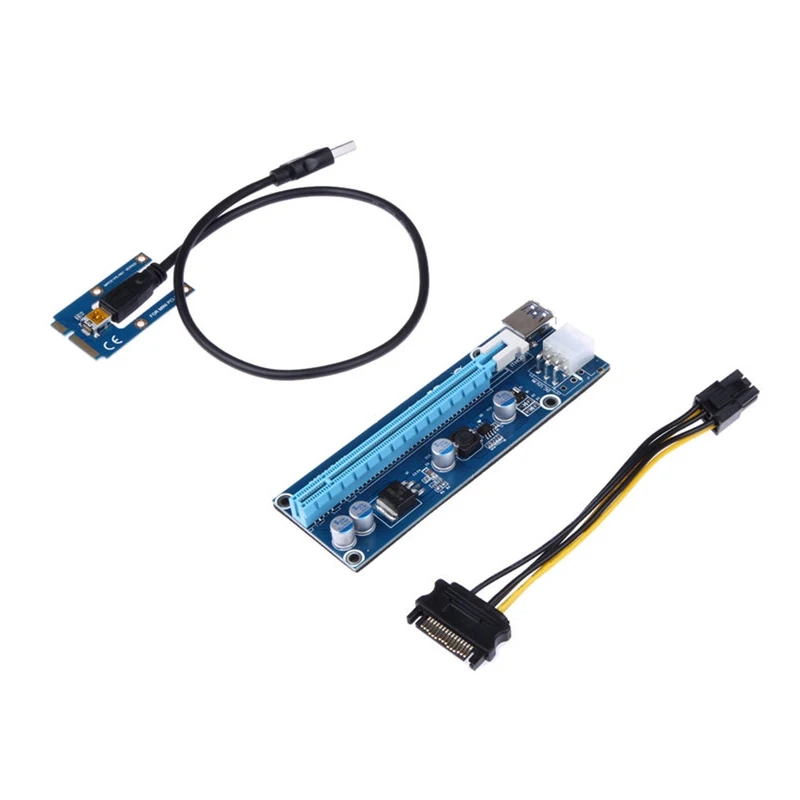

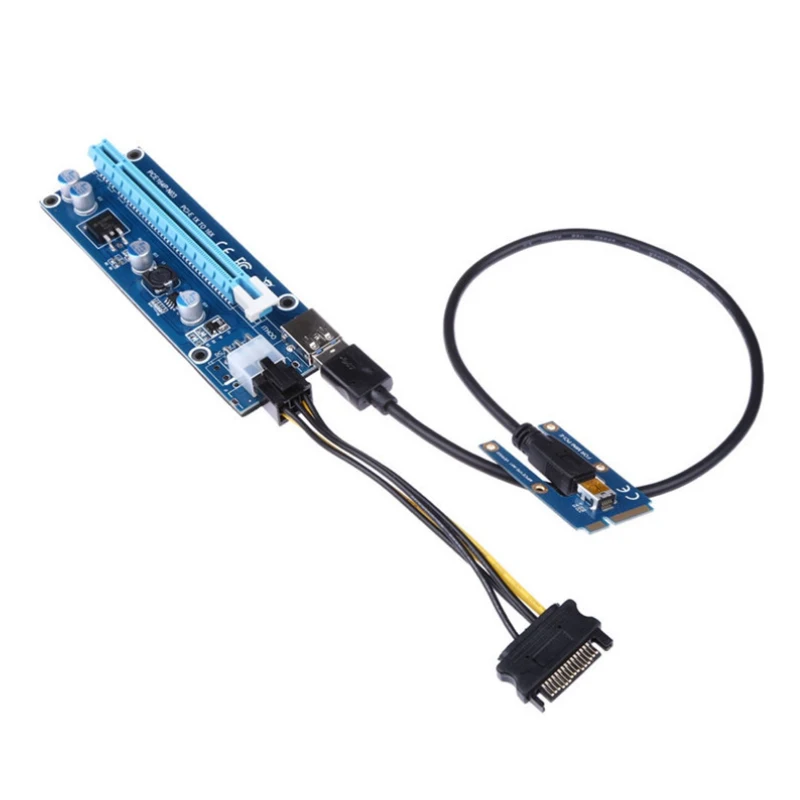

mini pcie to PCIEX16 riser card description
External graphics card instructions:
1. External graphics card interface: minipcie interface (wireless network card interface), the notebook external graphics card needs to be disassembled to use the wireless network card interface;
2. External graphics card performance: 60% of the performance of the internal screen (using the laptop's own screen), and 80% of the performance of the external screen (external monitor);
3. Graphics card selection: It is recommended to use an N card (NVIDIA graphics card) below 10 series, with good compatibility;
4. Internal screen: use the laptop's own screen, external screen: external monitor;
5. The notebook CPU is AMD, and the internal screen cannot be used, only the external screen;
6. The notebook CPU is Intel, the internal screen can only use the N card, and the AMD graphics card can only be used by the external monitor.
External graphics card internal screen steps:
1. Enter the notebook bios to block the independent display or disable the independent display pcie channel in the computer management, and then uninstall the independent display driver;
2. Disassemble the machine, remove the wireless network card, and insert the minpcie interface;
3. Connect the adapter board, graphics card and power supply;
4. Power on the desktop computer, start the notebook, enter the desktop, and use the driver software to install the graphics card driver.
External graphics card external screen steps:
1. Enter the notebook bios to block the independent display or disable the independent display pcie channel in the computer management, and then uninstall the independent display driver;
2. Disassemble the machine, remove the wireless network card, and insert the min pcie interface;
3. Connect the adapter board, graphics card and desktop power supply, and connect the external monitor;
4. Turn on the power supply, start the laptop, enter the desktop, and use the driver software to install the graphics card driver.
About the desktop power supply: The adapter board and graphics card need power supply, and the power supply is recommended. 350W (inclusive) or above is recommended.
common problem:
Question 1: How to use wifi after removing the wireless network card?
Answer 1: Use usb wireless network card
-------------------------------------------------- ------------
Question 2: What is the performance of your device?
Answer 2: The internal screen performance is about 60%, and the external screen performance is about 80%. The performance limit is not the device, but the network card interface, and the bandwidth limit of the network card interface. (for reference only)
-------------------------------------------------- -------------
Question 3: Will my computer work?
Answer 3: Not every computer is 100% compatible.
Graphics Card Stand Instructions
Name: Second-generation version of graphics card + power supply bracket
Model: GPC02
After assembly size:225mmx210mm
Graphics card: 1 without limiting the length of the card
Power supply: ATX power supply fixture or Server power supply fixture
Note: Does not include graphics card , power supply
Note: The Stand are separate parts， need to install it yourself. You can contact us if you have any questions
Package:

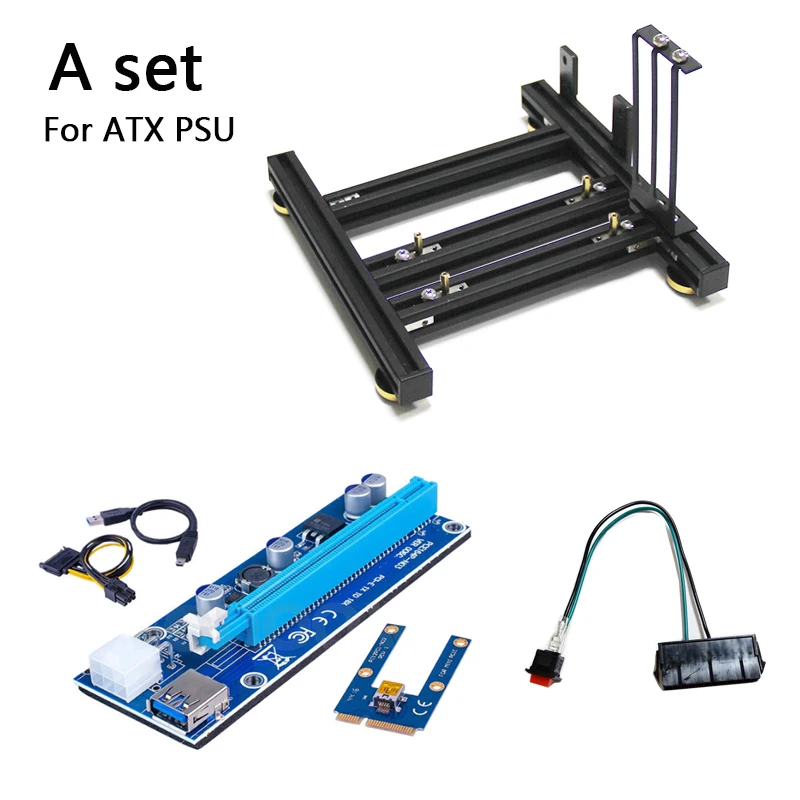

A set
GPU stand, ATX PSU fixture, mini pcie to pcie x16 riser card, 24pin starter

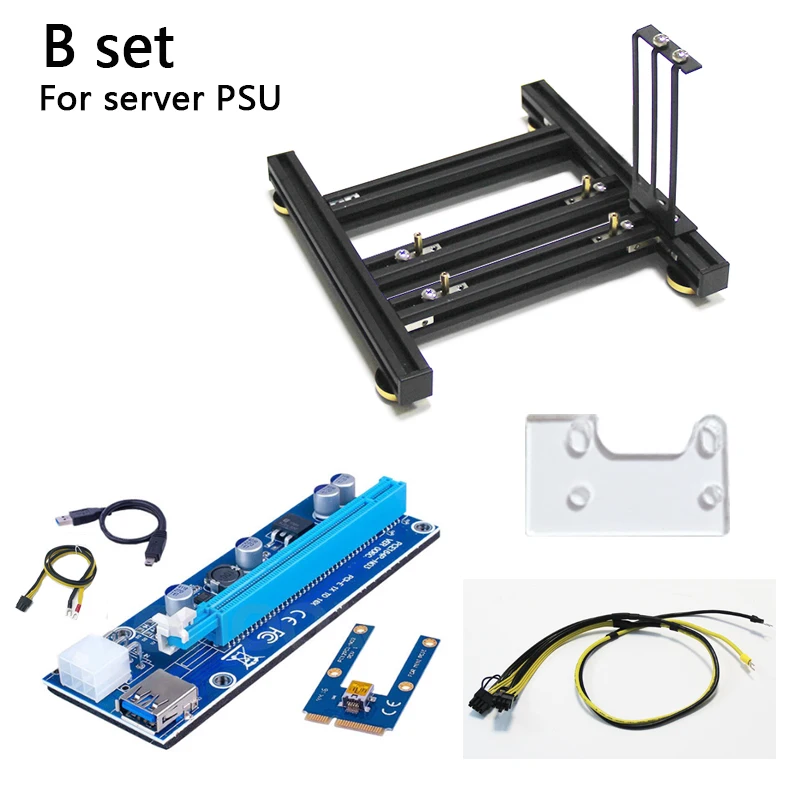

B set
GPU stand,Server PSU fixture, mini pcie to pcie x16 riser card with 6pin cable, Dual PCIE 8PIN power cable
External graphics card instructions:
1. External graphics card interface: minipcie interface (wireless network card interface), the notebook external graphics card needs to be disassembled to use the wireless network card interface;
2. External graphics card performance: 60% of the performance of the internal screen (using the laptop's own screen), and 80% of the performance of the external screen (external monitor);
3. Graphics card selection: It is recommended to use an N card (NVIDIA graphics card) below 10 series, with good compatibility;
4. Internal screen: use the laptop's own screen, external screen: external monitor;
5. The notebook CPU is AMD, and the internal screen cannot be used, only the external screen;
6. The notebook CPU is Intel, the internal screen can only use the N card, and the AMD graphics card can only be used by the external monitor.
External graphics card internal screen steps:
1. Enter the notebook bios to block the independent display or disable the independent display pcie channel in the computer management, and then uninstall the independent display driver;
2. Disassemble the machine, remove the wireless network card, and insert the minpcie interface;
3. Connect the adapter board, graphics card and power supply;
4. Power on the desktop computer, start the notebook, enter the desktop, and use the driver software to install the graphics card driver.
External graphics card external screen steps:
1. Enter the notebook bios to block the independent display or disable the independent display pcie channel in the computer management, and then uninstall the independent display driver;
2. Disassemble the machine, remove the wireless network card, and insert the min pcie interface;
3. Connect the adapter board, graphics card and desktop power supply, and connect the external monitor;
4. Turn on the power supply, start the laptop, enter the desktop, and use the driver software to install the graphics card driver.
About the desktop power supply: The adapter board and graphics card need power supply, and the power supply is recommended. 350W (inclusive) or above is recommended.
common problem:
Question 1: How to use wifi after removing the wireless network card?
Answer 1: Use usb wireless network card
-------------------------------------------------- ------------
Question 2: What is the performance of your device?
Answer 2: The internal screen performance is about 60%, and the external screen performance is about 80%. The performance limit is not the device, but the network card interface, and the bandwidth limit of the network card interface. (for reference only)
-------------------------------------------------- -------------
Question 3: Will my computer work?
Answer 3: Not every computer is 100% compatible.
Graphics Card Stand Instructions
Name: Second-generation version of graphics card + power supply bracket
Model: GPC02
After assembly size:225mmx210mm
Graphics card: 1 without limiting the length of the card
Power supply: ATX power supply fixture or Server power supply fixture
Note: Does not include graphics card , power supply
Note: The Stand are separate parts， need to install it yourself. You can contact us if you have any questions
Package:
A set
GPU stand, ATX PSU fixture, mini pcie to pcie x16 riser card, 24pin starter
B set
GPU stand,Server PSU fixture, mini pcie to pcie x16 riser card with 6pin cable, Dual PCIE 8PIN power cable
Company Profile
FAQ
Q1: Can I have a sample order for your product?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.But you need to pay the shipping cost of the sample
Q2. Can I get better price? or discount?
A2:Yes. we can give you discount. But it is based on quantity. More quantity more attractive price,just contact us!
Q3: How about the Shipping Method?
A3:DHL/UPS/TNT/Fedex and other air shipments and sea shipments are all workable. In one words, we could do any shipments you wanted.
Q4: How about the delivery date?
Q4: How about the delivery date?
A4: In General, the delivery date will be 3-7 working days for normal buy quantity. But if bigger order, please check us further.
Q5: How about the MOQ ?
A5: Generally, the MOQ for products in stock is 1PCS per style, Customized products need to contact us
