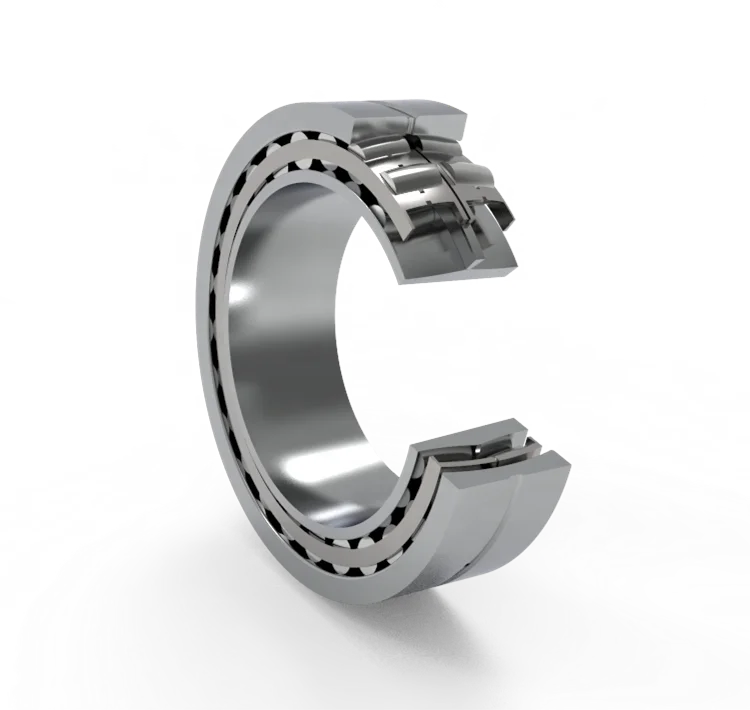

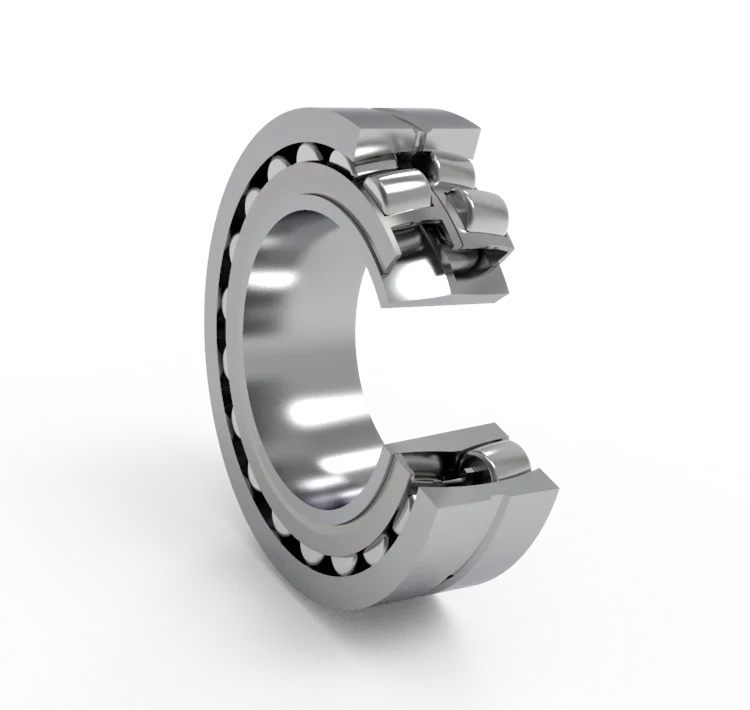

Двухрядный Сферический роликовый подшипник 22226 МБ, сделано в Китае
US $18.00-$20.00
22310E 22310CA/W33 22311E 22311CA/W33 однорядные сферические роликовые
- Категория: Spherical Roller Bearings >>>
- Поставщик: Zhengzhou,Jinfeng,Bearing,Sales,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 19.37 $* | 19.48 $* |
| Jul-19-2025 | 15.1 $* | 15.44 $* |
| Jun-19-2025 | 19.83 $* | 19.70 $* |
| May-19-2025 | 19.64 $* | 19.39 $* |
| Apr-19-2025 | 15.5 $* | 15.66 $* |
| Mar-19-2025 | 18.71 $* | 18.15 $* |
| Feb-19-2025 | 18.52 $* | 18.24 $* |
| Jan-19-2025 | 18.96 $* | 18.44 $* |
Характеристики
Products Description
Bearing part number | d | D | B |
22305 E | 25 | ||
22306 E | 30 | ||
22307 E | 35 | ||
22308 E | 40 | 90 | 33 |
22309 E | 45 | 100 | 36 |
22310 E | 50 | 110 | 40 |
22311 E | 55 | 120 | 43 |
22312 E | 60 | 130 | 46 |
22313 E | 65 | 140 | 48 |
22314 E | 70 | 150 | 51 |
22315 E | 75 | 160 | 55 |
22316 E | 80 | 170 | 58 |
22317 E | 85 | 180 | 60 |
22318 E | 90 | 190 | 64 |
22319 E | 95 | 200 | 67 |
22320 E | 100 | 215 | 73 |
22322 E | 110 | 240 | 80 |
22324 CC/W33 | 120 | 260 | 86 |
22326 CC/W33 | 130 | 280 | 93 |
22328 CC/W33 | 140 | 300 | 102 |
22330CC/W33 | 150 | 320 | 108 |
22332 CC/W33 | 160 | 340 | 114 |
22334 CC/W33 | 170 | 360 | 120 |
22336 CC/W33 | 180 | 380 | 126 |
Product classification
Spherical Roller Bearings
SRB have two rows of spherical rollers, the outer ring has a common concave spherical raceway, the inner ring has two concave
raceways that are inclined at an angle to the bearing axis, the curvature center of the outer ring raceway is the same as the
bearing center. Spherical roller bearings are self-aligning and are not affected by misalignment of the shaft and bearing box or
deflection of the shaft, and can compensate for the resulting concentricity errors. In addition to bearing radial load, this type
of bearing can also bear two-way axial load and its combined load. It has a large bearing capacity and good vibration and impact
resistance. Spherical roller bearings are mainly used in various mechanical equipment in steel, mining, papermaking, shipbuilding,
textile machinery, coal mills, electric power and other industries. They are the most widely used type of bearings in the
machinery industry.
raceways that are inclined at an angle to the bearing axis, the curvature center of the outer ring raceway is the same as the
bearing center. Spherical roller bearings are self-aligning and are not affected by misalignment of the shaft and bearing box or
deflection of the shaft, and can compensate for the resulting concentricity errors. In addition to bearing radial load, this type
of bearing can also bear two-way axial load and its combined load. It has a large bearing capacity and good vibration and impact
resistance. Spherical roller bearings are mainly used in various mechanical equipment in steel, mining, papermaking, shipbuilding,
textile machinery, coal mills, electric power and other industries. They are the most widely used type of bearings in the
machinery industry.
Company Profile
ZWZ has 9 manufacturing bases, 10 business divisions, 26 wholly-owned and holding branch companies and subsidiaries globally.
ZWZ owns two bearing brands, ZWZ and KRW. The company adopts international standards and can produce more than 20,000
specifications of bearing products in ten categories with various precision levels from 20mm inner diameter to 16m outer diameter,
which are mainly used in industrial equipments, railway transportation, automotive vehicles, wind power and special applications.
ZWZ has a national large-scale bearing engineering and technology research center, a national enterprise technology center, a
bearing inspection and test center, and overseas R&D centers in Europe and the United States, that has established 8 technology
innovation platforms concerning simulating calculation, materials, lubrication, inspection and so on.
ZWZ owns two bearing brands, ZWZ and KRW. The company adopts international standards and can produce more than 20,000
specifications of bearing products in ten categories with various precision levels from 20mm inner diameter to 16m outer diameter,
which are mainly used in industrial equipments, railway transportation, automotive vehicles, wind power and special applications.
ZWZ has a national large-scale bearing engineering and technology research center, a national enterprise technology center, a
bearing inspection and test center, and overseas R&D centers in Europe and the United States, that has established 8 technology
innovation platforms concerning simulating calculation, materials, lubrication, inspection and so on.
Technical Strength
Manufacturing equipment
More Products
Our certificat
FAQ
1.How do i start purchase?
You can email or contact with our online salesman, then get offer and shipping cost for your order, after you confirm, our
salesman will send u Invoice.
After paymetn done, we will ship goods on time.
2.Do u have stock for all item?
Yes, we have sufficient stock and can do fast delivery.
3. What about the delivery?
A: By express (DHL, UPS, FEDEX, TNT, EMS) to your door, By sea to your nearest port; By air to your nearest airport.
4. What about the payment?
A: By TT, Western Union, Moneygram or Paypal.
5. What about the lead time?
A: For stock goods, 1-3 days after payment.
6.Warranty
All our product is brand new, we provide one year warranty.
You can email or contact with our online salesman, then get offer and shipping cost for your order, after you confirm, our
salesman will send u Invoice.
After paymetn done, we will ship goods on time.
2.Do u have stock for all item?
Yes, we have sufficient stock and can do fast delivery.
3. What about the delivery?
A: By express (DHL, UPS, FEDEX, TNT, EMS) to your door, By sea to your nearest port; By air to your nearest airport.
4. What about the payment?
A: By TT, Western Union, Moneygram or Paypal.
5. What about the lead time?
A: For stock goods, 1-3 days after payment.
6.Warranty
All our product is brand new, we provide one year warranty.
