Биологический гриб жидкость Спаун водоросли

NO.

Name

Description

1.

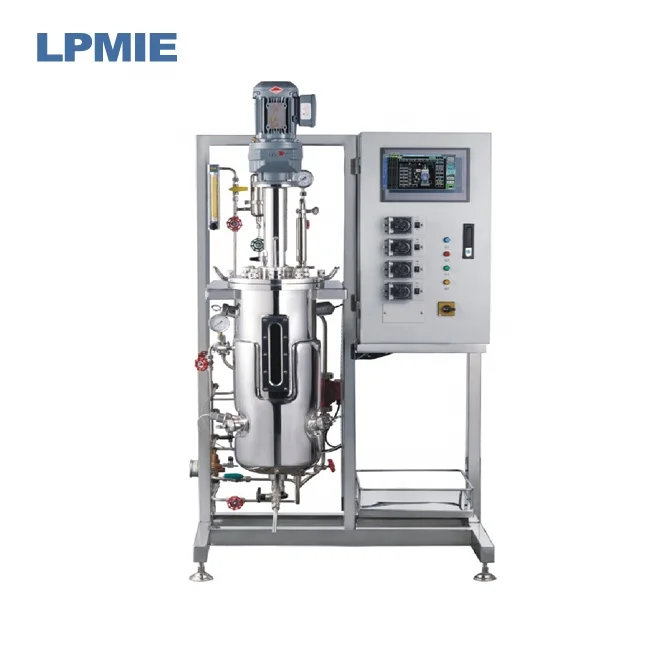

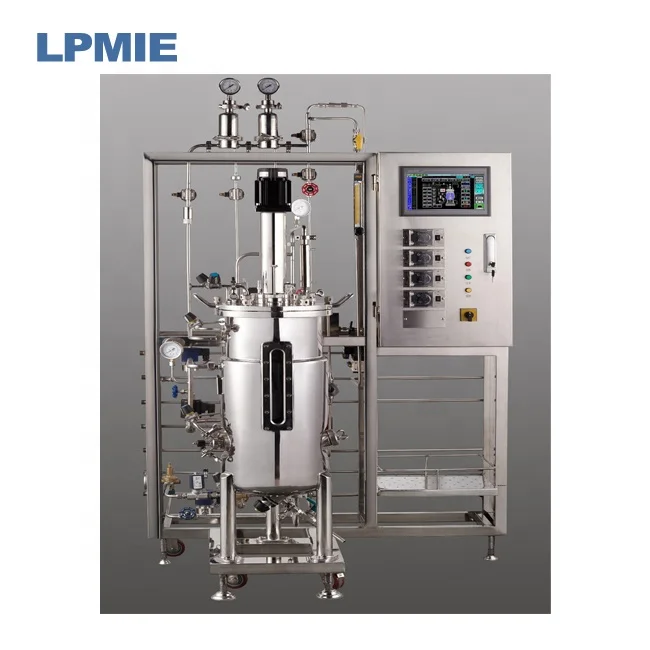

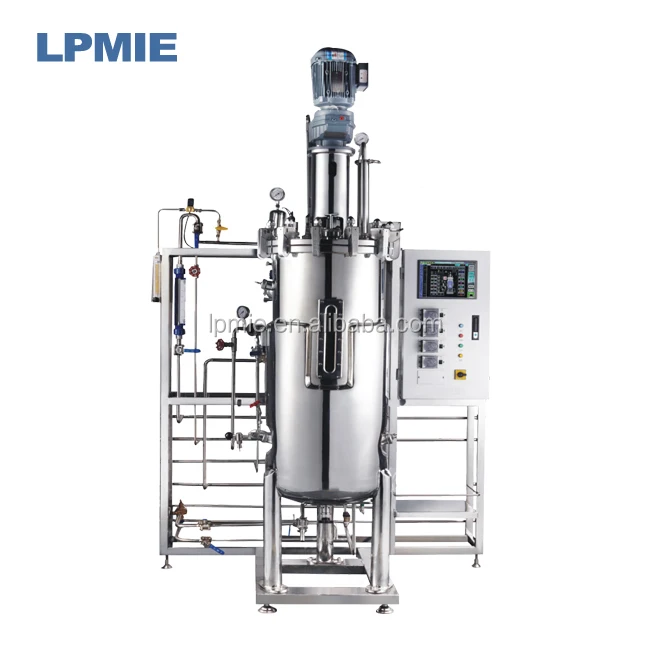

Tank system

Full capacity: 500L, working volume: 70%

Tank structure:

stainless steel 316L tank, no dead corners in the tank; with fermentation special sampling and discharge valve for tank, adopts large viewing angle liquid level observation mirror in the tank, 12V safety sight light, with temperature degree, PH, DO, defoaming, liquid level interface, inoculation port, feeding port, exhaust port (with diaphragm valve) and multiple spare ports, international standard round thread interface.

1. Polished inside and outside, roughness Ra≤0.4

2. Jacket heat transfer, material SS304.

3. Standard production of pressure vessels.

Tank lid structure:

1 piece of inoculation (flame circle inoculation), 2 pcs of spare ports (can be used for feeding, defoamer and for acid and alkali), with foam sensor, exhaust port with condensing device; international standard round thread interface.

Tank bottom:

there is a dedicated sampling and discharge valve for the fermentation tank.

2

Inlet air system / Steam

Ventilation: The rotor flow meter is manually controlled, and the flow rate of each gas is adjusted and controlled according to process requirements.

The air system configuration requirements are composed of a rotor flowmeter, an air fine filter, a diaphragm valve, and a check valve. The first-level fine filtration has a precision of 0.01um.

3

Automatic sterilization SIP

The imported Baode pneumatic valve is used, which is controlled by the system software throughout the process, without manual operation.

Sterilization temperature 100-130 ° C, sterilization time: 0-60min, automatic sterilization of intake and exhaust filters, manual sterilization of sampling valve parts, sterilization temperature error: ± 0.5 ° C

4

Automatic cleaning

CIP

The cleaning spray ball is installed on the tank top, and it is switched by an automatic valve. program automatic control, automatic detection. The user prepares the CIP working water station.
