Подвесная Рабочая платформа для обслуживания зданий подвесная ремонта наружных
- Категория: Work Platforms >>>
- Поставщик: Shanghai,Power,Engineering,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 1190.82 $* | 1250.83 $* |
| Aug-20-2025 | 1180.65 $* | 1239.10 $* |
| Jul-20-2025 | 990.24 $* | 1040.18 $* |
| Jun-20-2025 | 1160.7 $* | 1218.83 $* |
| May-20-2025 | 1010.47 $* | 1061.41 $* |
| Apr-20-2025 | 1140.78 $* | 1197.84 $* |
| Mar-20-2025 | 1130.65 $* | 1187.54 $* |
| Feb-20-2025 | 1120.38 $* | 1176.37 $* |
| Jan-20-2025 | 1110.4 $* | 1166.15 $* |
Характеристики
Video Description
Product description
Parameters of ZLP800 Suspended Platform | ||
Type | Bolt Type | |
1. Rated Load | 800kg | |
2. Lifting speed | 9.3m/min | |
3. Lifting height | 100m | |
4. Hoist | LTD8.0 | |
4.1 Power | 1.8kw, 2 Pcs | |
4.2 Voltage | 380V 50Hz 3PH | |
5. Safety Lock | LSG30, use 9.1mm Steel Rope | |
6. Electric Cabinet | 380V 50Hz 3PH | |
7. Platform Sise | L=7.5m(2.+2+2+1.5), W=0.69, H=1.18m | |
8. Steel Wire Rope | 4pcs, 100m/pcs, D=9.1mm | |
9. Electric Cable | 1pcs, 100m/pcs, 2.5mm2 | |
10. Safety Rope | 1pcs, 100m/pcs | |
11. Gross Weight (without Counterweight) | 980kg | |
12. Counter Weight (Optional) | Cement, 1000kg, 40pcs, 25kg/pcs | |
13. Quantity of one 20" Container | 13 sets | |
Working Platform: Steel + Galvanised; ( Steel+Painting or Aluminum Alloy+Painting is available also)
1.1 Working Platform is the workplace at heights for the workers.
1.2 Length of platform: 7.5m(2.5+2.5+2.5) (2+2+2+1.5)
1.3 With caster wheel fitted underneath, the platform is easy to move.
Roof Structure: Hot-dipped Galvanized
Roof Structure is on the top of the building to suspend the platforms through the steel rope.
Components:
LTD8.0 Hoist, 1.8kw, 2 pcs;
LSG30 Safety Lock, 2 pcs;
Electric Cabine: 1 pcs;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, Rubber, 2.5mmsq;
Counterweight (Optional): 40pcs, 25kg/pcs.
1.1 Working Platform is the workplace at heights for the workers.
1.2 Length of platform: 7.5m(2.5+2.5+2.5) (2+2+2+1.5)
1.3 With caster wheel fitted underneath, the platform is easy to move.
Roof Structure: Hot-dipped Galvanized
Roof Structure is on the top of the building to suspend the platforms through the steel rope.
Components:
LTD8.0 Hoist, 1.8kw, 2 pcs;
LSG30 Safety Lock, 2 pcs;
Electric Cabine: 1 pcs;
Steel Rope: 4pcs, 100m/pcs; D=9.1mm;
Electric Cabinet: 1pcs, 100m/pcs, Rubber, 2.5mmsq;
Counterweight (Optional): 40pcs, 25kg/pcs.
Product display

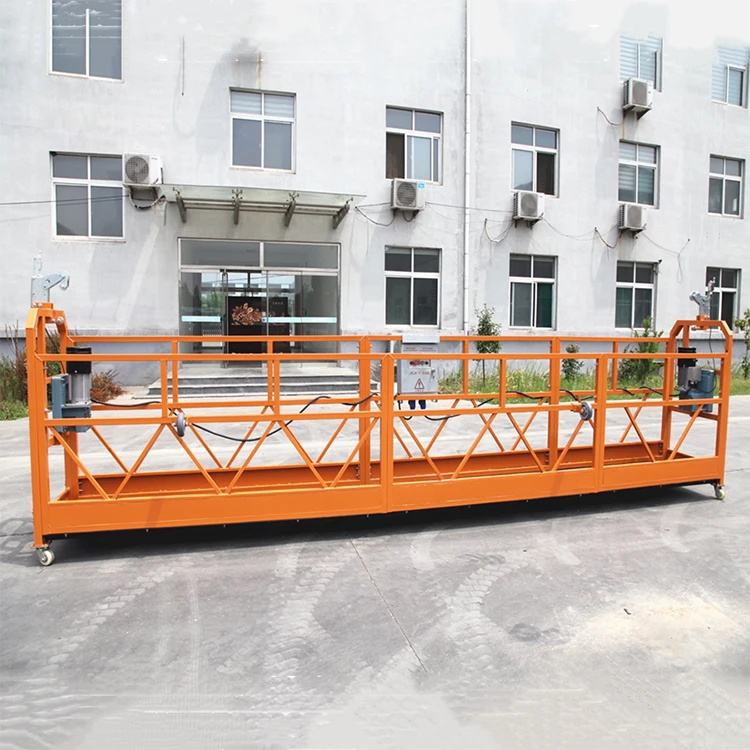

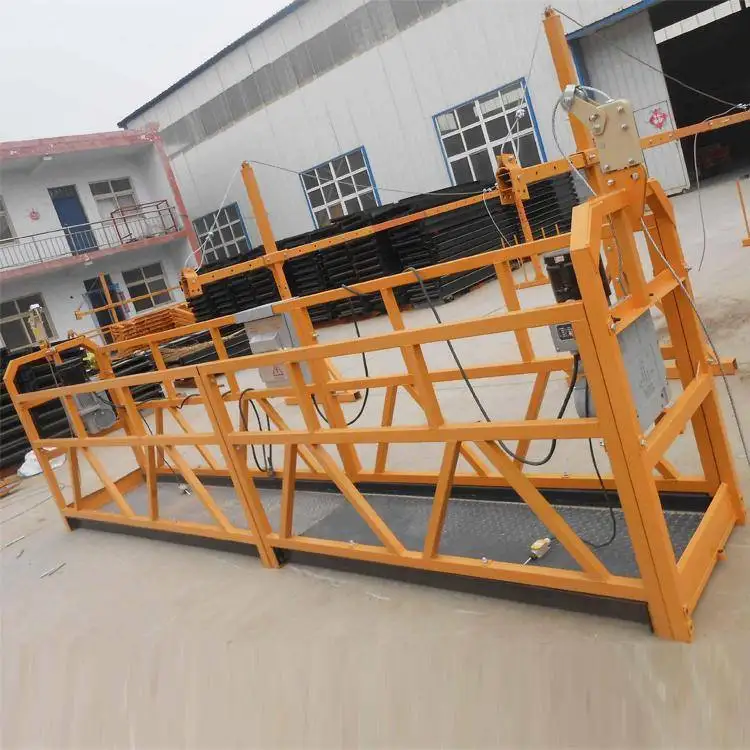

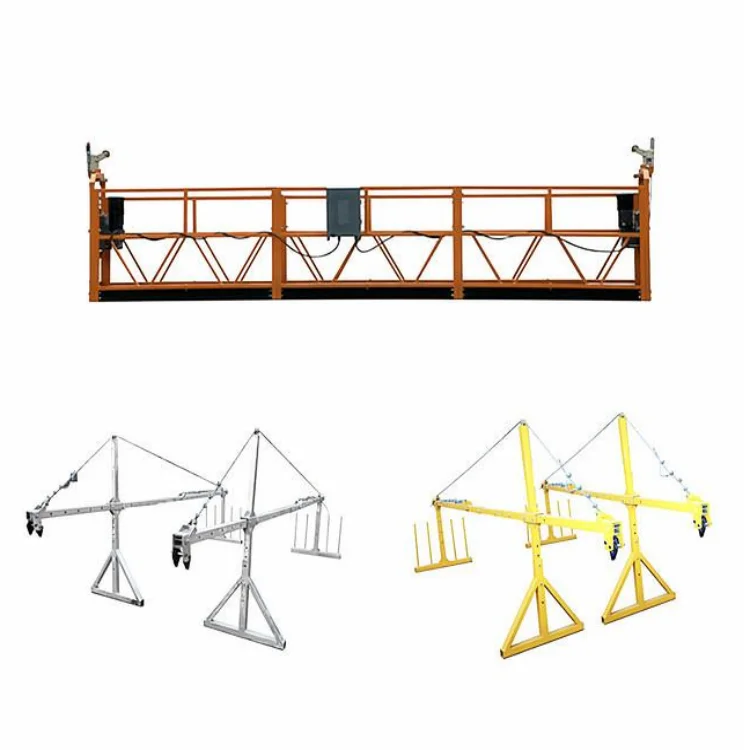

Suspended platform is mainly composed by suspension mechanism, hoist, safety lock, electric control box, working platform.Its structure is reasonable and easy to operate.It can be assembled and disassembly accroding to the actual Demand.The cleaning platform is mainly used for refurbishment, decoration, cleaning and maintenance of high construction building.
Successful Case
Our Construction gondola for window cleaning machine suspended platform have exported to more than 20 countries with good feedback from customers. We supply site access solutions according to different construction solution.
Technological process
Packing&Delivery
FAQ
1. How much is this suspended platform?
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
3. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
4. Payment term?
T/T, L/C, Alibaba trade.
5. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. Can you OEM as customers site situation?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
Price will offer you immediately after telling us your requirements of model, platform length,loading capacity, material, painting coat or galvanzied, voltage,with counterweight or not and price terms.
2. What quality certificate you own for your products?
Our products own CCC, CE, EAC and ISO9001 certificate.
3. How about the price?
Please send us inquiry, a consideration solution or preferable will be sent within 24 hours.
4. Payment term?
T/T, L/C, Alibaba trade.
5. Spare parts & guarantee?
If any parts get damaged because of quality within 12 months after shipping date. We will send new parts to replace right away.
6. Can you make suspended platform with our brand?
Yes.
7. Can you OEM as customers site situation?
Yes.
8. Delivery time?
According to order quantity, 10-20 working days will be finished after getting the deposit.
