Hanyoung цифровой регулятор температуры DX9-KCWNR
US $80.00-$85.00
Электрический измеритель энергии дистанционный WIFI Modbus RTU RS485 Din рейка Rogowski катушка Интеллектуальный регистратор данных
- Категория: Electrical Instruments >>>
- Поставщик: Shanghai,Pinyan,M&C,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 83.5 $* | 85.55 $* |
| Jul-15-2025 | 67.3 $* | 68.40 $* |
| Jun-15-2025 | 81.84 $* | 83.31 $* |
| May-15-2025 | 81.28 $* | 83.45 $* |
| Apr-15-2025 | 64.96 $* | 65.91 $* |
| Mar-15-2025 | 79.33 $* | 81.23 $* |
| Feb-15-2025 | 79.17 $* | 81.72 $* |
| Jan-15-2025 | 78.34 $* | 80.13 $* |
Характеристики
MQ21 Solar PV System Power data logger
Please Click here for more detailed information.
NRC series Rogowski Coil
Please Click here for more detailed information.
Product Description

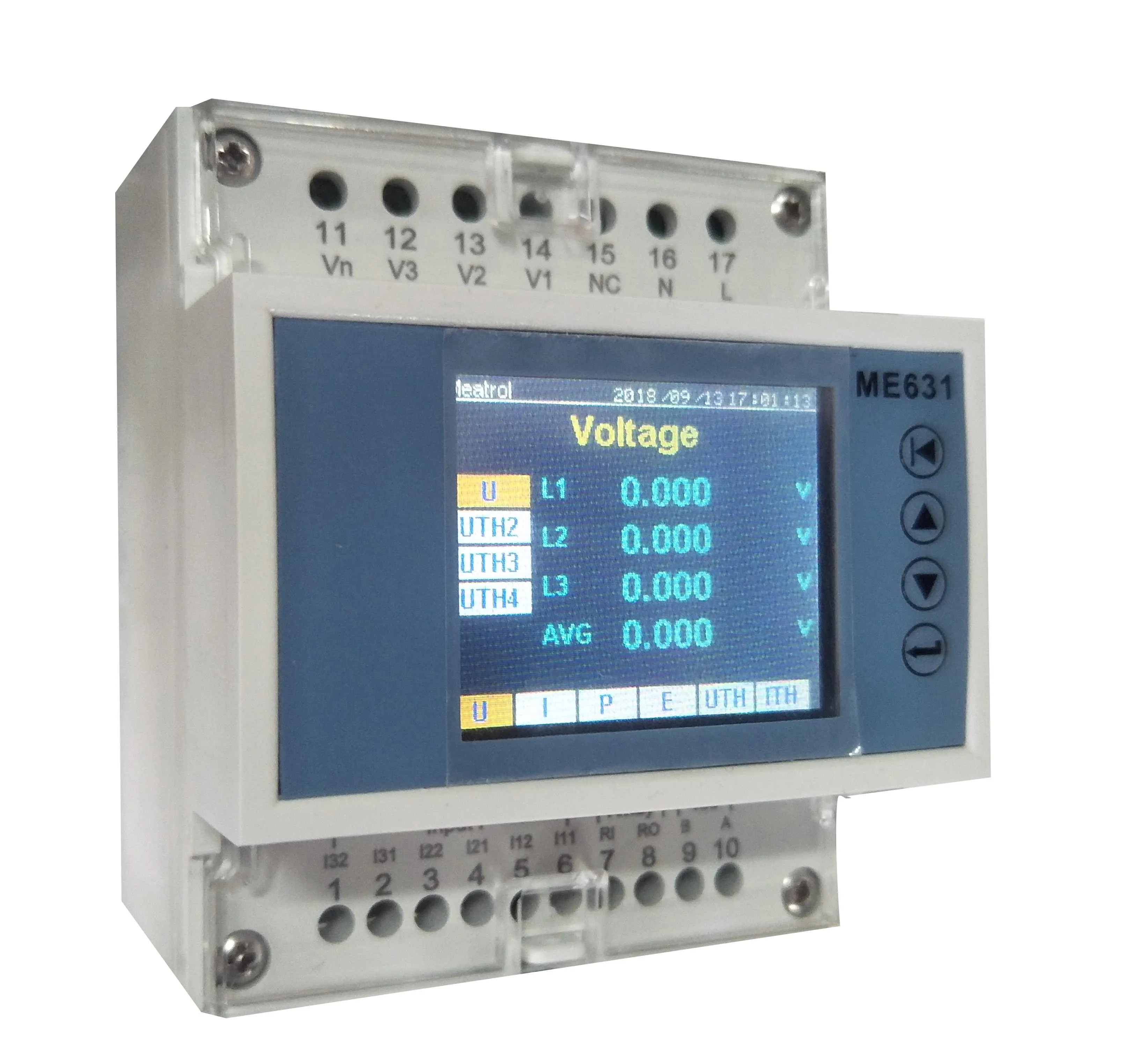

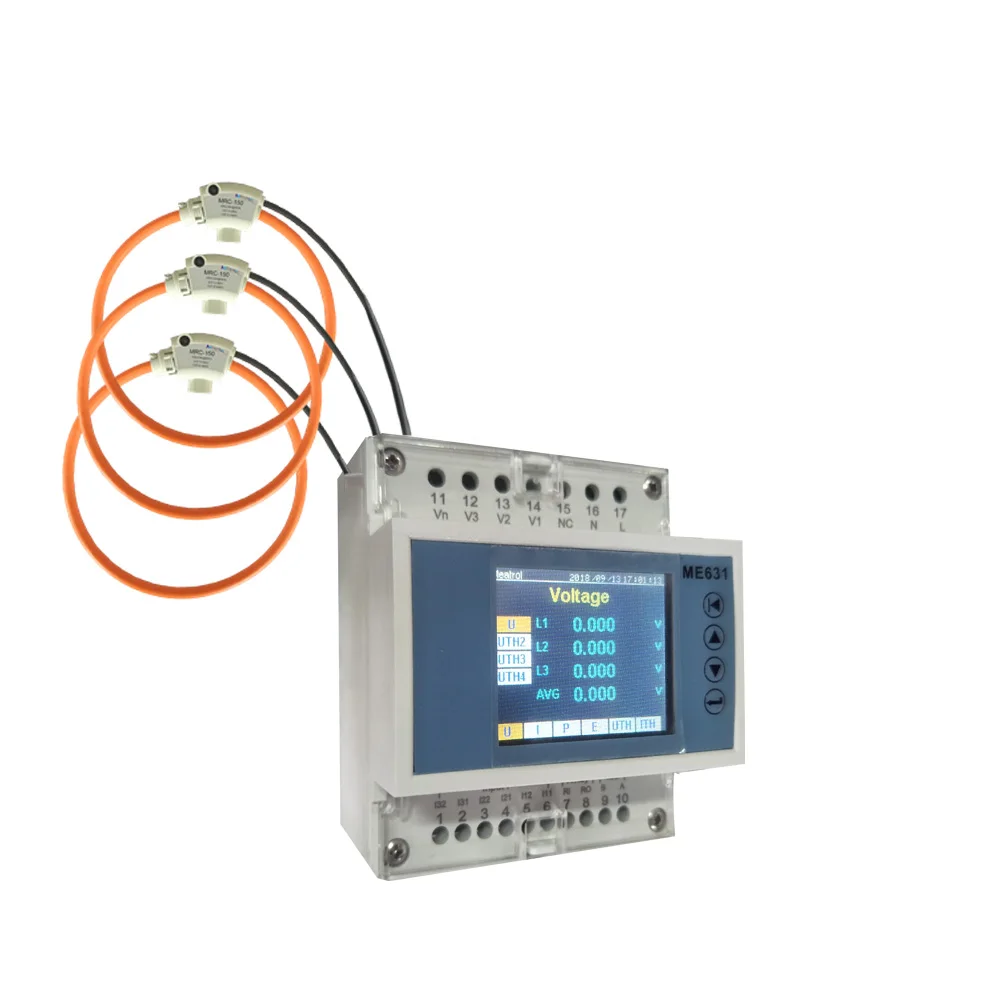

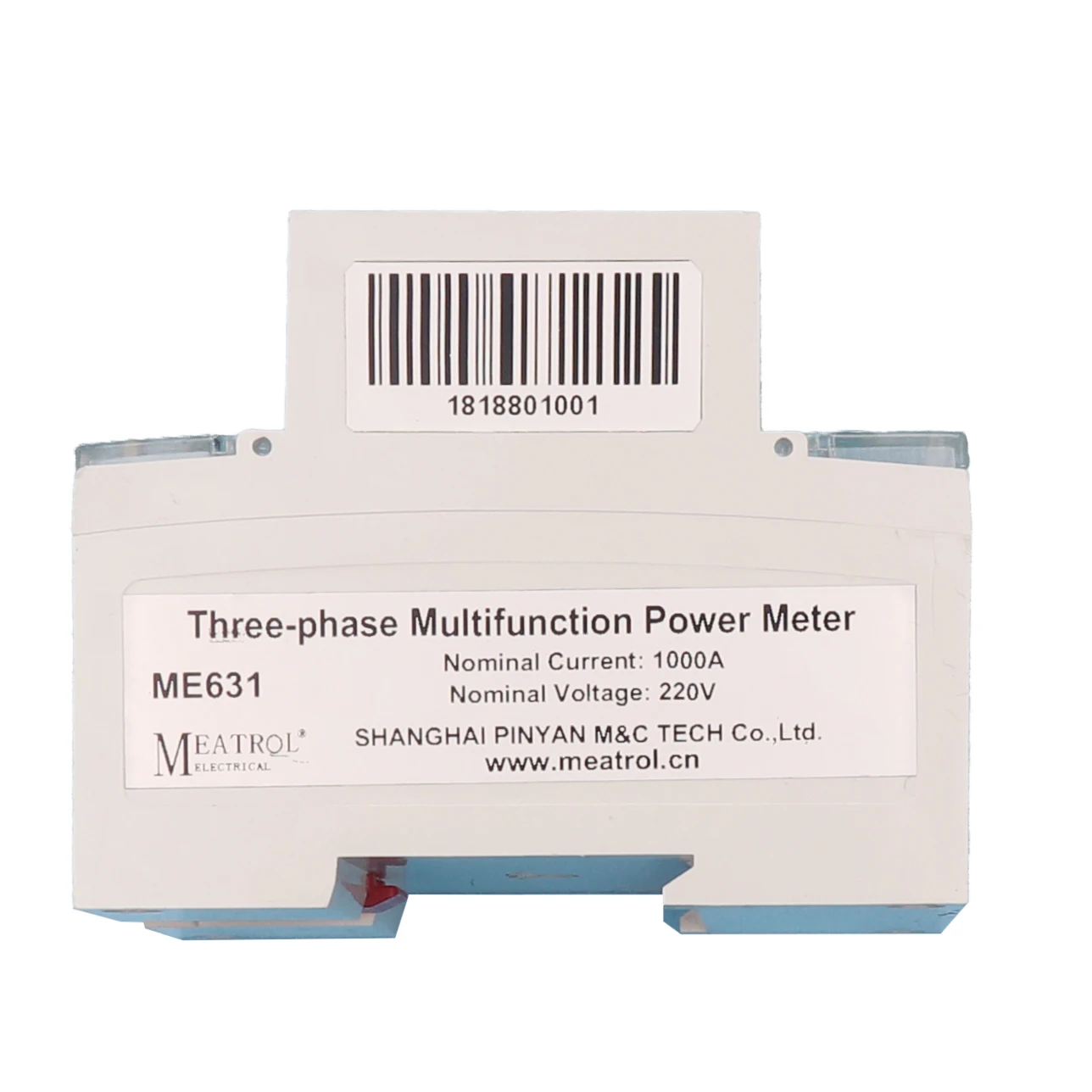

ME631 Rogowski smart data logger
Connectivity advantages | ||
MODEL | ME631 | |
Support Extra sensor | 333mV CT Rogowski coil | |
Programmable digital output | Alarm 3 Tariff | |
I/O function | 1*relay output | |
Power | 85~265V AC/DC | |
Rogwoski coil specification | 85mV/kA@50Hz±0.5% | |
Specification | ||
Model | ME631 | |
Product component type | Multifunction power meter | |
Poles description | 3P4W 3P3W 1P2W (L-N) 1P2W(L-L) 1P3W(L-L-N) | |
Device application | Power analysis Tariff meter | |
Input type | External CT(333mV only) External Rogowski coil | |
Display | 2.0 inch TFT screen display | |
Sampling rate | 8k samples per second | |

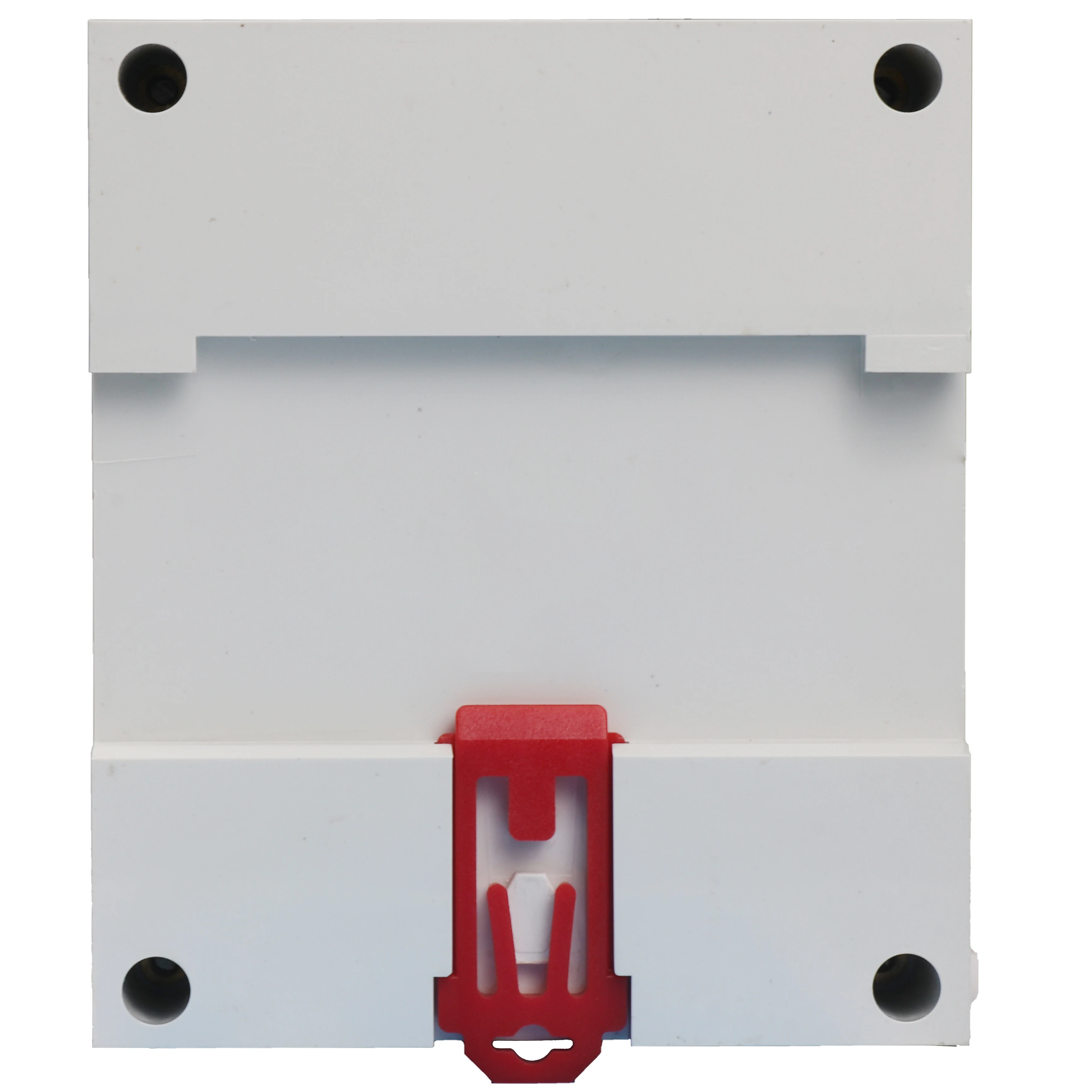

Mounting mode | Clip-on | |
Mounting support | DIN rail | |
Harmonic | 52th Max | |
Display characteristics | ||
Dimensions (VA) | 39mm x 32mm | |
Display resolution | 220 x 170 dots | |
Mechanical characteristics | ||
Weight | 212g | |
Dimension | L*W*D:76*95*71mm | |
Measurement accuracy | ||
Current | 0.5% from 1% to 120%(don’t ensure accuracy when <10A) | |
Rated current | 500A(0.5% from 10A to 600A) 3000A(0.5% from 30A to 3600A) 10kA(0.5% from 100A to 12kA) | |
Rogwoski coil specification | 85mV/kA@50Hz±0.5% | |
Voltage | 0.2% from 100V to 500V(L-L and L-N) | |
Power factor | ±0.005 from 10% to 120% | |
Active/Apparent Power | IEC62053-22 Class 0.5 | |
Reactive power | IEC62053-21 Class 2 | |
Frequency | 0.01% from 45 to 65Hz | |
Active energy | IEC62053-22 Class 0.5s | |
Reactive energy | IEC62053-21 Class 2 | |
Measurement arrange | ||
Measured voltage | 100V to 500V AC | |
Frequency range | 50/60Hz | |
Related Products
Multimeters energy meter current transformer rogowski coil, digital multimeter clamp meter power analyzer digital power meter
Electric power meter remote electric meter power meter measuring instruments Energy Meters Digital meter Electrical meter Smart
Meter Smart Energy Meter 3 Phase Multifunction Meter WIFI Energy meter Photovoltaic inverter Solar power system PV Power System Grid-connected PV Power System Solar Grid-Connected PV Generation Systems temperature humidity data logger Event data recorder temperature data logger fault recorder Temperature and humidity monitoring High-speed Ethernet transmission Voltage swell and voltage dip, interruption, flicker, three-phase imbalance record smart meter 3 phase energy monitor energy meter lcd display digital wattmeter power logger
Electric power meter remote electric meter power meter measuring instruments Energy Meters Digital meter Electrical meter Smart
Meter Smart Energy Meter 3 Phase Multifunction Meter WIFI Energy meter Photovoltaic inverter Solar power system PV Power System Grid-connected PV Power System Solar Grid-Connected PV Generation Systems temperature humidity data logger Event data recorder temperature data logger fault recorder Temperature and humidity monitoring High-speed Ethernet transmission Voltage swell and voltage dip, interruption, flicker, three-phase imbalance record smart meter 3 phase energy monitor energy meter lcd display digital wattmeter power logger
Packing&Shipping
Packaging:
current transformer,1 pc of /pp bag, 100 pcs/cartoon.
Shipping:
Express, Sea, Land, Air , as customers' needs
current transformer,1 pc of /pp bag, 100 pcs/cartoon.
Shipping:
Express, Sea, Land, Air , as customers' needs
After Sales Service
!Safety and warning notes!
In order to guarantee safe operation of rogowski coil/ current transducer/Rogowski coil/ current transformer and to be able to make proper use of all features and functions,please read these instructions thoroughly!Safe operation can only be guaranteed ifthe transducer is used for the purpose it has been designed for and within the limits of the technical specifications.Ensure youget up-to-date technical information that can be found in the latest associated datasheet under www.rogowski.cn.
In order to guarantee safe operation of rogowski coil/ current transducer/Rogowski coil/ current transformer and to be able to make proper use of all features and functions,please read these instructions thoroughly!Safe operation can only be guaranteed ifthe transducer is used for the purpose it has been designed for and within the limits of the technical specifications.Ensure youget up-to-date technical information that can be found in the latest associated datasheet under www.rogowski.cn.
Company Introduction
SHANGHAI PINYAN M&C TECHNOLOGY CO., LTD. founded in 2009.Brand name MEATROL ELECTRICAL,located in the High Technoloy zoon of Minghang district,Shanghai. For a long time,we researched all function,application,feature of Rogowski coil and created the full-automatic winding machine especilly for rogowski.We have series coils for differnt application according to our rich experience. Our main products include flexible Rogowski coil, rigid Rogowski coil, split core current sensor, all kinds of output type integrator, powermeter, power analyzer and so on. We are good at all kinds of application for current measurement like power meter,power analyzer, High frequency waveform analysis, pulse current test, power transformer monitor, mA current measurement, harmonic tests, wind power generation, welding current monitor, frequency conversion and leakage protection,electric furnace etc.
FAQ
Q:What's MEATROL?
A:We are the No.1 manufacturer of rogowski coil with meters in China over 12years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 200k pcs Rogowski coil per year.
Q:Do you support customization?
A:Any R&D requirement relate to Rogowski could be realized.
A:We are the No.1 manufacturer of rogowski coil with meters in China over 12years.
Q:How about your company product quality?
A:High quality, resonable cost.
Q:What's your productivity?
A:Rogowski coil, Produced 200k pcs Rogowski coil per year.
Q:Do you support customization?
A:Any R&D requirement relate to Rogowski could be realized.
