100 Вт ip66 водонепроницаемый светодиодный драйвер постоянного тока dali с регулируемой яркостью для светодиодного
- Категория: Lighting Accessories >>>
- Поставщик: Zhuhai,Shengchang,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 40.15 $* | 42.83 $* |
| Aug-19-2025 | 40.34 $* | 42.95 $* |
| Jul-19-2025 | 34.94 $* | 36.84 $* |
| Jun-19-2025 | 39.85 $* | 41.55 $* |
| May-19-2025 | 34.5 $* | 36.20 $* |
| Apr-19-2025 | 39.93 $* | 41.68 $* |
| Mar-19-2025 | 38.52 $* | 40.91 $* |
| Feb-19-2025 | 38.93 $* | 40.72 $* |
| Jan-19-2025 | 38.29 $* | 40.40 $* |
Характеристики
Merry Christmas
Product Description

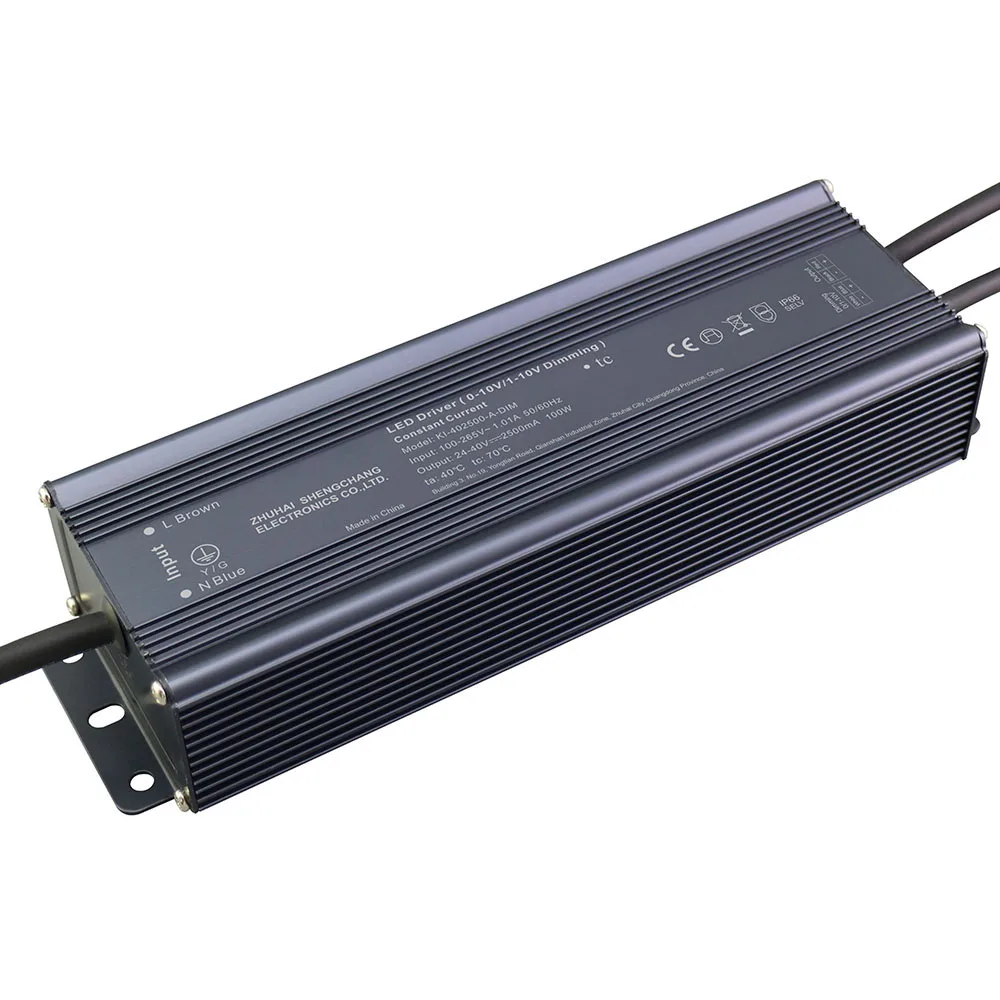

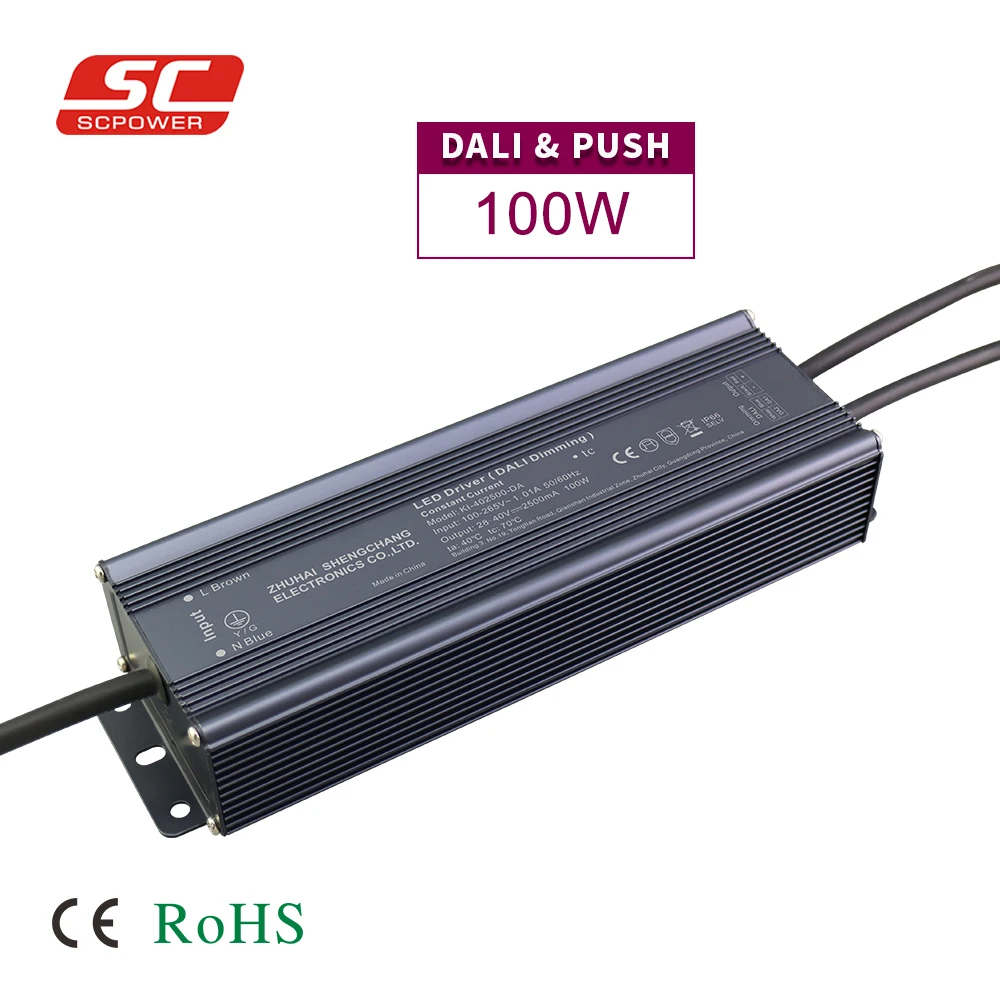

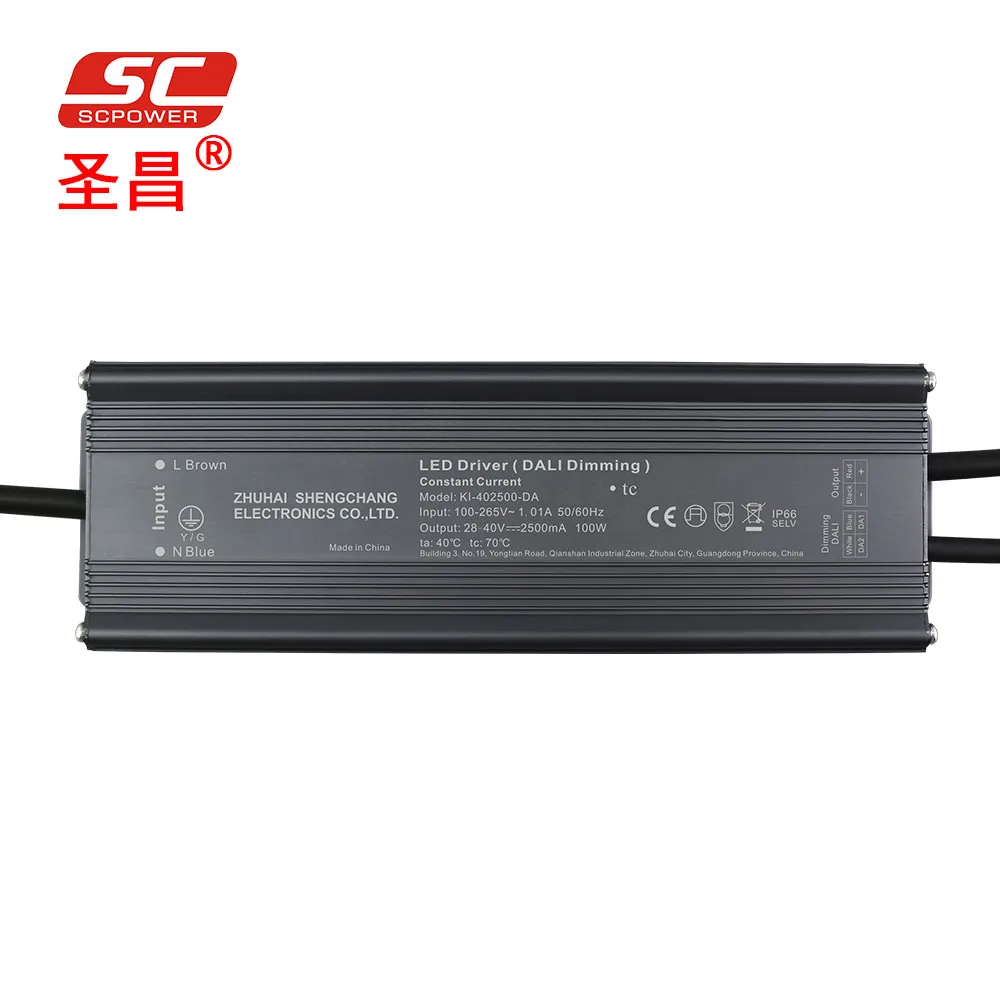

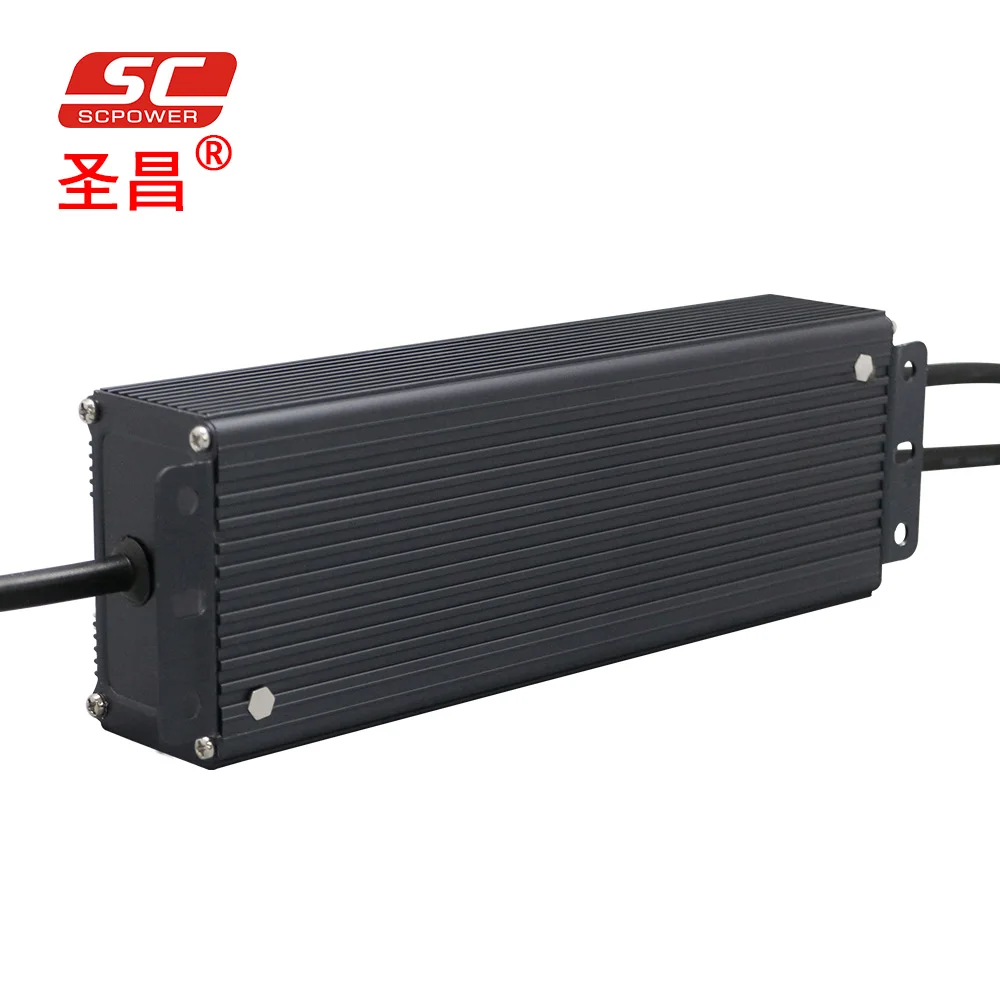

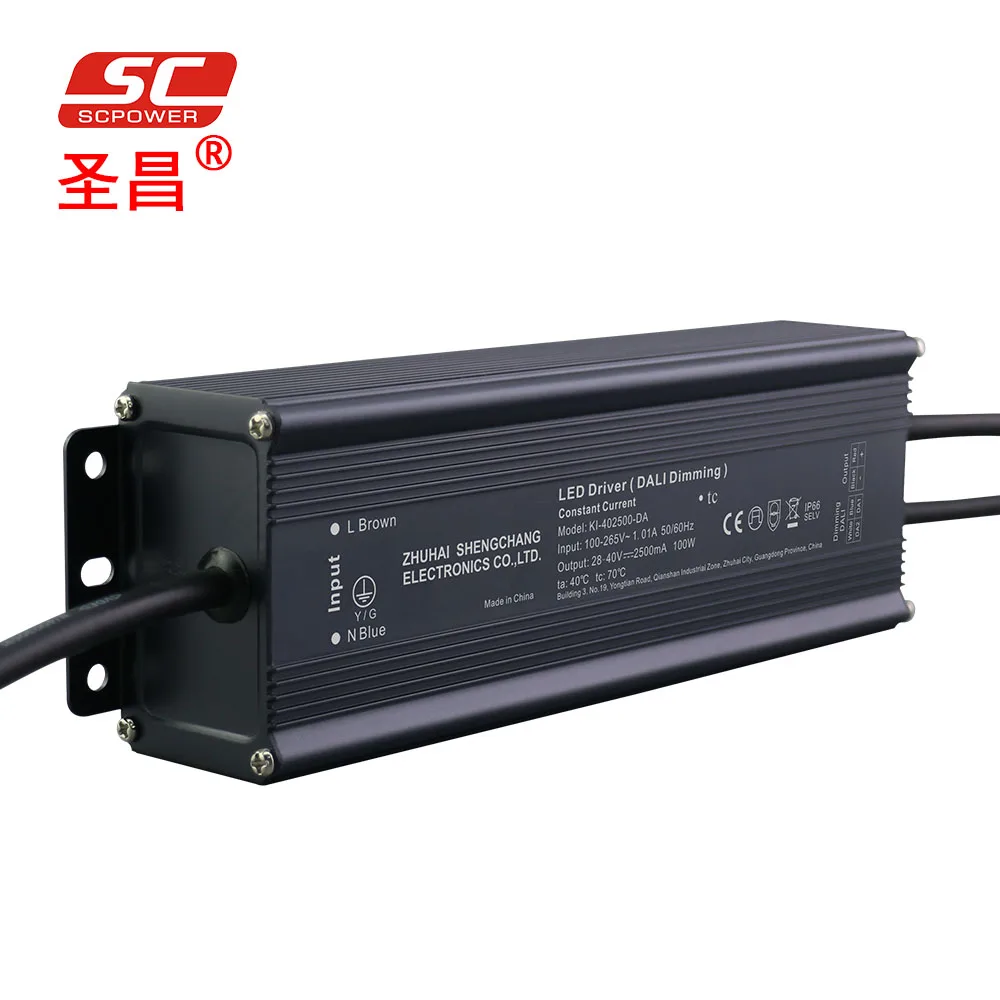

100w ip66 waterproof constant current dali dimmable led driver for led led downlight
Feature
·Output constant Current
·Range 100-265VAC
·Built-in active PFC function
·Efficiency up to 87%
·Protections:short circuit/over loading/ Over temperature
·Cooling by free air convection
·IP20 design for indoor installation.
·Dimming function: Built in DALI interface dimming function conform to DALI Protocol IEC62386
·Dimming range from 1% to 100%
·Compliance to worldwide safety regulations for lighting
·Suitable for dry locations
Specification
Input | Voltage Range | 100-265VAC | ||||
Frequency Range | 47~63HZ | |||||
Power Factor | PF≥0.98/120VAC PF≥0.98/230VAC PF≥0.95/265VAC(Full loading) | |||||
Full Load Efficiency (Typ.) | 87% | |||||
AC Current(Max.) | 0.99A | 1.06A | 1.01A | 1.01A | 1.09A | |
Leakage Current | <0.5mA | |||||
Protection | Short Circuit | Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||
Over Load | ≤ 120% | |||||
Protection Class: | Ⅰ | |||||
Over Temperature | 100℃±10℃ shut down o/p voltage, re-power on to recover | |||||
LED Drivers
Constant Voltage | Constant Current | Certification |
Triac / Phase-cut ELV MLV Dimmable | Triac / Phase-cut Dimming | ISO9001:2015 UL,cUL,ETL,cETL,FCC, ENEC,TUV,CB,CE, SAA,RoSH,CCC, DALI-1,DALI-2 certificated |
Triac & 0-10V 1-10V Dimmable | Triac & 0-10V 1-10V Dimming | |
0-10V 1-10V Dimmable | 0-10V 1-10V Dimming | |
DALI 1 Push Dimmable | DALI 1 Push Dimming | |
DALI 2 Push Dimmable | DALI 2 Push Dimming | |
DMX512 Dimmable | DMX512 Dimming | |
BLE Wireless Dimmable | BLE WirelessDimming | |
ZigBee Wireless Dimmable | ZigBee Wireless Dimming | |
WiFi Wireless Dimmable | WiFi Wireless Dimming | |
Non Dimmable | Non Dimming |
We are 13 years experience manufacturer in dimmable LED Power Supply since 2009!
Our main products including with Triac phase ELV MLV dimmable ,0/1-10V dimmable ,DALI&PUSH-DIM 2 in 1 dimmable ,DMX dimmable ,and wireless BLE ,zigbee wifi dimmable driver
Dimming ,CCT (TW) ,RGB ,RGBW ,RGBCW
from 5W to 600W C.V. 12VDC 24VDC 36VDC 48VDC ;3W to 200W C.C.
5 years warranty
Dimming range 0-100%
No noise , Flicker free
High frequency exemption level, High PF (PF>0.95)
Aluminum shell & plastic shell for output and indoor use (IP66 Waterproof ,IP20)
Slim ,linear led driver
All-round protection-Short circuit,over load, over-temperature
Sample Available,
Spot goods (warehouse area of 2,800 square meters total)
Click on Contact Us or write to.
Company Information
Certifications
Trade Shows
Related Products
FAQ
1. How about your goods’ quality?
100% burn-in tests, full-round tests.
All products approved by CE RoHS, some products have got TUV GS CB ETL certificates.
2. What is your warranty? And if I got wrong ones, how will you do with it?
3 years. If any wrong, we will replace in your next order, or refund.
3. What is your minimum order quantity?
The MOQ is 1pcs.
4. Which payment terms you can accept?
We accept T/T, Western Union, Money Gram, Paypal, etc.
5. What are the shipping ways you can offer?
By air/sea/land, from Zhuhai jiuzhou port, Hongkong, Guangzhou.
6. How about your delivery time?
3-7 working days according the order.
7. Can you make OEM?
Of course, OEM ODM provided.
More information, please feel free to contact us.
