AC Цифровой мультиметр Напряжение Ток измеритель мощности электроэнергии на рост от 80 до 300V 100A Вольтметр Амперметр LED вольт ампер коэффициента

Description:
This AC digital multimeter voltage measuring range AC 80-300.0V, current range 0-100.0A,power range 0.0-30000W,electricity range 0.000-99999kwh, frequency range 45.00-65.00Hz, power factor 1.000-0.000.
Multifunctional Meter: this AC meter is a 6 in 1 multimeter, can messure ac voltage, ac ampere, power factor, power, electricity, frequency.
Equipped with CT: this AC voltmeter ammeter is equipped with small AC current transformer, convenient for your use and installation.

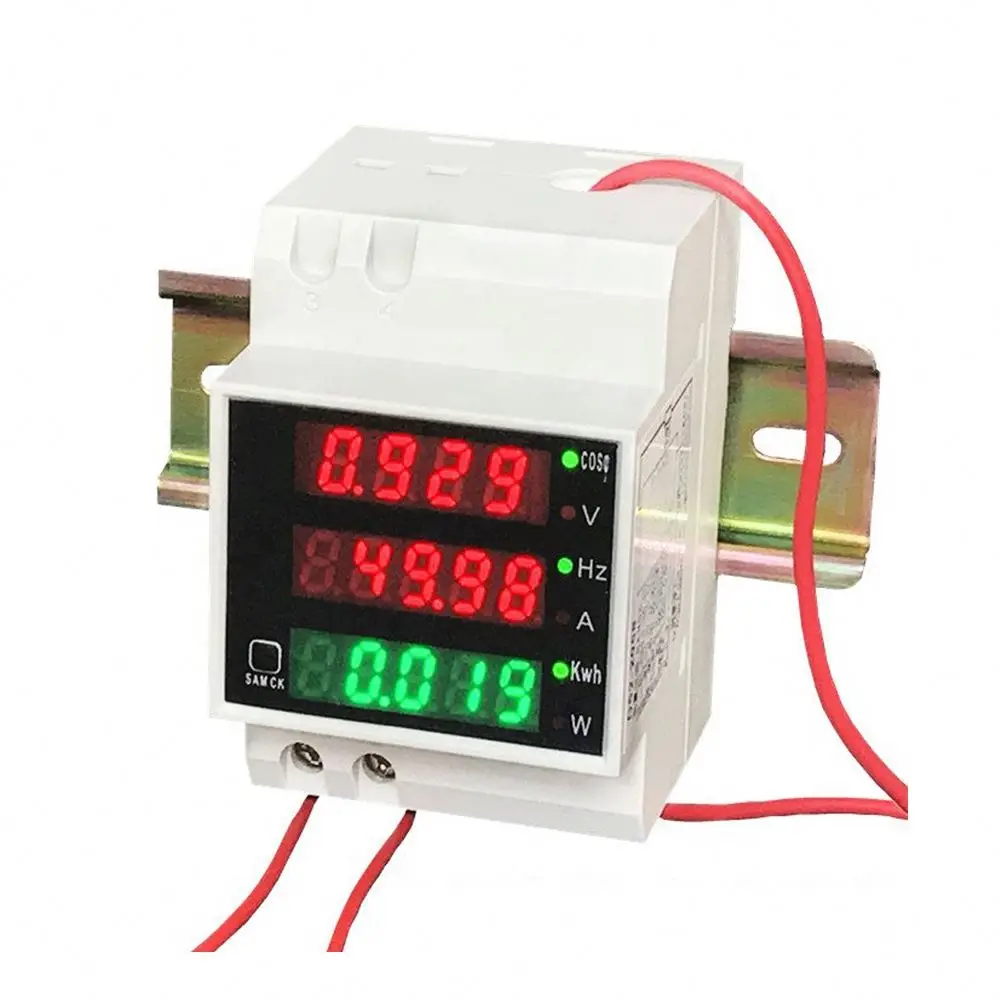

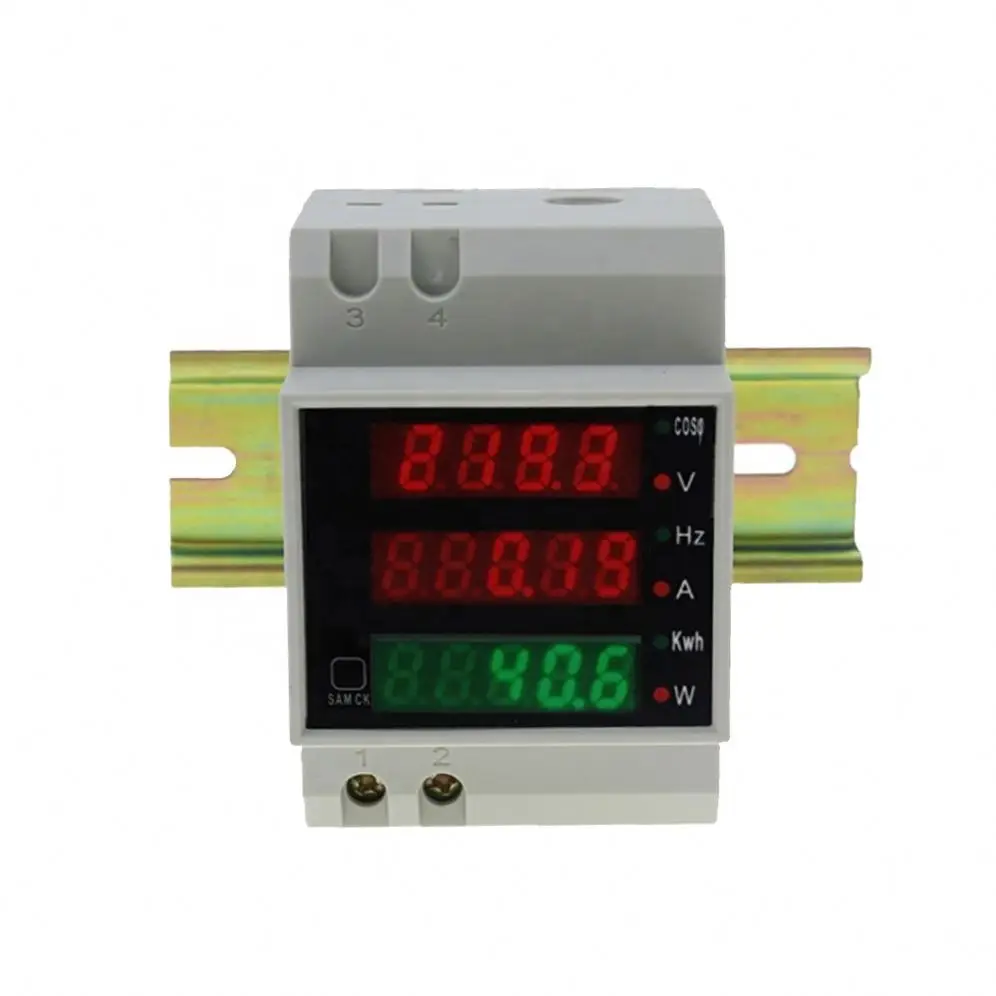

Special Design: this AC volt amp power factor frequency meter is designed as din-rail type, and with small size 54x80x64mm.
Note: this multimeter is only suitable for pure AC 50Hz or 60Hz commercial power supply. Cannot be used for square wave, inverter output or modified sine wave. Otherwise, it will damage the instrument and the measurement results will be incorrect.

Parameters:
Measuring range: AC 80.0-300.0V; AC 0-100A
Measuring power range: 0.0-30000W
Measuring electric energy range: 0.000-99999kwh
Power frequency: 45.00-65.00Hz
Measuring accuracy: 1% ± 2 digits
Power factor: 1.000-0.000

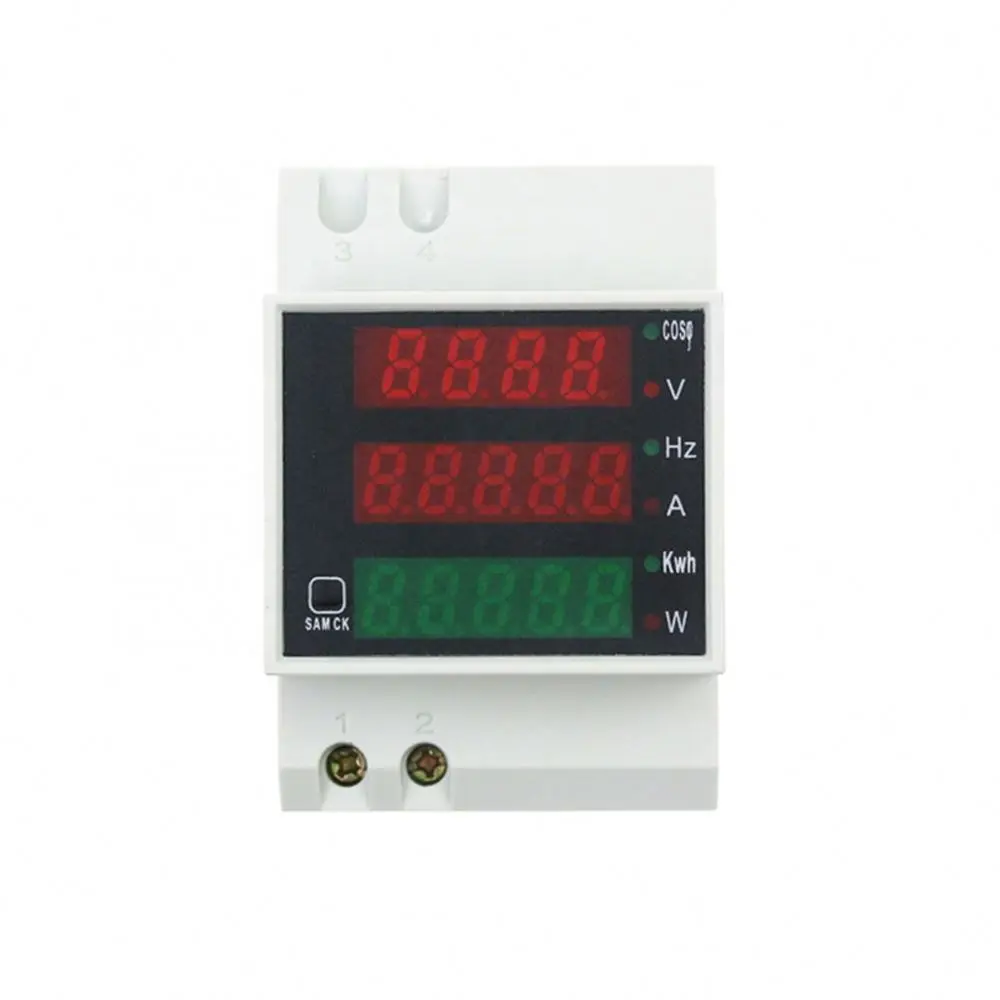

Display mode: AC voltage and power factor use 4 digits 0.31-inch Red LED digital tube; AC current and power frequency use 5 digits 0.31-inch Red LED digital tube; Active power and energy use 5 digits 0.31-inch Green LED digital tube
Measuring speed: twice per second
Installation Width: =3P (sum of width of three DZ47/C45)

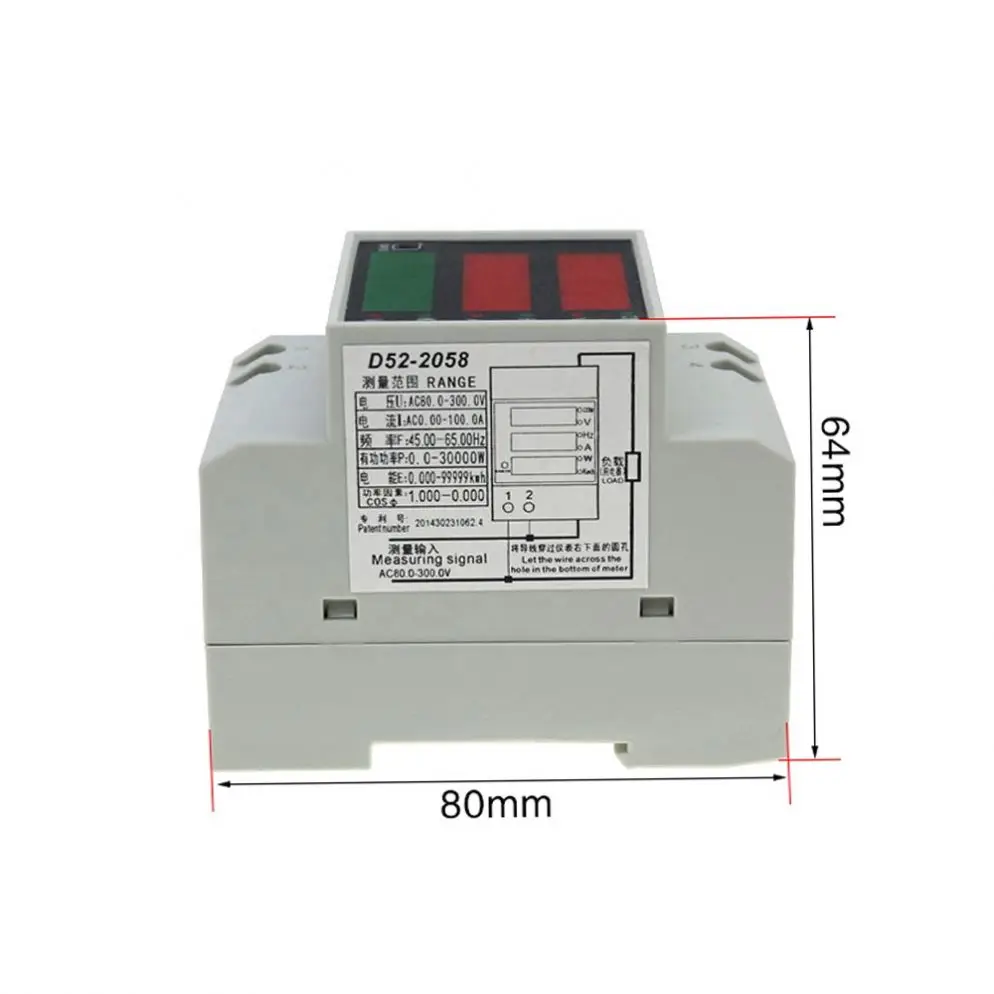

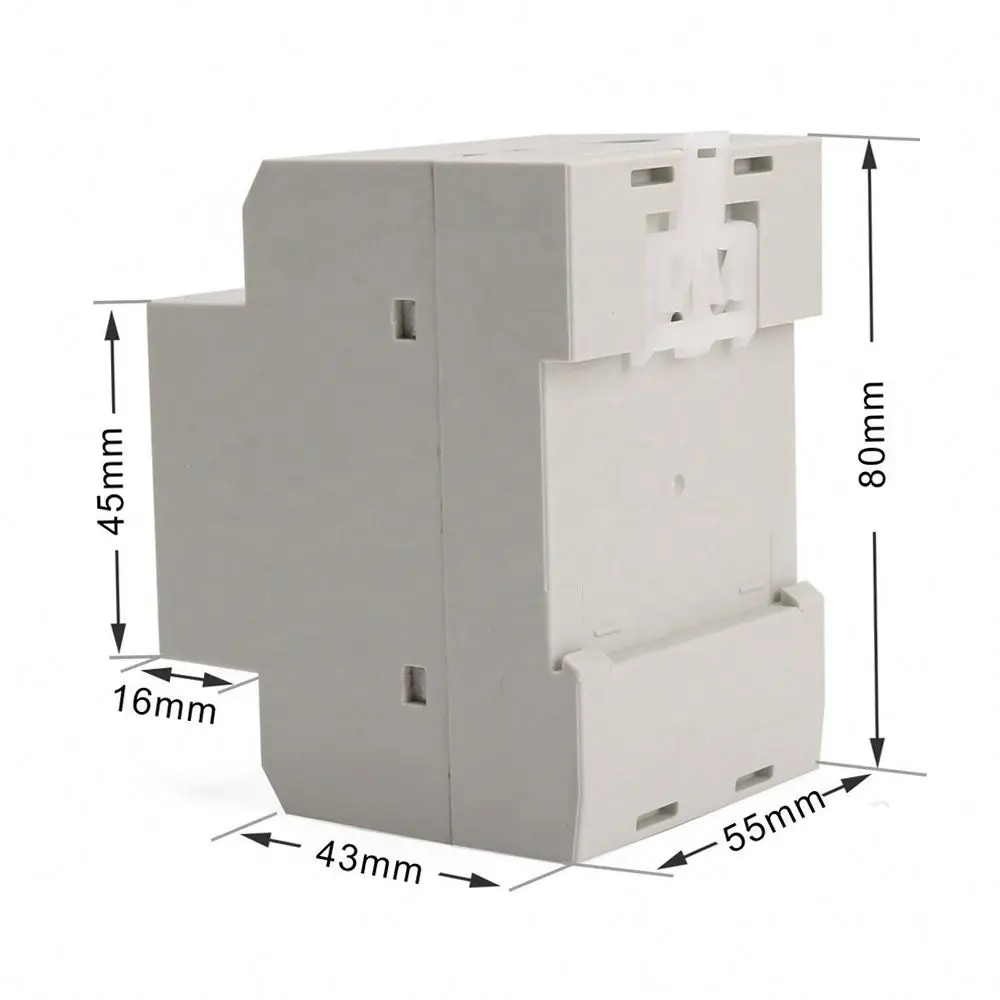

Size: 54*80*64mm

Extremely Operating Condition:
Operating temperature: -10~+60℃
Operating humidity: 10~80% (No condensation)
Operating pressure: 80~106kPa
Sunlight exposure: No direct exposure

Note:
1. The value of electric energy can be automatically saved, power-down will not lose the value of electric energy. When re-connected to the measuring power, the meter will accumulate the original saved data.
2. This instrument is only suitable for pure AC 50Hz or 60Hz commercial power supply. Cannot be used for square wave, inverter output or modified sine wave. Otherwise, it will damage the instrument and the measurement results will be incorrect.

Package includes:
1x Din-rail multi-function digital meter

Option Models:
For this meter there are some Option Models, you can choose and contact our sales manager.
Measurement range as following:

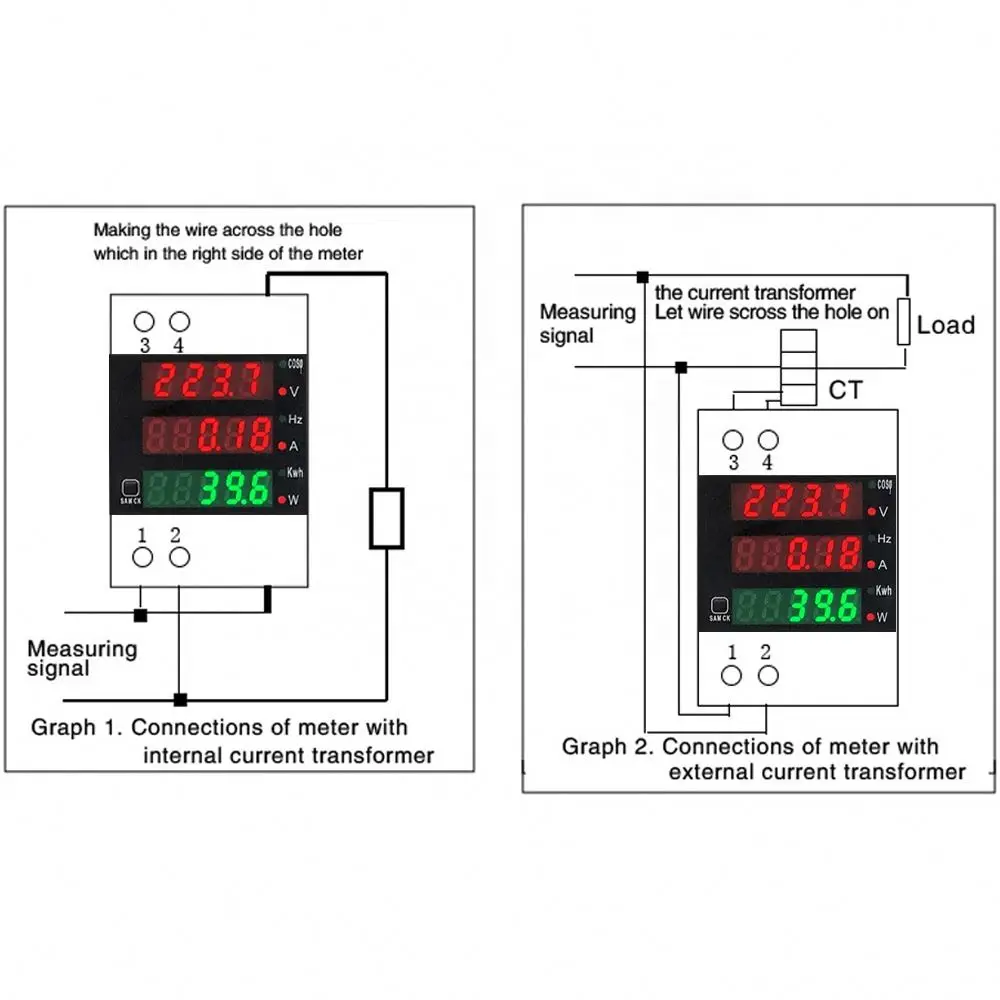

Model 1. AC 80-300V/0-100A with External CT
Model 2. AC 80-300V/0-100A with CT Built-in
Model 3. AC 200-450V/0-100A with External CT
Model 4. AC 200-450V/0-100A with CT Built-in
