Новые 8 каналов NDI электронных компонентов HX видео микшер потокового оборудование IP камера POE сенсорный экран Аудио Видео коммутатор для прямые
- Категория: Other Audio & Video Equipments >>>
- Поставщик: World,Win,Technology,(Shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 3301.36 $* | 3367.7 $* |
| Jul-15-2025 | 2677.64 $* | 2731.30 $* |
| Jun-15-2025 | 3249.40 $* | 3314.13 $* |
| May-15-2025 | 3223.15 $* | 3287.67 $* |
| Apr-15-2025 | 2573.20 $* | 2624.48 $* |
| Mar-15-2025 | 3171.90 $* | 3234.99 $* |
| Feb-15-2025 | 3145.54 $* | 3208.26 $* |
| Jan-15-2025 | 3119.83 $* | 3181.28 $* |
Характеристики
Tip:
1.Contact us for more discount;
2.OEM/ODM are also welcome；
3.Excellent quality and better Price.
3.Excellent quality and better Price.
Products Description
NEW 8 Channels NDI HX Video Mixer IP POE Touch Screen Audio Video Switcher with PTZ Camera Controller for Live Streaming
WIN-JK30S
WIN-JK30S Video Controller Switch Selling Points:
WIN-JK30S is high quality professional video switcher with 8 Channels PGM plus 8 Channels PVW, RTMP recording ,intergrated audio mixer and IP PTZ camera controller.The screen is HD 10.1 inch.

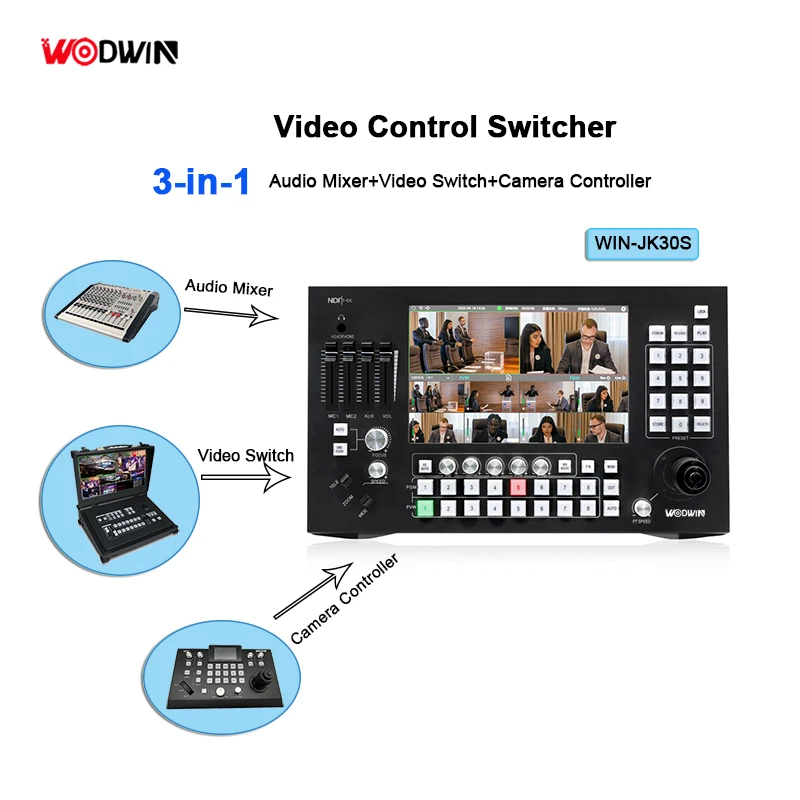

1.It is 3 in one video switch integrated with the audio mixer, video switch, camera controller
Features
1.It is 3 in one video switch integrated with the audio mixer, video switch, camera controller
2.It is High-definition touch display, integrates a 10.1-inch high-definition display,
3. Support NDI|HX2 live streaming protocol,
4. Support multi-protocol, support the access and output of video via the methods of network IP, HD-MI or local file,

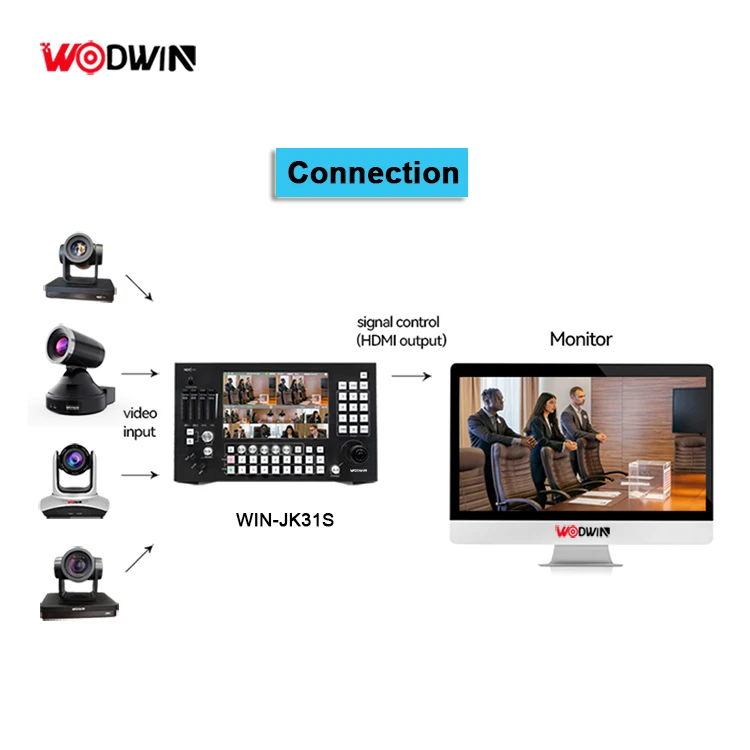

5.Multi-channel input and output, up to 8 channels of 1080P60 video input, with an IP camera, you can start your live broadcast with only one LAN Ethernet cable,
6.Integrated mixer, support 4-channel mixer, support multiple audio input and output methods,
7.Integration of live control, supporting fine control of the camera during live video, simplifying the live broadcast equipment and making it easier to build the live broadcast environment,
8.A variety of operation methods, control the live broadcast efficiently through the touch screen, buttons and other methods, so that the live broadcast is under your control at any time
9.A variety of transition special effects, support for multiple transition special effects such as fade in and fade out
10.Custom overlay content, support subtitle overlay and logo overlay.
8.A variety of operation methods, control the live broadcast efficiently through the touch screen, buttons and other methods, so that the live broadcast is under your control at any time
9.A variety of transition special effects, support for multiple transition special effects such as fade in and fade out
10.Custom overlay content, support subtitle overlay and logo overlay.
Details Images

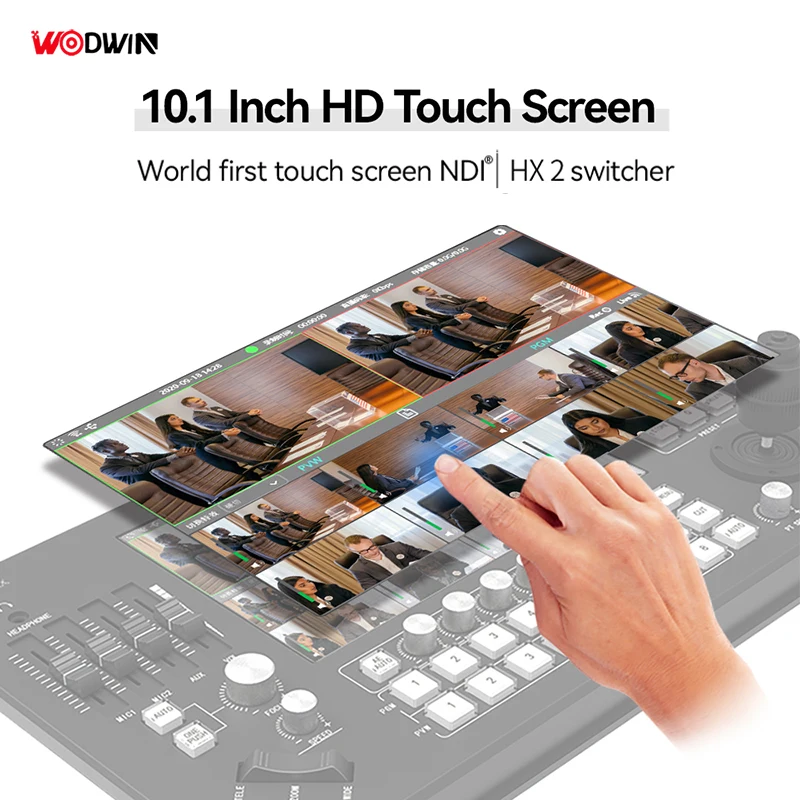

Video Switch WIN-JK30S is the 1st NDI|HX2 touch screen switcher, the screen is 10.1 inch, easy to operate.
HD1080P Video Switch
The HD video switcher is usually together use with the camera can be used in lots of place such as church, conference room, classroom, concert, sports, home theater and so on.
Product Paramenters
Video standard | FHD |
Video processing capability | input： Up to :1920x1080p60 * 8 output： Up to 1920x1080p60（HDMI）+1920x1080p60（IP）+1280x720p60（IP） |
video input | 8 channel IP video streaming +1 channel HDMI+ local video |
video output | 2 channel IP video streaming +1 channel HDMI+ local recording |
Live video encoding format | H.264、H.265 |
Live video bitrate | 512Kbps~16384Kbps |
Live video bitrate mode | CBR |
Network input protocol | RTSP、RTMP |
Network output protocol | RTSP、RTMP、NDI|HX(optional) |

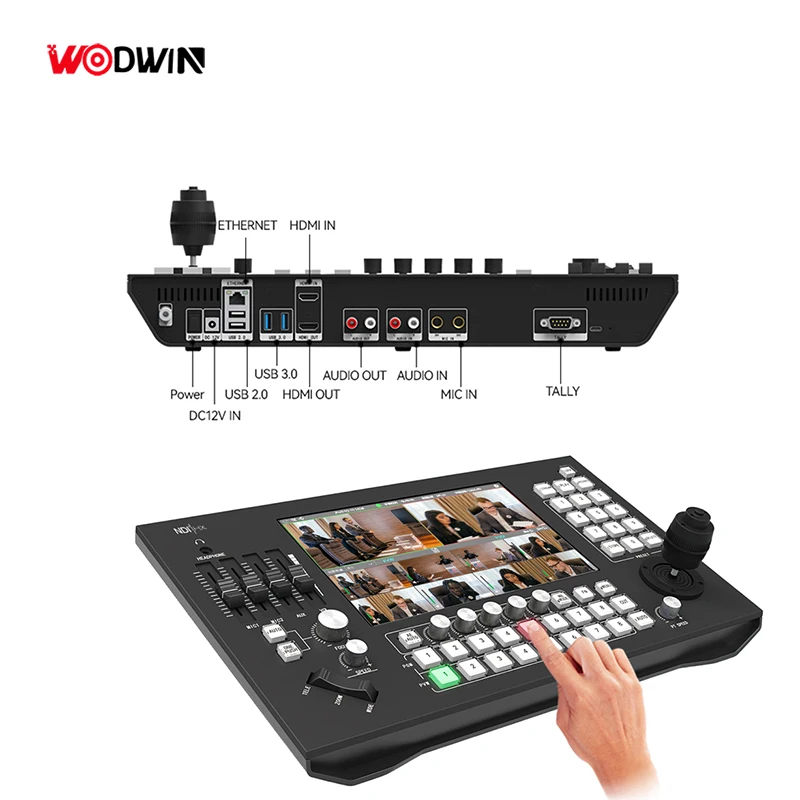

audio input | RCA*1 TRS6.3mm*2: Compatible with active and passive signals Video embedded |
audio output | RCA*1 Video embedded |
Mixer | 4 physical tuning + 8 digital tuning |
Transition control | T-Bar、button 、touch |
Tally | DB9 output |
USB Port | USB3.0*2+USB2.0*2 |
Camera Control | Support PTZ, focus, exposure, white balance, preset position control |
Input voltage | DC 12V |
Input Current | 3A |
Rated power | 36W |
POE | Optional 802.3AT |
Operating temperature | 0℃~40℃ |
Storage temperature | -10℃~50℃ |
Dimensions | 420*257.52*121.2mm |
Product packaging
Recommend Products
WIN-M57SN
NDI+HD-MI+IP+USB3.0
12X/20X Zoom
WIN-HS1608P
POE SWITCHER
24-PORT MANAGED
WIN-MK2
JOYSTICK CONTROLLER
IP POE RS232 RS422
Company Profile
Certifications
FAQ
Q1. Can I have a sample order?
Yes, welcome sample order to test and check quality.
Yes, welcome sample order to test and check quality.
Q2. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT.
It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q3. What about the lead time?
Sample needs about 2-3 working days,
Small batch production time needs 5-10 days,
OEM or large order need about 14-25 days.
Q4. Could I put my own logo on products?
Sure, with our R&D department, we can do ODM and OEM.
Q5. What`s your warranty period?
The warranty period is 3 years and start from the purchase date.
Q6. How do you guarantee the quality?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
We have our own QC, 3 times strict inspect:material,self-product,finished product,also 8 hours
aging testing before packing. We have do CE/FCC/ROSH certificate.
Q7. Do you offer remote assistance when facing a technical problem?
Yes, surely.We have very professional technical team,and it is our responsibility to help our clients
when meet with any technical problem.
Q8. I'm buying with your company at the first time, how can I trust you?
We totally understand if you have some doubt about us at our first cooperation.
You are welcome to visit our company or our factory anytime you like.
You can also choose trade assurance for your order.
Q9. What's your payment term?
Our payment term is TT in advance before shipment.
