Экструдеры для пластиковых труб SJZ65/132 оборудование

Экструдеры для пластиковых труб SJZ65/132 оборудование

Категория: Pipe Making Machinery >>>
Поставщик: Zhangjiagang,City,Qiangsheng,Plastic,Machinery,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.41 $*	0.51 $*
Aug-17-2025	0.11 $*	0.1 $*
Jul-17-2025	0.46 $*	0.64 $*
Jun-17-2025	0.66 $*	0.12 $*
May-17-2025	0.46 $*	0.51 $*
Apr-17-2025	0.71 $*	0.45 $*
Mar-17-2025	0.65 $*	0.18 $*
Feb-17-2025	0.40 $*	0.11 $*
Jan-17-2025	0.94 $*	0.53 $*

Характеристики

Product Overview

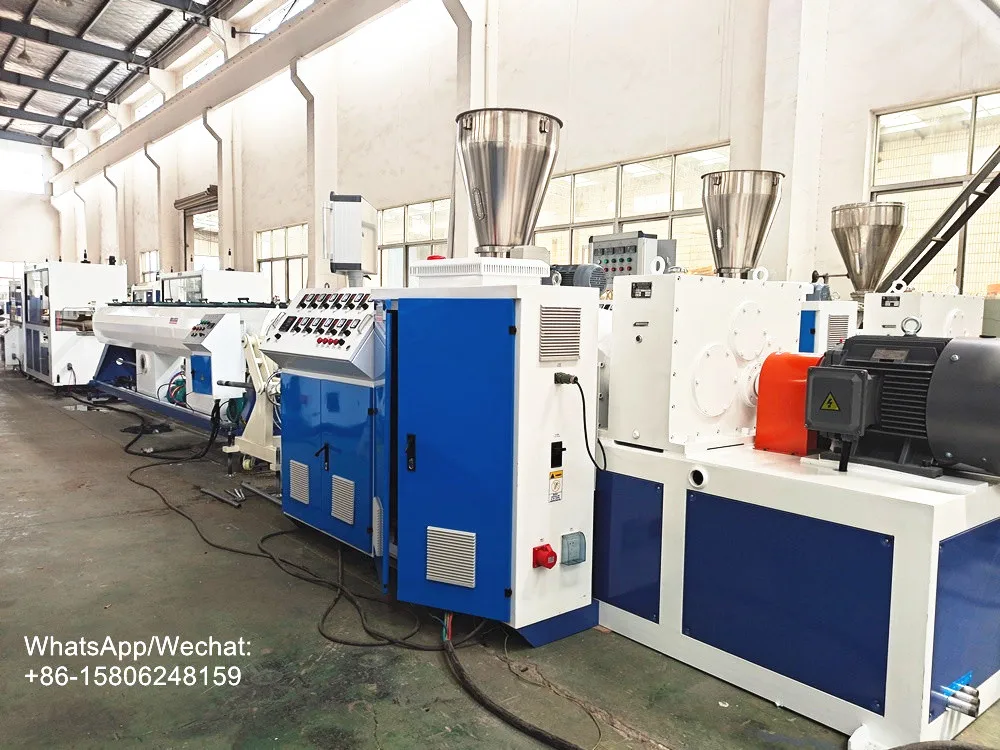

PVC Pipe Production Line

The whole PVC pipe production line include: Material auto loader, SJSZ series conical twin screw extruder, pipe mould, vacuum calibration tank, haul-off machine, auto cutter and stacker; pipe printer and PVC Pipe Belling machine for customers optional choice.

SRL-Z series PVC Powder heating cooling mixing unit, SWP series Plastic Crusher, SMF series Plastic Milling Machine/ Pulverizer are necessary auxiliary equipments.

Application

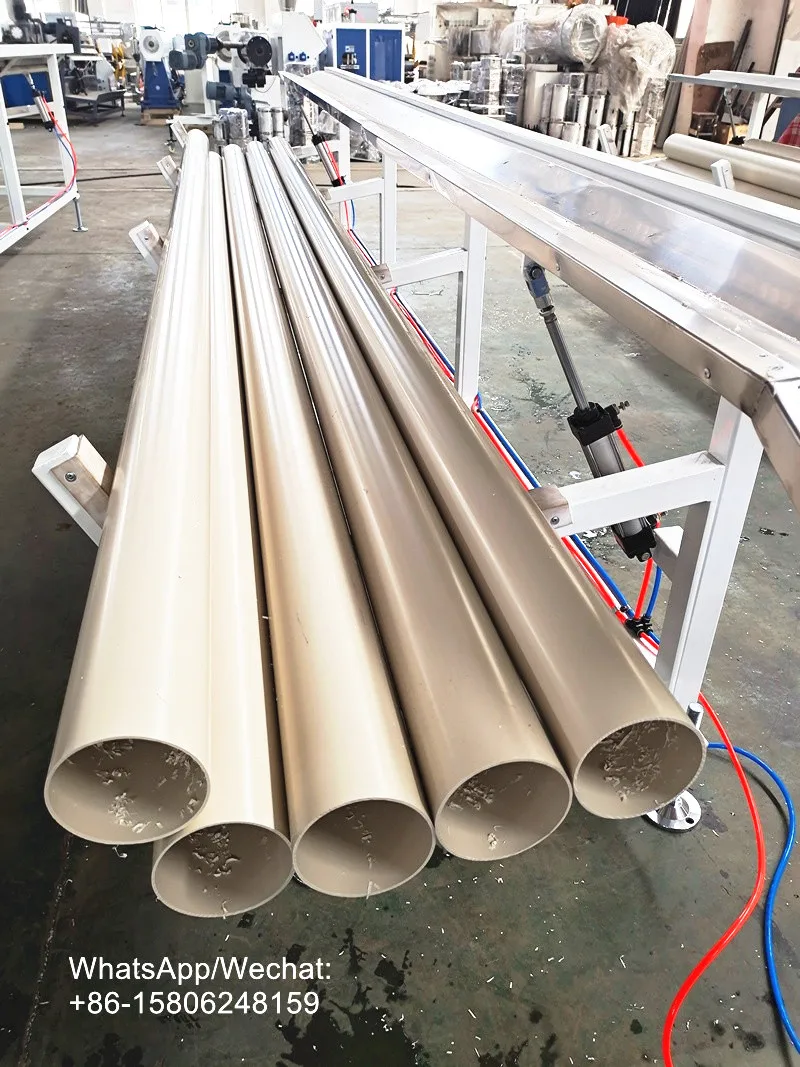

1. PVC Drainage Water Pipe, Water Sewering Pipe

2. PVC Water Supply Pipe

3. PVC Electrical Conduit Pipe

4. PVC Electrical Cable laying sheath pipe

PRODUCT SPECIFICATIONS

Ф50-200mm PVC Pipe Production Line				110-200mm PVC Pipe Production Line
NO.	Machine Name	Model	Qty.
1.	PVC Powder Spring loader	ZJF300	1 set

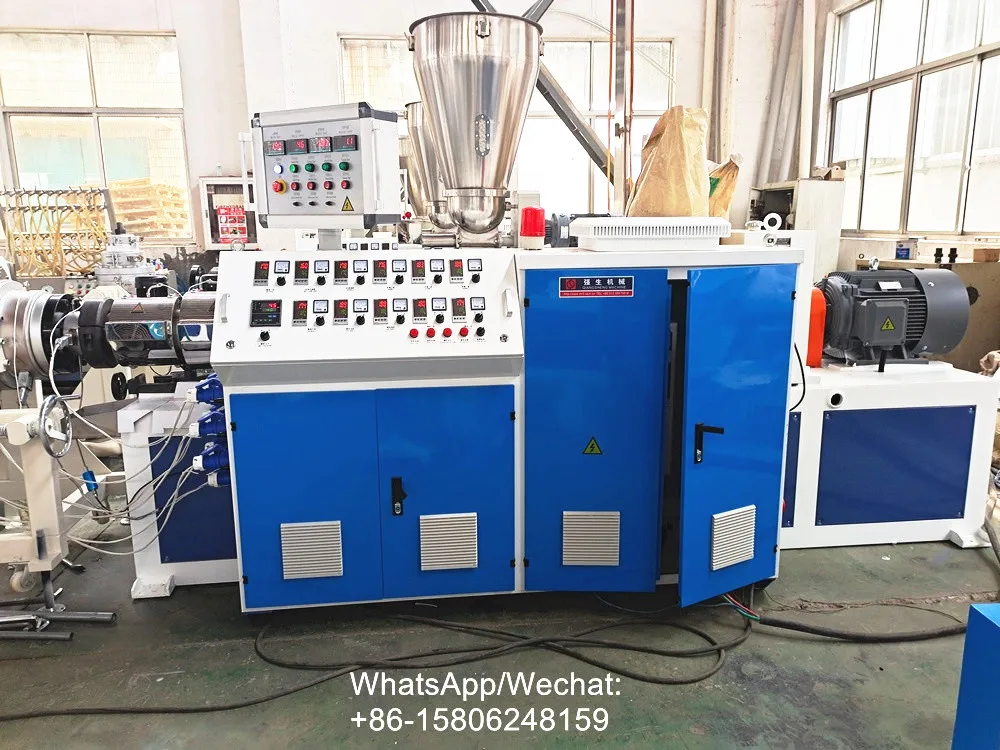

2.	Conical Twin Screw Extruder	SJSZ65/132	1 set
3.	PVC Pipe Mould	Ф50-200mm	2 sets

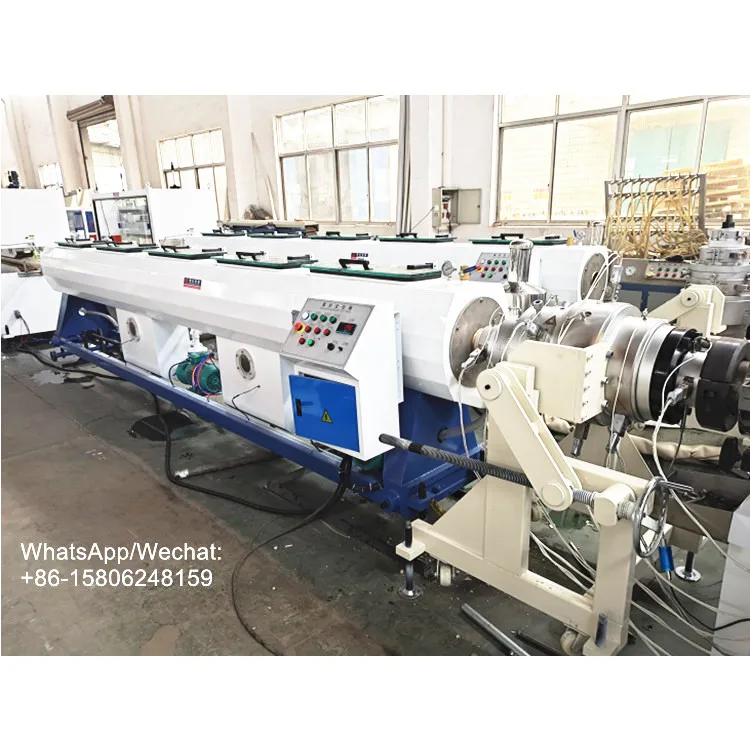

4.	Vacuum Calibration Tank	Ф200x6m	1 set
5.	Haul-off Machine	1.5kwx2	1 set

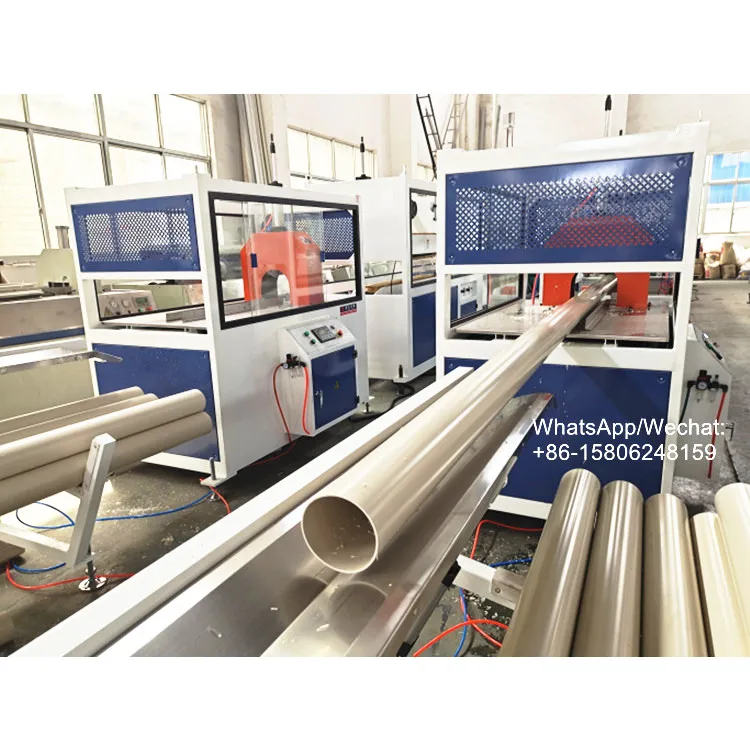

6.	Auto Cutter	2.2kw	1 set
7.	Stacker	6m	1 set

Plastic Auxiliary Machines				Plastic Auxiliary Machines
NO.	Machine Name	Model	Qty.
1.	PVC Hot & Cold Mixer	SRL-Z200/500	1 set
2.	Screw Loader for Mixer	DTC-600	1 set
3.	Plastic Crusher	SWP500, 22kw	1 set
4.	PVC Pulverizer	SMF400, 30kw	1 set

Machine model

Model	Pipe Diameter ( mm)	Extruder Model	Capacity ( Kg/hr )
PVC-50x2	Ф16-50x2	SJSZ51/105	50-120
PVC-63	Ф16-63	SJSZ51/105	50-120
PVC-110	Ф50-110	SJSZ51/105	50-120
PVC-160	Ф75-160	SJSZ65/132	100-250
PVC-200	Ф50-200	SJSZ65/132	100-250
PVC-250	Ф125-250	SJSZ80/156	200-350
PVC-315	Ф160-315	SJSZ80/156	200-350
PVC-450	Ф250-450	SJSZ92/188	300-550
PVC-630	Ф315-630	SJSZ92/188	300-550
