Строительная площадка ZKC кирпичная фабрика зажим для вилочного погрузчика бетонных
- Категория: Material Handling Equipment Parts >>>
- Поставщик: Shanghai,Yeame,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 3332.65 $* | 3499.28 $* |
| Aug-16-2025 | 3304.29 $* | 3469.59 $* |
| Jul-16-2025 | 2772.21 $* | 2911.95 $* |
| Jun-16-2025 | 3248.61 $* | 3410.0 $* |
| May-16-2025 | 2828.97 $* | 2969.87 $* |
| Apr-16-2025 | 3192.12 $* | 3352.82 $* |
| Mar-16-2025 | 3164.13 $* | 3322.43 $* |
| Feb-16-2025 | 3136.66 $* | 3293.70 $* |
| Jan-16-2025 | 3108.50 $* | 3263.4 $* |
Характеристики

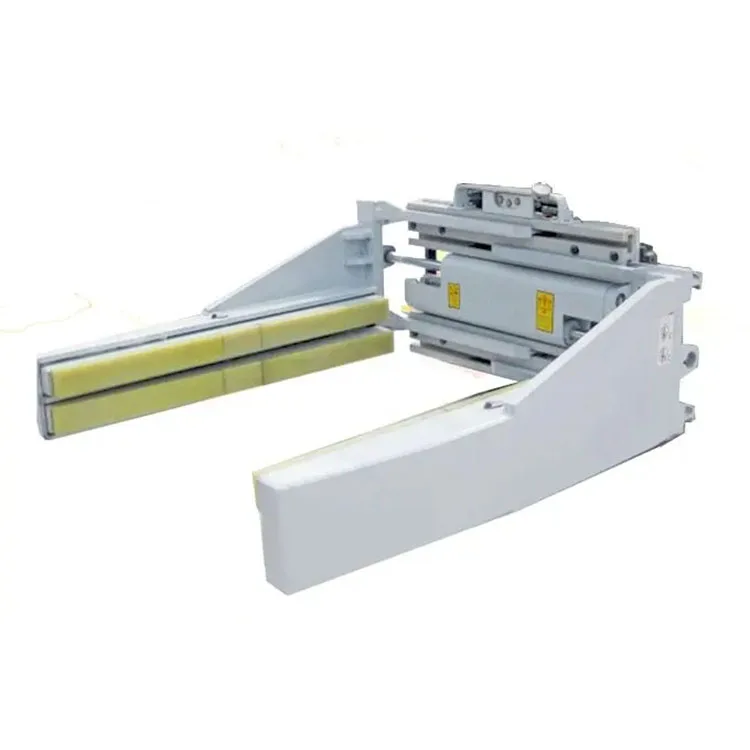

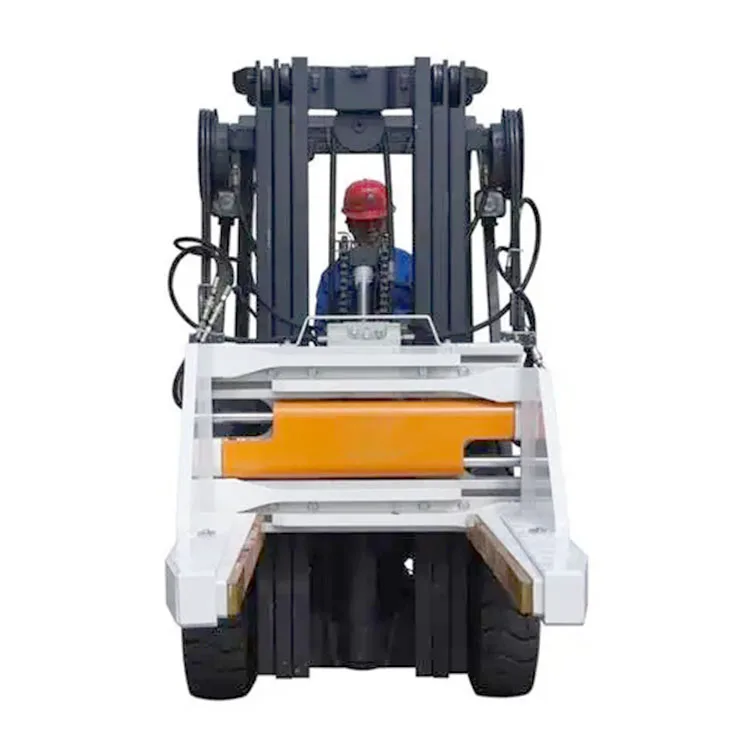

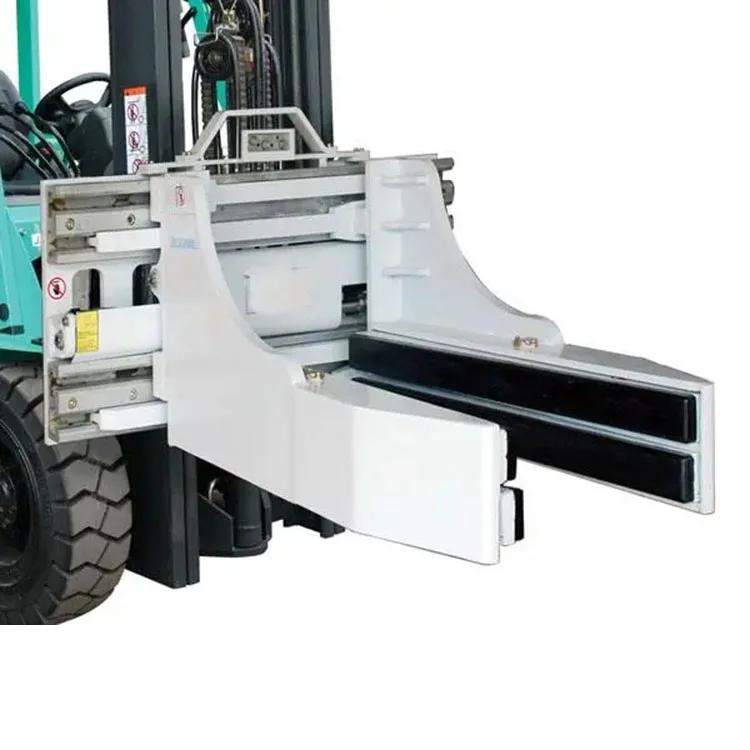

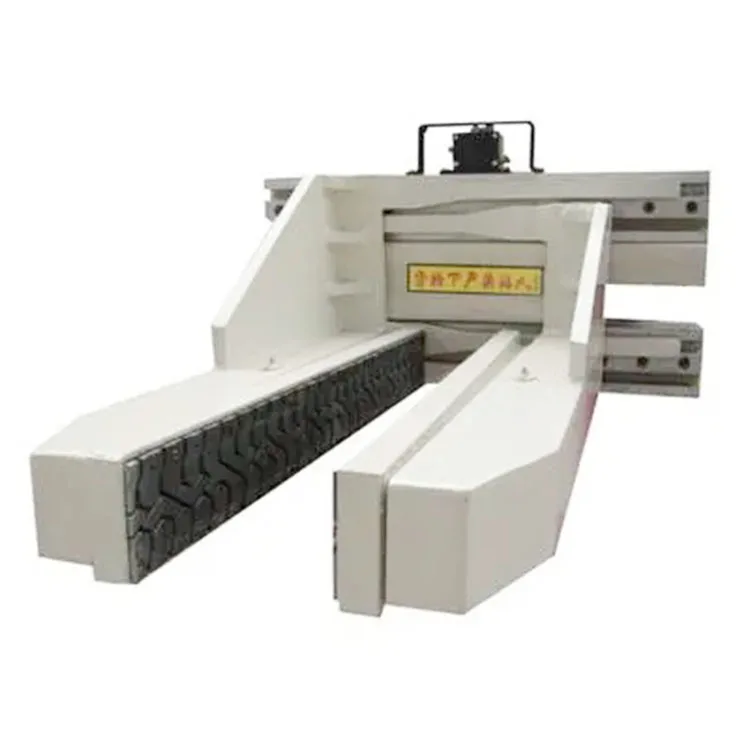

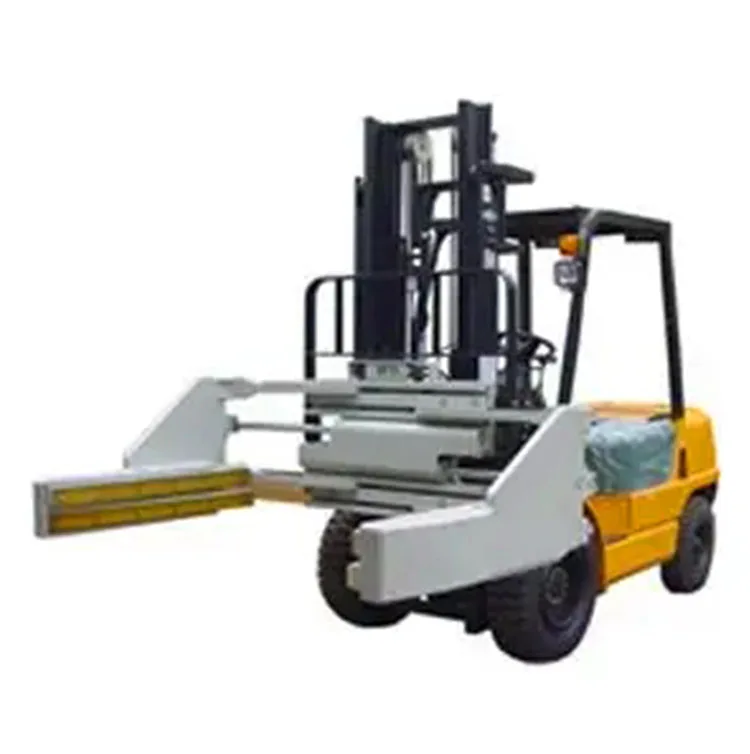

ZKC brick clamp concrete block clam

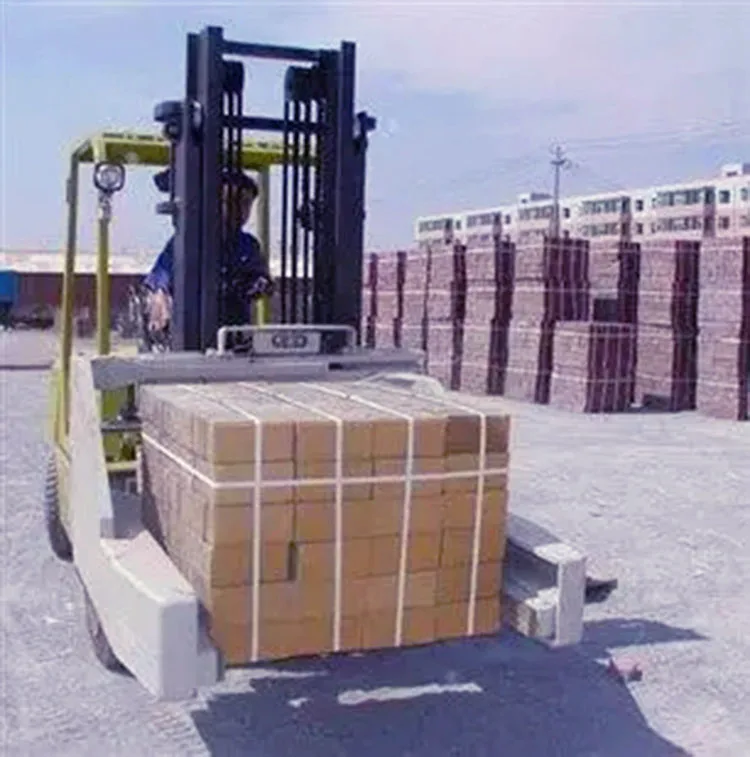

With the development of the brick industry, at present, the brick production line can basically complete full automation, but there are problems in loading. In addition, the rising labor cost, hot summer and difficult recruitment of personnel have always been the bottleneck of the development of the brick industry. According to the actual working conditions and requirements of the brick factory, we designed a brick clamp with safety frame that can clamp small red bricks to solve this problem. The product is composed of safety frame and brick clamp. It is widely used in the loading of small red brick factory. The safety frame and the clamp arm type of brick clamp can be designed according to the actual working conditions of users.
1.Please contact forklift manufacturer for the residual capacity of attachment. forklift capacity limit the capacity of the clamp.
2. Two additional hydraulic circuits required.
3. With sideshifting, arm height at 128mm is for single splint clamp in PU material.
arm height at 242mm is for double splints clamp.arm height at 117mm is for single splint clamp in PU material.
4.Dimension E refers to operation space required when arm enters, not arm thickness
5.Model without side shifting are also available
6.Safety fence/ frame are available upon request as option.
1.Please contact forklift manufacturer for the residual capacity of attachment. forklift capacity limit the capacity of the clamp.
2. Two additional hydraulic circuits required.
3. With sideshifting, arm height at 128mm is for single splint clamp in PU material.
arm height at 242mm is for double splints clamp.arm height at 117mm is for single splint clamp in PU material.
4.Dimension E refers to operation space required when arm enters, not arm thickness
5.Model without side shifting are also available
6.Safety fence/ frame are available upon request as option.
MODEL | Capacity @load center | Opening Range | Arm Length | Arm Height | Arm Thickness | Overall height | Overall Width | Self Weigth | Effective Thickness |
(kg@mm) | A(mm) | L(mm) | G(mm) | E(mm) | H(mm) | W(mm) | (kg) | ET(mm) | |
ZKC25D-C001 | 2500@500 | 280-1635 | 1100 | 128 | 210 | 750 | 1015 | 500 | 148 |
ZKC27D-B001 | 2700@500 | 290-1610 | 1100 | 128 | 210 | 750 | 1015 | 500 | 145 |
ZKC27D-B002 | 2700@500 | 290-1610 | 1100 | 242 | 210 | 750 | 1015 | 550 | 145 |
ZKC27D-B003 | 2700@500 | 290-1610 | 1000 | 128 | 210 | 750 | 1015 | 490 | 145 |
ZKC27D-C001 | 2700@500 | 290-1610 | 1100 | 128 | 210 | 750 | 1015 | 500 | 148 |
ZKC27D-C002 | 2700@500 | 290-1610 | 1100 | 242 | 210 | 750 | 1015 | 700 | 148 |
ZKC27D-C003 | 2700@500 | 290-1610 | 1000 | 128 | 210 | 750 | 1015 | 490 | 148 |
ZKC27D-C004 | 2700@500 | 280-1600 | 1400 | 242 | 220 | 750 | 1015 | 650 | 148 |
ZKC27D-C005 | 2700@500 | 280-1600 | 1400 | 128 | 220 | 750 | 1015 | 661 | 148 |
ZKC27D-C006 | 2700@500 | 350-1680 | 1400 | 117 | 200 | 750 | 1015 | 620 | 148 |
ZKC27D-C007 | 2700@500 | 280-1600 | 1400 | 128 | 200 | 750 | 1015 | 725 | 148 |
ZKC27D-C008 | 2700@500 | 350-1680 | 1000 | 117 | 200 | 750 | 1015 | 620 | 148 |
ZKC27D-C009 | 2700@500 | 280-1635 | 1200 | 238 | 210 | 750 | 1016 | 710 | 148 |
ZKC27D-C012 | 2700@500 | 370-1699 | 1020 | 98.5 | 160 | 750 | 1015 | 596 | 259 |
Q1: Are you a manufacturer?
A 1: Yes, and we also export for several our partner factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, we have large range of product, no factory can produce all these product in one factory.
Q2: Warranty for the product?
A2: 12 months warranty on major components.
Q3: How about the delivery time for the products showed in website?
A3: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q4: How many days we need for sending shipping documents?
A4: Usually within 5 days after vessel shipped out.
Q5: Can you add our own logo on the products or use our designs?
A5: Yes,of course you can add logo on the product you bought with on condition that you will issue letter of authorization of the brand.We provide OEM/ODM service.I addition,we promise your design would protect by law,we won't tell anyone else about this. It's your own copyright.
Q6: Can you send the machine to my factory in other city to load the container?
A6: Yes,please tell us the detail address,we can arrange to send your factory in time with a reasonable charge on transportation.\t\t\t\t\t
Q7: How can the machines be send to us?
A7: Most of our products are heavy and big, it's cylinder contains hydraulic oil. so it is only suitable for sea-shipment in terms of cost.
A 1: Yes, and we also export for several our partner factories in China to manufacture Forklift, Hand pallet truck, Table Lift, Drum& Roll Handling Equipment, we have large range of product, no factory can produce all these product in one factory.
Q2: Warranty for the product?
A2: 12 months warranty on major components.
Q3: How about the delivery time for the products showed in website?
A3: Normally 15-35 days after down payment. and most of compact small machines have large stock , can be shipped in around 5 days.
Q4: How many days we need for sending shipping documents?
A4: Usually within 5 days after vessel shipped out.
Q5: Can you add our own logo on the products or use our designs?
A5: Yes,of course you can add logo on the product you bought with on condition that you will issue letter of authorization of the brand.We provide OEM/ODM service.I addition,we promise your design would protect by law,we won't tell anyone else about this. It's your own copyright.
Q6: Can you send the machine to my factory in other city to load the container?
A6: Yes,please tell us the detail address,we can arrange to send your factory in time with a reasonable charge on transportation.\t\t\t\t\t
Q7: How can the machines be send to us?
A7: Most of our products are heavy and big, it's cylinder contains hydraulic oil. so it is only suitable for sea-shipment in terms of cost.
